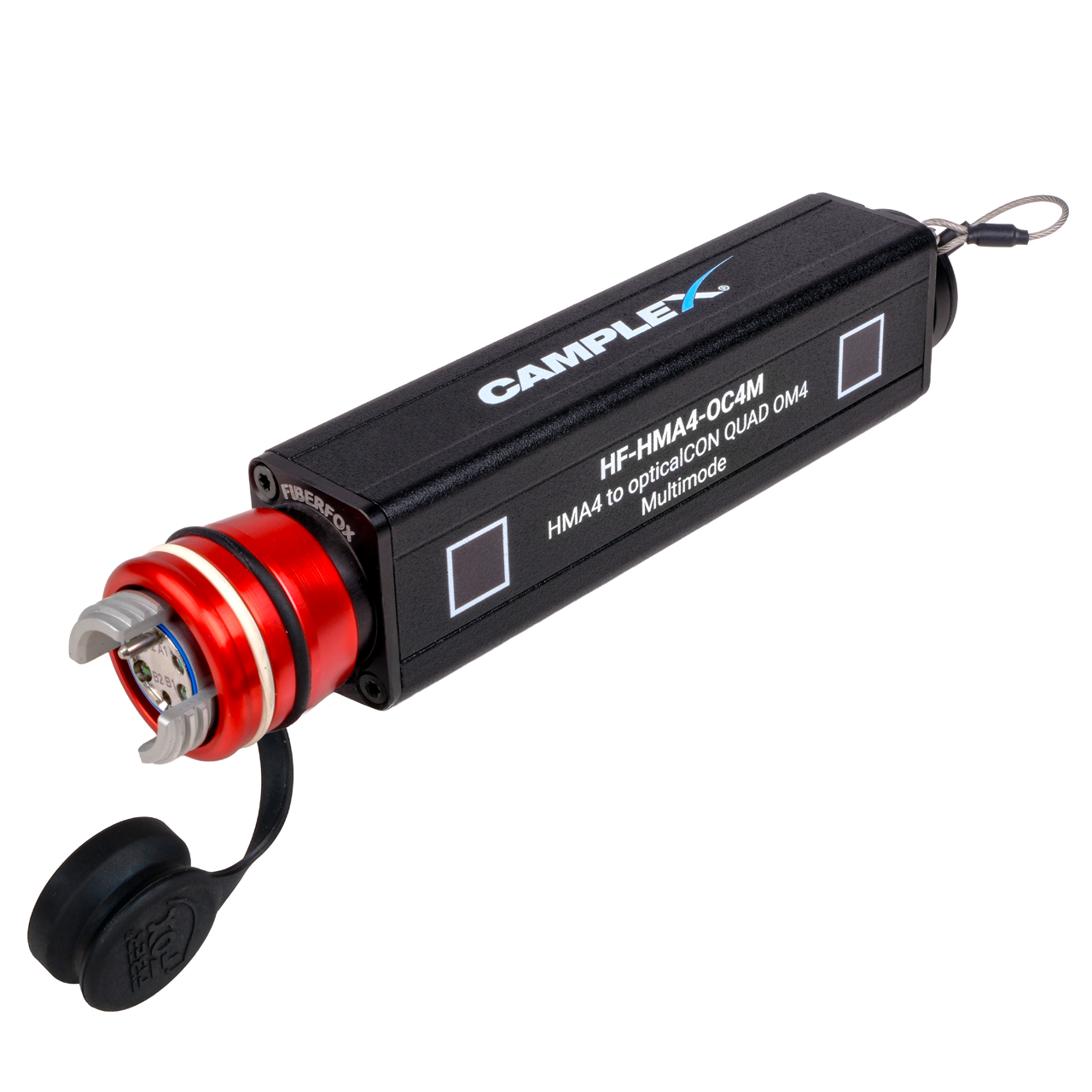

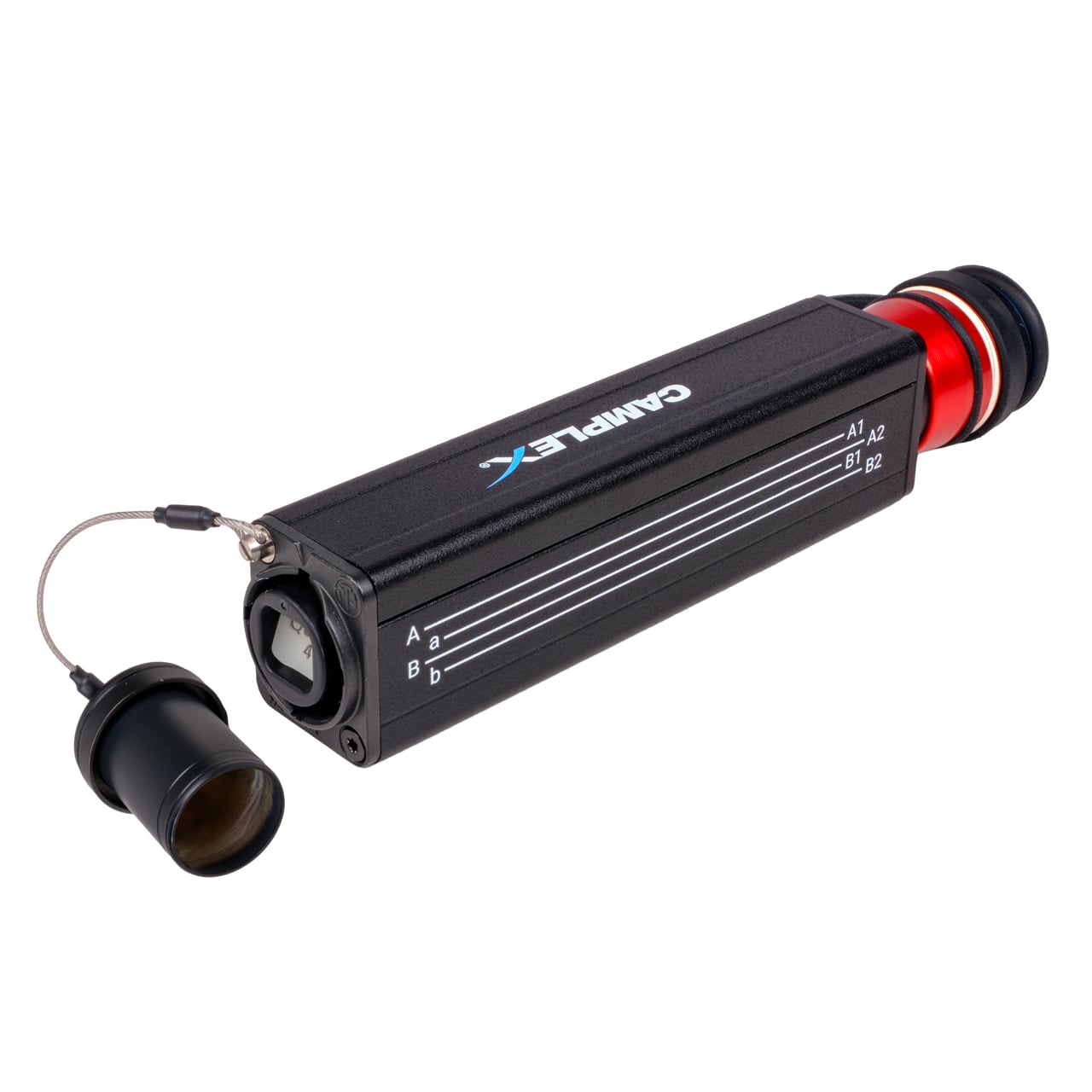

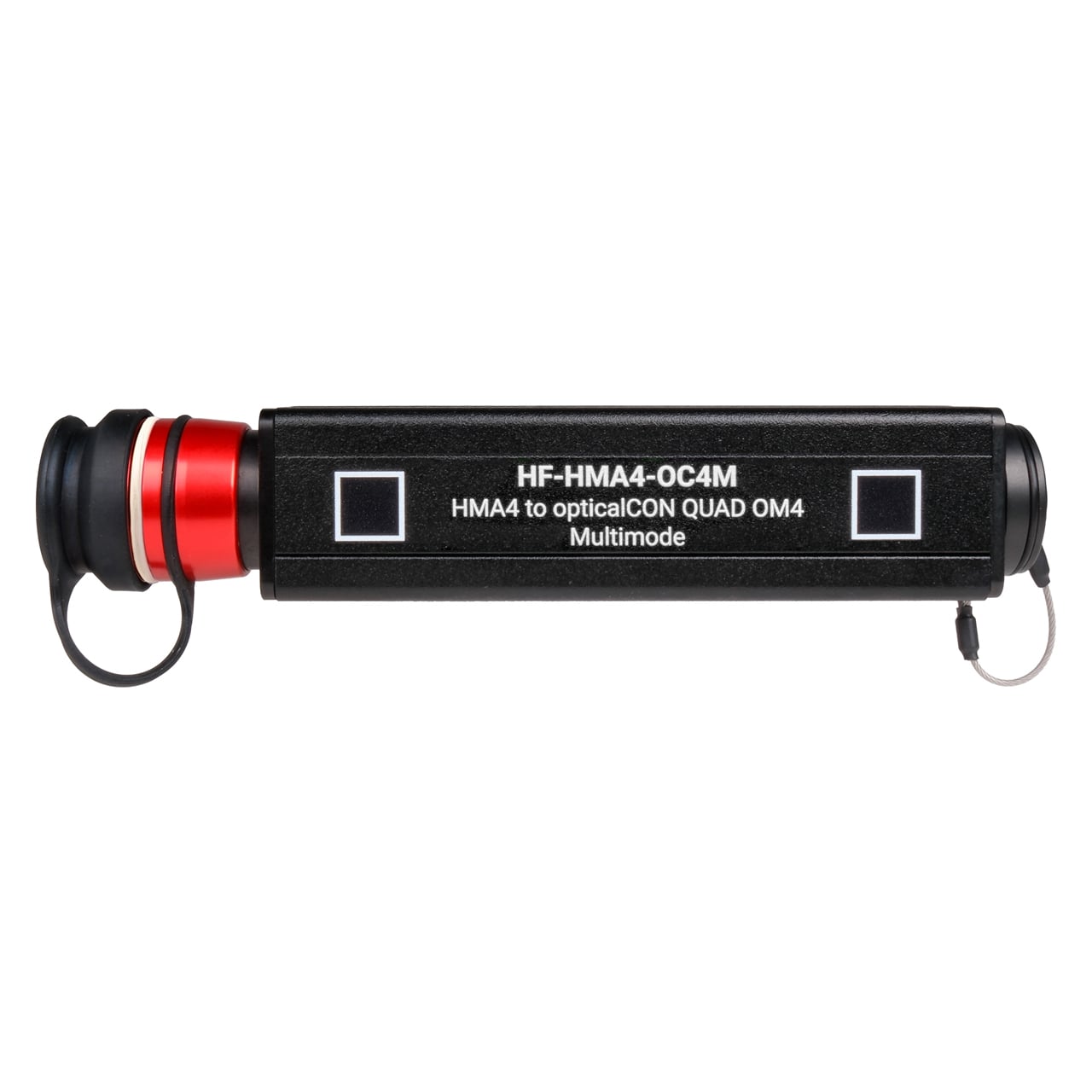

Camplex HF-HMA4-OC4M 4-Channel OM4 Multimode Neutrik FIBERFOX EBC15 briDge to opticalCON QUAD Adapter

ITEM #: HF-HMA4-OC4M MFG #: HF-HMA4-OC4M

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,236.95

Our Price:

$1,175.95

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-HMA4-OC4M - Overview

The Camplex HF-HMA4-OC4M 4-Channel passive OM4 Multimode MIL-DTL-83526 QUAD adapter is designed to interface Neutrik FIBERFOX expanded beam or any MIL-DTL-83526 ecosystem, with opticalCON QUAD assemblies-solving the challenge of interconnecting these two families within the same signal chain. Featuring over 10000 mating cycles with the FIBERFOX connector, and 5000 mating cycles with the Neutrik connector, this series of adapters will last you as long as you need them. The HF-HMA4-OC4M is ideal for broadcast, live production, and permanent installation environments where both connector families coexist.

  • Features:

    • High-Quality Neutrik FIBERFOX and opticalCON Connectors
    • Compatible with FIBERFOX Systems and all MIL-DTL-83526 Systems
    • Rugged Aluminum Housing

  • Specifications:

      Overall Specifications
    • Fiber Type: OM4 Multimode
    • Dimensions (W x H x L): 1.25" x 1.027" x 6.56"

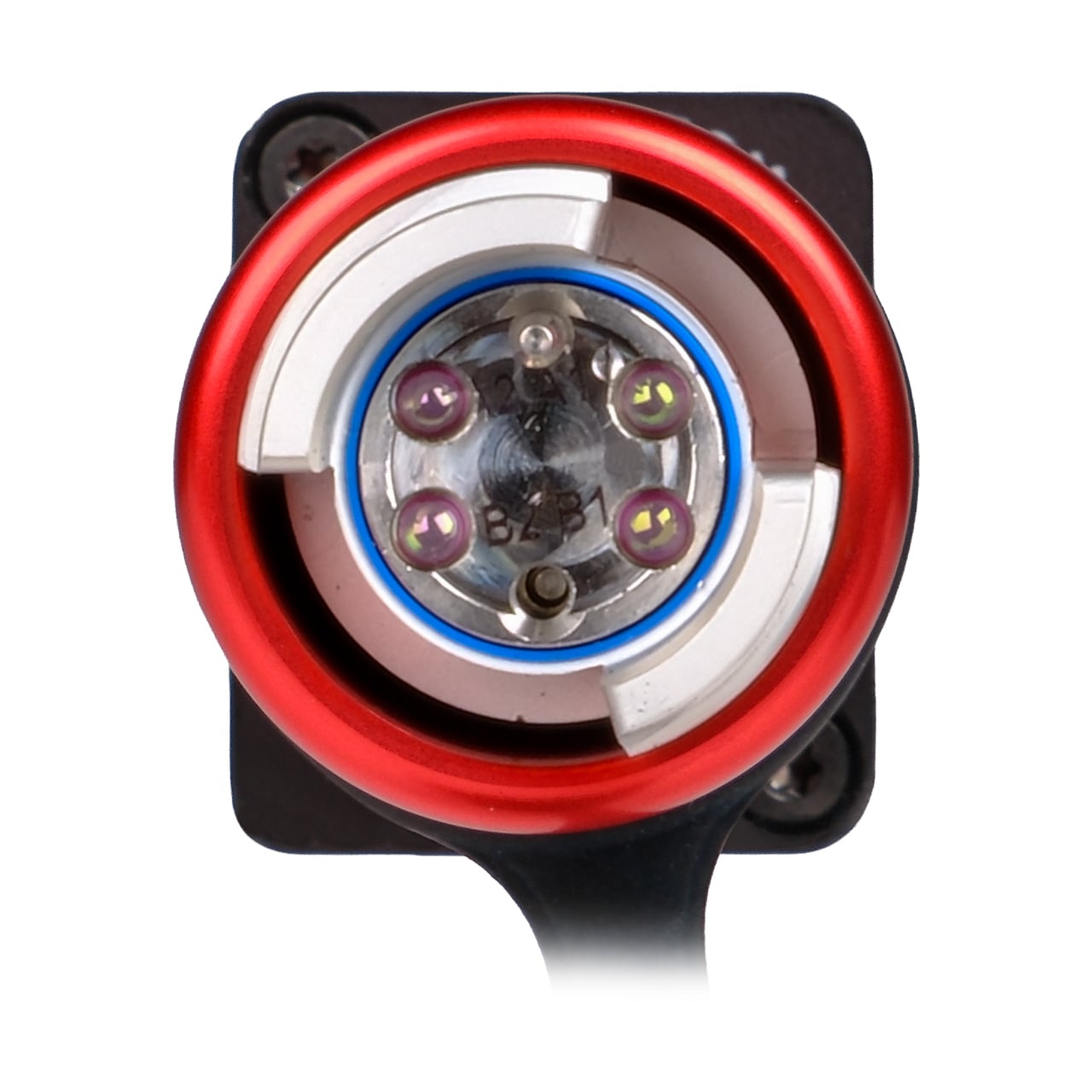

      FIBERFOX HMA 4-Channel Connector
    • Gender: Hermaphroditic
    • Insertion Loss: Typ. 1.5dB per connection / Max. 2.5dB per connection
    • Optical Connector: EBC
    • Optical Wiring: ISO/IEC 11801
    • Lifetime: >10000 mating cycles
    • Locking Device: Screwed
    • Free Fall Resistance: 500 falls onto concrete from 1.2m height
    • Bump Resistance: 4000 bumps @ 40g acceleration
    • Vibrational Sinusoidal: 10-500Hz, 0.75 amplitude @ 10g acceleration
    • Protection Class: IP68 mated and unmated (1m for 60 min)
    • Compatibility: MIL-DTL-83526

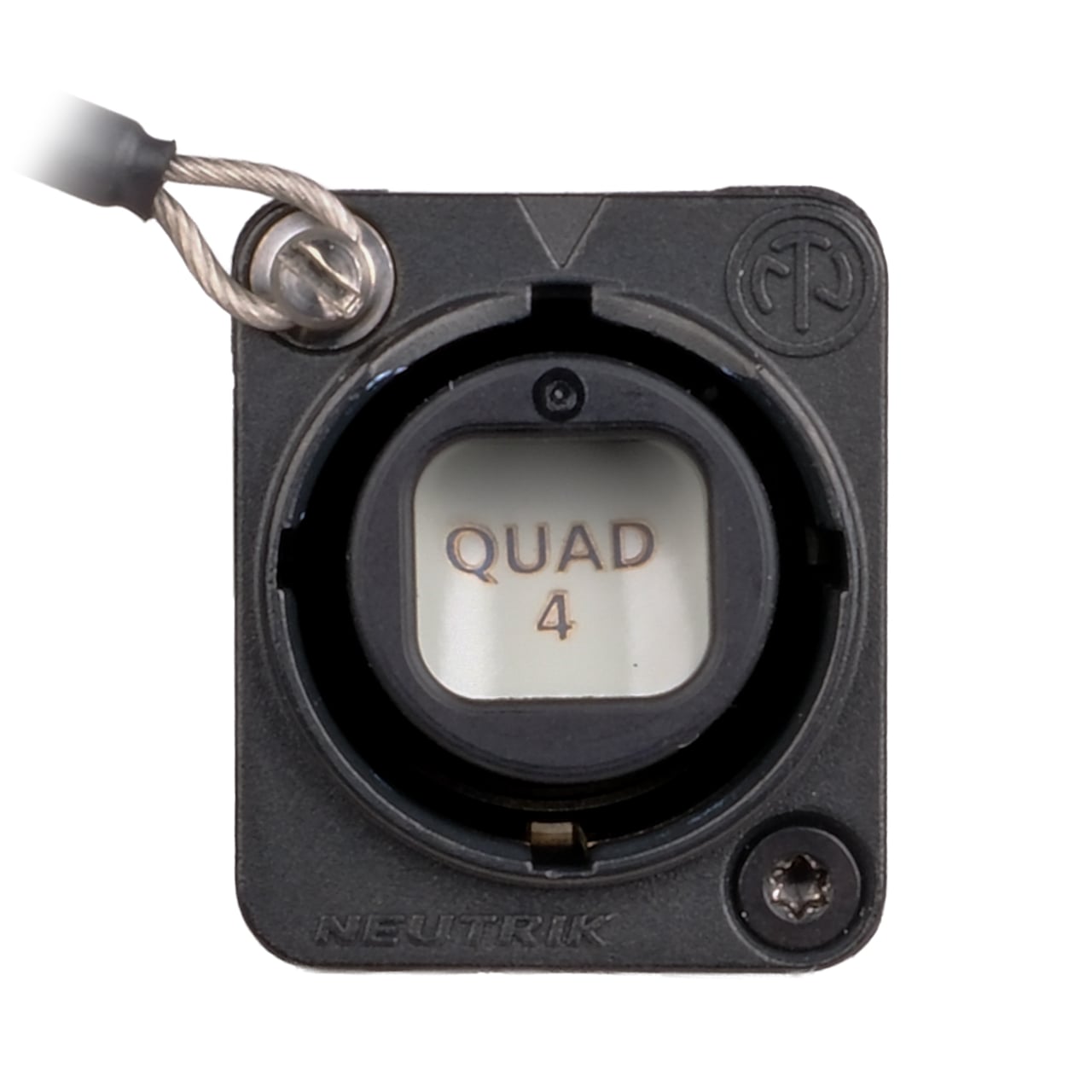

      Neutrik opticalCON Connector
    • Insertion Loss: < 0.5 dB / connection
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: 5000 Mating Cycles
    • Locking Device: Push-Pull
    • Protection Class: IP65 in mated condition in combination with SCDP-*

  • Warranty:

    • Limited Lifetime
