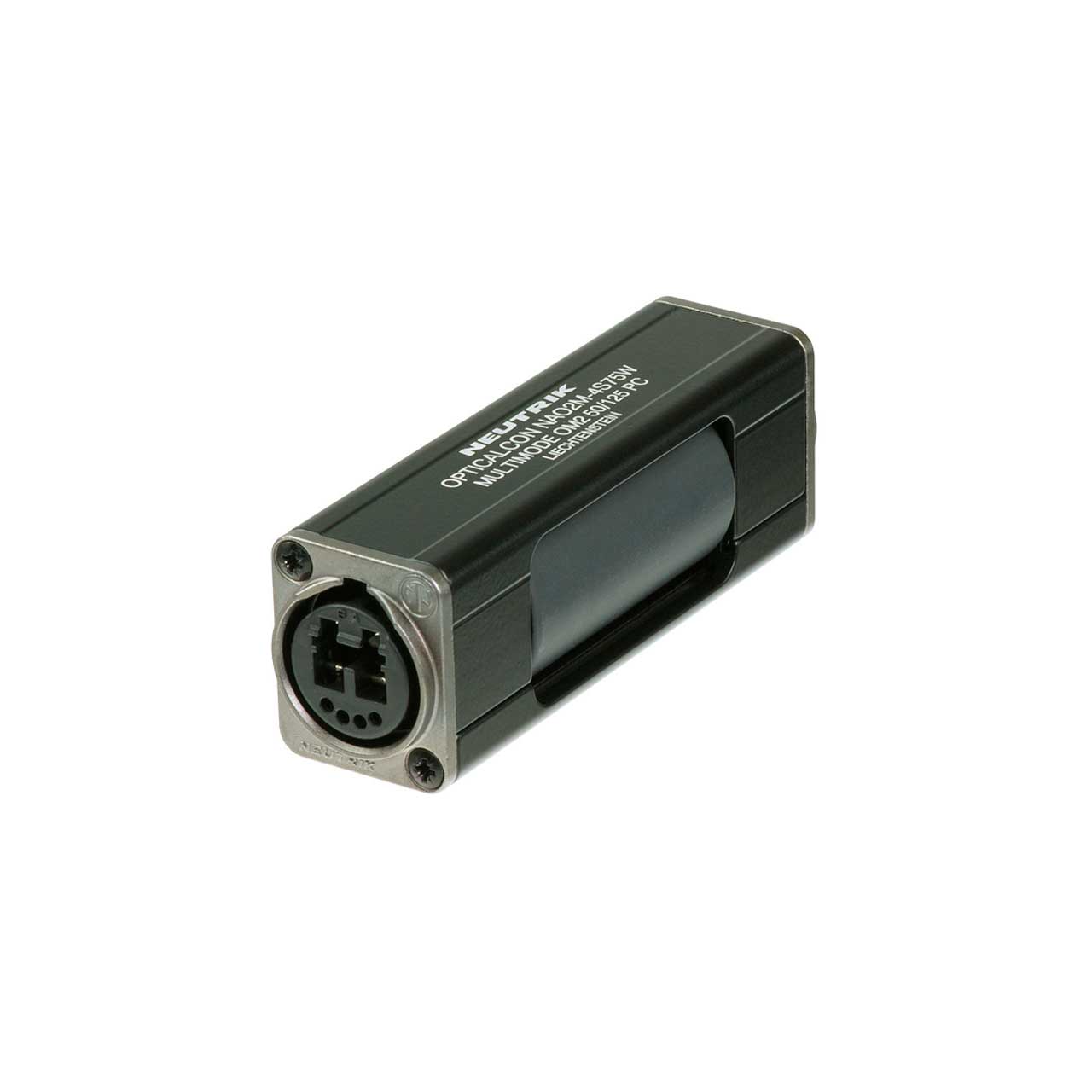

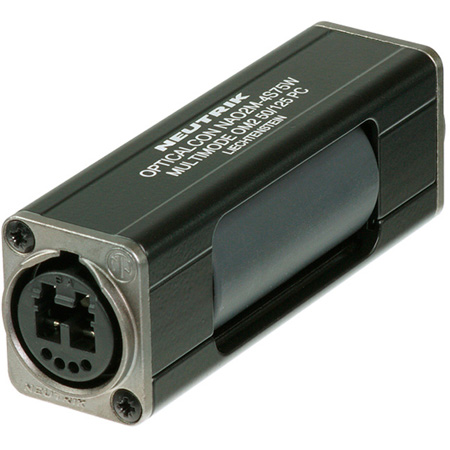

Neutrik NAO2M-H1W-A opticalCON DUO LC Duplex Multimode Female Coupler IP65 Black

NAO2M-H1W-A - Overview

NAO2M-H1W-A - Overview

NAO2M-H1W-A - Details

• Specifications:

  • Electrical
  • Contact Resistance: < 7 mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: > 2 GΩ (initial)
  • Rated Current Per Contact: 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)
  • Rated Voltage: < 50 V (1)

    Mechanical
  • Insertion Force: < 45 N
  • Withdrawal Force: < 45 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: Locking device: Push-Pull

    Material
  • Contact Plating: 0.2 æm Au over 2 æm Ni
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
  • Shell: AlMgSi 0.5, black plated
  • Split Sleeve: Ceramics

    Environmental
  • Temperature Range: -30 °C to +80 °C

    Optical
  • Insertion Loss: < 0.4 dB / connection
  • Optical Connector: LC-Duplex


• Item Includes:

  • 1x Neutrik NAO2M-H1W-A opticalCON DUO LC Duplex Multimode Female Coupler IP65 Black
