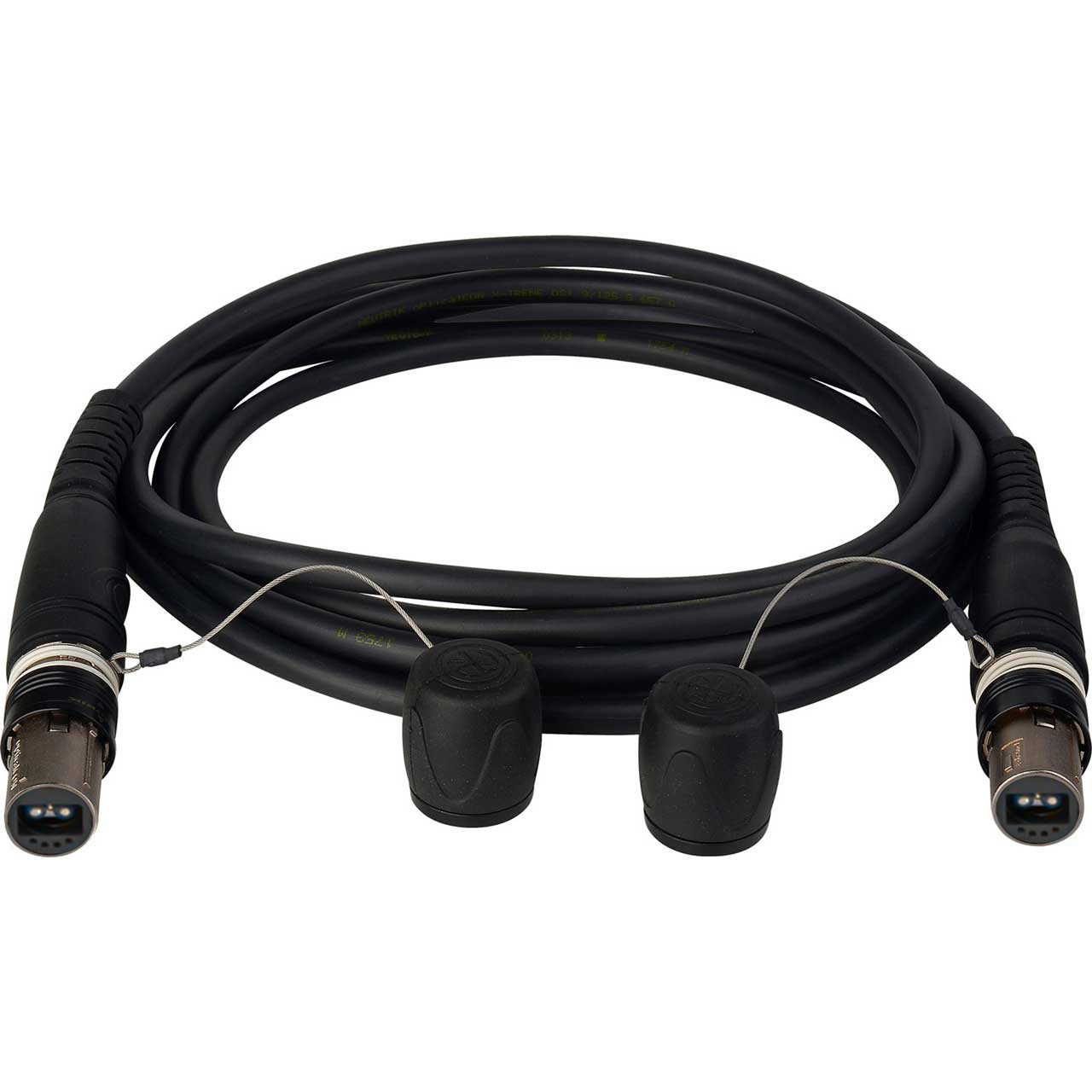

Camplex opticalCON DUO Multimode X-TREME NKOX2M-A-0-31 Tactical Fiber Cable - 100 Foot

ITEM #: HF-OC2MX-0100 MFG #: HF-OC2MX-0100

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,293.95

Our Price:

$1,164.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • Extended Lead Time; estimated delivery in September.


HF-OC2MX-0100 - Overview

Extreme Series Super Rugged OpticalCON Tactical Snake Cables for Severe Environments!

2-Channel Multimode opticalCON DUO X-TREME Fiber only (no power conductors) features a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket. The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

  • Features:

    • Belden Tactical OM3 Multimode Cable equipped with High-quality Neutrik opticalCON DUO connectors
    • Polyurethane double jacket for improved rodent protection
    • Water blocking Aramid and glass yarn strength members
    • Excellent dust and dirt protection due to the automatically sealing cover
    • Reliable Push-Pull locking mechanism

  • Specifications:

      Belden 2-Channel Tactical OM3 Fiber Cable
    • Fiber Type: OM3 Multimode
    • Fiber Count: 4
    • Buffer Construction: Tight
    • Buffer Material: Nylon
    • Buffer Diameter: 0.03" (0.9mm)
    • Cable Core Water blocking: Water blocking Aramid Yarns + Glass Yarns
    • Number of Jackets: Double Jacketed
    • Inner Jacket Material: Polyurethane
    • Outer Jacket Material: Polyurethane
    • Outer Jacket Nom Diameter: 0.36" (9.2mm)
    • Attenuation:
      - Max. Attenuation at 1300 nm: 0.9 dB/km
      - Max. Attenuation at 850 nm: 2.9 dB/km
    • Bend Radius:
      - Installation: 2.89" (76.40mm)
      - Operation: 1.44" (36.57mm)
    • Max. Tensile Strength:
      - Installation: 2400 N (540lbs)
      - Operation: 800 N (180lbs)
    • Max Crush Resistance:
      - Installation: 5 kN/m
      - Operation: 3 kN/m
    • Temperature:
      - Operating: -94°F - 185°F (-70°C - 85°C)
      - Installation: 23°F - 122°F (-5°C - 50°C)

      Neutrik Connectors
    • Insertion Loss: < 0.5 dB / connection
    • Optical Connector: LC-Duplex
    • Optical Wiring: ISO /IEC 11801
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: 5000 mating cycles
    • Locking Device: Push-Pull
