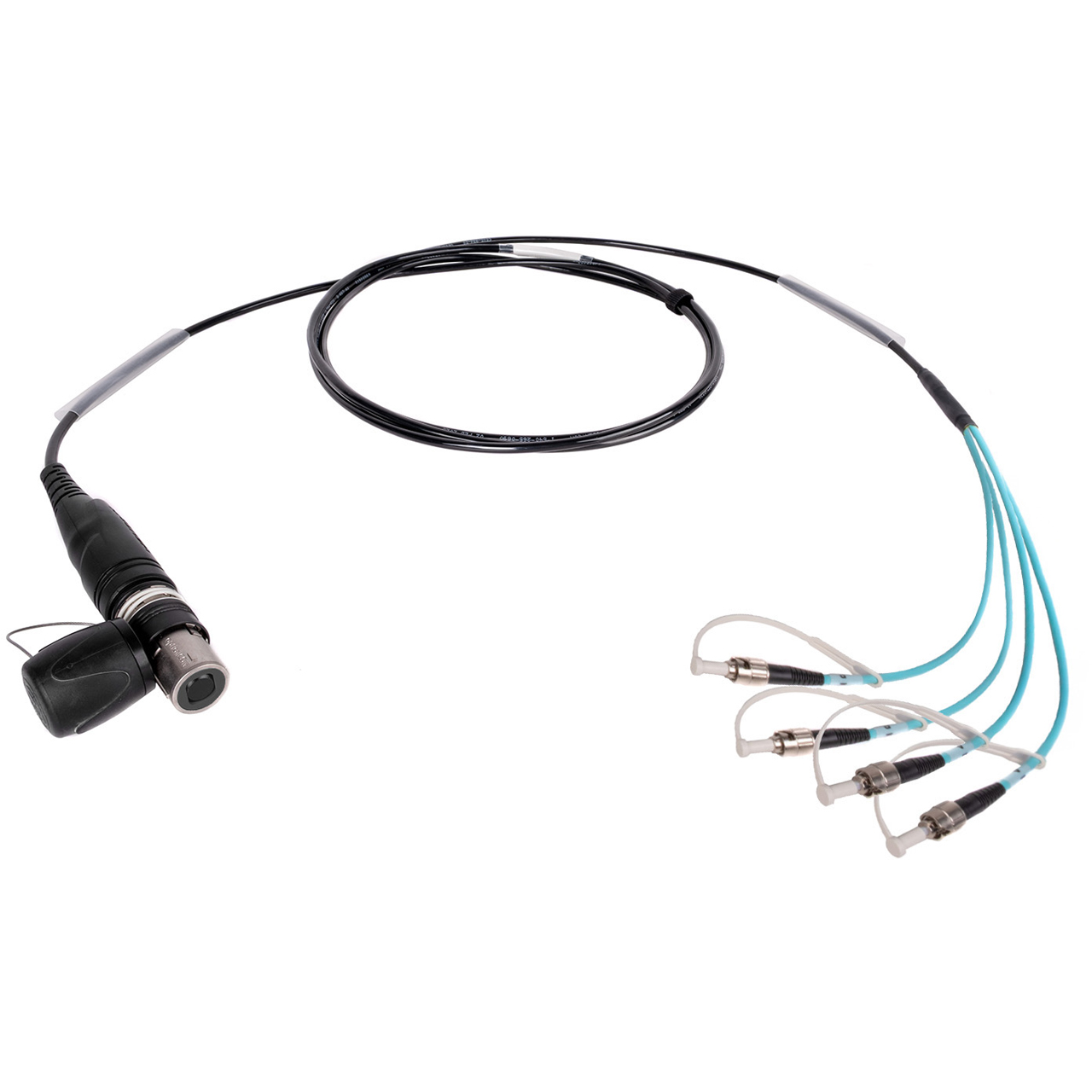

Camplex HF-OC4M-ST opticalCON QUAD NKO4M to (4) ST Multimode Fiber Optic Breakout Cable - 75 Foot

ITEM #: HF-OC4M-ST-0075 MFG #: HF-OC4M-ST-0075

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$727.49

Our Price:

$660.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HF-OC4M-ST-0075 - Overview

opticalCON QUAD NO4MX to Quad ST Multimode Fiber Optic Breakout Cables. Four Fibers only, no electrical conductors. Designed for Broadcast & Pro-Audio Applications! Ruggedized opticalCON QUAD fiber optic cables designed for internal wiring of racks and patch panels. Quickly adapt opticalCON QUAD equipment to standard ST fiber systems. opticalCON assemblies are COCA factory terminated and machine polished. Cables are assembled using the Neutrik opticalCON ADVANCED system which includes lockable and waterproof metal caps as well as rubber guards, essential for outdoor applications. The ergonomically cable strain relief improves the cable protection in long-term use and the color-coding options allow custom-built coding. APC Polished Models, Custom Lengths & Configurations Always Available!

  • Features:

    • opticalCON assemblies are interferometrically tested to GR-326-CORE endface standards.
    • Made with high-quality Senko LC connectors with excellent optical parameters and random mating compatibility results.
    • Machine polishing processes provide exceptionally low return loss and insertion loss.
    • opticalCON features a ruggedized connector body, common ST contacts and a mechanical shutter system to shield against endface contamination.

  • Specifications:

      Overall Specifications
    • 2x Neutrik OpticalCon, NO4MX
    • Tactical Polyurethane Jacket
    • 5mm diameter
    • Black Nickel Finish Connector Body

      Mechanical Specifications
    • Cable Retention Force: = 500N
    • Lifetime: >1000 Cycles
    • Insertion/Withdrawal Force: < 45N
    • Operating Temperature: -13°F - 167°F (-25°C - 75°C)
    • Minimum Bend Radius: = 4cm

      Optical Specifications
    • Type: ST-UPC (Straight Polish)
    • Fiber Type: 50µm OM3 Multimode Fiber
    • Cable Loss: < 3dB/km @ 850nm, < 1dB/km @ 1300nm
    • Connector Loss: <0.5dB/Connector
    • Connector Back Reflection: -55dB/-45dB RL (typical/max)

  • Warranty:

    • Limited Lifetime
