Camplex HF-OC4M4 opticalCON QUAD NKO4M OM4 Multimode Tactical Fiber Optic Cable - 656 Foot

ITEM #: HF-OC4M4-0656 MFG #: HF-OC4M4-0656

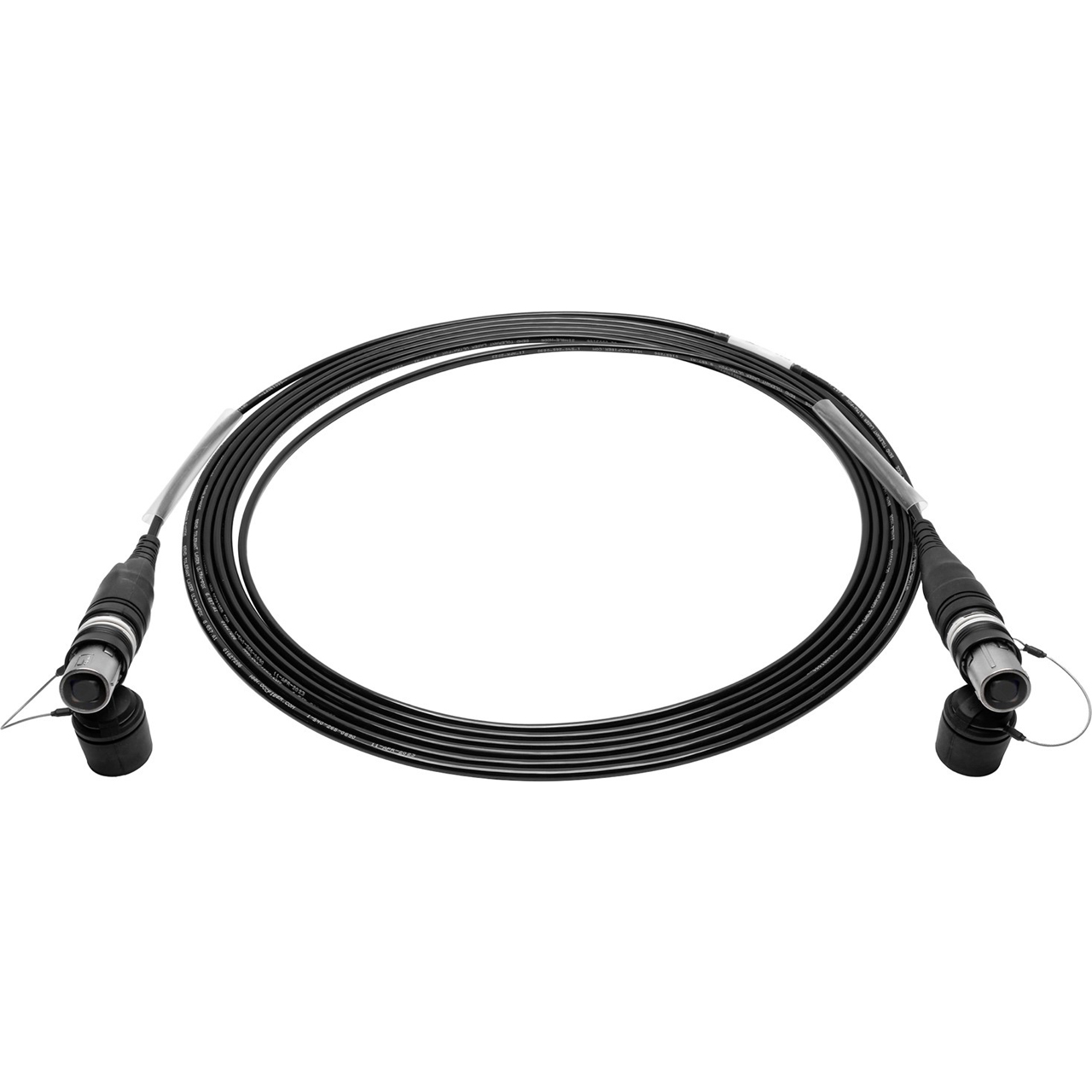

Primary Image
Camplex
Free Shipping with $49 Minimum Order

List Price:

$2,338.49

Our Price:

$2,125.95

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

HF-OC4M4-0656 - Overview

Extremely Rugged & Lightweight opticalCON QUAD NO4MX to NO4MX Multimode Tactical Snake Cables. Four Fibers only, no electrical conductors. Designed for Broadcast & Pro-Audio Applications! Ruggedized OM4 opticalCON QUAD fiber optic cables designed for field production in outside broadcast, rental houses and more. opticalCON assemblies are COCA factory terminated and machine polished in our state of the art Fiber Optic Lab. Camplex cables are exclusively assembled using the Neutrik opticalCON ADVANCED system. opticalCON ADVANCED further enhances the original opticalCON making it more robust by adding lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomic cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding. Custom Lengths & Configurations Always Available!

  • Features:

    • 50µm OM4 Multimode Fiber opticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
    • Machine polishing processes provide exceptionally low return loss and insertion loss opticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
    • Machine polished and tested end faces
    • Tactical tight buffered PUR Cable
    • Optical Shutter Mechanism for added protection Typical back reflection <-55dB

      Applications: Digital Audio & Video Digital Signage Data & Networking Lighting Control Deployable, Staging, and Harsh Environment JVC FS-790 Cameras


  • Specifications:

      OM4 MM OCC Tactical Fiber Optic Cable
    • Core/Cladding Diameter (µm): 50/125
    • Max Tensile Load: 1,800 N (400 lbs) 600 N (130 lbs)
    • Min Bend Radius: 5.5 cm (2.2") 2.8 cm (1.1")

      Mechanical and Environmental
    • Impact Resistance (EIA/TIA-455-25A): 1500 impacts
    • Crush Resistance (TIA/EIA-455-41A): 1800 N/cm
    • Flex Resistance: 2000 cycles
    • Operating Temperature: -40°C - 85°C
    • Storage Temperature: -70°C - 85°C
    • Jacket Material: Flame Retardant Tactical Polyurethane
    • Cable Diameter 5.5 mm ( 0.22")

      Neutrik opticalCON QUAD Connector
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime (typ.): 5000 mating cycles
    • Locking Device: Push-Pull
    • Insertion Loss: < 0.45 dB / connection


  • Warranty:

    • Limited Lifetime
