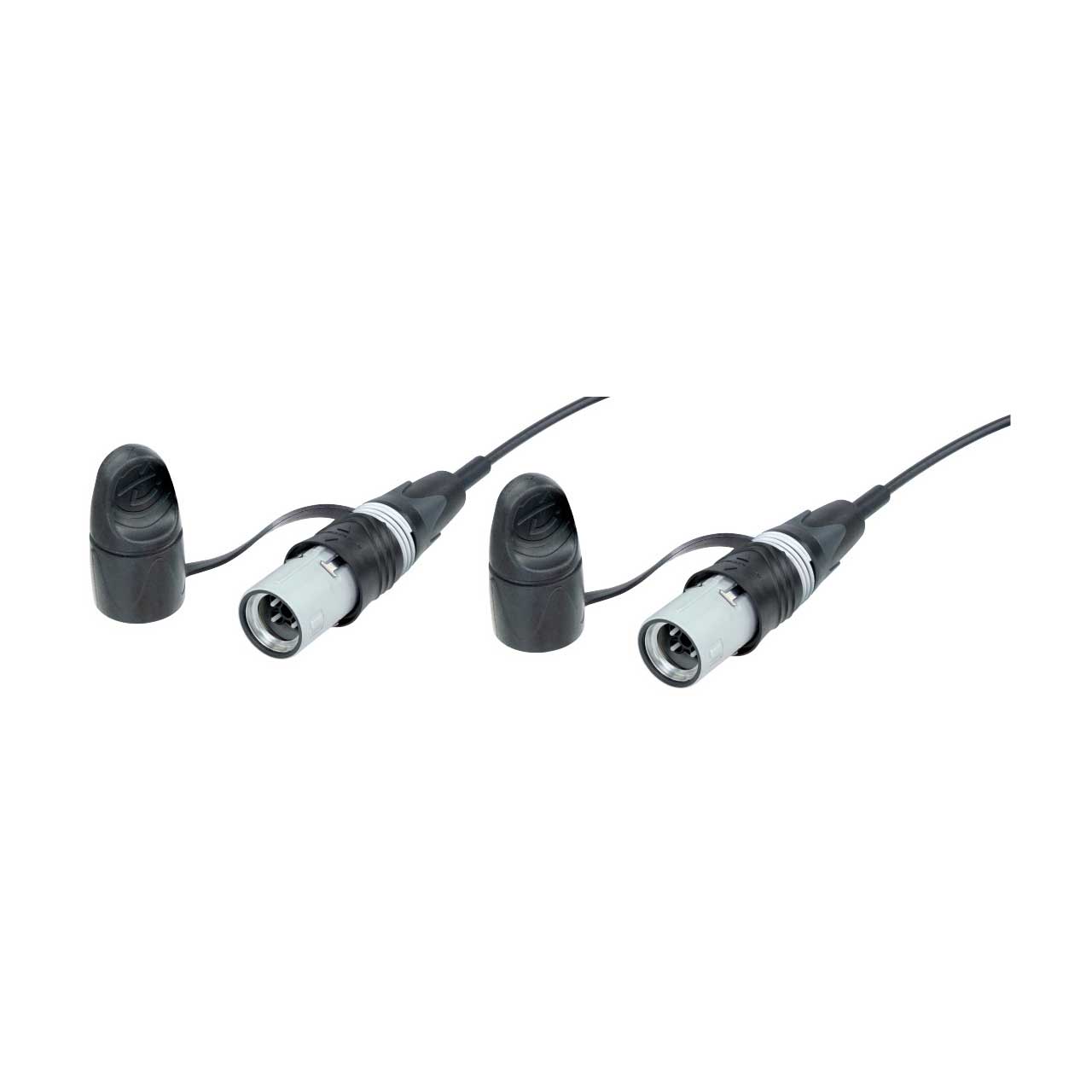

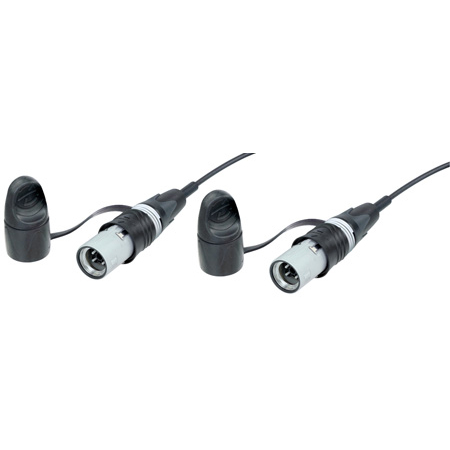

Camplex HF-OCL4S-0003 opticalCON QUAD LITE Single Mode Fiber Optic NKO4S-L-0-1 Tactical Patch Cable - 3 Foot

ITEM #: HF-OCL4S-0003 MFG #: HF-OCL4S-0003

Free Shipping with Minimum Order Banner

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    HF-OCL4S-0003 - Overview

    Neutrik opticalCON QUAD LITE Single Mode fiber cables by Camplex provide a semi-rugged alternative to opticalCON Advanced systems when the action calls for a compact, lightweight solution. The cable is designed to allow higher bend radius performance typically used in rack interconnects, camera cranes, steadicam rigs, truck bays and other similarly controlled environments. Best of all, It is fully compatible with standard opticalCON QUAD connections. The QUAD delivers a ruggedized 4-channel fiber optic connection system for semi and permanent installation. Mated connections are waterproof acc. to IP65 safety standards and the reliable push-pull locking mechanism assures there is never an accidental disconnect. All connections are compatible with standard opticalCON QUAD NO4FDW-A chassis connectors.

    • Features:

      • 4-Channel Single Mode Tactical Patch Cable
      • Dust and Waterproof According to IP65 in Mated Condition
      • Bend Insensitive Fiber Rugged Push-Pull Locking Mechanism with Rubber Caps
      • Lifetime: 2500 Mating Cycles
      • Easy to Clean Shutterless Connectors
      • Rugged Cable Retention Utilizing Aramid Yarn Strength Member
      • Extremely Flexible and Crush Resistant Lightweight Plastic Housing Compatible with Standard opticalCON DUO NO2-4FDW-A / QUAD NO4FDW-A
    • Specifications:

      • Neutrik opticalCON QUAD LITE NO4SX Connectors
      • Cable Retention: > 250 N
      • Insertion Force: < 35 N
      • Withdrawal Force: < 35 N
      • Insertion Loss: < 0.45 dB / Connection Optical Connector 1.25 mm ceramic ferrule
      • Minimal Bending Radius: 3 cm DUO / 3.5mm QUAD
      • Cladding Diameter: 125 µm PUR
      • Number of Fibers: 4
      • Cable Retention: Aramid Yarn
