Camplex 2-Channel LC Single Mode Fiber Optic Tactical Cable on Reel - 328 Foot

ITEM #: HF-TR02LC-0328 MFG #: HF-TR02LC-0328

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$650.49

Our Price:

$568.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-TR02LC-0328 - Overview

Extremely Rugged & Lightweight Tactical Fiber Snakes Designed for Broadcast & Pro-Audio Applications!

Ruggedized singlemode multi-channel fiber optic cables designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both Military Tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

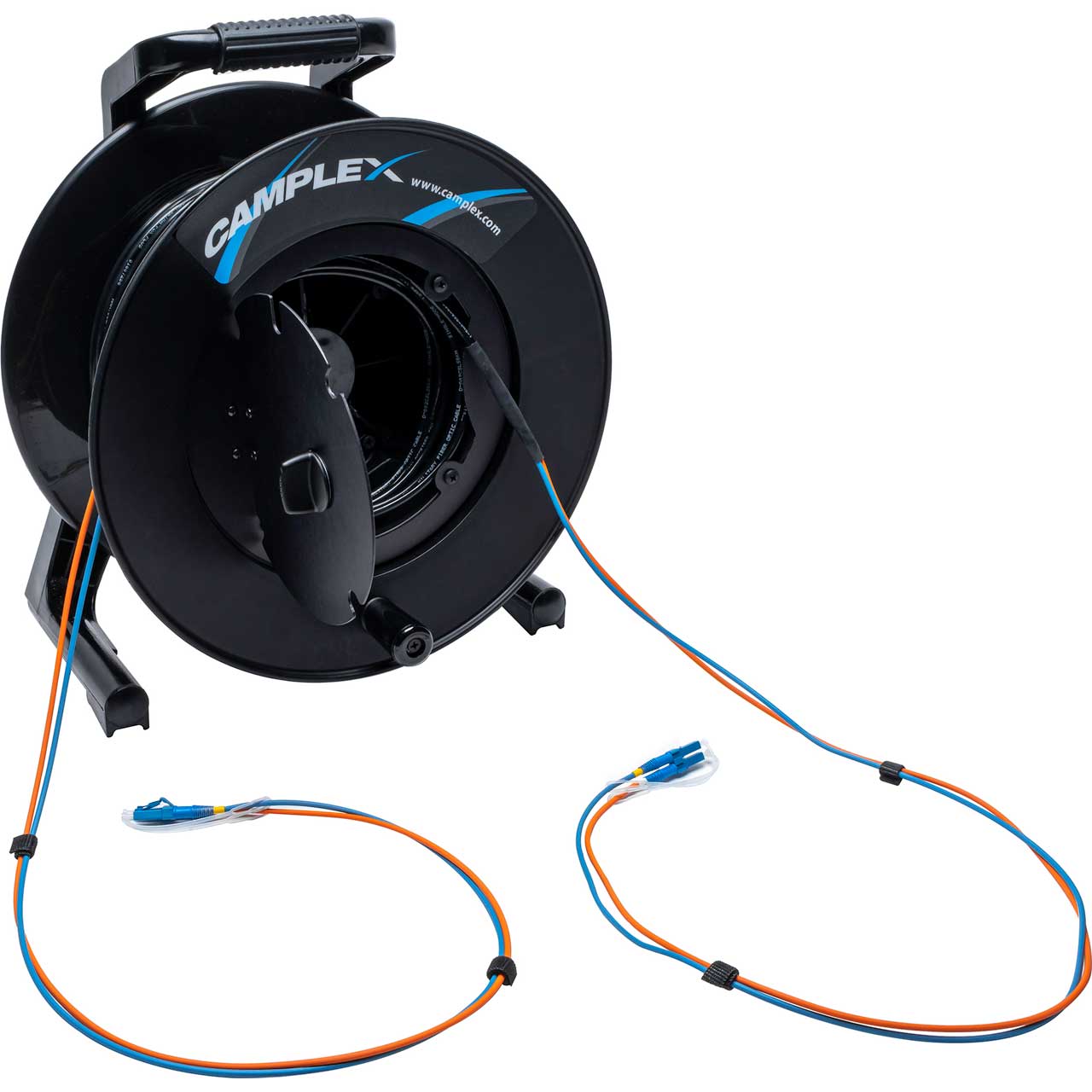

Reels can include a hinged latching door, outboard coiling ring with retention strap, or slotted disk dividers depending on cable diameters and lengths. Check with your sales associate for reel information regarding specific assemblies.

  • Features:

    • Built in our Fiber Shop with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
    • Individual 36-Inch Fanout Channels Protected with Polyurethane Tactical Furcation Tubing
    • Compact, round cable design for ease of transportation and deployment
    • Designed for use in adverse environments where reduced size and weight are important
    • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
    • Cables have been tested and are in use in military data communications applications worldwide
    • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
    • Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
    • Crush-resistant and resilient with a thick layer of aramid strength members
    • Polyurethane jacketed for abrasion, cut and chemical resistance
    • Meets & Exceeds MIL-PRF-85045 Specifications!

  • Specifications:

    • Industry Standard Designation: Single-Mode ITU-T G.652.A
    • Core/Cladding Diameter (æm): 9/125
    • Wavelength (nm): 1310/1550
    • Maximum Cabled Attenuation (dB/km): 0.5/0.5
    • Primary Coating Diameter (æm): 500
    • Secondary Buffer Diameter (æm): 900
    • Zero Dispersion Slope (ps/nm2-km): 0.092
    • Proof Test Level (kpsi): 100
    • Typical RL <-55dB and IL<0.25dB
