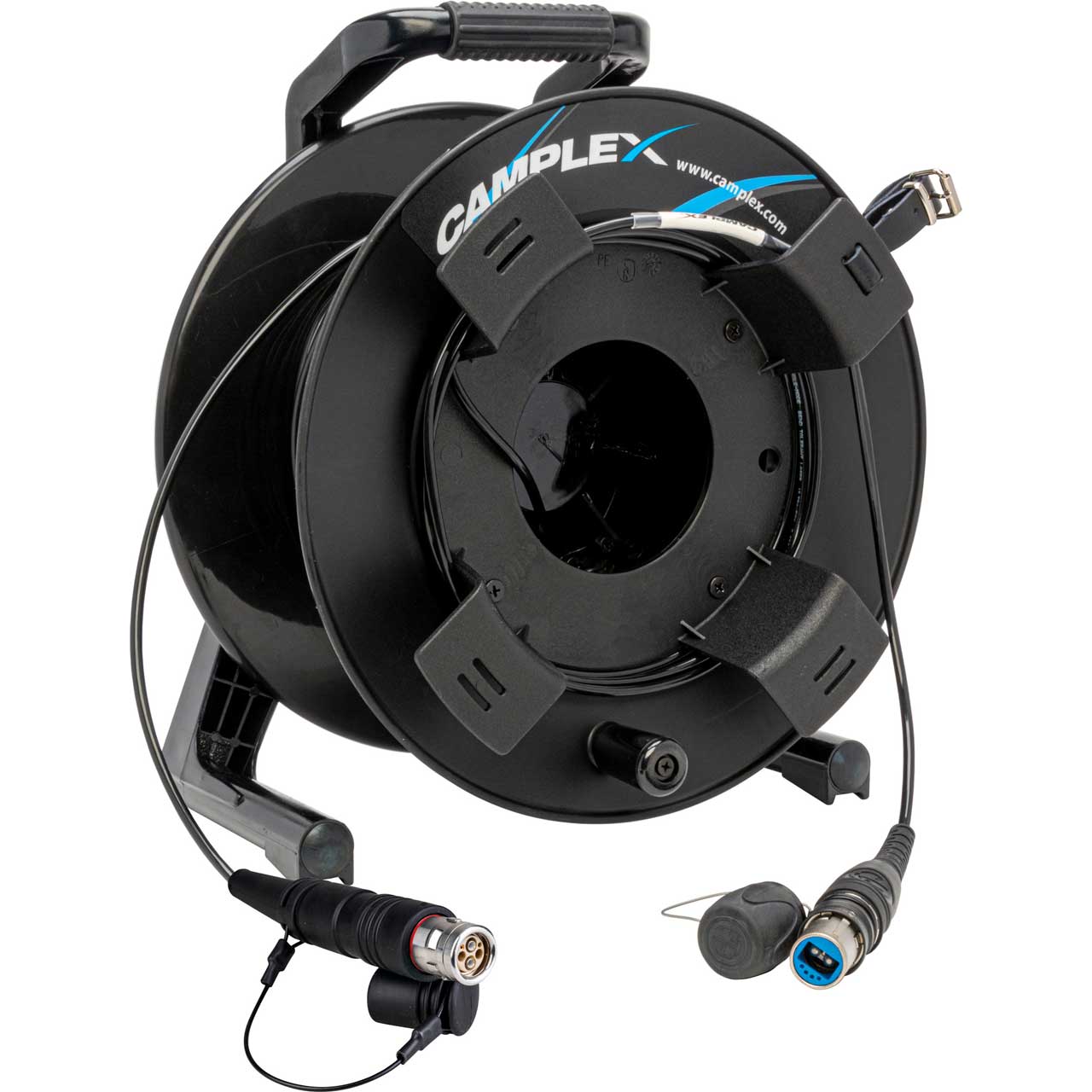

OpticalCON DUO NO2SX to LEMO FUW 304M Singlemode Hybrid Outside Broadcast Cable with heavy duty tactical cable reel. OpticalCON assemblies are COCA factory terminated and machine polished in our state of the art Fiber Optic Lab. Neutrik OpticalCON assemblies are made with outside broacast SMPTE 311M cable rated for ruggedized applications and field deployment in commerical and professional broadcast AV applications.
OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards. Machine polishing processes provide exceptionally low return loss and insertion loss. OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination. SMPTE cable with 2 singlemode fiber UPC, 2 x AWG24 and 2 x AWG16 or (2x17AWG) stranded copper conductors, overall copperbraided shield and stainless steel strengh member. This cable is not compatable with the SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.
Our cables are exlusively assembled using the Neutrik opticalCON ADVANCED system. opticalCON ADVANCED further enhances the original opticalCON making it more robust by adding lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomically cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding.
Snake Reels can include a hinged latching door, outboard coiling ring with retention strap, or slotted disk dividers depending on cable diameters and lengths. Check with your sales associate for reel information regarding specific assemblies.
