Camplex Tactical Reel opticalCON DUO DUO Multimode XTREME Fiber TAC Cable - 500 Foot

ITEM #: HF-TROC2MX-0500 MFG #: HF-TROC2MX-0500

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,009.95

Our Price:

$2,708.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • Extended Lead Time; estimated delivery in September.


HF-TROC2MX-0500 - Overview

Extreme Series Super Rugged OpticalCON Tactical Snake Cables for Severe Environments!

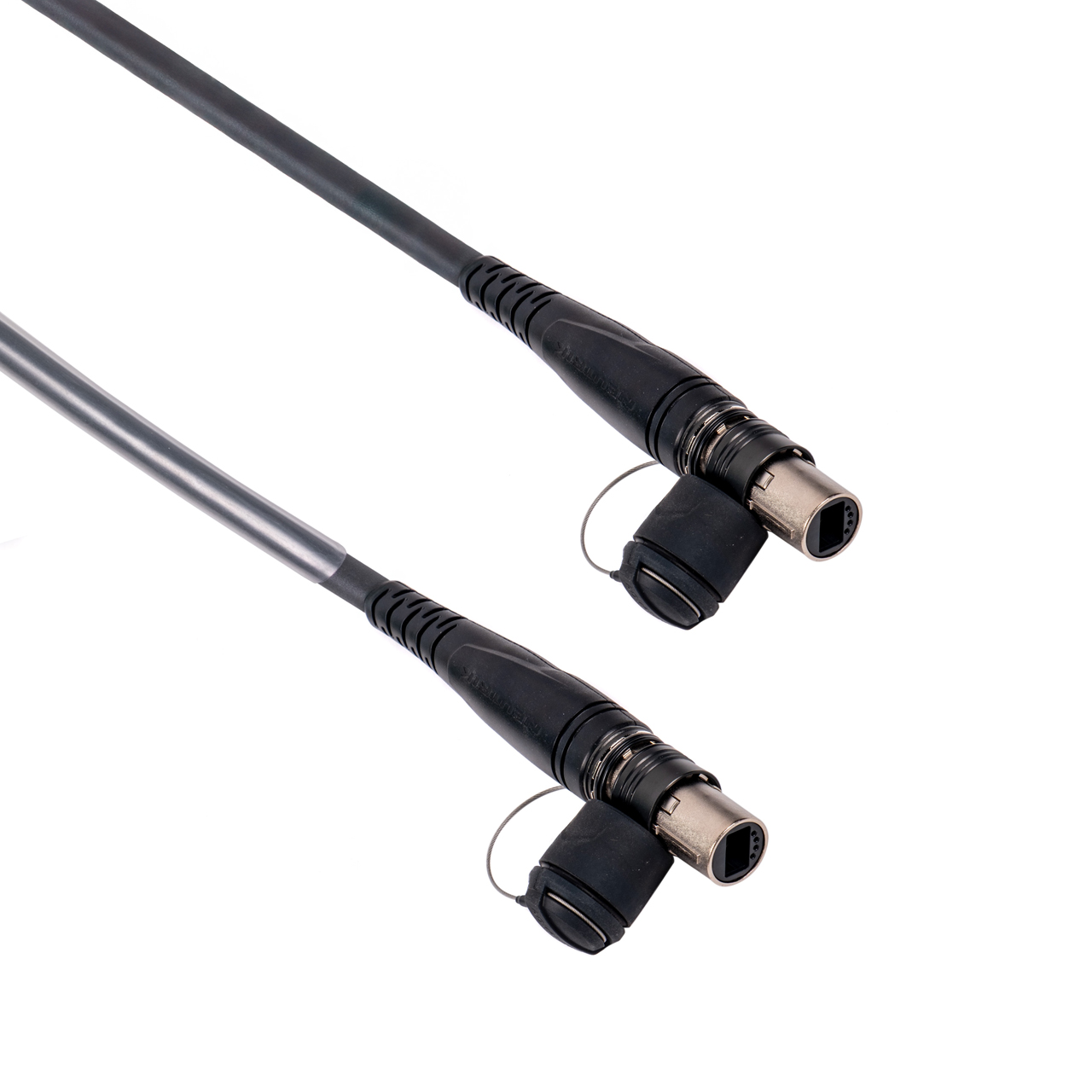

2-Channel Multimode opticalCON DUO X-TREME Fiber only (no power conductors) features a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket. The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

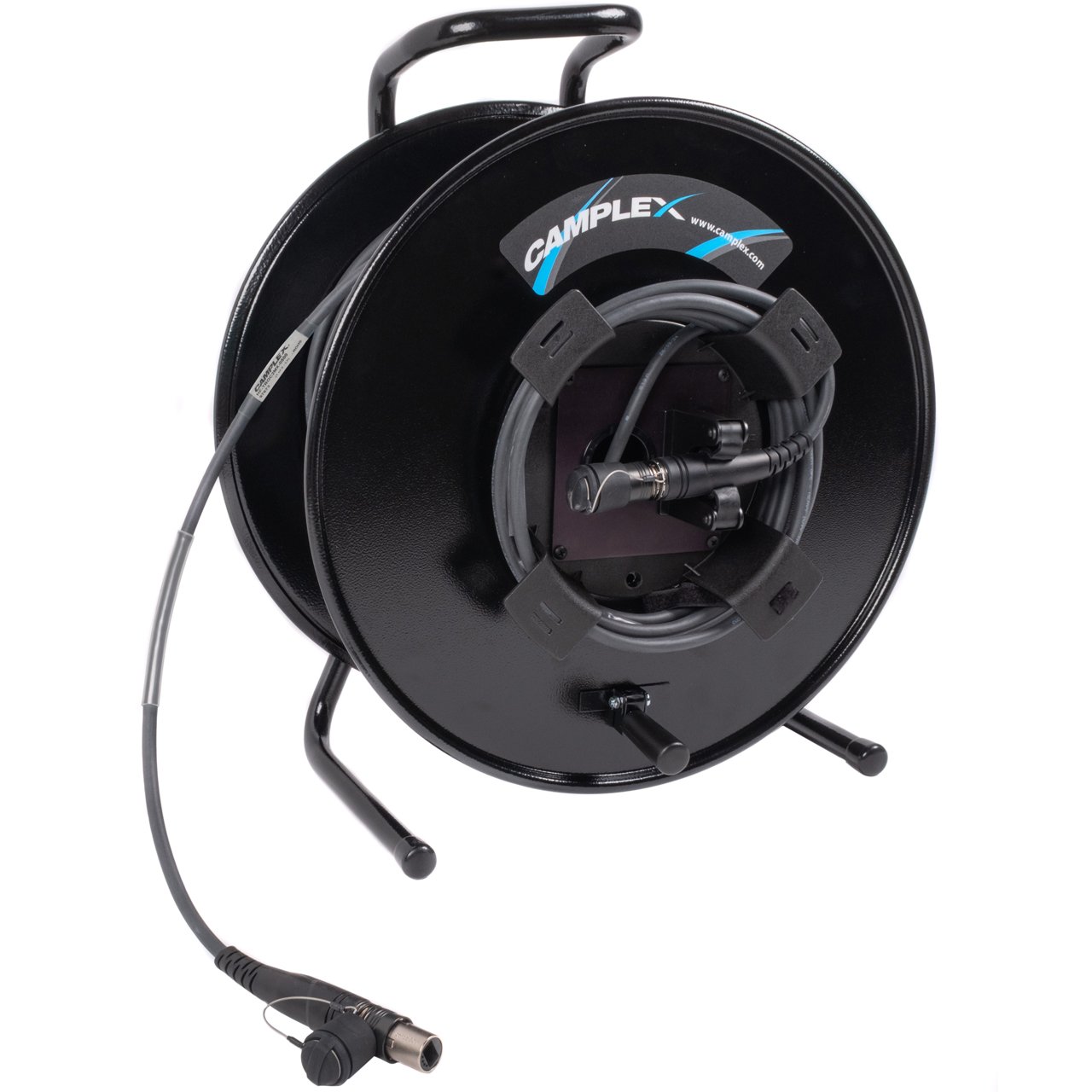

Tactical Fiber Snake Reels can include a hinged latching door, outboard coiling ring with retention strap, or slotted disk dividers depending on cable diameters and lengths. Check with your sales associate for reel information regarding specific assemblies.

  • Features:

    • Belden Tactical OM3 Multimode Cable equipped with High-quality Neutrik opticalCON DUO connectors
    • Polyurethane double jacket for improved rodent protection
    • Water blocking Aramid and glass yarn strength members
    • Excellent dust and dirt protection due to the automatically sealing cover
    • Reliable Push-Pull locking mechanism

  • Specifications:

      Belden 2-Channel Tactical OM3 Fiber Cable
    • Fiber Type: OM3 Multimode
    • Fiber Count: 4
    • Buffer Construction: Tight
    • Buffer Material: Nylon
    • Buffer Diameter: 0.03" (0.9mm)
    • Cable Core Water blocking: Water blocking Aramid Yarns + Glass Yarns
    • Number of Jackets: Double Jacketed
    • Inner Jacket Material: Polyurethane
    • Outer Jacket Material: Polyurethane
    • Outer Jacket Nom Diameter: 0.36" (9.2mm)
    • Attenuation:
      - Max. Attenuation at 1300 nm: 0.9 dB/km
      - Max. Attenuation at 850 nm: 2.9 dB/km
    • Bend Radius:
      - Installation: 2.89" (76.40mm)
      - Operation: 1.44" (36.57mm)
    • Max. Tensile Strength:
      - Installation: 2400 N (540lbs)
      - Operation: 800 N (180lbs)
    • Max Crush Resistance:
      - Installation: 5 kN/m
      - Operation: 3 kN/m
    • Temperature:
      - Operating: -94°F - 185°F (-70°C - 85°C)
      - Installation: 23°F - 122°F (-5°C - 50°C)

      Neutrik Connectors
    • Insertion Loss: < 0.5 dB / connection
    • Optical Connector: LC-Duplex
    • Optical Wiring: ISO /IEC 11801
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: 5000 mating cycles
    • Locking Device: Push-Pull
