The Hollyland MELO P1 Smart Audio Mixer is a wireless receiver component of Hollyland MELO P1 music creation systems.
Instrument Input

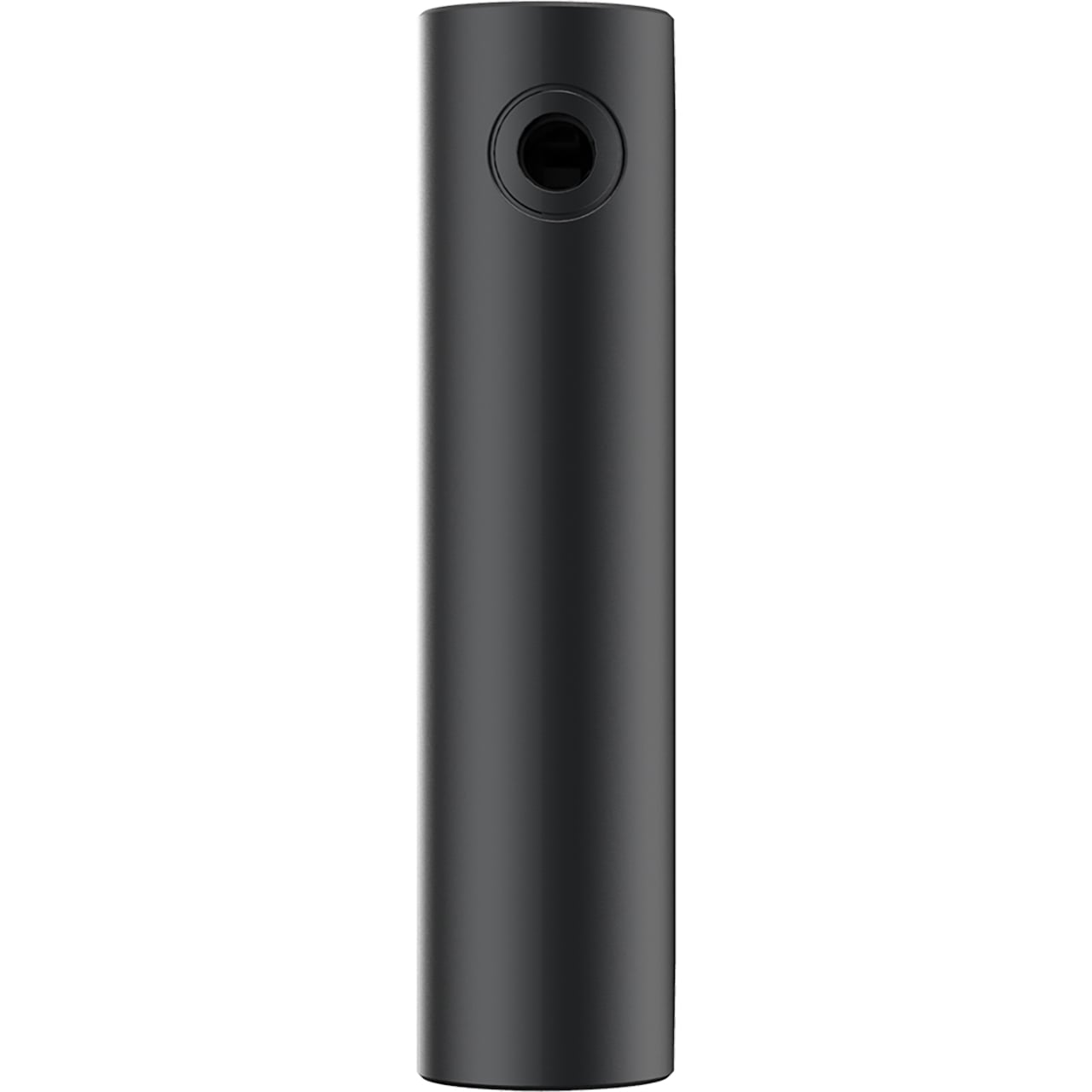

For balanced instrument signals, connect to the 3.5mm jack shown in the diagram using a 1/4" to 3.5mm adapter, and set this jack to "Input" in the HollyAudio App. For unbalanced instrument signals, connect to the 3.5mm jack shown in the diagram using a DI box XLR to 3.5mm cable, and set this jack to "Input" in the HollyAudio App.
Audio Output

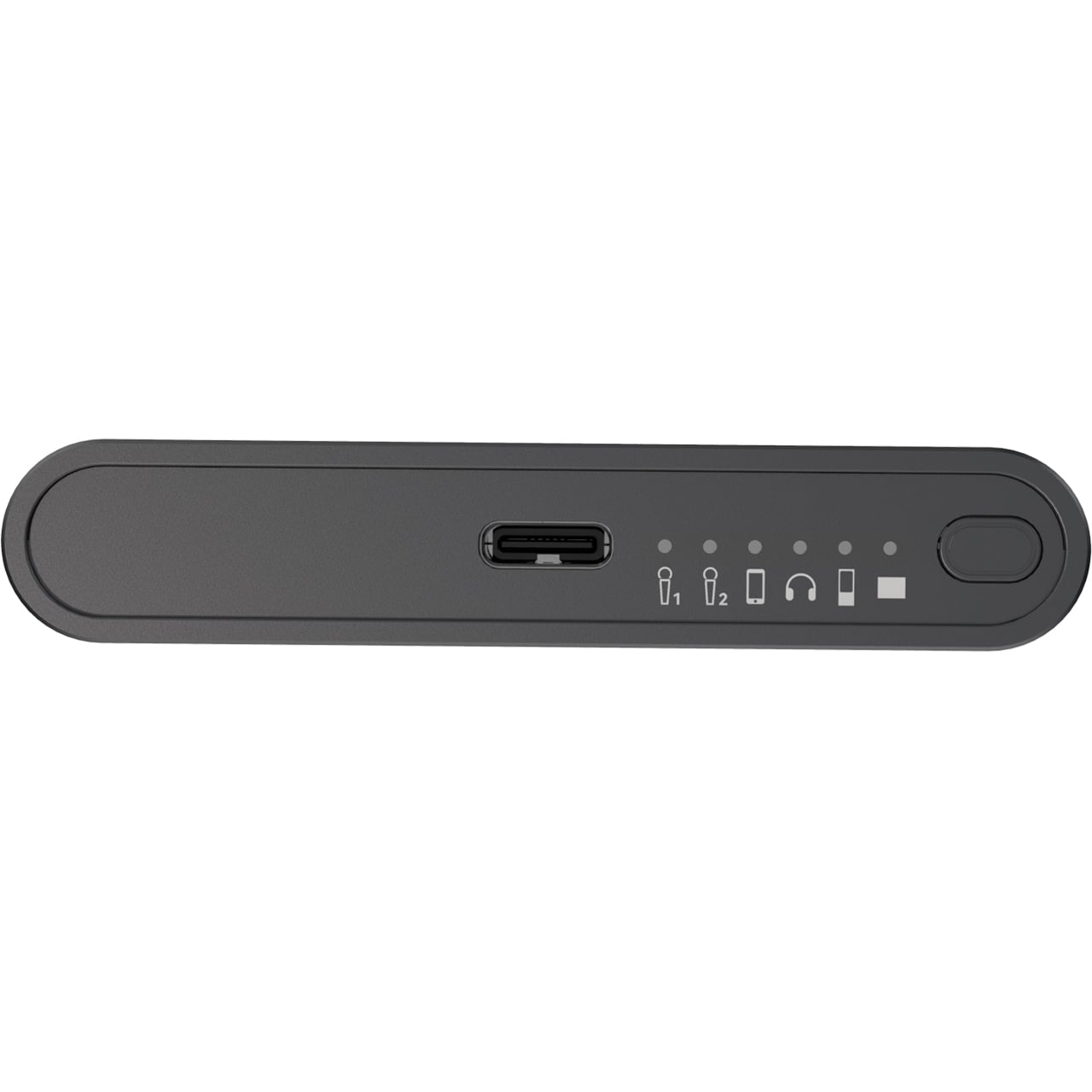

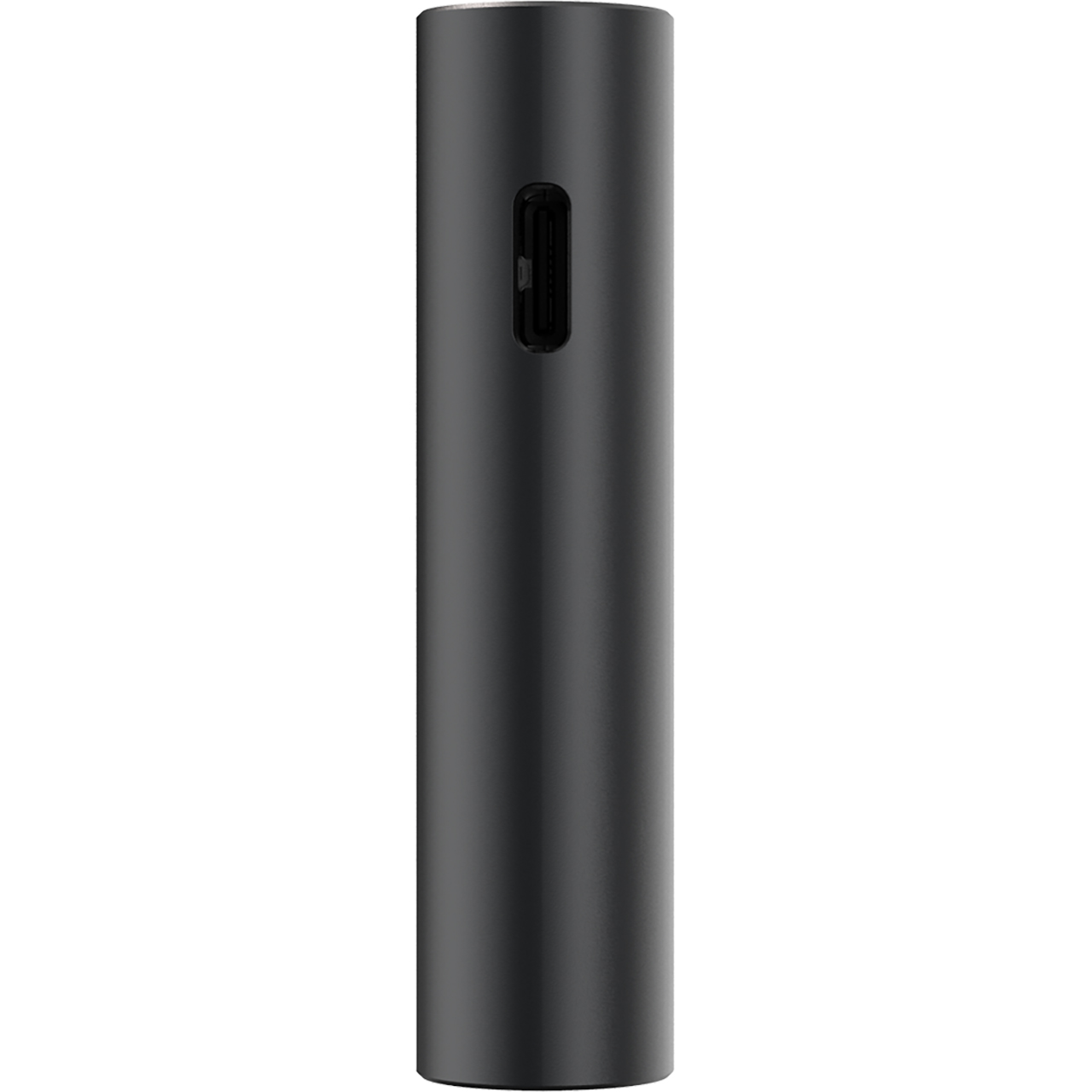

The top and right-side ports on the Smart Audio Mixer can output digital audio simultaneously. Use a USB-C to USB-C data cable to connect the mixer to a phone or computer to send audio to our HollyAudio App. Audio from the phone or computer can be routed through the mixer to both wireless monitoring earphones and wired monitoring headphones (top port only).
Fast Charging Output

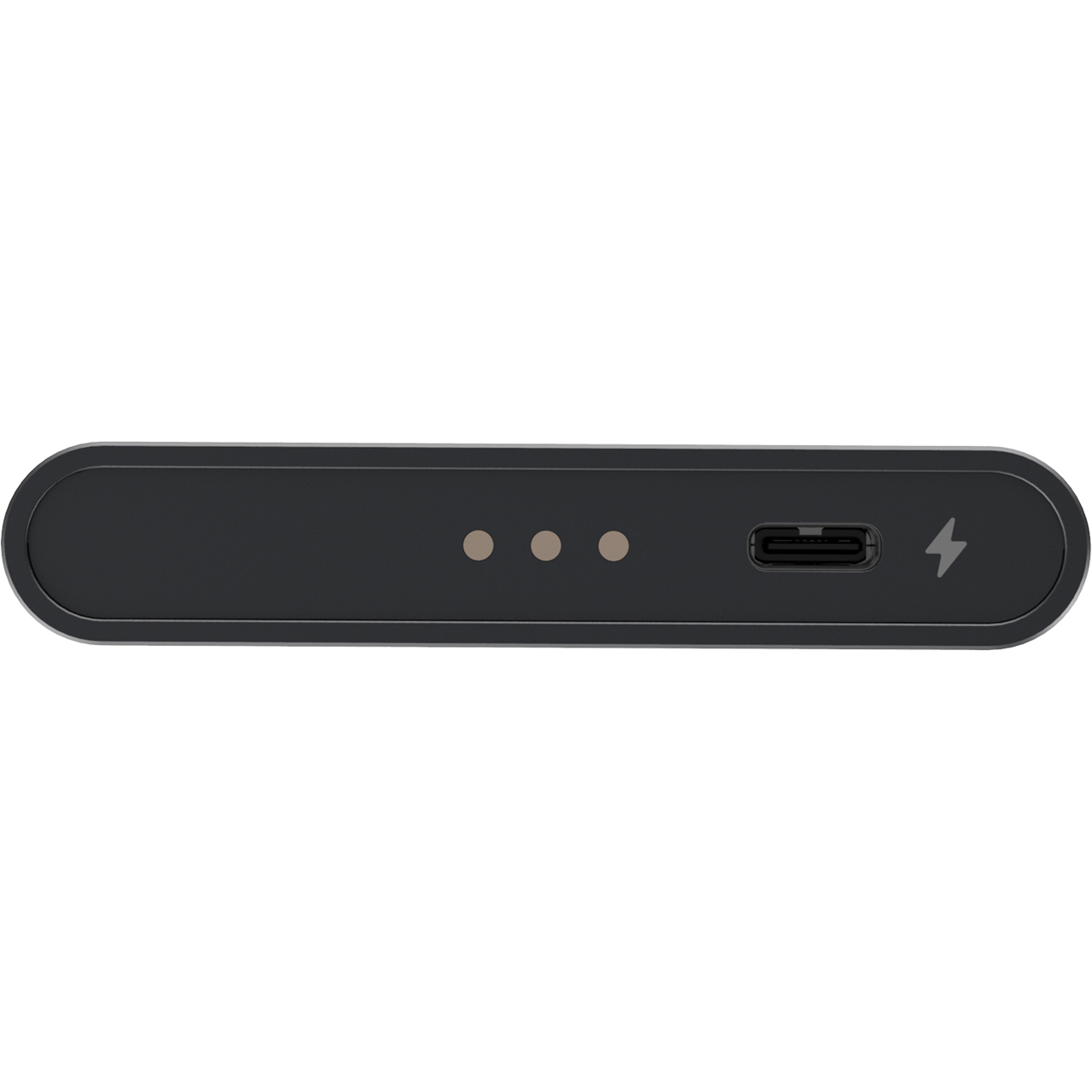

When an external power supply is connected to charge the Smart Audio Mixer, it can fast charge two phones simultaneously.
Bluetooth Quick Connection (Android Only)

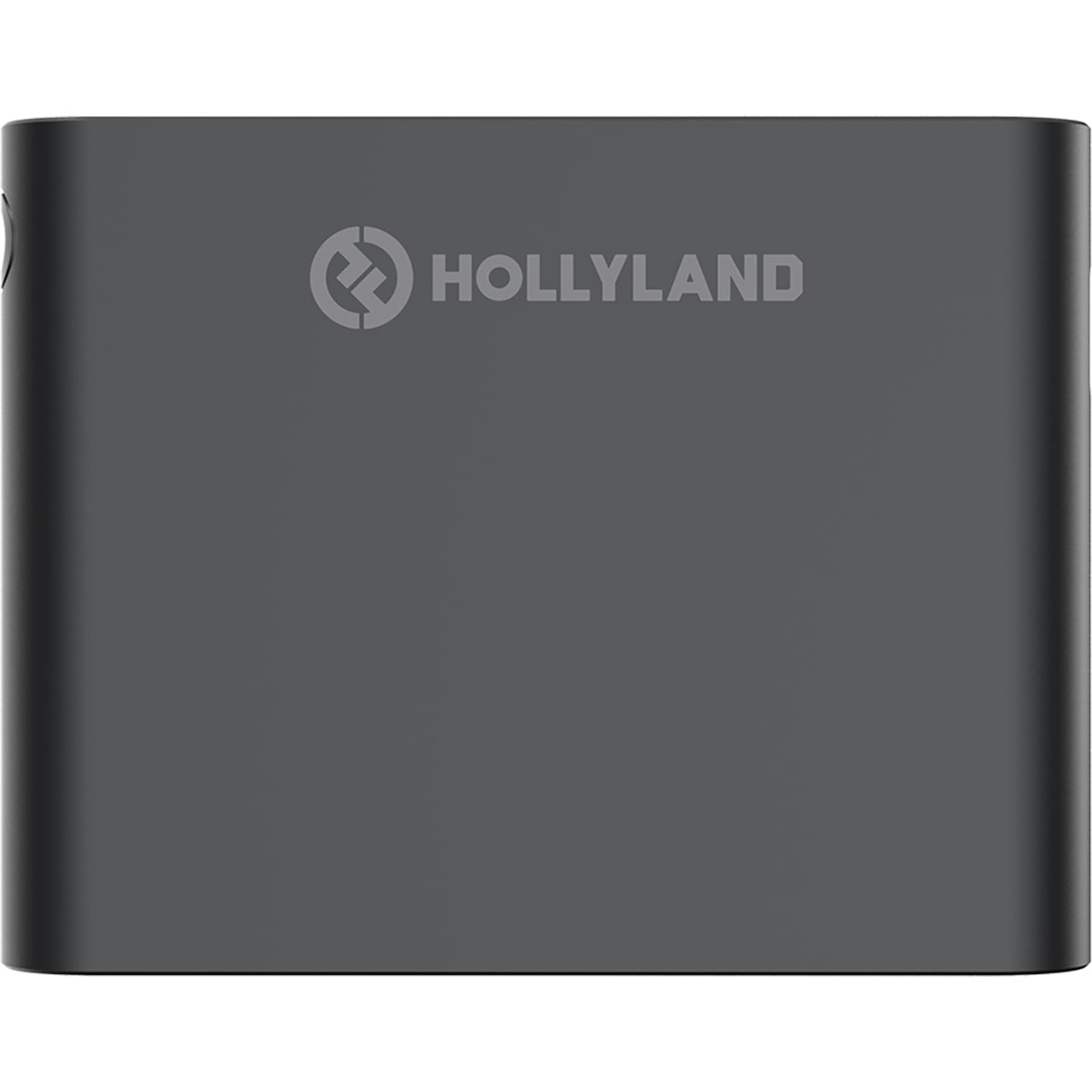

Tap the NFC area on the back of your phone against the indicated area on the diagram to quickly connect to the Smart Audio Mixer. Once connected, you can play backing tracks.
