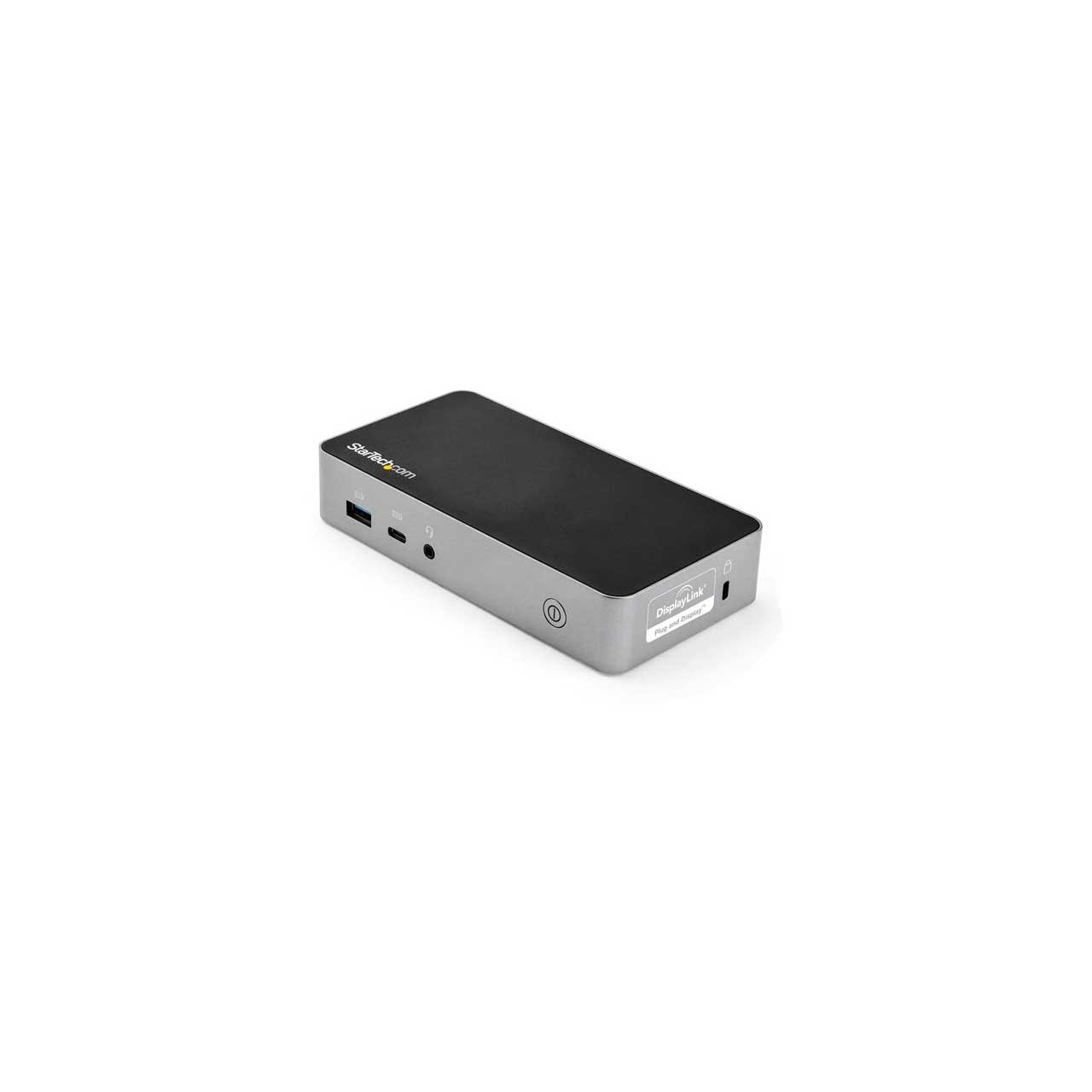

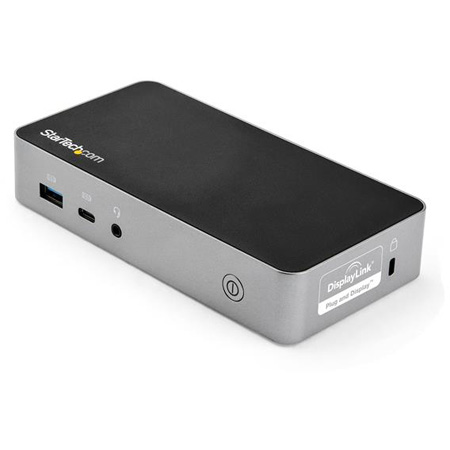

StarTech DK30CHHPD Dual HDMI Monitor USB-C Docking Station with 60W PD - GbE

DK30CHHPD - Overview

• Features:

  • Full Feature Usb-C Docking Station: Offers dual screen 1080p HDMI video, 3x USB-A, 1x USB-C, 60W Power Delivery, Gigabit Ethernet and 3.5mm audio providing an efficient USB 3.1 5Gbps docking solution
  • Wide Device Compatibility: Compatible with Thunderbolt 3, this USB-C dock works with HP, Lenovo, Dell, MacBook, Surface & Chromebooks & is DisplayLink Certified ensuring monitor compatibility
  • Easy Deployment: This USB-C dock supports all major operating systems (Windows, macOS, ChromeOS, Ubuntu) and includes MAC address changer & DisplayLink update utilities for hassle-free IT management


• Specifications:

  • Hardware
  • 4K Support: No
  • Audio: Yes
  • Bus Type: USB 3.1 Gen 1
  • Chipset ID:
    DisplayLink DL3900
    Realtek RTS5423
    Realtek RTS5411E
  • Displays Supported: 2
  • Interface: USB 3.1 Gen 1
  • K-Lock Slot: Kensington Standard Slot (K-Slot)
  • Ports: 4
  • USB-C Device Port(s): USB Power Delivery
  • USB-C Host Connection: Yes

    Performance
  • Audio Specifications:
    Dual-Channel 3.5mm Stereo Audio Output
    Single-Channel 3.5mm Microphone Input
  • Compatible Networks: 10/100/1000 Mbps
  • Full Duplex Support: No
  • Maximum Data Transfer Rate:
    5 Gbps (USB 3.0)
    1 Gbps (Ethernet)
  • Maximum Digital Resolutions: Dual HDMI Displays: 1080p (1920x1080, 1920x1200 @ 60Hz)
  • Supported Charging Modes: Charging Downstream Port (CDP)
  • Type: Copper
  • Type and Rate: USB 3.0 - 5 Gbit/s
  • UASP Support: Yes

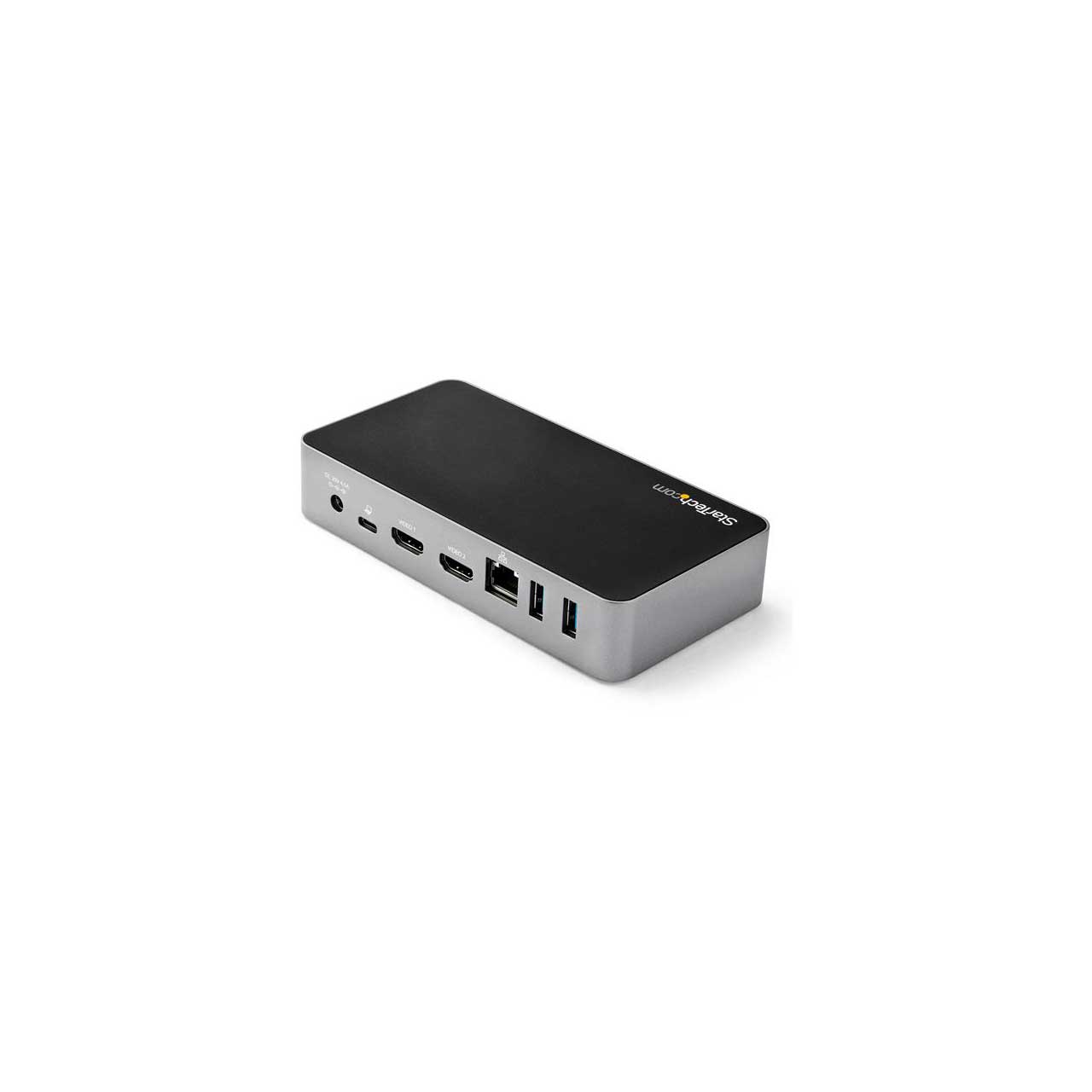

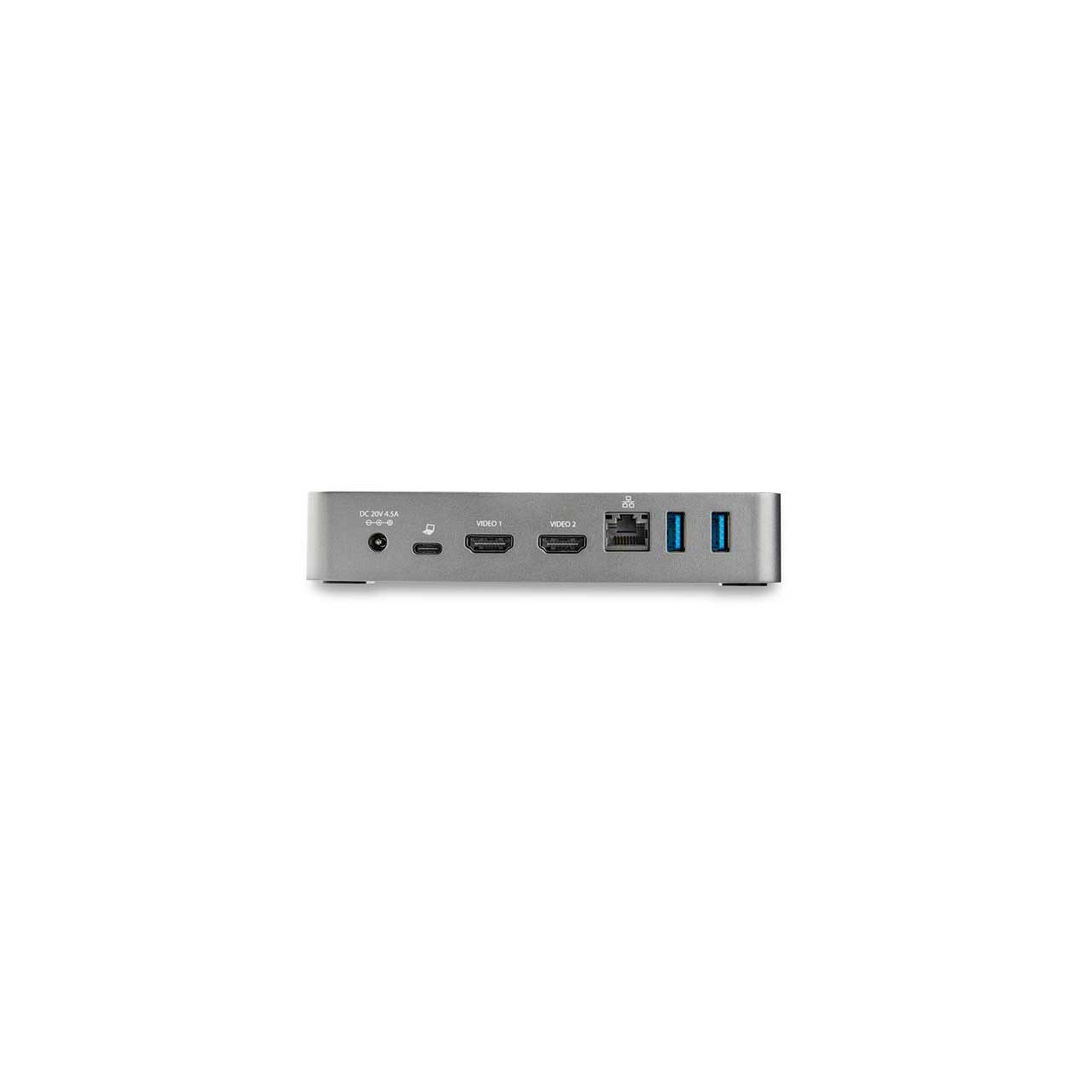

    Connector(S)
  • 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
  • 1 - USB 3.0 A (Fast-Charge, 9 pin) Female
  • 2 - USB Type-A (9 pin) USB 3.0 Female
  • 2 - HDMI 1.4 Female Output
  • 1 - RJ-45 Female
  • 1 - 3.5 mm Mini-Jack (4 Position) Female Female
  • 1 - USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female

    Software
  • OS Compatibility: Windows® 7, 8, 8.1, 10
  • macOS 10.12, 10.14, 10.15
  • Chrome OS™ v55+

    Power
  • Center Tip Polarity: Positive
  • Input Current: 1.5A
  • Input Voltage: 100 - 240 AC
  • Output Current: 4.5A
  • Output Voltage: 20V DC
  • Plug Type: N
  • Power Delivery: 60W
  • Power Source: AC Adapter Included

    Environmental
  • Humidity: 0 to 95% (non-condensing) at 25°C (77°F)
  • Operating Temperature: 0° to 50°C (32° to 122°F)
  • Storage Temperature: -20° to 70°C (-4° to 158°F)

    Physical Characteristics
  • Color: Black & Space Gray
  • Height: 25" (63.5cm)
  • Length: 6.1" (15.5cm)
  • Width: 31" (80cm)
  • Weight: 0.66Lbs (300g)

    Packaging Information
  • Height: 32" (82cm)
  • Length: 5.59" (142mm)
  • Width: 9.13" (232mm)
  • Weight: 2.27Lbs (1028g)

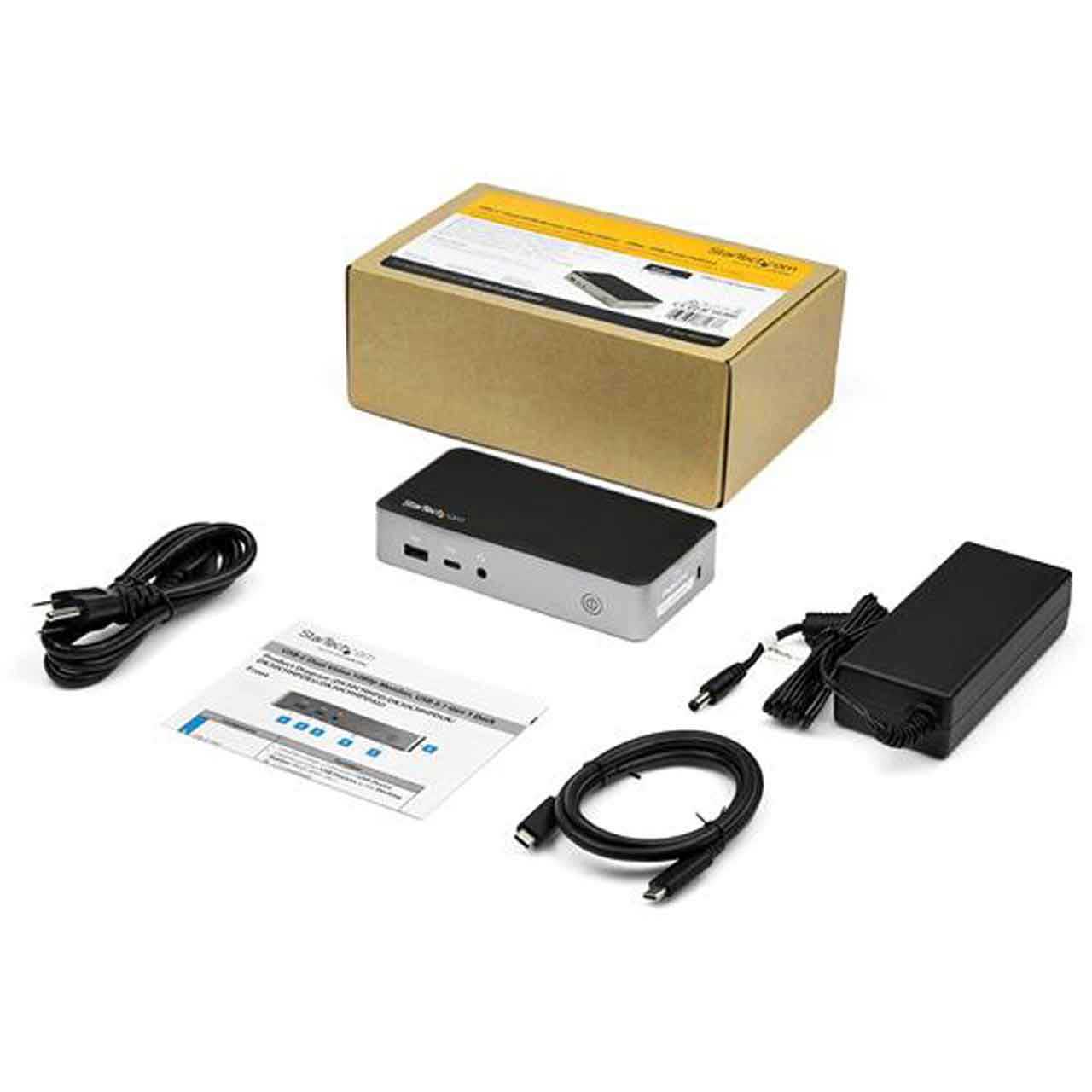

• Item Includes:

  • 1x Docking Station
  • 1x USB-C Host Cable (1 m)
  • 1x Universal Power Adapter (NA)
  • 1x Quick-Start Guide


• Warranty:

  • 3 Years


• GTIN:

  0065030881678
