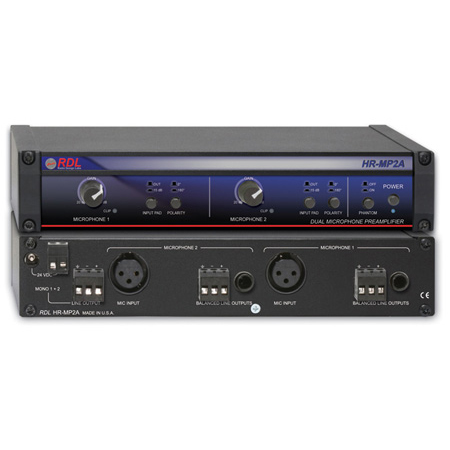

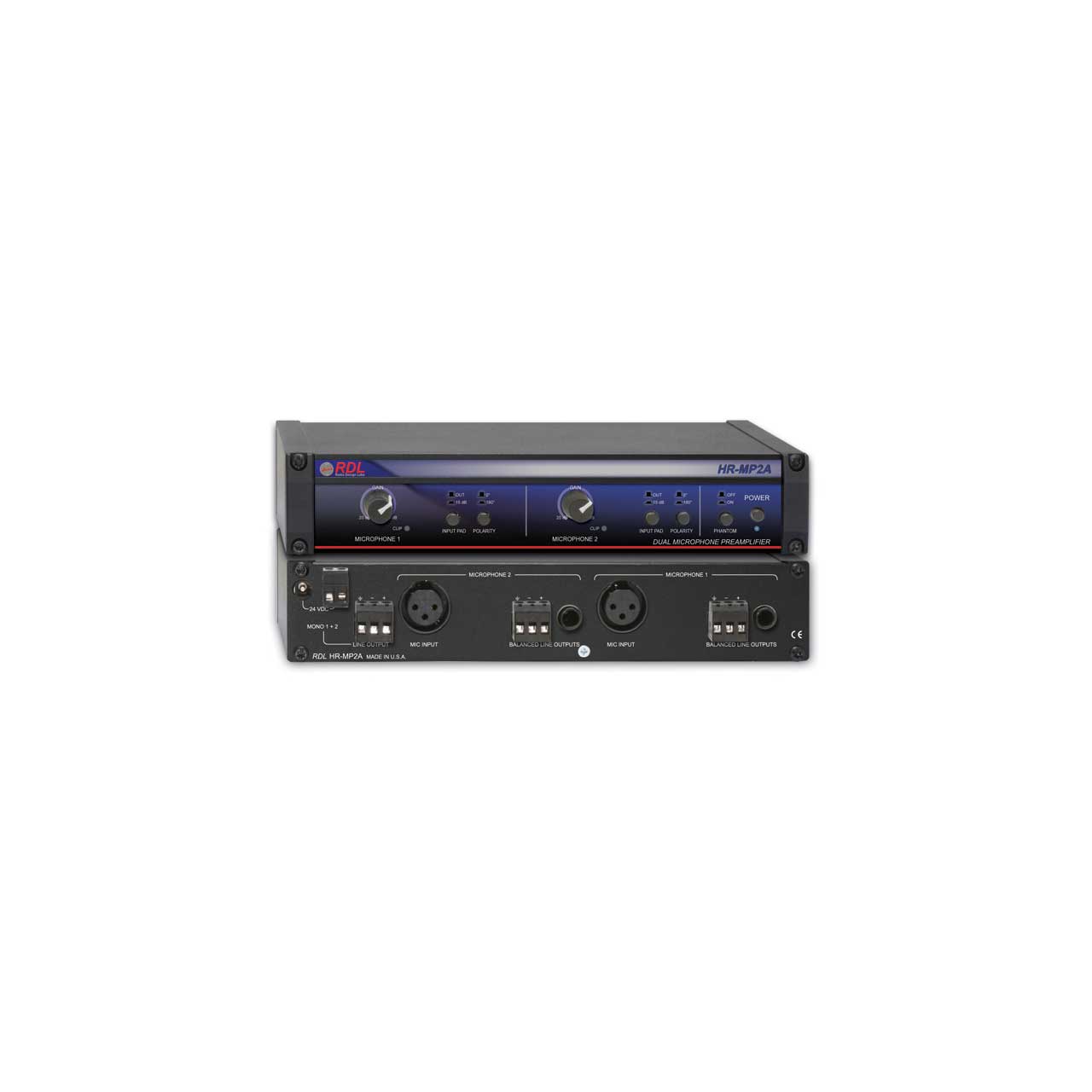

RDL HR-MP2A Dual Microphone Preamplifier

ITEM #: HR-MP2A MFG #: HR-MP2A

free ship

List Price:

$579.35

Our Price:

$397.25

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    HR-MP2A - Overview

    The HR-MP2A is a dual channel microphone preamplifier with line-level outputs. Each section provides identical rear-panel signal connections and front-panel controls.

    Each preamplifier is equipped with a front-panel INPUT PAD switch that allows the operator to attenuate the input signal by 15 dB prior to the preamplifier input stage, increasing the maximum input level from +5 dBu (attenuator out) to greater than +20 dBu. A POLARITY switch provides signal polarity reversal if needed. The GAIN control provides continuous adjustment between 20 dB and 60 dB. A CLIP LED flashes if a signal peak is within 3 dB of clipping. The trigger threshold of the CLIP LED is 17 dB above a normal +4 dBu output.

    The HR-MP2A offers exceptional input headroom, wide flat frequency response and extremely low noise with very high common-mode signal rejection. Total harmonic distortion and crosstalk are below the noise floor, allowing the HR-MP2A to be operated as a stereo preamplifier or as two separate mono preamplifiers.

    Each preamplifier provides two balanced line-level output formats: Detachable terminal block and 1/4in TRS. A separate summing amplifier provides a combined mono output on a line-level detachable terminal block. Balanced outputs may be wired unbalanced. The rear panel also provides a detachable terminal block and a power input jack to connect 24 Vdc power.

    The HR-MP2A is constructed in a durable half-rack-width shielded metal enclosure for free-standing use or for mounting in an RDL rack adapter, available separately.


    PS24V Power Supply sold separately

    • Features:

      • Two Independent Microphone Preamplifiers
      • Balanced XLR Microphone Inputs
      • Independent Controls for Each Preamplifier
      • Front-Panel 20 to 60 dB Gain Control
      • Switch-selectable 48 Volt Phantom
      • Switch-Selectable 15 dB Input Pad
      • Switch-Selectable Polarity Reversal
      • Switch-selectable 48 Volt Phantom for Both Preamplifiers
      • CLIP Indicators for Peaks 3 dB Below Clipping
      • Balanced Line-Level Outputs
      • Each Output Allows Balanced or Unbalanced Connection
      • Each Preamp Output on 1/4in TRS or Detachable Terminal Block
      • Separate Summed Output 1 + 2 on Detachable Terminal Block

    • GTIN:

      0813721013385
