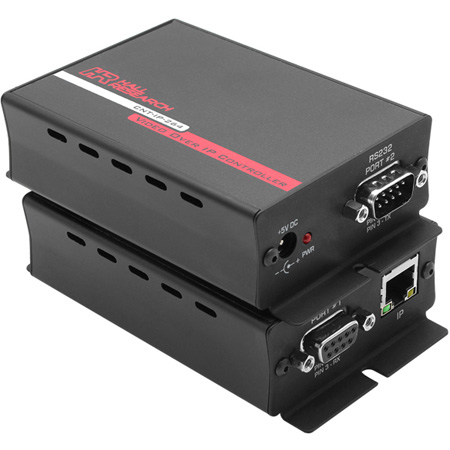

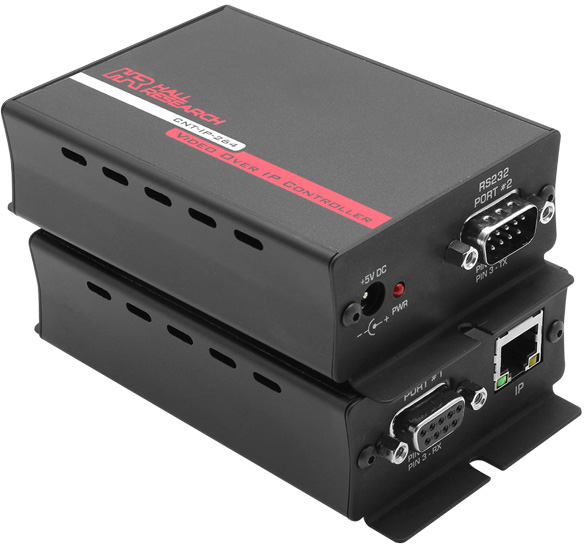

Hall Technologies CNT-IP-264 Programmable Video over IP Controller

ITEM #: HRT-CNT-IP-264 MFG #: CNT-IP-264

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$544.50

Our Price:

$517.28

Availability: Temporarily Out of Stock
iAvailability Description Popup


    CNT-IP-264 - Overview

    The Hall Technologies CNT-IP-264 is an IoT device providing global/master control of video-over-LAN network with multiple FHD264 encoders and decoders. It lists all video transmitters and receivers with their user defined names and allows switching of video using drop down menus. Users can also create custom control buttons for Serial-over-IP or Telnet control of other equipment, and even schedule events.

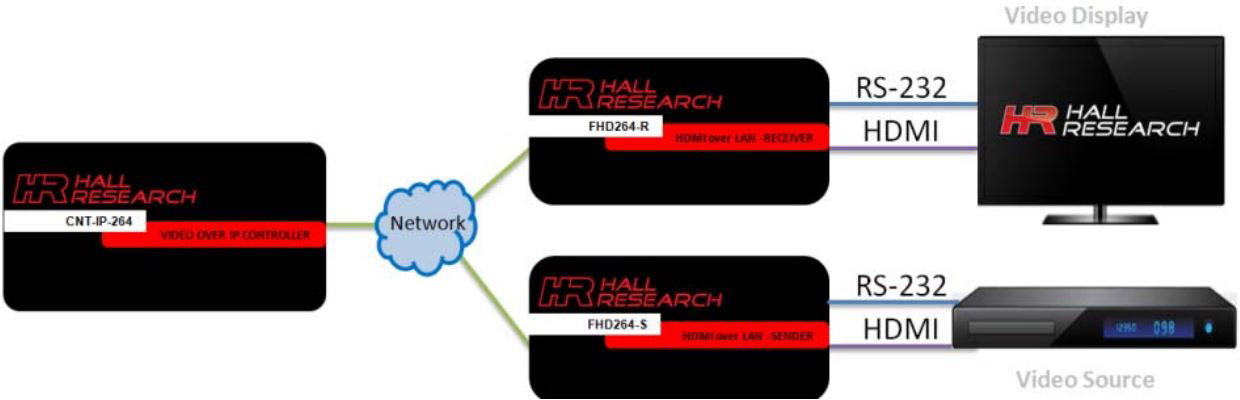

    The CNT-IP-264 can turn your IP-based HDMI video distribution system into a GUI-based virtual matrix switch. The CNT-IP-264 can also act as a universal controller with advanced GUI and scheduling capabilities. When connected to the same network as the FHD264 HDMI-over-IP products, it scans the network, lists and identifies all Senders and Receivers by their user assigned name. Other parameters such as IP and Mac address, model number, encoding bit rate, etc. are also accessible.

    A matrix page allows quick routing of the video from any sender to any Receiver using drop-down lists. When used as a control system, it can control other devices such as TVs, projectors, or motorized screens. Since the FHD264 HDMI-over-IP codecs have RS232 ports, the controller can send RS232 commands to external devices though them. For example if an FHD264 Receiver's RS232 port is connected to a projector, you can create a button on the GUI to turn the projector on and off. You can also schedule actions such as changing video routing or powering TVs based on time of day. Users can create a control webpage with buttons to send Telnet or RS232 commands.

    CNT-IP-264 - Required Accessories

      CNT-IP-264 - Recommended Accessories
