Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Extender / HDMI to CAT5/CAT6 Converter

ITEM #: OMX-HDMI-2-IP MFG #: OMX-HDMI-2-IP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$130.00

Our Price:

$125.00

Availability: In Stock
iAvailability Description Popup


    OMX-HDMI-2-IP - Overview

    Configure up to 8 transmitter and receiver pairs on the same network!

    Distribute HDMI over your LAN/VLAN network with the Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Converter/Extender. No longer is distance a limitation when sending HDMI. Converts HDMI to standard TCP/IP and transmits the signal over your local area network.

    The great advantage of converting HDMI to TCP/IP is that you can now send HDMI over your entire network freeing you of the typical limitations found in send/receive point-to-point systems. The Ocean Matrix OMX-HDMI-2-IP delivers unparalleled performance in PRO-AV projection networks, digital signage systems and educational streaming applications. Now your network is your HDMI network!

    The transmitter has a static IP address and can pair with multiple receivers (up to 8). Multiple transmitters and multiple receivers can be paired on the same network.

    A VLAN switch is required to operate multiple units (up to 8 transmitter/receiver pairs) with separate IP addresses on the same LAN network.

    • Features:

      • Supports Multiple Receivers (up to 8) from a Single HDMI Extender / Transmitter
      • 36 Bit Deep Color Support
      • May Also be Used as a Standard Point-to-Point (up to 120 meters) Transmit & Receive for On-Location Monitoring & Content Delivery
      • L/R Stereo Audio
      • Transmission Rate Supported:10.2Gbps
      • Robust Aluminum Housing

    • Specifications:

      • HDCP Support: HDCP1.2
      • Input HDMI resolution: 480i@60Hz; 480p@60Hz; 576i@50Hz; 576p@50Hz; 720p@50/60Hz; 1080i@50/60Hz; 1080p@50/60Hz;
      • Output HDMI resolution: 480p@60Hz; 576p@50Hz; 720p@50/60Hz; 1080p@50/60Hz
      • Supported Video Color Formats: 24 Bit/Deep color; 30 Bit/Deep color; 36 Bit Deep Color
      • Max transmission rate: 10.2Gbps
      • Network Bandwidth Utilized: 80Mbs
      • Latency: 70ms
      • Audio signal transmission format: L/R stereo audio
      • TMDS signal: 0.5-1.5Vp-p (TMDS)
      • DDC signal: 5Vp-p(TTL)
      • Input cable length: 5m (AWG26 HDMI1.3 standard cable)
      • Output cable length: 5m (AWG26 HDMI1.3 standard cable)
      • Transmission medium

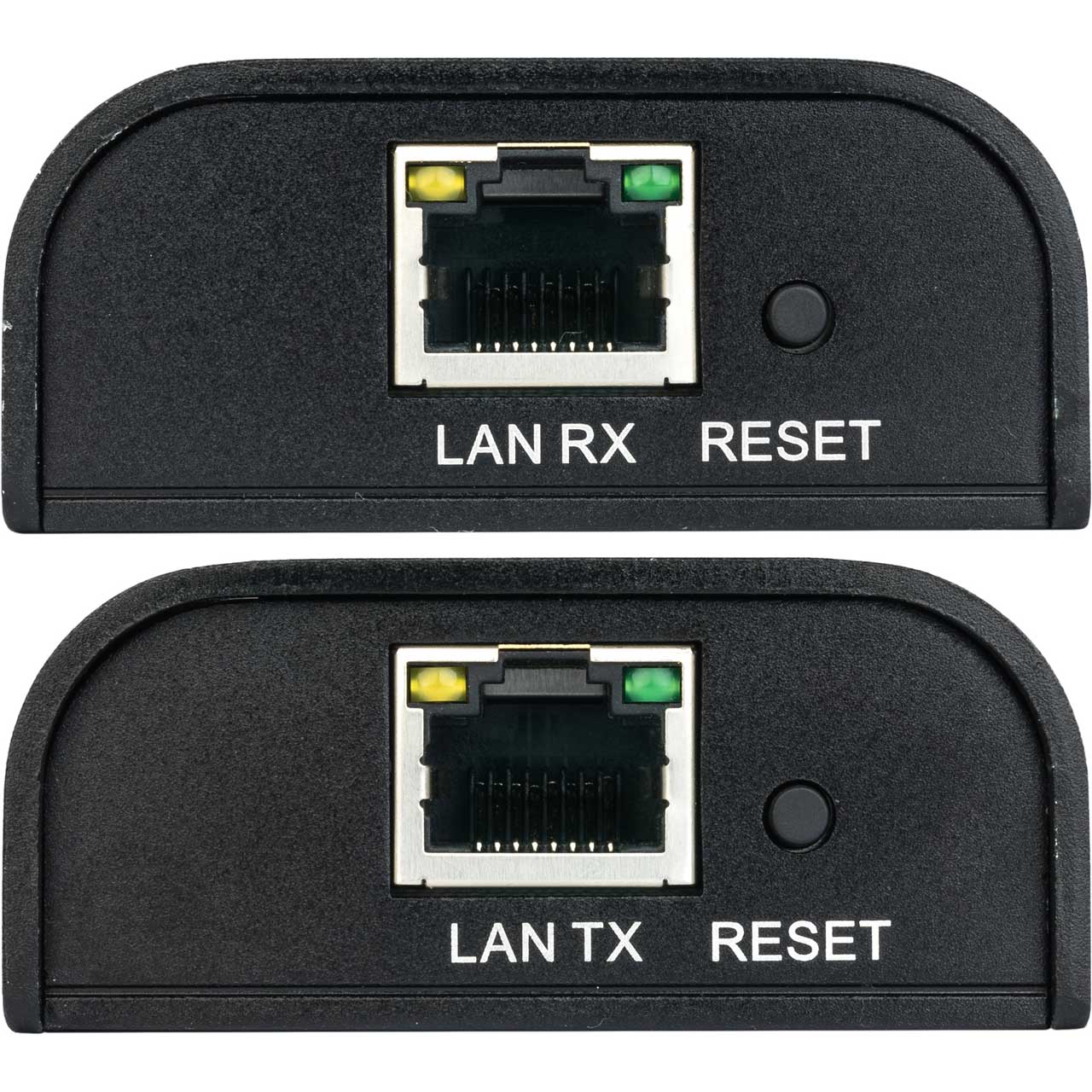

      • Connector Type: RJ45
      • Twisted Pair Interface: Cat5e/6
      • Transmission distance: Cat6 up to 120m (Cat5e up to 100m)
      • Cabling standards: TIA/EIA568 B

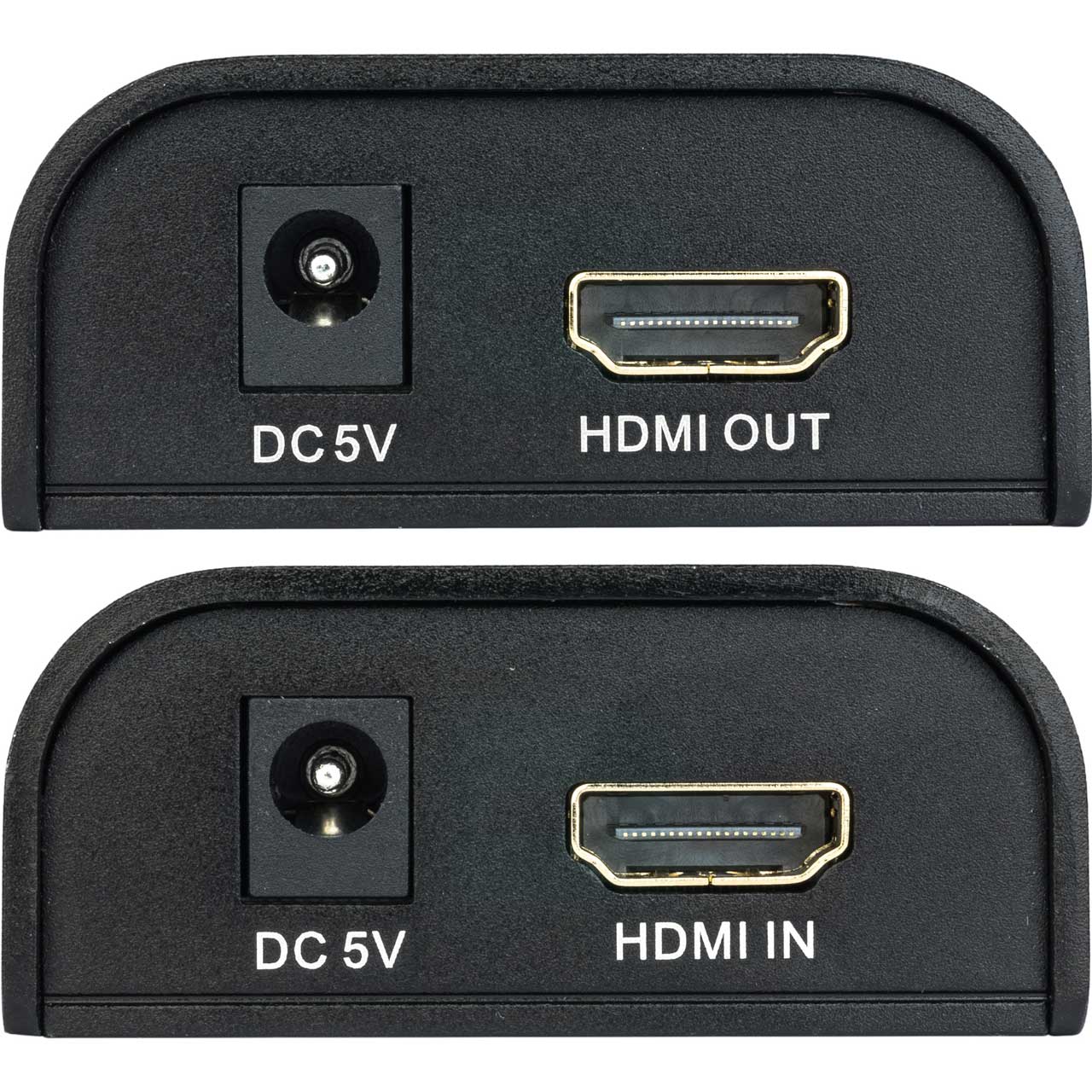

      • Power Supply: 5VDC/1A
      • Power comsumption: <3.6W
      • Dimensions (Tx or Rx Unit): 4.25"L x 2.25"W x 1.0"H
      • Weight: Tx/Rx Unit Each: 0.3 Lbs

    • Item Includes:

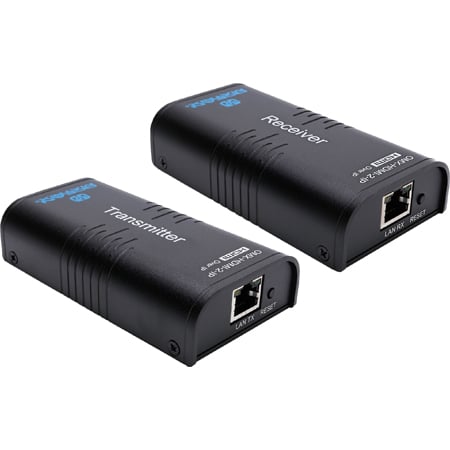

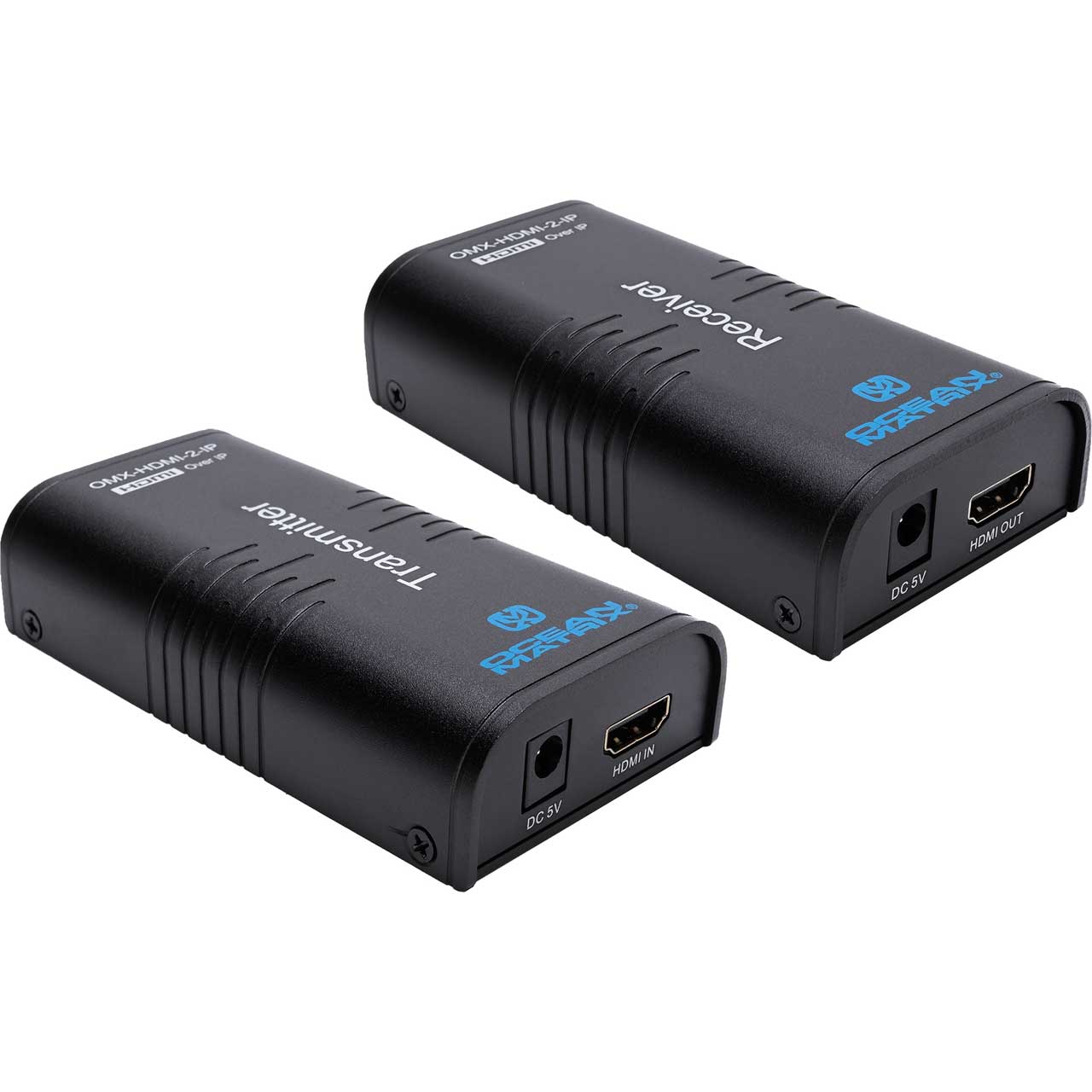

      • HDMI Over IP Sender
      • HDMI Over IP Receiver

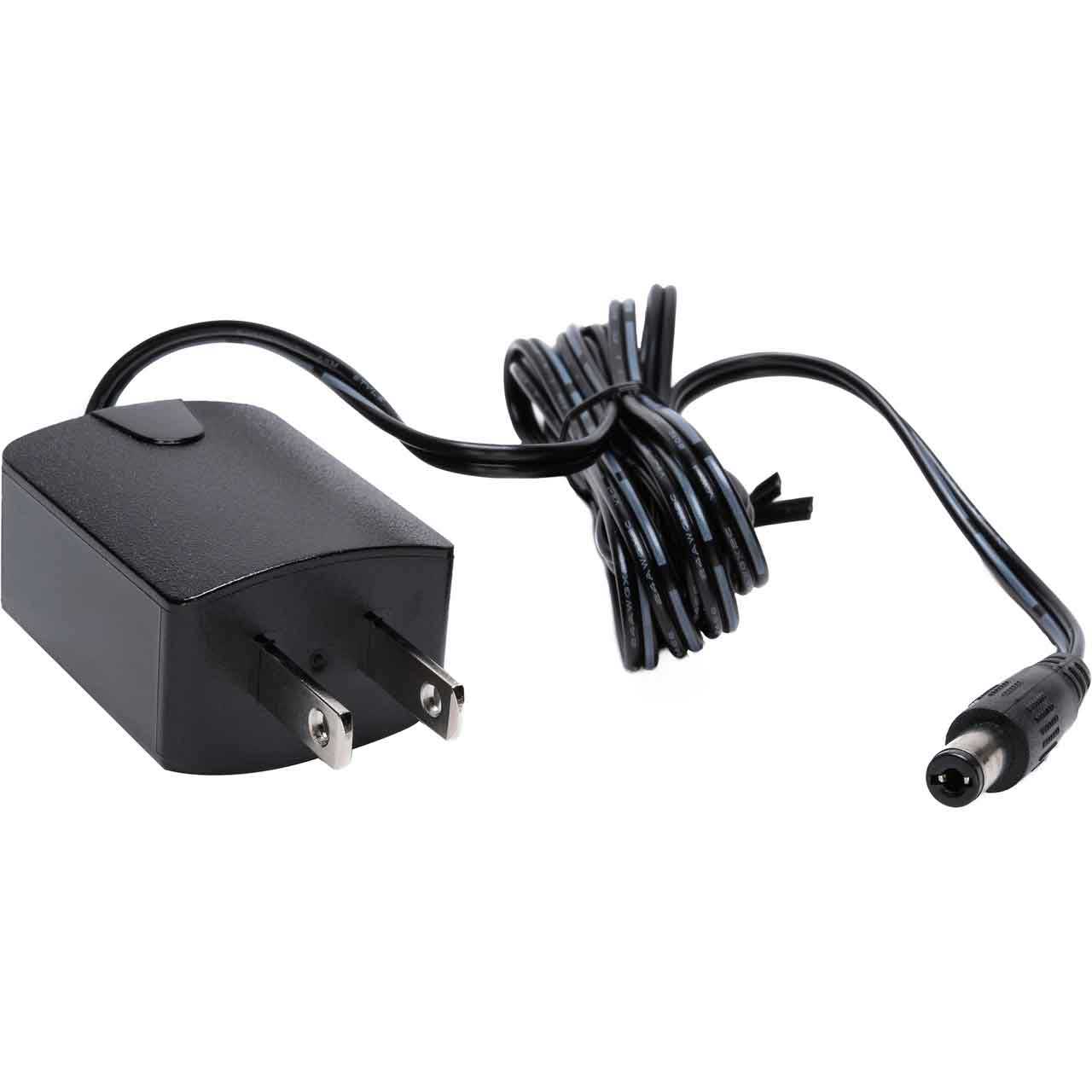

      • Two 5VDC/1A Switching Power Supply
      • User Manual
