    HT-DSCV2-70-TX-US - Overview

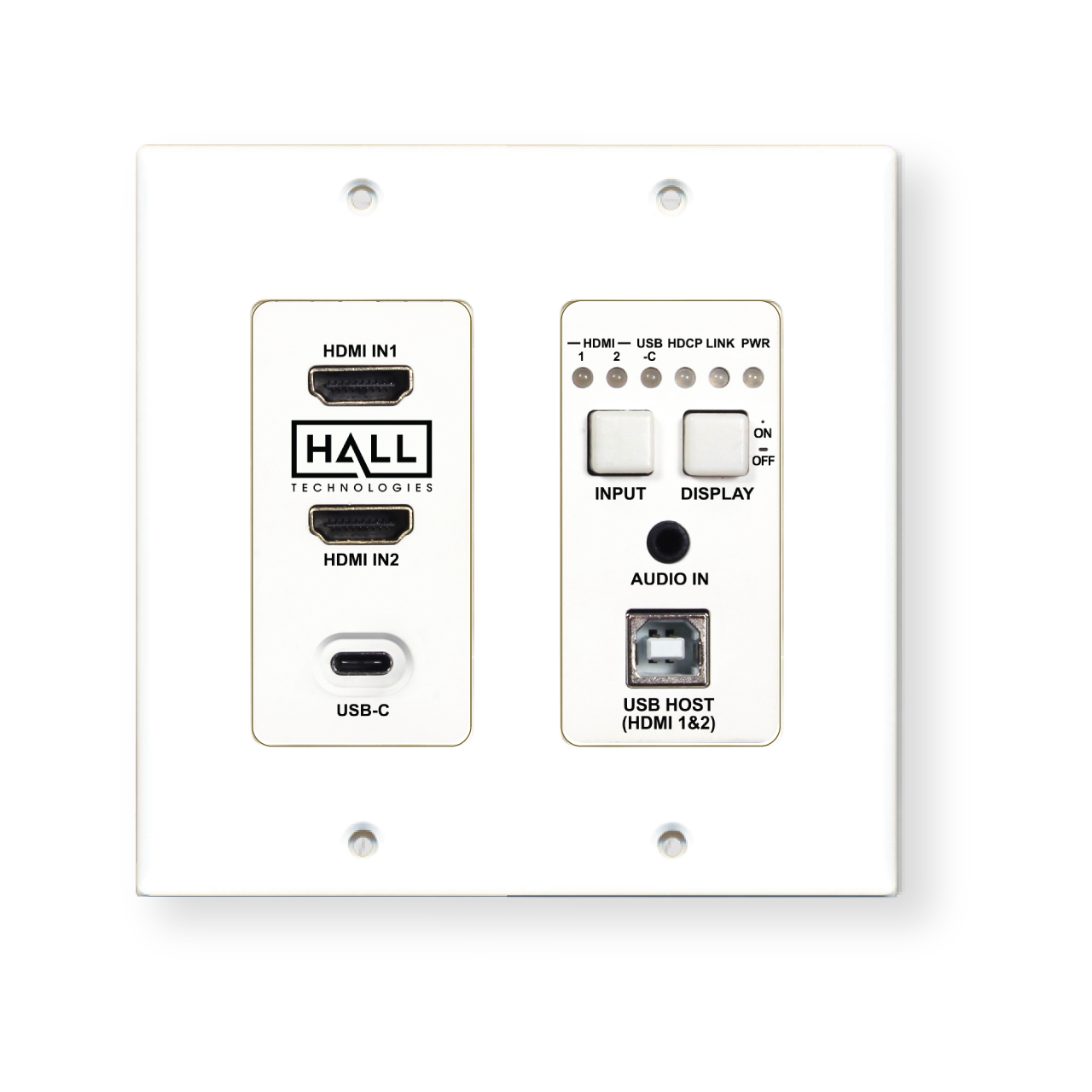

    The Hall Technologies DSCV2-70-TX-US Discovery Series transmitter is a 2-gang US standard HDBaseT 2.0 Wall Plate transmitter with USB-C & two HDMI inputs. It features a 2-gang US standard, with one USB-C and two HDMI input. This wall plate supports long distance transport of HDMI, USB-C and high-speed USB 2.0 signals up to 40/70/100m using a Cat X cable. It is 4K compatible with a max resolution of 4K@60Hz/4:2:0 8bit deep color. It is ideal for situations where USB must be extended alongside HDMI for display interactivity for items such as interactive whiteboards or projectors. And additional analog de-embedding allows connection of an external audio system with a projector when used in classroom/meeting room. With 48V PoH integrated inside, it can be powered either by local power supply or remote HDBaseT receiver with PSE module.

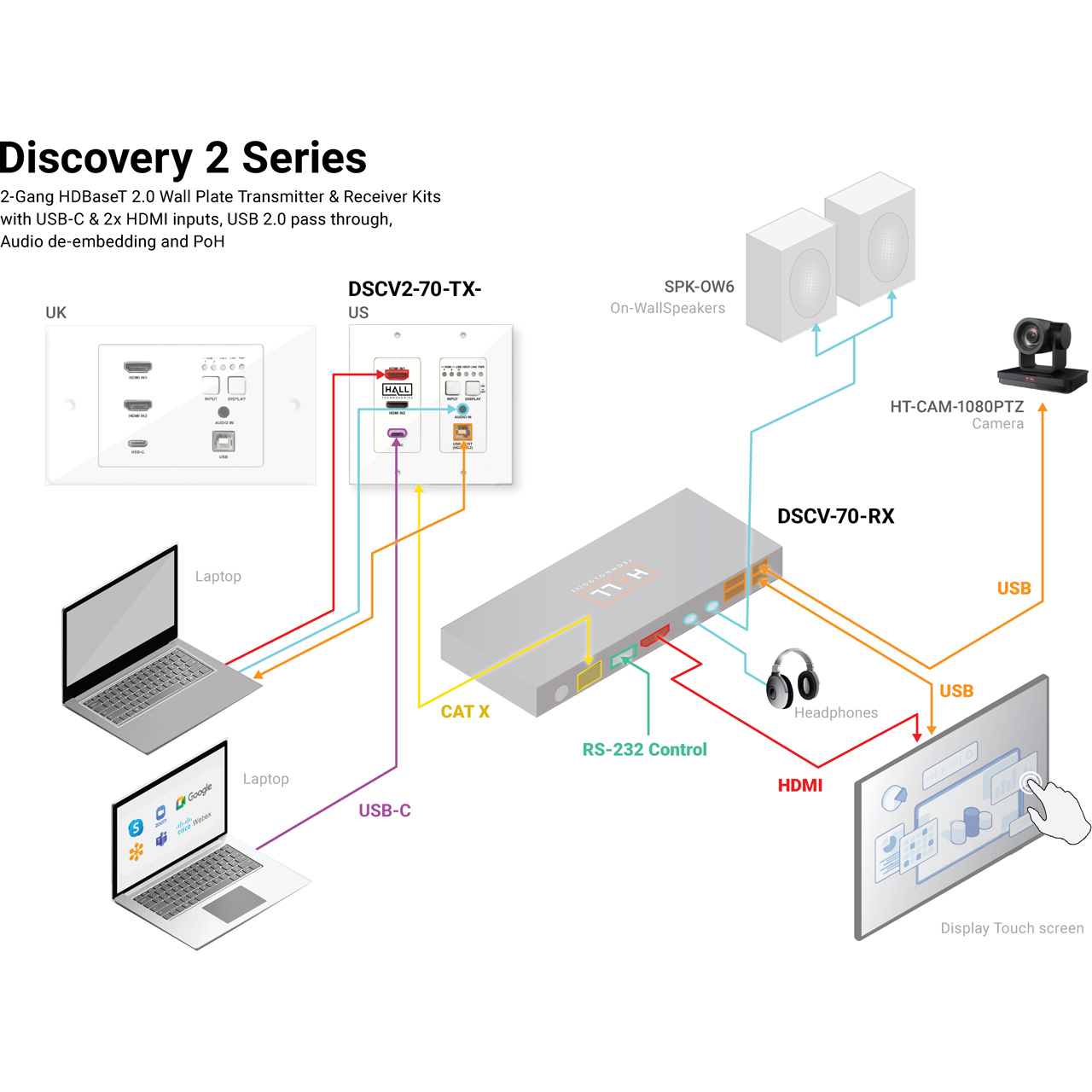

    The Discovery Series offers a cost-effective 4K extension with flexible USB and HDMI capabilities for software video conferencing and audio extraction. These kits were designed specifically to address signal extension for multiple participants in classrooms, huddle spaces, or conference rooms. The Discovery series includes an HDBaseT Wall Plate Transmitter, and Receiver kit that pairs natively with soft-codec video conferencing applications such as Zoom, Teams, Skype, WebEx and more.

    With both US and UK transmitter wallplate options available, Discovery makes collaboration easy and fluid with support for resolutions up to 4K.

    • Features:

      • One USB-C and two HDMI input, supports automatic/manual switching.
      • 2-Gang US standard design.
      • Inputs/output with 4K@60Hz (Chroma sub-sampling 4:2:0 8-bit) and HDCP 2.2 compliance.
      • One analog audio pass-through from the transmitter to receiver.
      • One audio de-embedding on the receiver.
      • High-speed USB 2.0 over HDBT with the maximum bandwidth is 127Mbps.
      • Provide Four USB 2.0 device ports on the receiver, of which 2 high-current ports (1.4A) for connecting high-power devices such as camera.
      • Built-in PoH function, Wall plate can be powered by receiver.
      • Support firmware upgrade.
    • Specifications:

      • Video Input:
        - 2x HDMI
        - 1x USB-C
      • Input Video Signal: HDMI (4K@60Hz YUV 4:2:0, HDCP 2.2), USB-C DP Alt mode
      • Video Output: 1x HDBT OUT (RJ-45)
      • Output Video Signal: HDBT 2.0

        Input/Output Resolutions Supported
      • HDMI & USB-C: VESA: 800x6008, 1024x7688, 1280x7688, 1280x8008, 1360x7688, 1366x7688,1440x9008, 1600x9008,1600x12008,1680x10508, 1920x12008
      • SMPTE: 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8, 3840x21602,3,5,6,8, 4096x21602,3,5,6,8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz
      • Note: 4096x2160/3840x2160@50Hz/60Hz is based on chroma sub-sampling 4:2:0 8-bit only.

      • Audio Input:
        - 1x HDMI
        - 1x USB-C
        - 1x Audio In (Unbalanced stereo 3.5mm)
      • Audio Format: Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
      • Audio In: Stereo
      • USB Pass-through: USB 2.0
      • USB Port Type: USB-B
      • Maximum Pixel Clock: 340MHz
      • Maximum Data Rate: 10.2Gbps
      • Control Method: Auto switching, front panel buttons, API commands
      • Operating Temperature: 32°F to 113°F (0°C to 45°C)
      • Storage Temperature: -4°F to 158°F (-20°C to 70°C)
      • Humidity: 10% to 90%, non-condensing
      • ESD Protection: Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge)

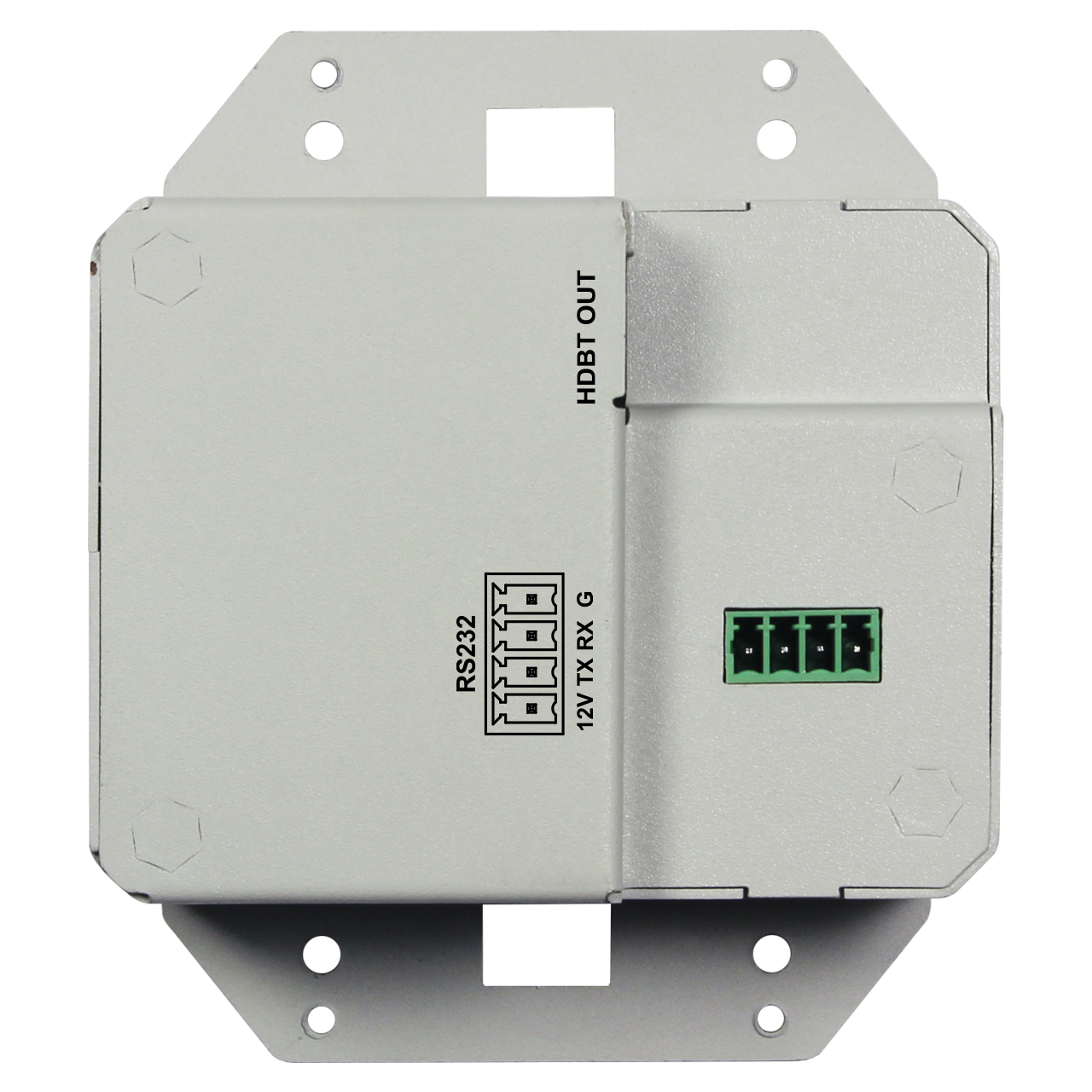

      • Power Supply: PoH, powered by receiver; or local power supply through the 12V phoenix connector
      • Power Consumption (Max): 7.8W
      • Device Dimension (W x H x D): 3.5" x 1.51" x 4.16" (89mm x 38.4mm x 105.6mm)
      • Product Weight: 0.66lb (0.3kg)
    • Item Includes:

      • 1x Transmitter
      • 1x Wall Plate Plastic Panel (2-Gang US, with screws)
      • 1x USB Type-B to USB Type-A Cable
      • 1x Phoenix Male Connector (3.5mm, 4-pins)
    • Warranty:

      • 3 Year Warranty
