DVS-4A - Overview

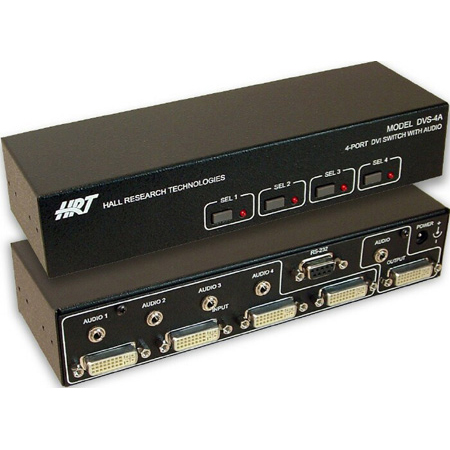

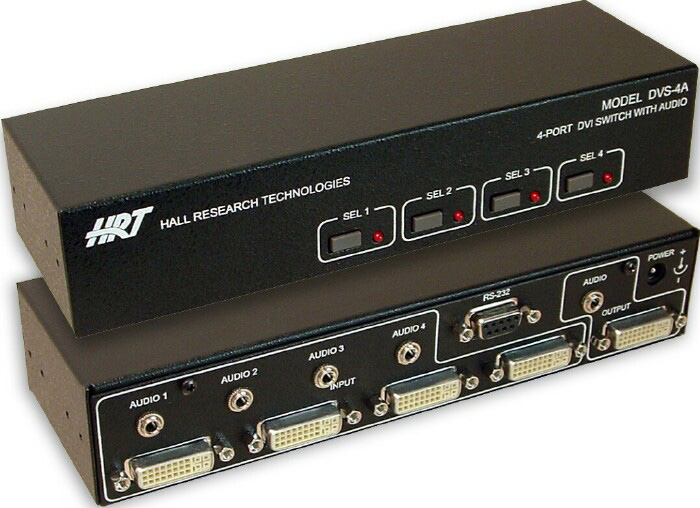

The Hall Technologies DVS-4A is a versatile and compact 4 input x 1 output DVI & audio switch. This unit provides both a video and audio output that can be switched between four video and audio sources. This allows routing of multiple DVI equipped devices (such as PC's) to a single DVI display (such as a plasma or LCD screen). The switcher supports single-link, DVI-D video signals at resolutions up to 1920x1200 and HDTV up to 1080p. The DVS-4A unit provides all the A/V and control connections on the rear panel; the front panel has a push-button switch with corresponding LED indicator for the selection of video source. This unit can be controlled by either manually using the front panel switch, automatically based on video detection, or remotely through an RS232 serial port. The unit can be configured to operate in three different modes, which are the Auto, Scan and Manual modes. The unit also has EEPROM (internal non-volatile flash memory) to store the last operating mode when power is off.

  • Features:

    • Clear and sharp images at resolutions up to 1920x1200 including HDTV up to 1080p
    • Hot pluggable
    • Supports the DDC2 standard for all input ports
    • HDCP & HDMI 1.3 Compatible
    • Allows one video with stereo audio to be switched between four video and audio sources
    • Can be manually controlled by push-button switches, remotely by a RS232 communication port
    • Provides an Auto mode to automatically select input source
    • Auto Mode priority can be set for any input or no-priority
    • Scan Mode shows each output for a programmable time period
    • Switched output can be blanked and un-blanked
    • Video Cable Equalization available for long cabling
    • Stores the last selection and mode in EEPROM
    • Compatible with the Universal Mounting Bracket
    • Ships with universal (100'240 VAC) power supply
    • Compact, Rugged, Reliable, and Economical
    • Made in USA

  • Specifications:

    • Video Inputs: DVI-D Single Link, HDCP & HDMI 1.3 Compliant
    • Resolutions: PC resolutions up to 1920x1200 @ 60 Hz and HDTV to 1080p
    • Audio Inputs: PC audio outputs
    • Temperature: Operating: 32 to 122°F (0 to 50°C); Storage: -40 to +185°F (-40 to +85°C)
    • Enclosure: Steel
    • MTBF: 90,000 hours (calculated estimate)
    • Power: 6V center positive via supplied Universal power supply
    • Size: 1.66" High x 8.42" Wide x 2.61" Deep
    • Weight: 2.0 pounds

  • Item Includes:

    • 1x Hall Technologies DVS-4A DVI AV Switcher (4 Port)
