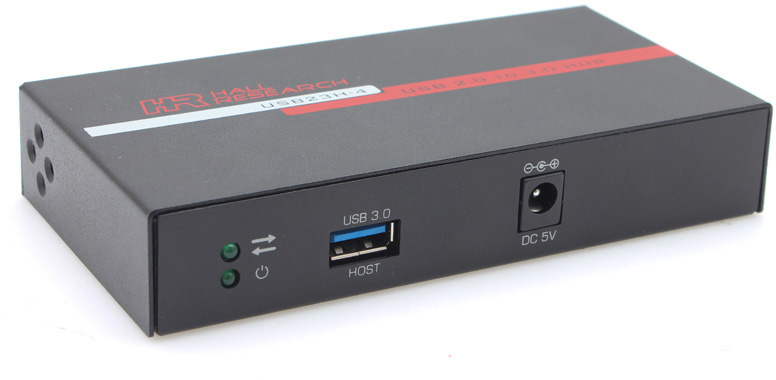

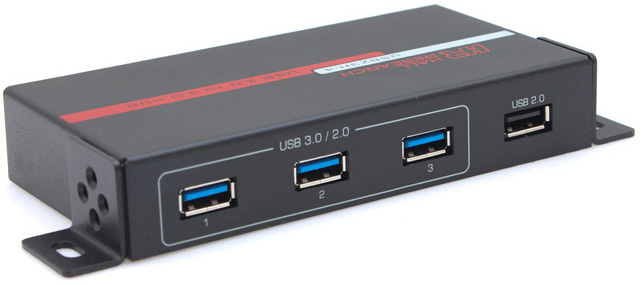

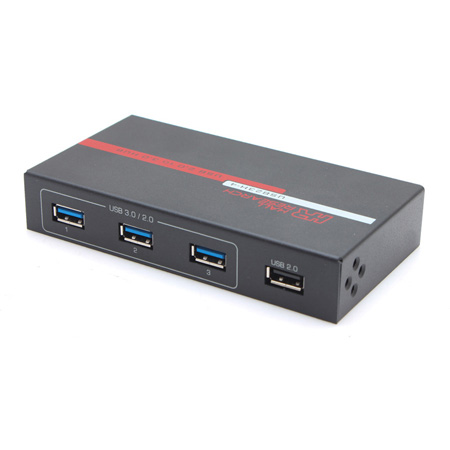

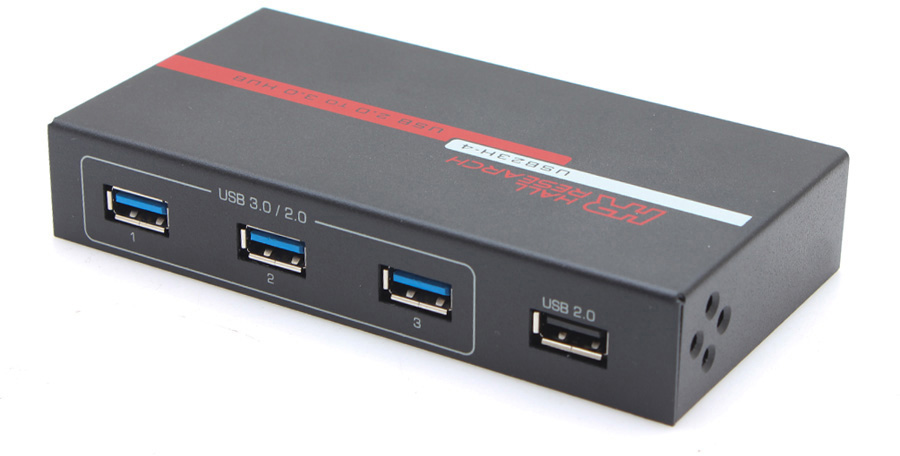

Hall Technologies USB23H-4 4 Port USB 3.0 Hub with USB 1.1/2.0 Data to USB 3.0 Conversion

ITEM #: HRT-USB23H-4 MFG #: USB23H-4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the HRT-USB23H-4

USB23H-4 - Overview

The Hall Technologies USB23H-4 is a 4 port-USB 3.0 Hub with a unique capability to up-convert USB 1.1/2.0 data to USB 3.0 upstream. The product makes it possible to use extension methods that only support USB 3.0 or higher (such as the Hall's USB 3.0 Javelin™ Plenum active optical cables to support a combination of legacy USB 2.0 and new USB 3.0/3.1 devices.z

The hub provides 3 USB 3.0/2.0/1.1 ports, and one USB 2.0/1.1 port. All upstream communications with the Host uses USB 3.0 standard and physical layer allowing the use of AOC cables. A USB 3.0 A-A cable is provided to connect the Hub to the Host (or device end of the AOC cable). The package also includes a universal power supply and a pair of mounting brackets for users that would like to surface mount the device.

The hub is plug-and-play and no software drivers are necessary.

  • Features:

    • Converts USB 2.0 or USB 1.1 data to USB 3.0
    • Plug & Play - No drivers needed
    • Power Supply and Input Cable included
    • Perfect for use with Javelin™USB 3.0 active optical cables
  • Specifications:

    • Dimensions (WxDxH): 5.11" x 2.75" x 0.98" (130mm x 70mm x 25mm)
    • Weight: Model: 1.1lbs, Shipping: 1.6lbs
  • GTIN:
