Hall Technologies UV1-SL-DP VGA Video Over UTP Decora Plate Sender with Local Port

ITEM #: HRT-UV1-SL-DP MFG #: UV1-SL-DP

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the HRT-UV1-SL-DP

UV1-SL-DP - Overview

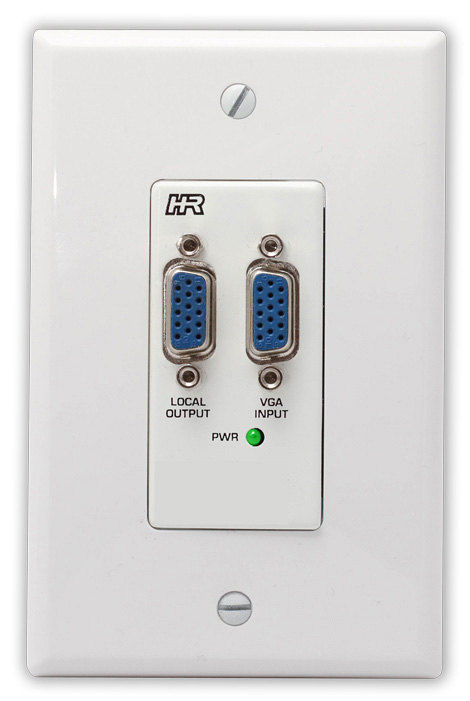

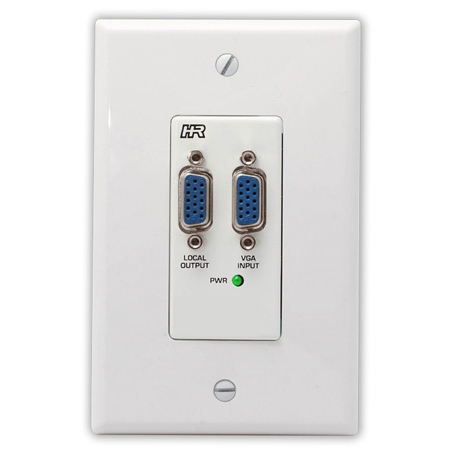

The UV1-SL-DP transmits VGA over a single UTP cable to any compatible UV1 receiver up to 500 ft away with little to no degradation of video quality. The unit is housed in a standard single-gang Decora sized plate which can be mounted in a wall or pop-up. UV1-SL-DP does not require power supply connection since it powered via the UTP cable from the remote unit. The wall plate features a buffered loop-thru VGA output port for connection to a local monitor.

  • Features:

    • Send VGA signal up to 500 feet over UTP cable
    • Buffered VGA output for local monitor
    • Powered over UTP
    • Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
    • Amplifies the signal for clean and crisp transmission
    • Differential signaling eliminates ground loops and noise
    • Handles resolutions up to 1920x1440 at 60Hz
    • Standard single-gang Decora plate form factor


  • Specifications:

    • Dimensions: Single gang Decora Plate
    • Max Distance: 500 ft
    • Max Resolution: 1920x1440 @ 60 Hz
    • Video Types: VGA through UXGA, RGBS, RGsB (sync on green), or YpbPr
