    UV232A - Overview

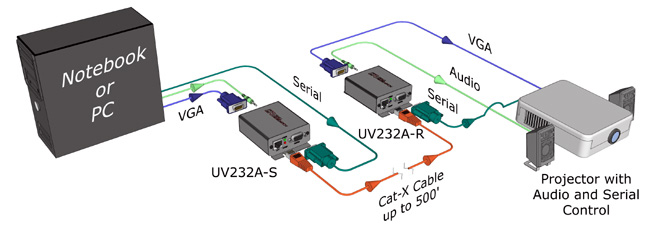

    The Model UV232A Kit is used to send high resolution video, Audio (L+R Mixed) and uni-directional RS-232 over a single twisted-pair cable to a remote location up to 500 feet away.

    The input video can be from a RGBHV (PC video to WUXGA) or YPbPr (HD analog component to 1080p).

    DDC compliant EDID emulation assures proper PC boot-up with video output.

    The Uni-directional RS-232 can be used to control LCD's or Projectors that have RS-232 control.

    Applications include kiosk solutions, conference halls, digital signage, interactive operator systems, factory or laboratory data acquisition and control, and more.

    When the Sender is powered from a VESA compliant VGA source (+5v on Pin 9) a power supply (included) is only required at the Receiver. If the source is not VESA compliant in that regard, or if the video is YPbPr (using a 3 RCA to HD15 input cable), then a power supply (included) is needed at both Sender and Receiver.

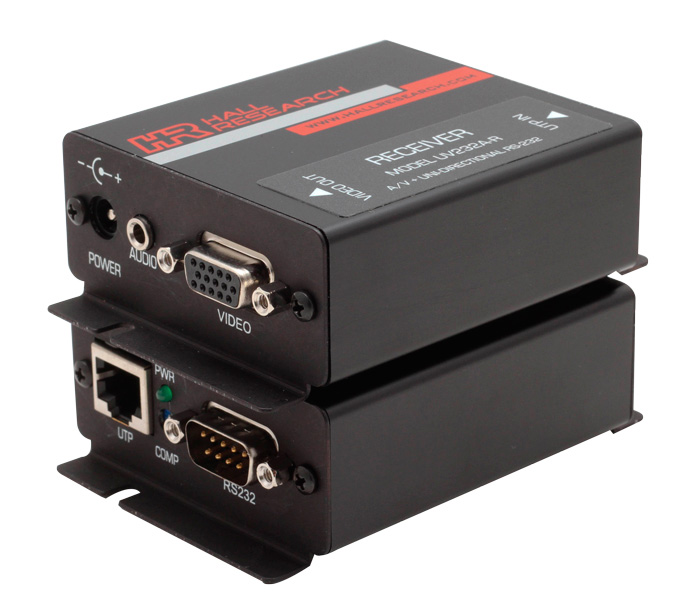

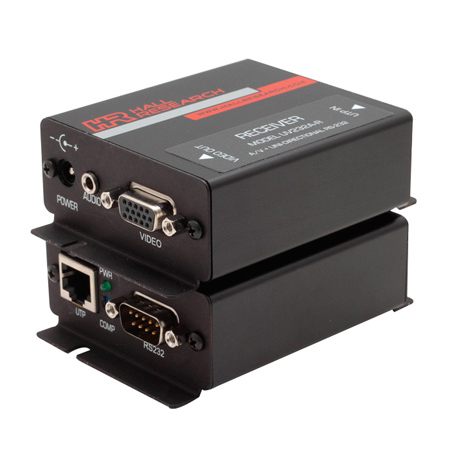

    The kit includes a local unit (Sender) that includes a VGA & serial cables, plus a remote unit (Receiver) with two power supplies.

    It is recommended that for best image quality low-skew UTP cables be utilized (such as Hall Research's Zero-Skew cables), otherwise at long distances (>200ft) and high-resolutions, RGB skew may be present and a separate skew corrector would be necessary (HRT Model SKU-RGB).
