Hall Technologies VSA-UI-DP User Interface Decora Panel for VSA System

ITEM #: HRT-VSA-UI-DP MFG #: VSA-UI-DP

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$412.50

Our Price:

$391.88

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    VSA-UI-DP - Overview

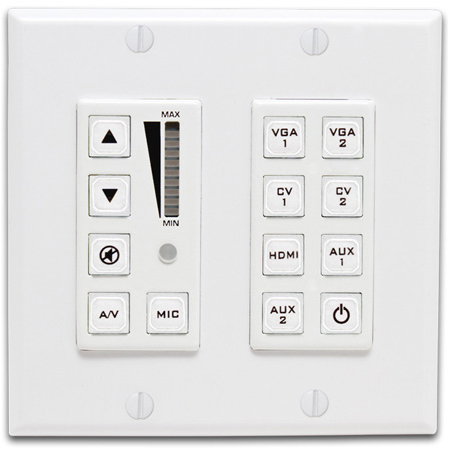

    User Interface keypad for VSA System. Includes separate mic and source volume controls with LED bar indicator along with 8 custom programmable buttons can be configured to perform any system action or a combination of actions. Removable clear caps and pre-printed label sheet for customized labeling.

    It includes a built-in IR receiver for relaying IR to the VSA system receiver as well as routing through a 2-wire output on the back of the panel. It also features an RS-232 port for controlling auxiliary devices. The VSA-UI-DP can be expanded to have an additional 8 buttons with the VSA-UI-8 USer Interface Expansion module.

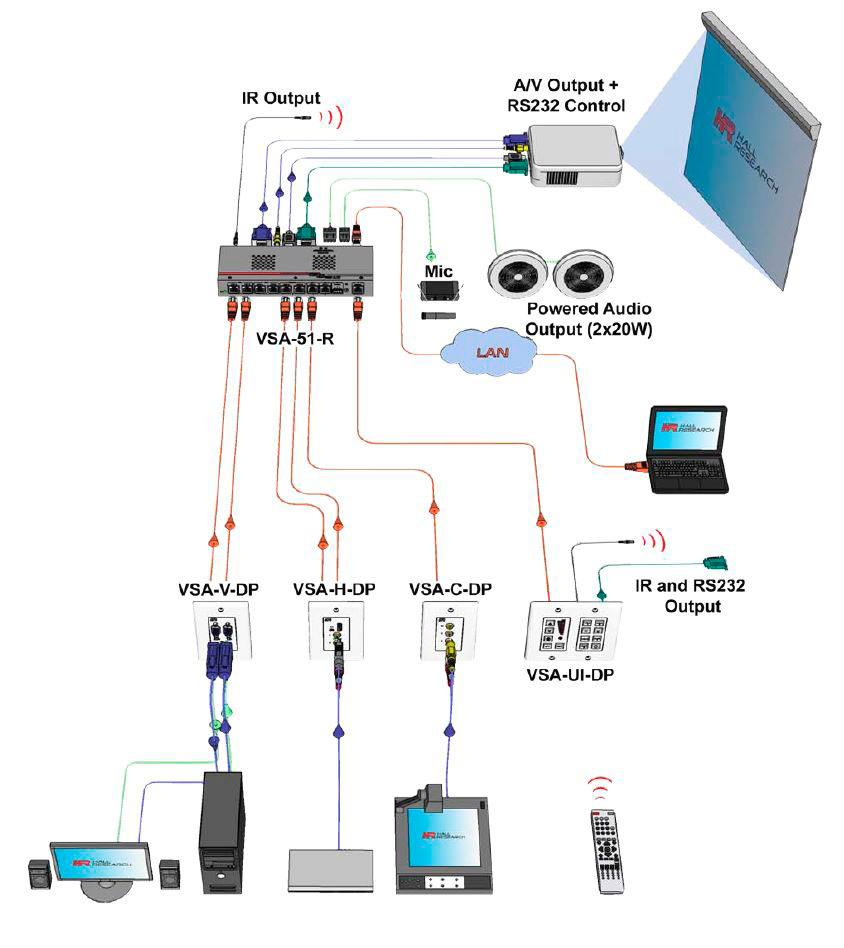

    The VSA-UI-DP Connects to VSA system receiver via single UTP cable. Power is also provided from the receiver so no complicated in-wall wiring necessary.

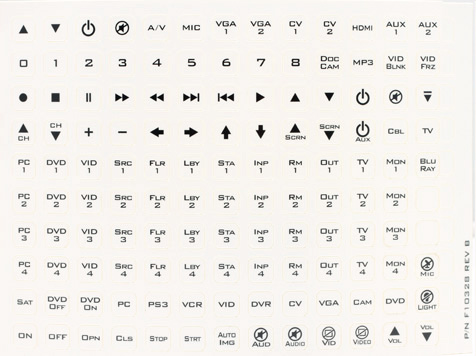

    Included with the user interface keypad is a set of peel and stick labels for customizing button functions.

    • Features:

      • Connects to system receiver from up to 300 ft away via single Cat5 cable
      • Dedicated volume controls and 8 user programmable buttons
      • Volume level indicator with individual controls for mic and source audio
      • Built-in IR receiver for routing IR to system receiver
      • RS-232 and IR output for control of auxiliary devices
      • Removable clear caps and pre-printed label sheet for customized labels

    • Specifications:

      • Form Factor: Dual-gang Decora
      • Input: IR Receiver
      • Output:
      • 1x RJ45 (to receiver)
      • 1x RS-232
      • 1x IR
      • 1x expansion header (for VSA-UI-8)

    • GTIN:

      0724696530176
