Ocean Matrix OMX-11IPHM0003 1080p/60 HDMI Over IP Extender with 4 RJ45 Ports Receiver ONLY

ITEM #: OMX-11IPHM0003 MFG #: OMX-11IPHM0003

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Special Price:


Availability: In Stock
iAvailability Description Popup

    OMX-11IPHM0003 - Overview

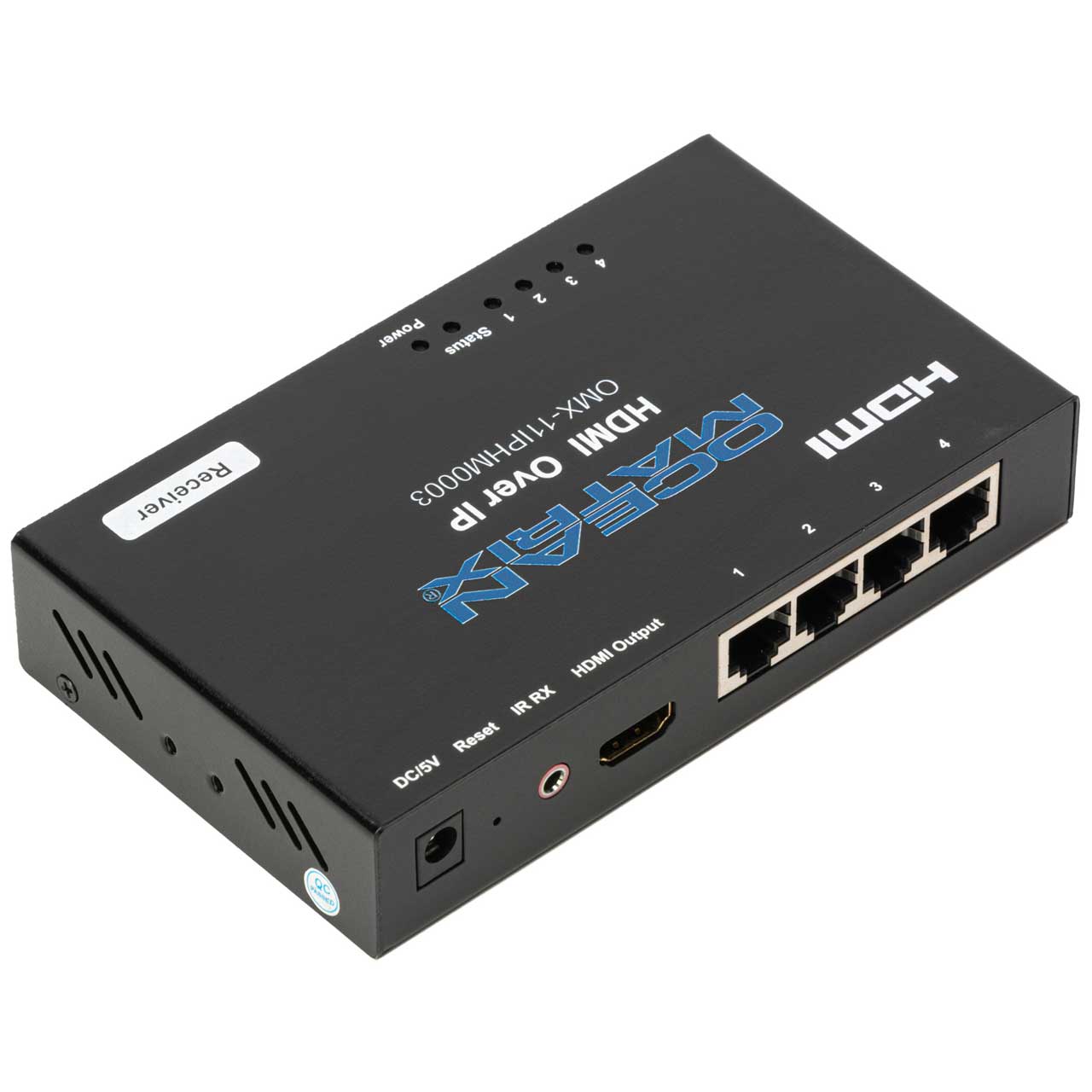

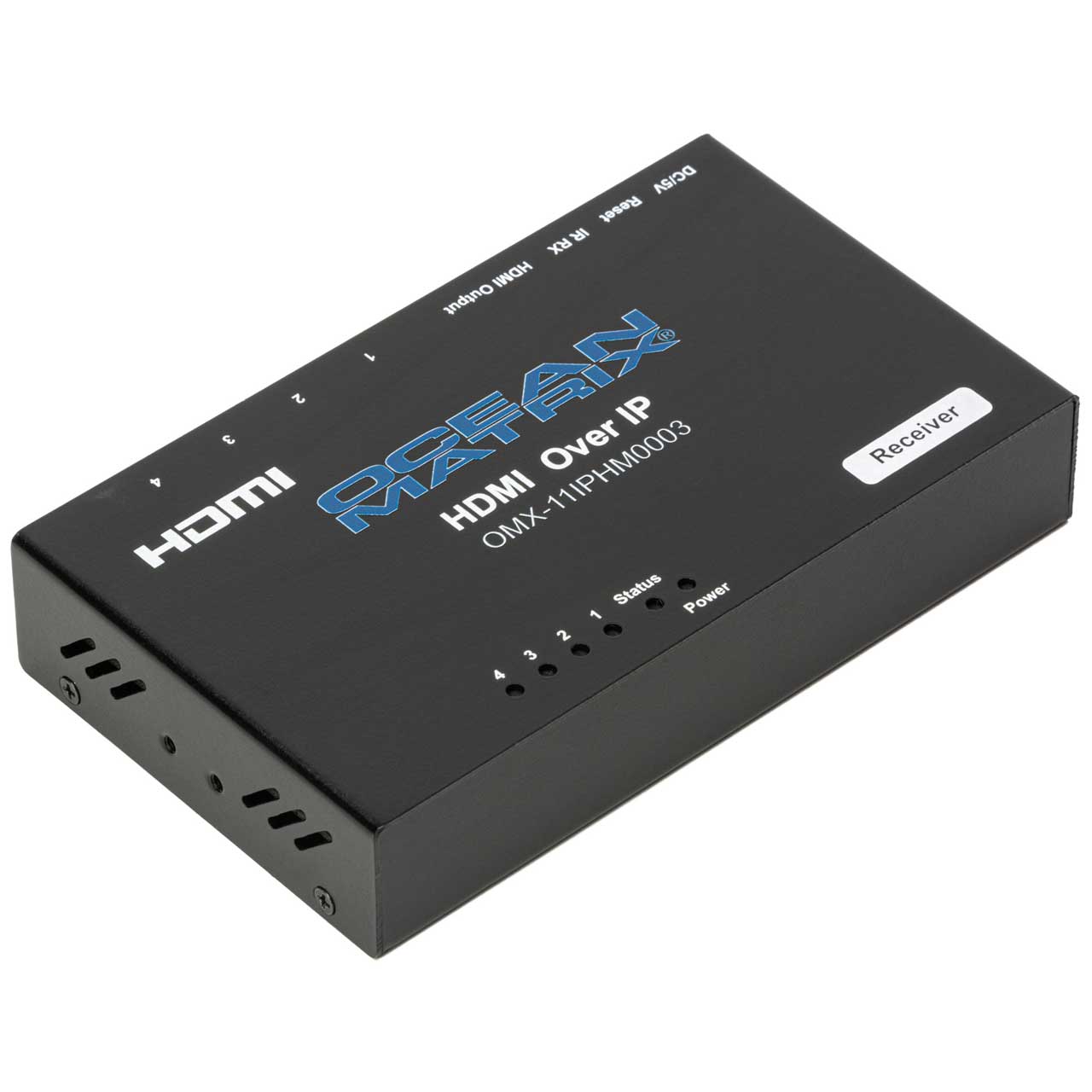

    Extend [email protected] HDMI over ethernet the easy way with the Ocean Matrix 11IPHM0003 receiver. It's an HDMI Receiver and Splitter in one giving you four RJ45 output ports on the unit. The Ocean Matrix 11IPHM0003 supports LPCM 2 channel audio as well as 38-56KHz IR to control video sources.

    A complete10HMIP0004 (transmitter/sender) and 11IPHM0003 (receiver) is capable of transmitter HDMI signals up to 394 feet over a single Cat5e/6 cable. The transmitter has 4 outputs to support 4 receivers. Taking advantage of each receivers four RJ45 ports, receivers can be cascaded allowing for multiple displays.

    The Ocean Matrix 11IPHM0003 is the perfect fit in restaurant digital signage applications, sports bar TV distribution, office and corporate message boards and more.

    • Features:

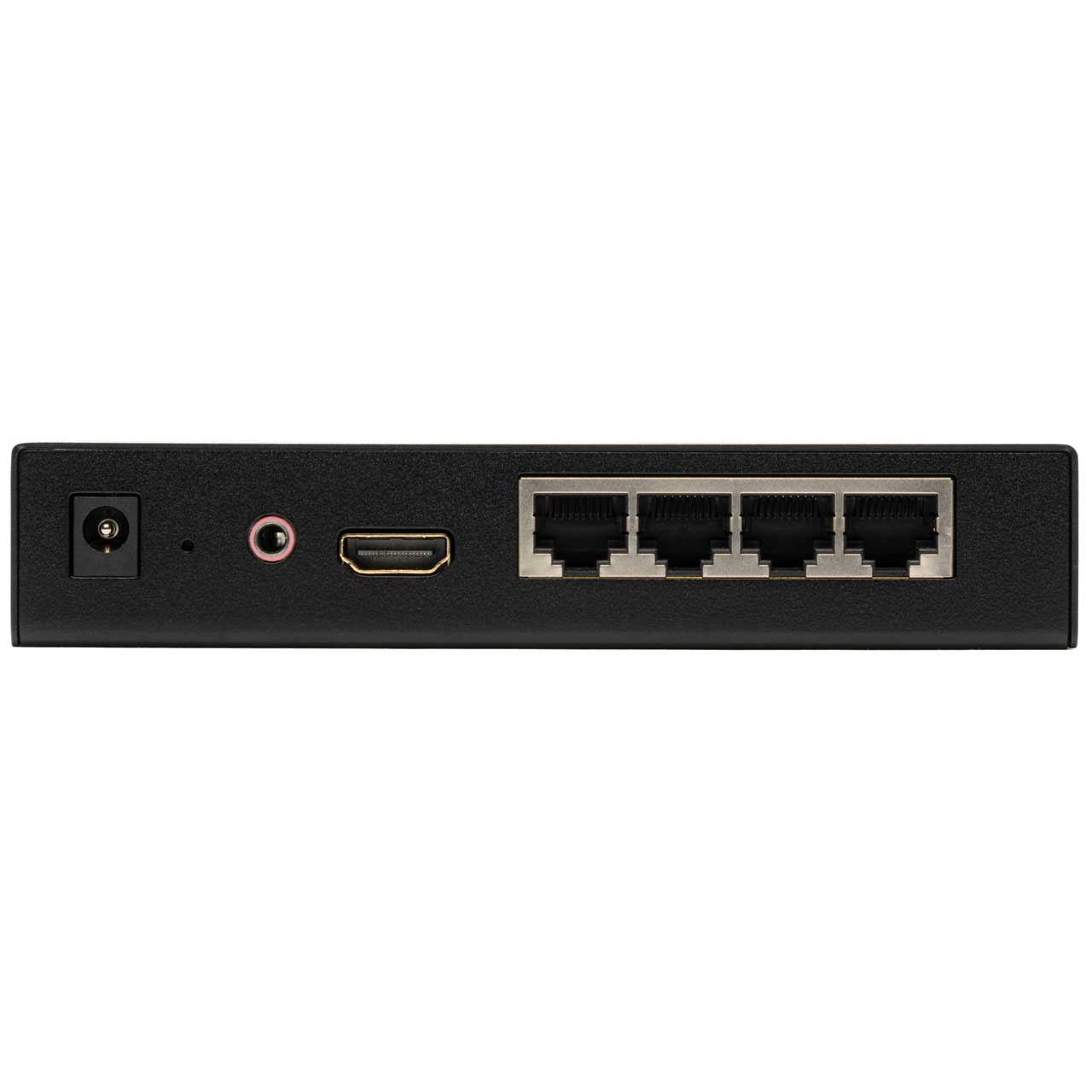

      • Includes 4 RJ45 Ports and Can Be Used as a 4-Port Switch
      • Wide-Band IR Control (38khz to 56khz)
      • Supports Point-to-Point, and Point-to-Many Configurations
      • LPCM 2-Channel Audio
      • Supports TCP/IP Protocol
      • HDCP Compliant
      • Black Powder-Coated Steel Cabinet
      • CE and FCC Certified
    • Specifications:

      • Transmission Distance: 394 feet/120m over Cat5e/6
      • Video Format: DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
      • Audio Format: LPCM, 2-Channel Audio
      • Audio Sampling Rate: 32kHz, 44.1kHz & 48kHz
      • IR Frequency: 38 -56 KHz
      • Power Consumption: 5W
      • Dimensions LxWxH: 5.71 x 3.35 x 1.10 inches
      • Weight: 5.12 oz
    • Item Includes:

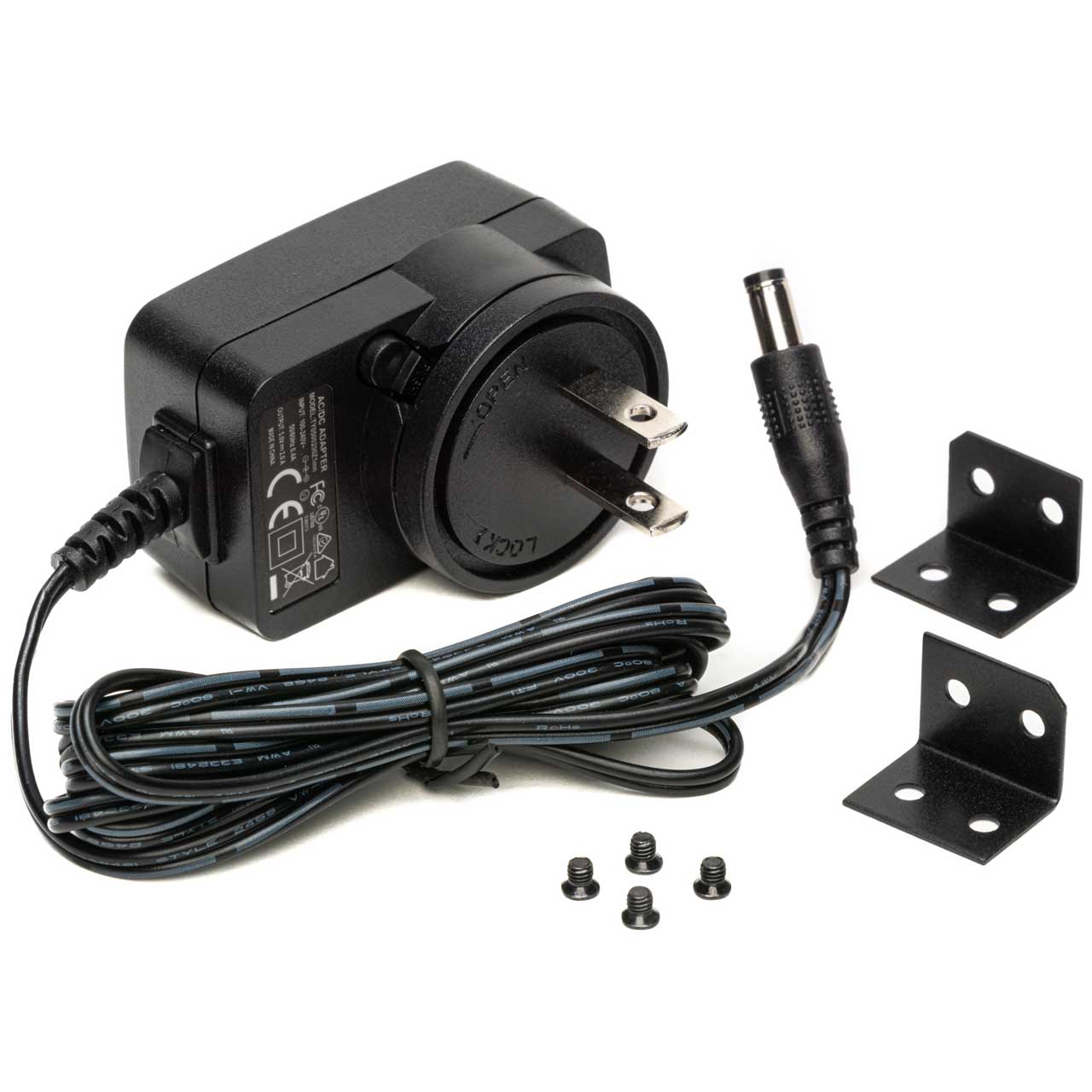

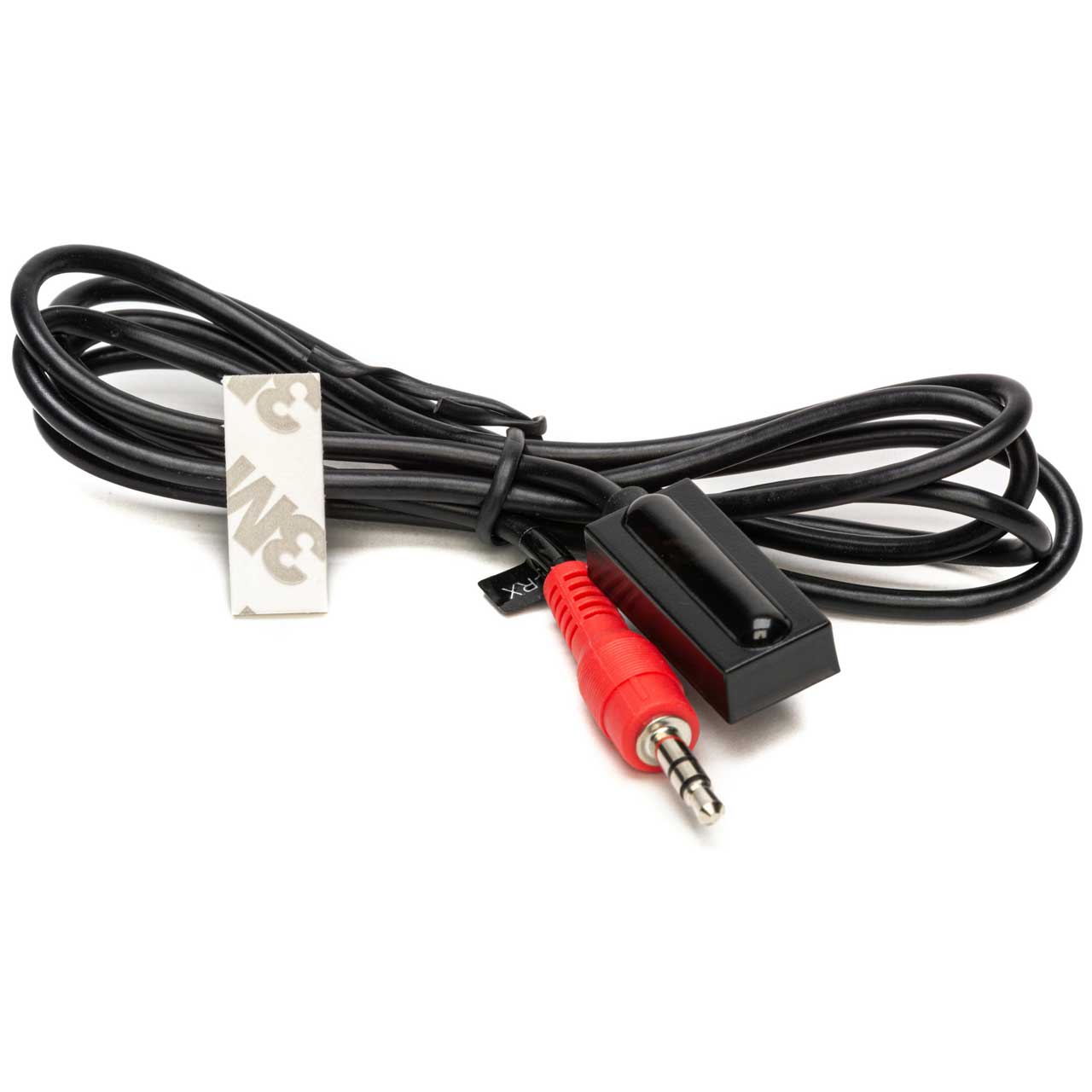

      • 1-5VDC/2A Power Supply, IR-RX with mounting pads, 2-Brackets, 2-Screws, 4 Screws
    • Warranty:

      • 1 Year
