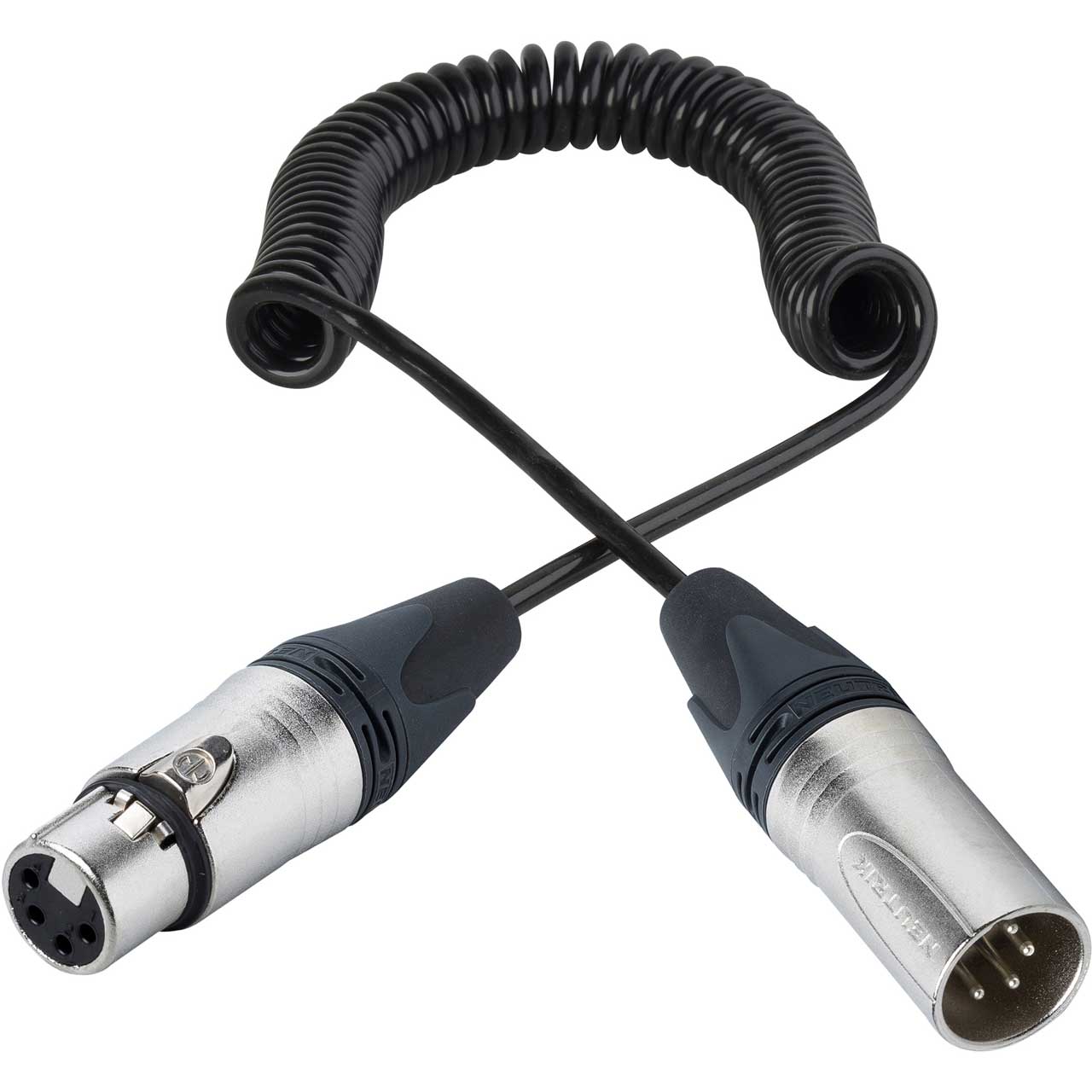

Sescom ICOMX4-MF Intercom Extension Cable 4-Pin XLR Male to 4-Pin XLR Female - 2-10 Foot Coiled

ICOMX4-MF-10C - Overview

• Features:

  • High Quality 4-Pin Neutrik Connectors
  • Flexible Canare MR202-2AT Cable
  • Wired Pin to Pin
  • Individually Isolated Channels


• Specifications:

  Sescom Shielded Coiled Cable
  • Number of Conductor: 4
  • AWG: 23
  • Stranding: 21/36
  • Overall Serve Shielded AWG/Coverage %: 36AWG(STC)/90%
  • Jacket Material: PVC
  • Insulation Material: Polypropylene
  • Cable O.D.: 0.205" (5.20mm)
  • Coil O.D.: 0.68" (17.27mm)
  • Extension Ratio: 1:5
  • Rated Voltage: 300V UL

    Neutrik Connectors
  • Capacitance Between Contacts: ≤ 7 pF
  • Contact Resistance: ≤ 3 mΩ
  • Dielectric Strength: 1.5 kVdc
  • Insulation Resistance: > 10 GΩ
  • Rated Current per Contact: 10 A
  • Rated Voltage: < 50 V
  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Locking Device: Latch lock
  • Protection Class: IP40


• Warranty:

  • Limited Lifetime
