    2304 - Overview

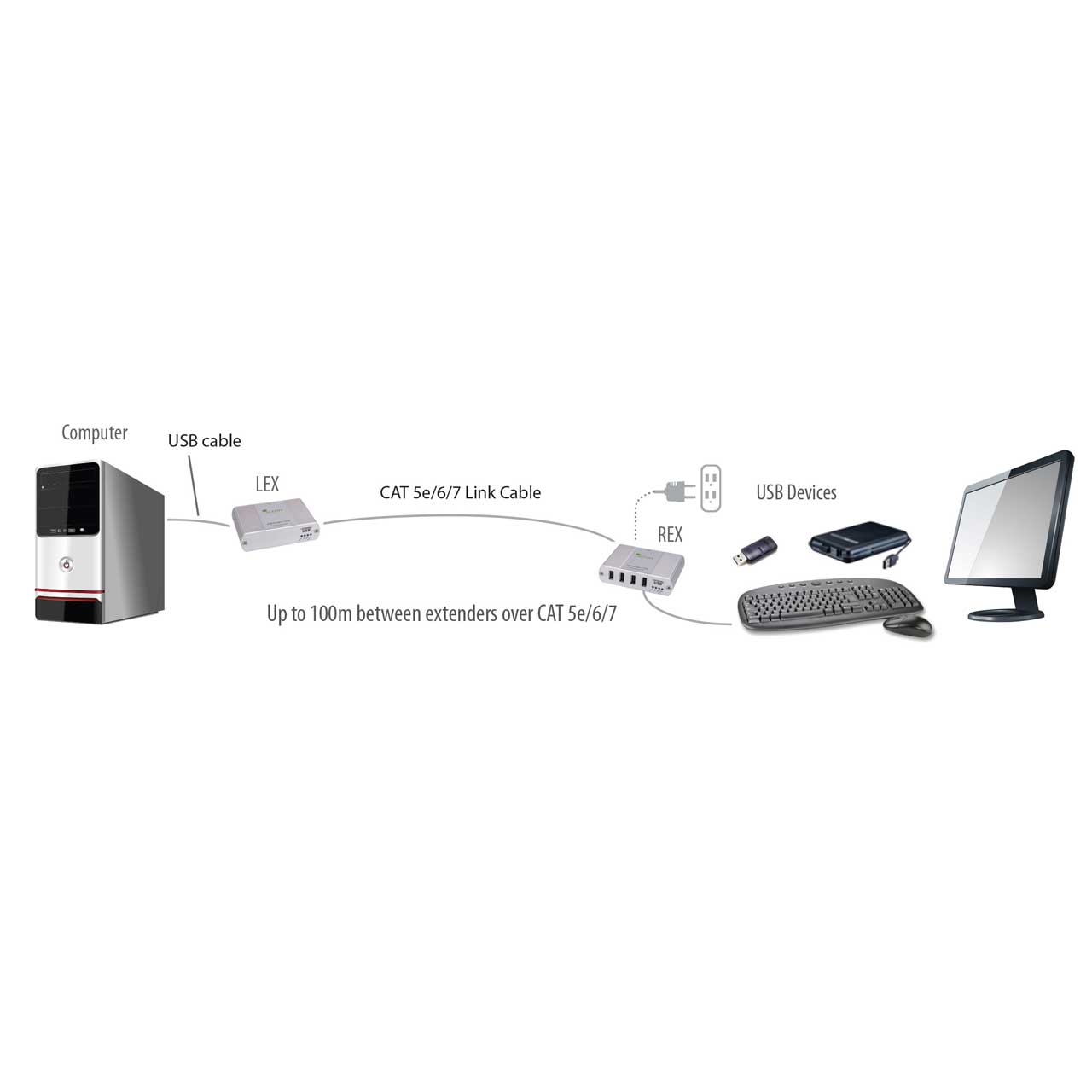

    The Icron 2304 is a four-port Icron Ranger 2304 provides true USB 2.0 extension at up to 480Mbps over Cat 5e cabling, without the need for supplementary software drivers. With thanks to ExtremeUSB, this true plug-and-play solution is compatible with all leading operating systems and supports all USB 3.0, 2.0 and 1.1 peripherals including Keyboards, webcams, mice, flash drives and interactive whiteboards across a dedicated Cat 5e connection.

    There is no need for an additional hub since Icron Ranger 2304 benefits from an integrated four port-hub which supports extension of up to four USB devices. Icron's Ranger 2304, a CAT 5e USB 2.0, extender also benefits from the latest ASIC-based design, an updated Cypress USB hub and Realtek internal Ethernet PHY.

    Please be aware that the Ranger 2304 supports USB 3.0 at speeds of USB 2.0 (480Mbps).

    Remote storage
    Security and monitoring
    Professional Audio-Visual
    Keyboard and mouse

    • Features:

      • Extends USB 3,0, 2.0, and 1.1 (both low-speed and full-speed) devices
      • Operates with USB 3.0, 2.0, and 1.1 hosts
      • Supports all USB devices up to 480Mbps
      • Uses a standard solid core Cat 5e cable for easy installation
      • Number of devices can be increased using additional USB hubs
      • FCC Class B
      • Rugged metal enclosure
      • ExtremeUSB® suite of features:
        Transparent USB extension
        True plug and play; no software drivers required
        Works with all major operating systems: Windows®, macOS™, and Linux®
        Zoom Rooms Compatible
    • Specifications:

      • Range
      • Direct Connect: Up to 100m (330 ft) over solid core CAT 5e/6/7

        USB Device Support
      • Maximum USB 2.0 Throughput: Up to 480 Mbps
      • Maximum USB 1.1 Throughput: Up to 12 Mbps
      • Traffic Types: All USB 2.0 and 1.1 Traffic Types
      • Device Types: All USB 2.0 and 1.1 Device Types

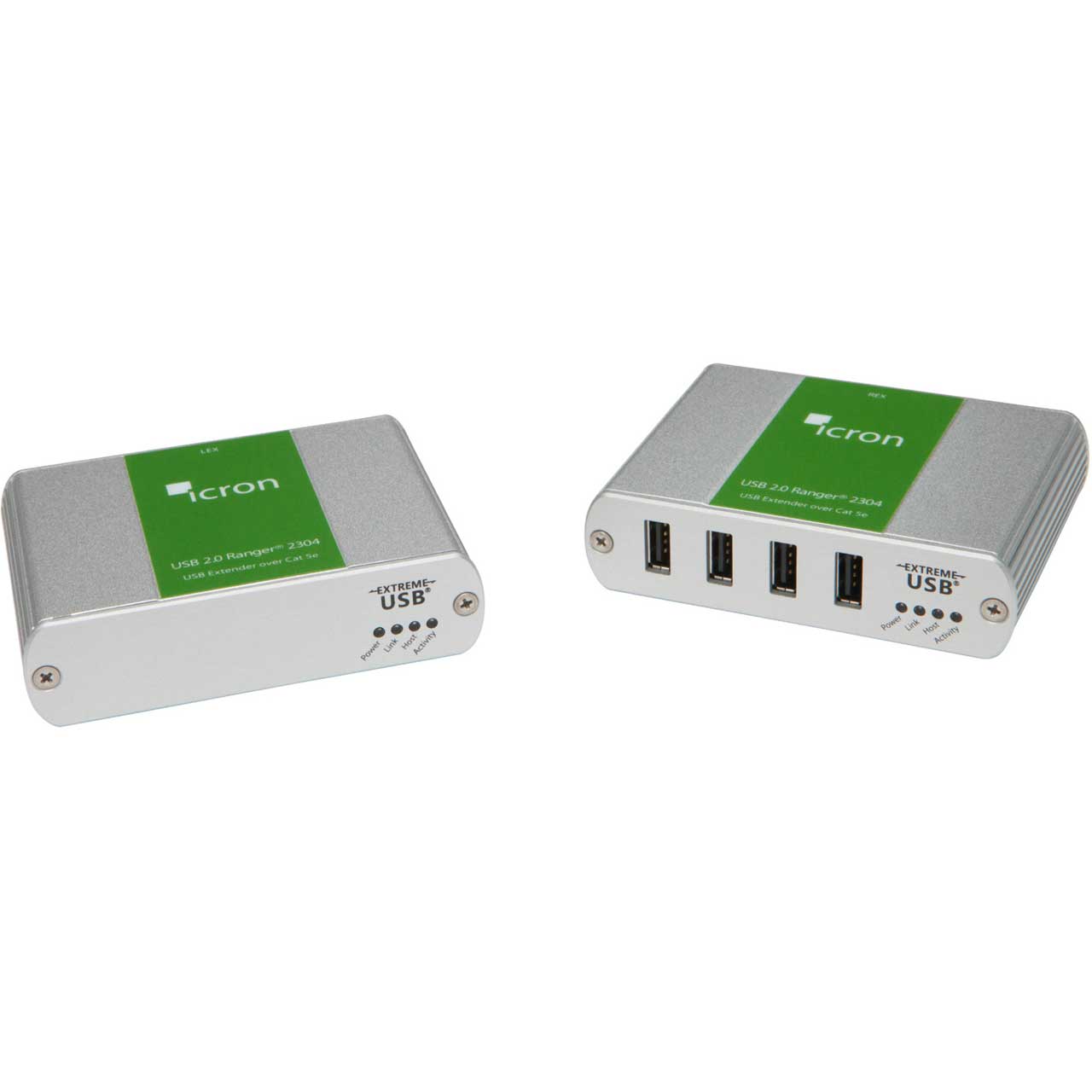

        LEX (Local Extender)
      • USB Connector: 1 x USB Type B Receptacle
      • Link Connector: 1 x RJ45
      • Dimensions: 100 x 76 x 26mm (3.9 x 3.0 x 1.0")
      • Enclosure Material: Silver Anodized Aluminum

        REX (Remote Extender)
      • USB Connectors: 4 x USB Type A Receptacles
      • Link Connector: 1 x RJ45
      • Dimensions: 100 x 76 x 26mm (3.9 x 3.0 x 1.0")
      • Enclosure Material: Silver Anodized Aluminum
      • Available Current: Up to 600mA to each USB port
      • Power Supply: 100-240V AC Input, 1A 24V DC Output

      • Operating Temperature: 32°F to 122°F
      • Storage Temperature: -4°F to 158°F
      • Operating Humidity: 20% to 80% relative humidity, non-condensing
      • Storage Humidity: 10% to 90% relative humidity, non-condensing

      • EMC: FCC (Class B), CE (Class B)
      • Environmental: RoHS2 (CE)
    • Item Includes:

      • Local Extender (LEX)
      • Remote Extender (REX)
      • 2 meter USB cable
      • Quick Start Guide
      • International power adapter with country specific cord (North America, EU, UK, Australia/NZ or Japan)
    • Warranty:

      • Two-Year Warranty
