Ideal 61-686 Digital Light Meter

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

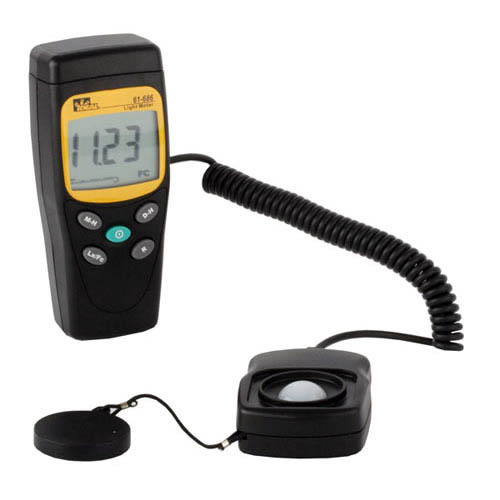

    Ideal 61-686 Digital Light Meter

    Manufacturer: Ideal Industries Inc.

    Item #: IDL-61-686   •   MFG #: 61-686




    Our Price:$213.61

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The 61-686 meter measures visible light from LED, fluorescent, metal halide, high-pressure sodium, incandescent and other light sources.

      The foot-candle unit is defined as the amount of illumination the inside surface an imaginary 1-foot radius sphere would be receiving if there were a uniform point source of one candela in the exact center of the sphere. Alternatively, it can be defined as the illuminance on a 1-square foot surface of which there is a uniformly distributed flux of one lumen. This can be thought of as the amount of light that actually falls on a given surface. The foot-candle is equal to one lumen per square foot.

      The SI derived unit of illuminance is the lux. One foot-candle is equal to approximately 10.764 lux, although in the lighting industry, typically this is approximated as 1 footcandle being equal to 10 lux.


      • Features

        • Measures all visible light sources
        • Measures in four ranges up to 20,000 Foot Candles or 200,000 Lux
        • +/- 3% basic accuracy
        • Data hold mode
        • Max reading mode
        • Auto zero adjustment
        • Low battery indication
        • Auto power off
        • Remote sensor with 59 in. (1.5m) cable
        • 2-year warranty

      • Specifications

        • Display: 2000 count LCD display
        • Sensor: Silicon photodiode and filter
        • Measuring Range: 200, 2000, 20000, 200000 Lux; 20, 200, 2000, 20000 Footcandles
        • Accuracy: ±3% (Calibrated to standard incandescent lamp 2856°K) +/- 6% all other visible light sources
        • Angle deviation from cosine characteristics: 30°: ±2%; 60°: ±6%; 80°: ±25%
        • Power Supply: 9V NEDA 1604, IEC 6F22, JIS 006P battery x 1pc
        • Battery life: Approximately 200 hours
        • Dimensions: Meter: 1.5 (H) x 2.2 (W) x 5.1 (L) in.; Sensor: 9.8 (H) x 2.2 (W) x 3.1 (L) in.
        • Weight: 8.8 oz. with battery

      • Item Includes

        • User's manual
        • carrying case
        • 9V battery

      • Warranty

        • 2 Year
