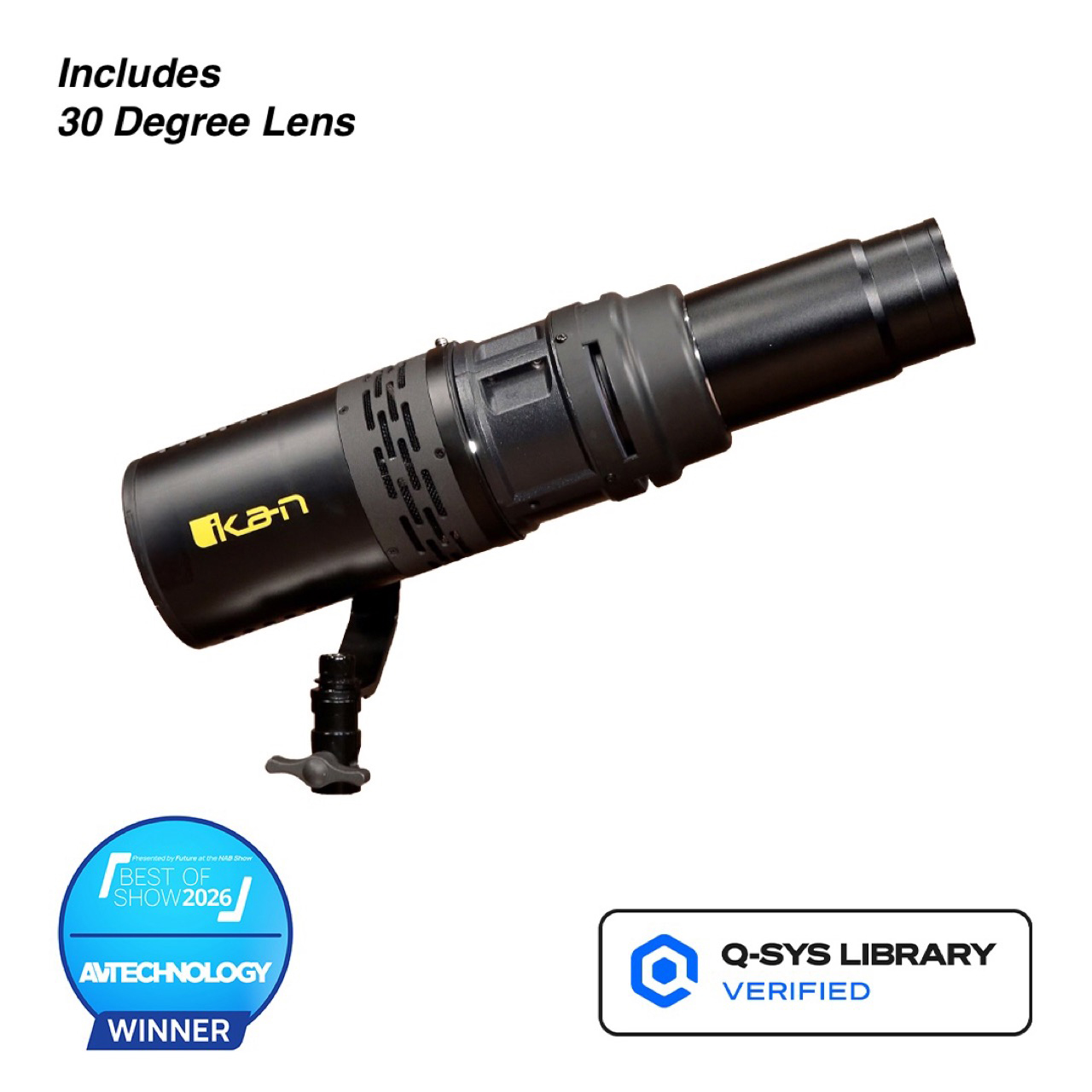

The Ikan LBERS60-POE-30 is a PoE-powered ellipsoidal light designed for professional studio, broadcast, corporate AV, and house-of-worship applications. Unlike panel or fresnel fixtures, an ellipsoidal produces a sharp, shapeable beam-ideal for clean spotlighting on podiums, presenters, signage, and architectural features. It also accepts gobos for projecting company logos, church branding, or custom patterns onto walls, floors, and backdrops. The light utilizes a single Ethernet (RJ45) cable for both power and DMX control via PoE++. This bundle ships with the 30° lens, delivering a notably wider beam than the 21° option, well-suited for shorter-throw applications and producing a substantially larger pool of light at the same throw distance.

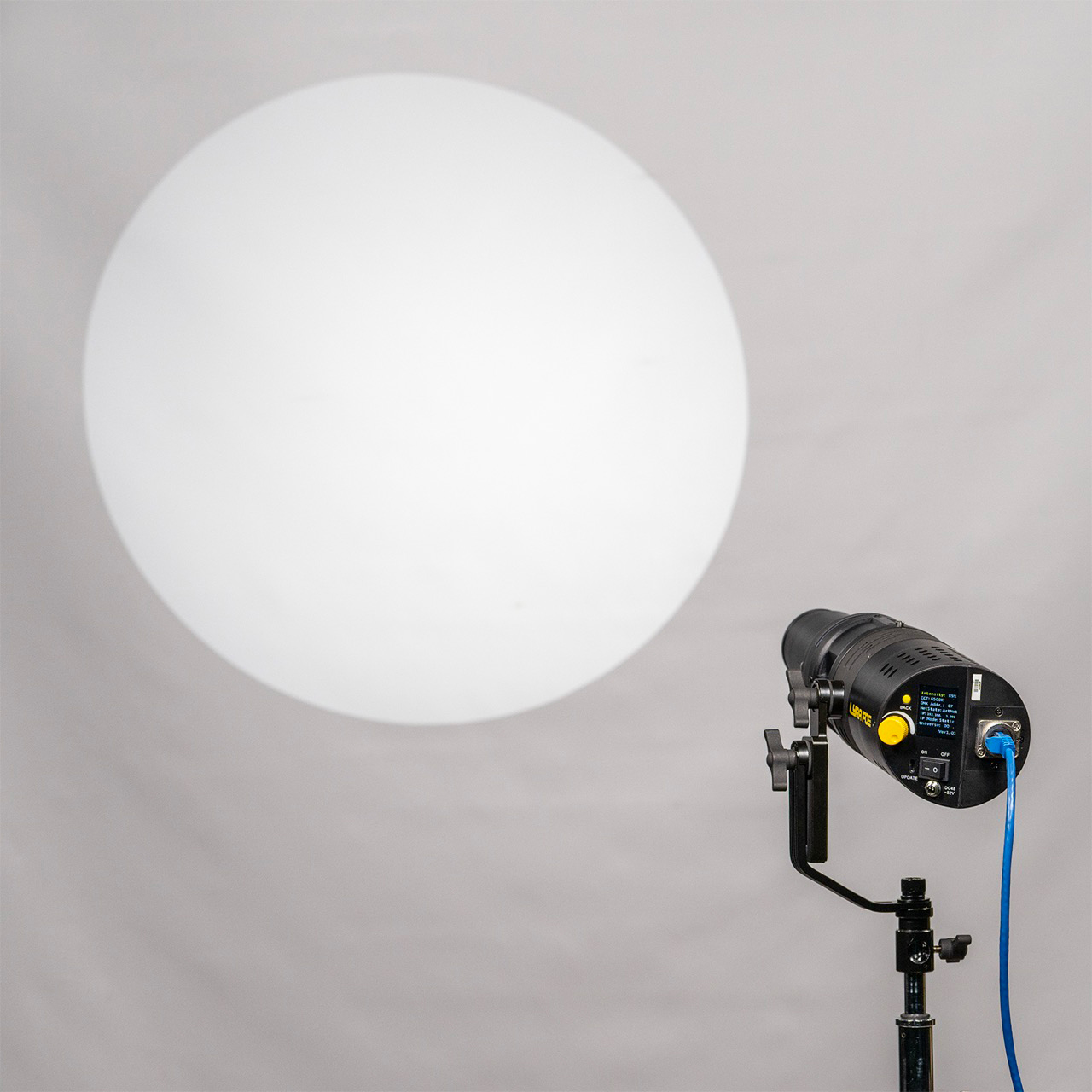

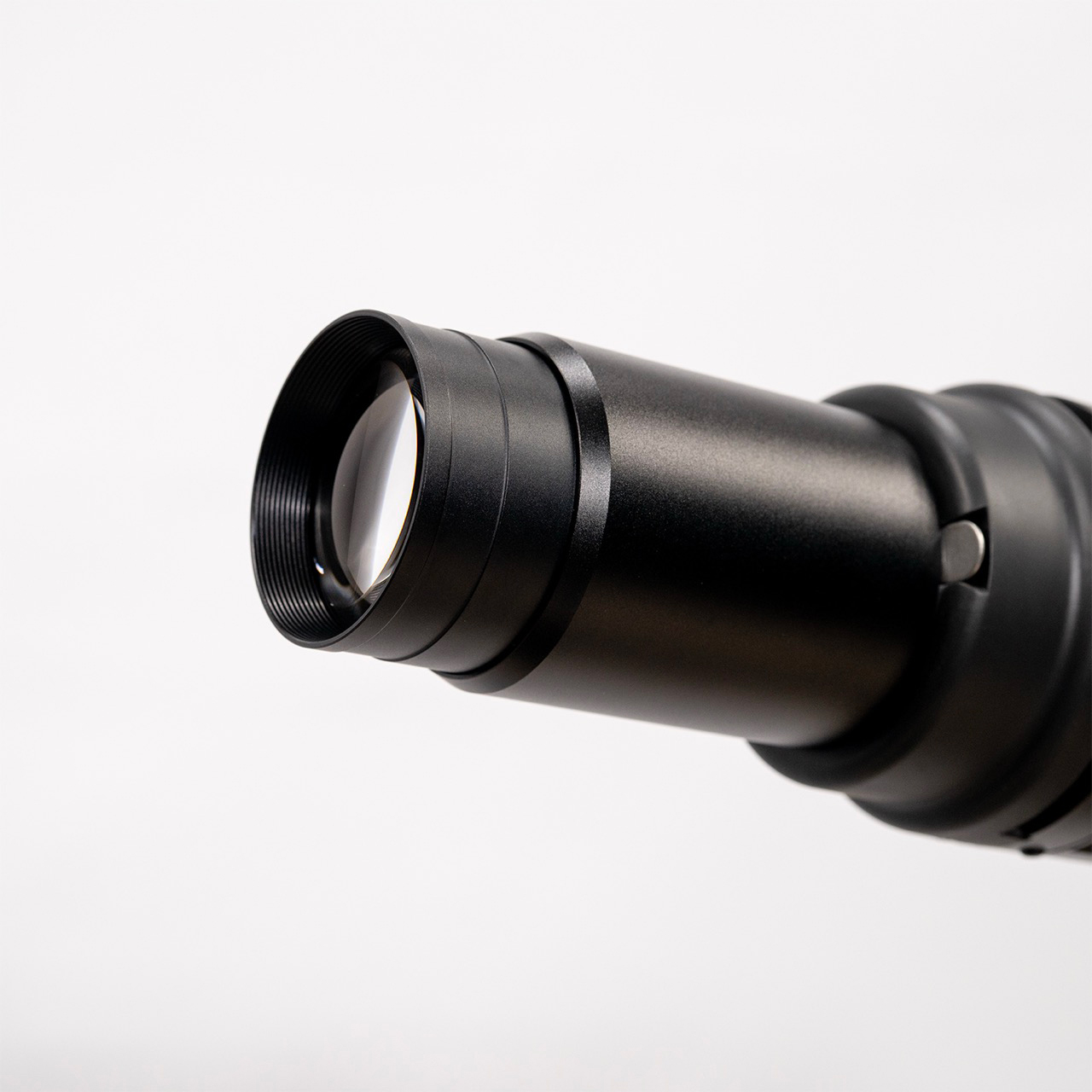

The interchangeable 30° lens delivers a wider, evenly lit circular beam with the same crisp, defined edge. The kind of clean, controllable pool of light you can't get from a panel or fresnel. That broader coverage makes the LBERS60-POE-30 ideal for keying full pulpit-and-altar areas in houses of worship, lighting two presenters or complete lectern setups in corporate broadcast and conference rooms, washing larger set pieces, backdrops, and scenic elements in theatrical productions, and illuminating murals, signage, walls, and architectural features in lobbies and event spaces. Wherever you need a defined pool of light at shorter throws-or want to cover more area without sacrificing edge quality-the 30° lens delivers a uniform circle with no soft falloff or hot spots.
Four independent cutting blades (shutters) let you reshape the beam from a clean circle into a square, rectangle, triangle, or any four-sided shape your scene calls for. Slide them in to keep light off a back wall, frame a presenter without spilling onto the set, or match the edge of a podium, lectern, or piece of scenery. The entire shutter assembly rotates around the lens barrel, so you can angle the frame to follow whatever you're lighting-giving installers and lighting designers tight, professional control over where the light lands and, just as importantly, where it doesn't.

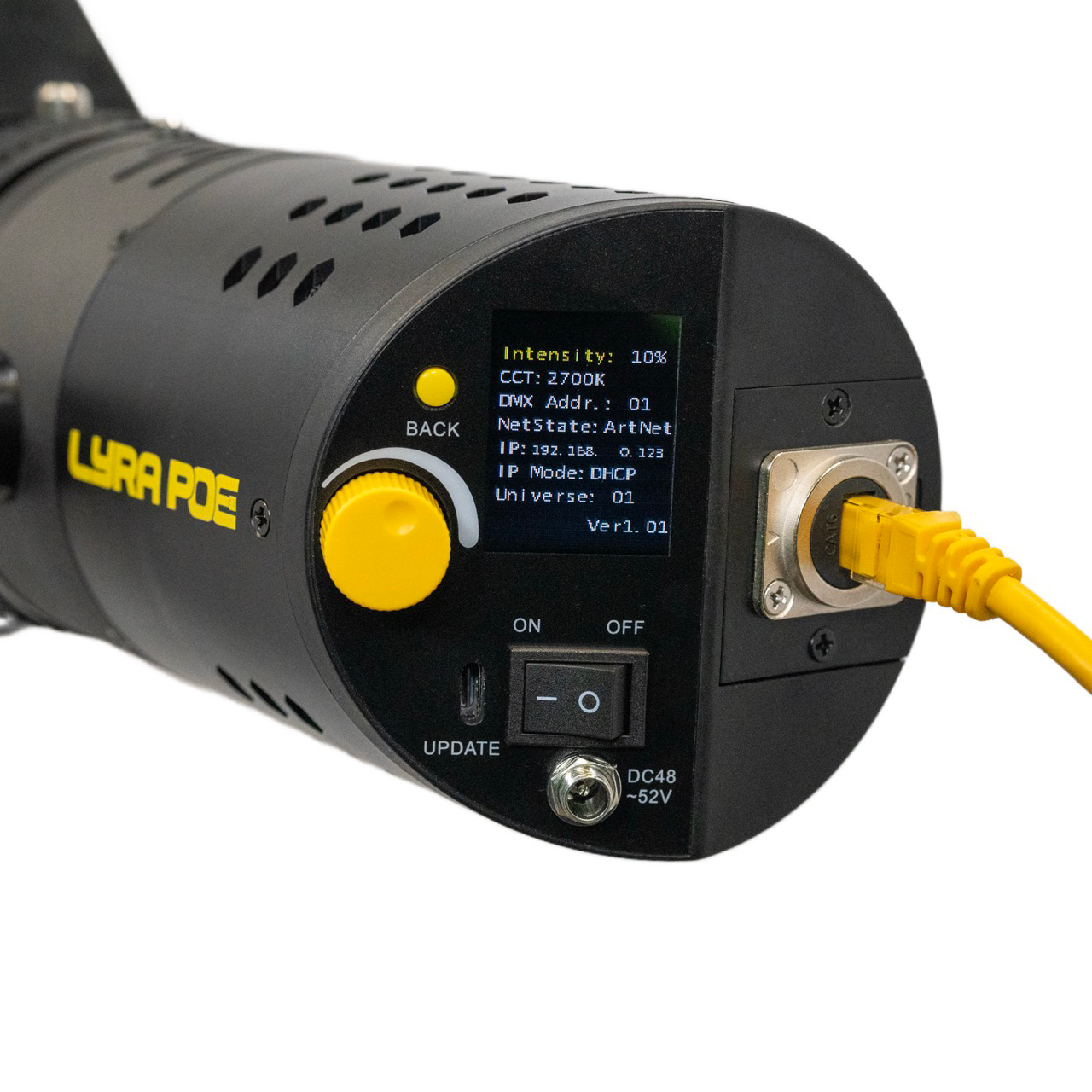

This light is powered using a single Ethernet cable (Cat6 RJ45 24AWG or better). This eliminates the necessity for additional wiring or power outlets, saving both time and reducing installation costs on obtaining permits or hiring electricians to install new ceiling outlets. The LBF60Z-POE supports IEEE 802.3bt Type 3 PoE++, ensuring efficient power delivery over the network. (IEEE 802.3bt Type 3 switch is required)
The integrated gobo holder accepts industry-standard E-size gobos (37.5mm outer diameter), letting you project sharp company logos, church branding, event graphics, or decorative patterns directly onto walls, floors, and backdrops. Drop in a custom-cut steel gobo of your logo to brand a corporate lobby, conference room, or sanctuary-or swap in stock patterned gobos like leaves, windows, clouds, or abstract textures to add depth and atmosphere to a set or event space. M-size is the universal ellipsoidal standard, so custom logos and stock patterns are widely available from any major gobo supplier in steel for monochrome projection or glass for full-color, photo-realistic imagery.
