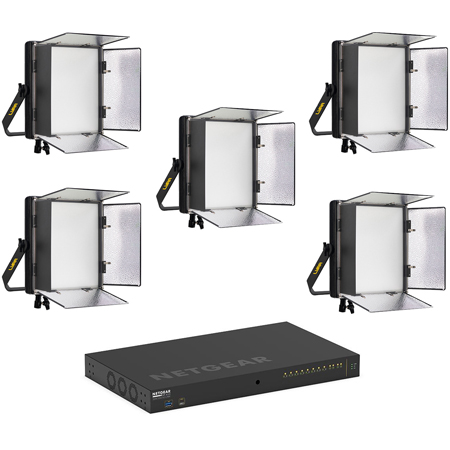

Ikan LBX10-POE-5L-1S Lyra POE 1x1 Bi-Color Studio Panel Soft Led 5x Light W/ Netgear Poe++ Switch Bundle

ITEM #: IKAN-LBX10POE5L1 MFG #: LBX10-POE-5L-1S

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$7,599.00

Our Price:

$7,499.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    LBX10-POE-5L-1S - Overview

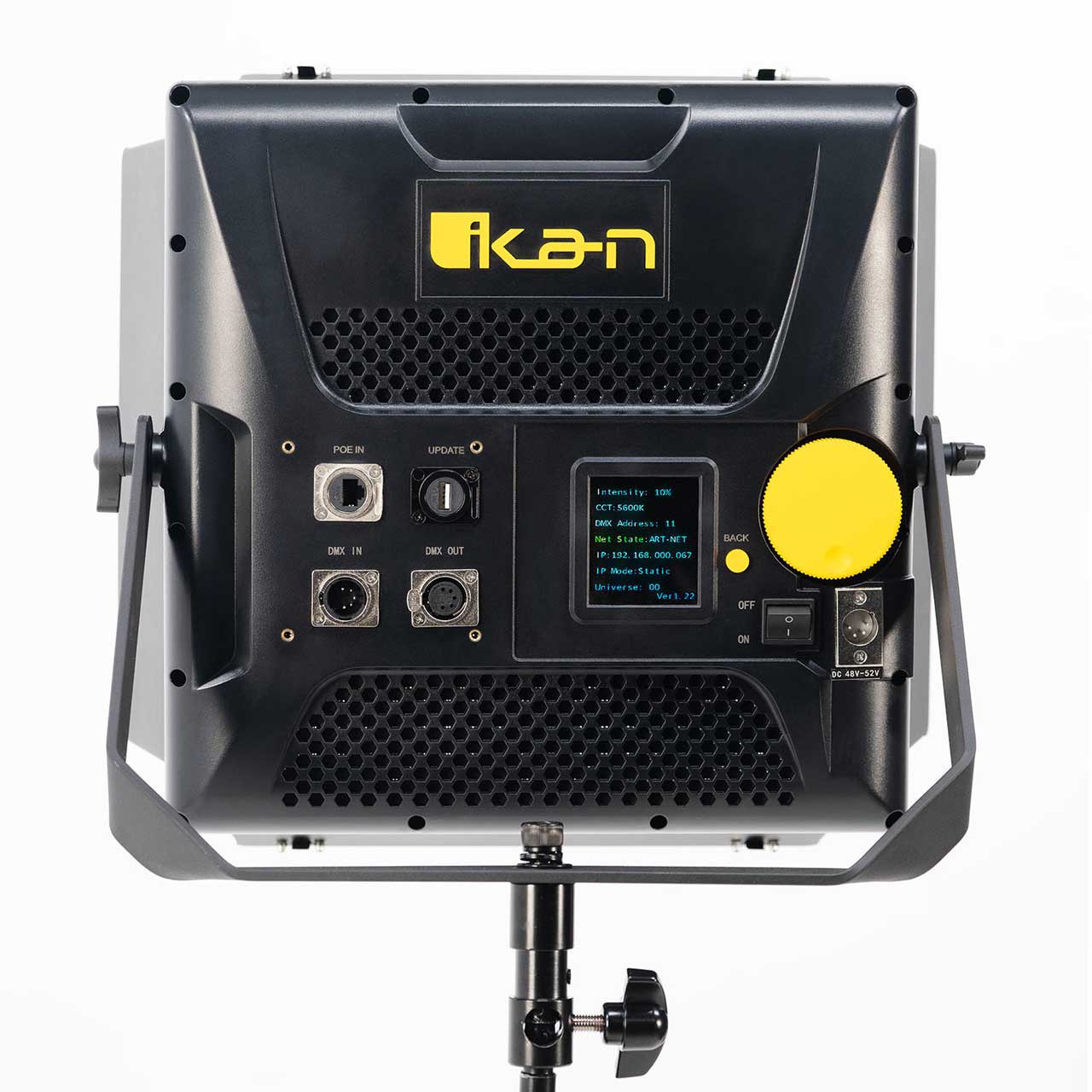

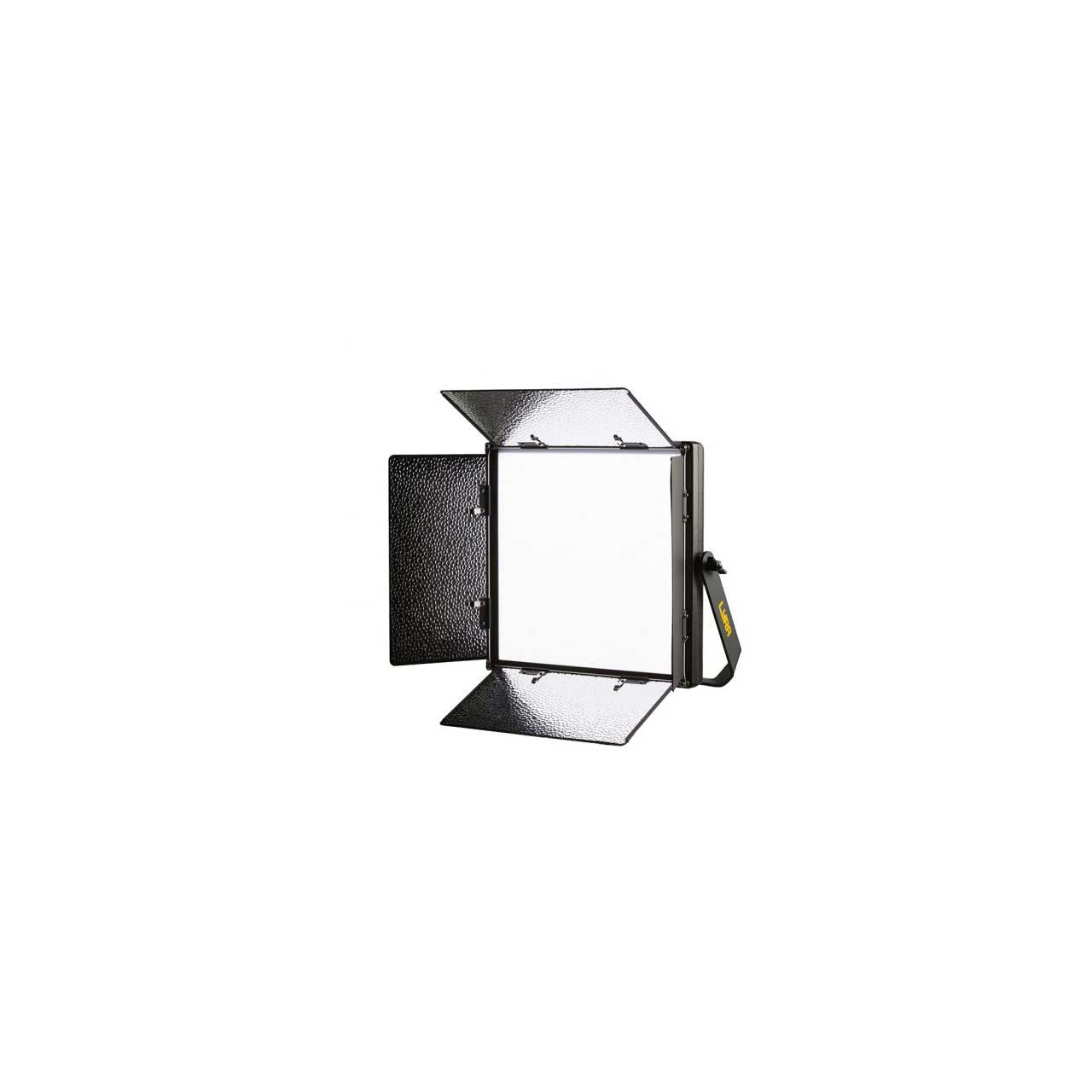

    The Ikan LBX10-POE is a cutting-edge 1x1 soft panel LED light that is simultaneously powered (via PoE++) and DMX controlled (via ArtNet or sACN) through a single Cat6 RJ45 Ethernet cable. These PoE++ lights redefine simplicity, allowing quick and easy connectivity through an Ethernet cable. Boasting high CRI LED chips and a soft panel, the LBX10-POE emits a gentle, wraparound light that creates artifact-free shadows. Its versatile color temperature range, spanning from 3200K to 5600K, makes it an ideal choice for various lighting productions. With a generous 110-degree beam angle, ample coverage is ensured. The sturdy yoke, featuring tension knobs, facilitates easy adjustments and secure placement at any angle. The user-friendly yellow control knob on the back, complemented by the LED readout, makes adjustments to brightness, color temperature, and DMX channels a breeze. Plus, the inclusion of a baby 5/8" and junior 1 1/8" combo pin expands compatibility, allowing seamless use on standard light stands. Elevate your lighting experience with the Ikan LBX10-POE.

    • Features:

      • 5x LBX10-POEAV Line
      • Included Netgear Utra90 PoE++ 802.3bt 720W Switch
      • 85W PoE++ Light
      • Art-Net & sACN DMX
      • 1x1
      • 97 CRI COB LEDs With 1/2 Stop Soft Diffusion Panel
      • Silent Fanless Fixture
      • Bi-Color Adjustable 3200K-5600K
      • Consistent Light Across All Color Temperatures
      • Beam Angle 110 Degrees
      • Built-in Barndoors With Integrated Clips
      • Artifact Free Clean Shadow
      • Combo Pin
      • Cat 6 RJ45 24AWG or better required (not included)

    • Specifications:

      • Physical Data
      • Beam Angle: 110 Degree
      • Fixture Dimensions: 14" x 14" x 3"
      • Fixture Weight: 6 lbs
      • Illumination Dimensions: 12" x 12"

        Mechanical Data
      • Build Material: Heavy Duty Resin Plastic / Metal
      • Lens: Permanent 1/2 Stop Soft Diffusion Panel
      • Mounting: 30 Degree Angled Yoke
      • Barn Doors: Installed

        Electronical Data
      • Power Input: 110-220VAC
      • Operating Voltage: 48VDC
      • Frequency: 50/60 Hz
      • Max Power Consumption: 85 W
      • Color Temperature: Bi-Color 3200K-5600K
      • Power Loss: Last Scene Hold
      • LED Type: Chip LEDs
      • CRI: 97
      • TLCI: 99

        Functionality
      • Input/Output Ports: RJ45 DMX512 In & Out USB Type A 3 Pin XLR (Power)
      • DMX: ArtNet, sACN, DMX512 (5 Pin XLR)
      • Dimming Range: 0 - 100% (1% Increments)
      • Cooling: Passive
      • LED Lifetime: 70,000 Hours
      • Display: LCD Screen
        Netgear POE Switch Specifications
      • Dimensions (WxDxH): 17.3" x 7.87" x 1.7" (440mm x 200mm x 43.2mm)
      • Weight: 8.44lb
      • Primary Port Speed: 1 Gigabit
      • Number of Ports: 12 (10x 1G, 2x SFP)
      • PoE Ports / Budget: 8 PoE++ (90W/port), 720W Budget
      • IGMP Support: Enhanced (NETGEAR IGMP Plus)
      • Jumbo Frame Support: Yes, up to 12kb
      • Acoustics: Fanless or 50.5dB@25°C

    • Item Includes:

      • 5x LBX10-POE
      • 5x Yoke (Installed)
      • 5x Barn Doors (Installed Non-removable)
      • 5x Combo Pin
      • 5x Safety Wire
      • 5x User Manual
      • 1x PoE++ 720W Switch
      • 1x IKM4250-10G2XF-PoE++
      • 1x Power cord
      • 1x Console USB Type-C and RJ45-DB9 cables
      • 1x Rack-mounting standard brackets
      • 1x Longer brackets for recessed mounting
      • 1x Rubber footpads for tabletop installation
      • 1x Installation guide

    • Warranty:

      • 1-Year Warranty

    • GTIN:

      0847983035533
