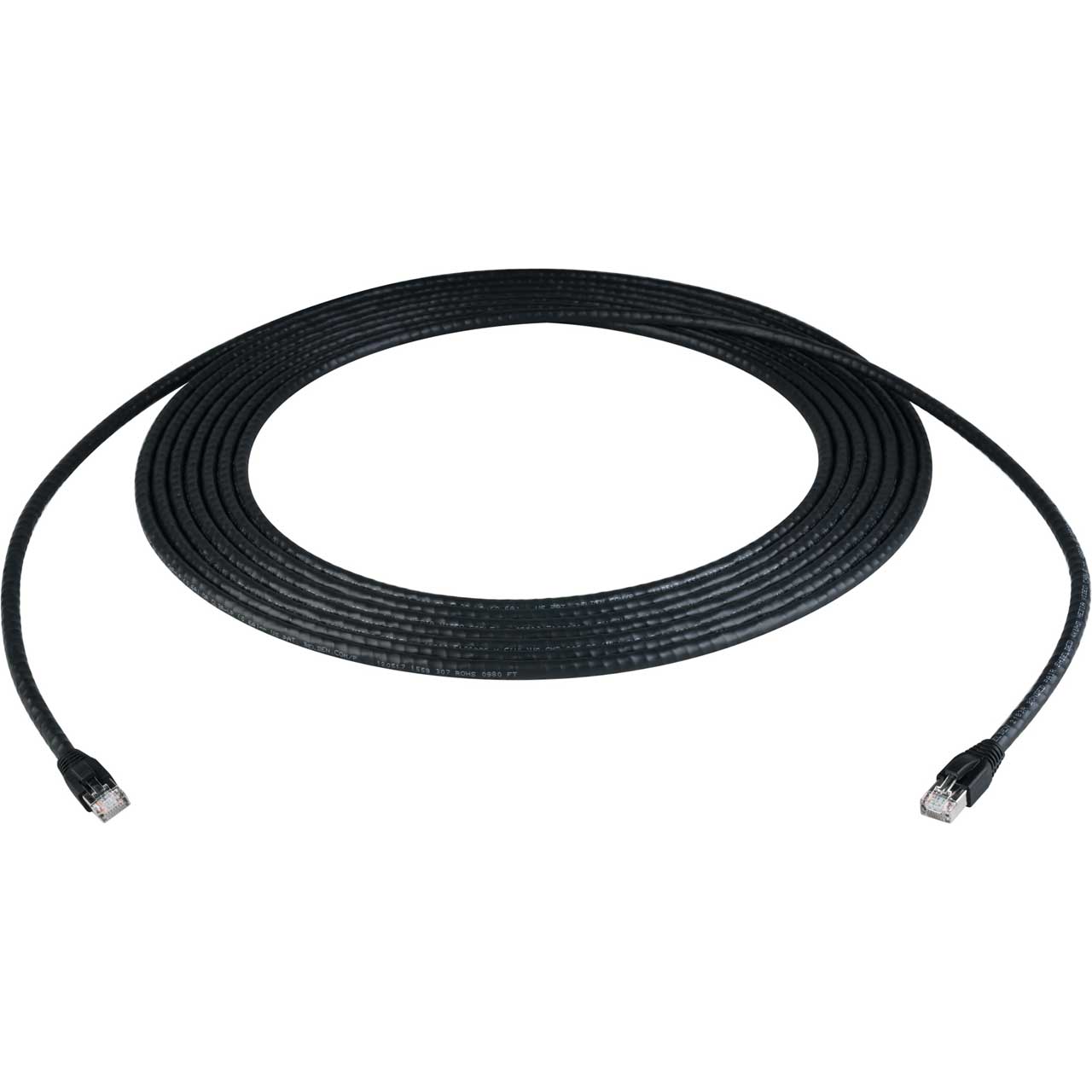

Laird Belden 4K UHD PoH/PoE Media Cable with Shielded RJ45 Connectors - 5 Foot

ITEM #: UHD-2183R-0005 MFG #: UHD-2183R-0005

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$41.95

Our Price:

$37.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    UHD-2183R-0005 - Overview

    Laird UHD-2183 series cables lead the industry charge toward 4K HDBaseT content distribution over networks and point to point systems. This shielded cable delivers 4K up to 100 meters and is the only cable to achieve UL 4299 certification for HDBaseT POH (Power over HBaseT). PoH is similar to PoE (Power over Ethernet), but has unique features specific to professional AV installations that involve HDBaseT. When power is run on a twisted-pair cable, the amount of heat generated inside the cable increases, especially in cable bundles. Cables meeting the UL 4299 standard guarantee fire safety and cable performance while successfully transmitting HDBaseT signals - including 100W of power delivery. The ability of 2183 to deliver power means compatible PoH HDMI and SDI extenders won't need power supplies which is convenient for installs at the back of displays and similar locations. Cables are terminated with Platinum Tools 10G shielded connectors ensuring your media is transmitted free of hum and interference.

    • Features:

      • Up to 25% Smaller than Category 7a
      • Easy to Bend and Fit into Small Spaces
      • Optimized 4K UHD Performance in Harsh Environments up to 328 Feet
      • PoE applications to 100W
      • 100% Shielding Provides Protection from Noise Interference
      • Suitable Applications: Full 5-Play, 4K (UHD/DCI), PoE, PoH

    • Specifications:

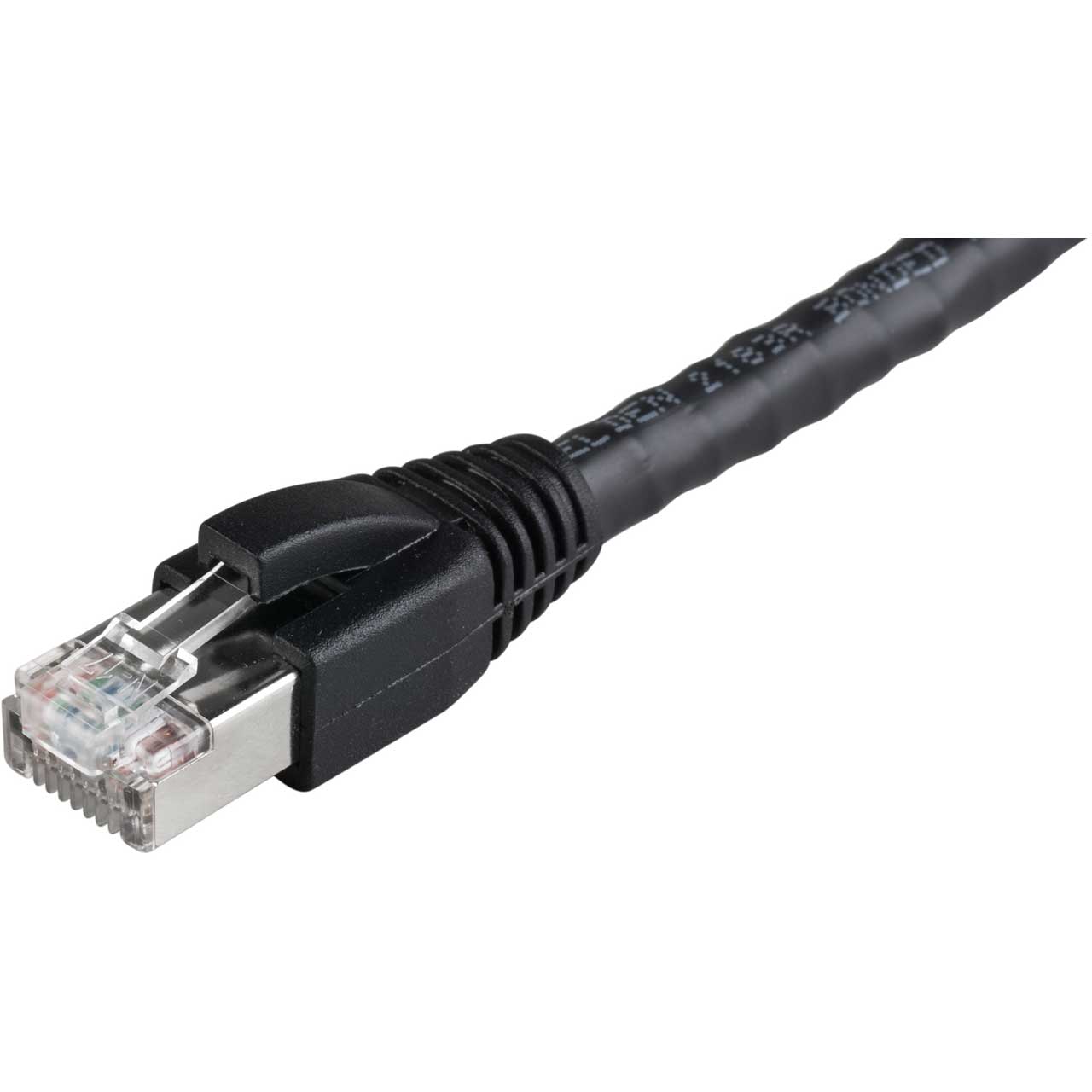

      • Platinum Tools RJ45 CAT6A 10Gig Shielded Connector with 50Μ Gold Contacts
      • Belden 2183R Cable
      • 4 Pair 23 AWG Solid Bare Copper Conductors
      • Riser: CMR-LP (0.6A) / UL 1666 Riser
      • IEEE: POE per 802.3af & POE+ 802.3at-2009
      • Bend Radius: 1.2 inches
      • Max Pulling Tension: 45 lb
      • PVC Jacket, Helical TC Drain
      • 100W Power over HDBaseT (PoH) and Power over Ethernet (PoE)

    • Warranty:

      • 1 Year
