Ikan PT419W-MPEDESTAL 19-Inch Widescreen Teleprompter with Motorized Pedestal and Dolly Turnkey Broadcast Kit

ITEM #: IKAN-PT419W-MPED MFG #: PT419W-MPEDESTAL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$11,549.00

Our Price:

$11,349.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT419W-MPEDESTAL - Overview

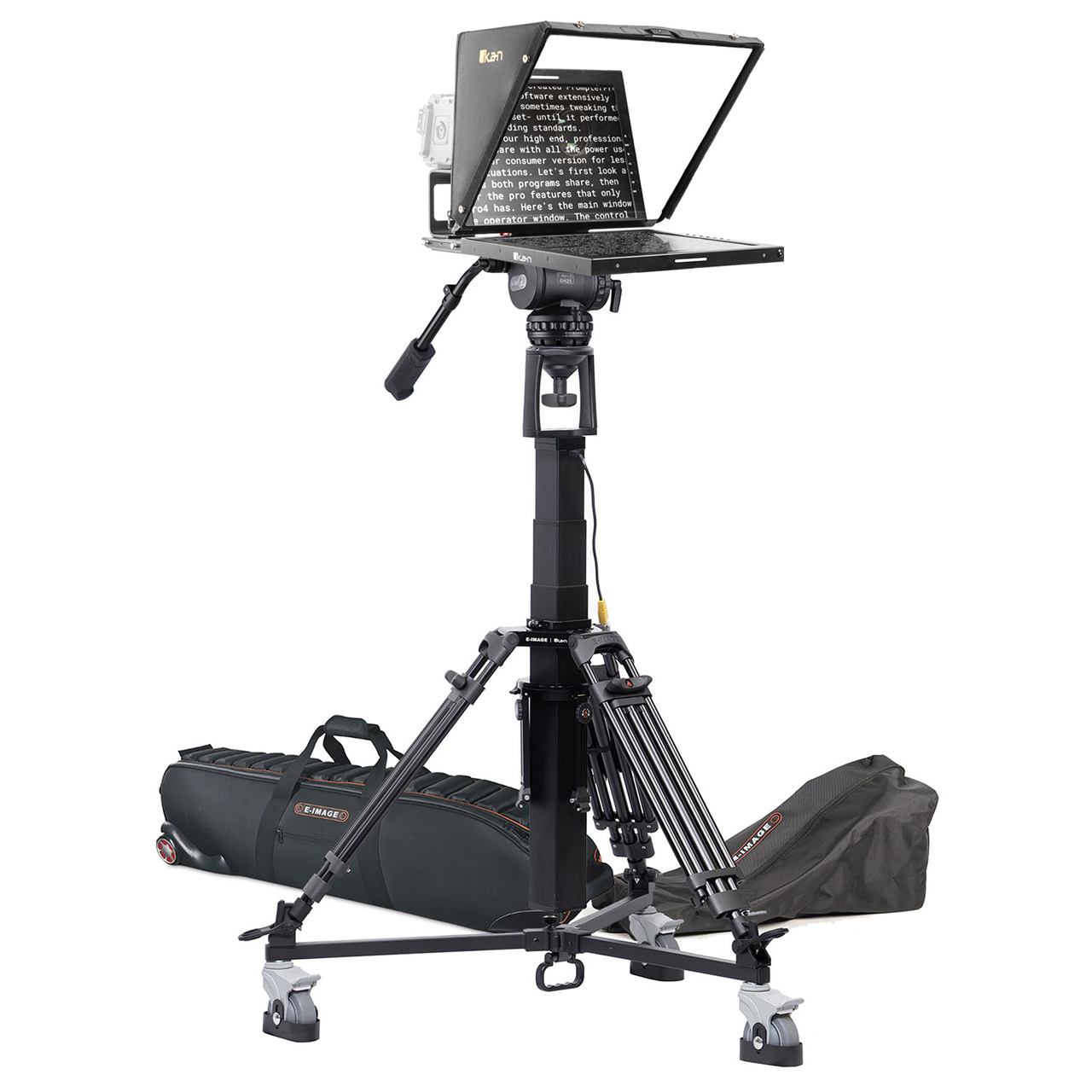

The Ikan PT419W-MPEDESTAL includes everything you need for your professional camera setup. This solution includes a 19" widescreen teleprompter, motorized pedestal, and dolly. All of the systems have been tested internally for payload compatibility. The remaining payload capacity, after mounting the full 19" teleprompter, can accommodate camera setups up to 39.3lbs. This solution also includes carrying bags for the Pedestal & Dolly.

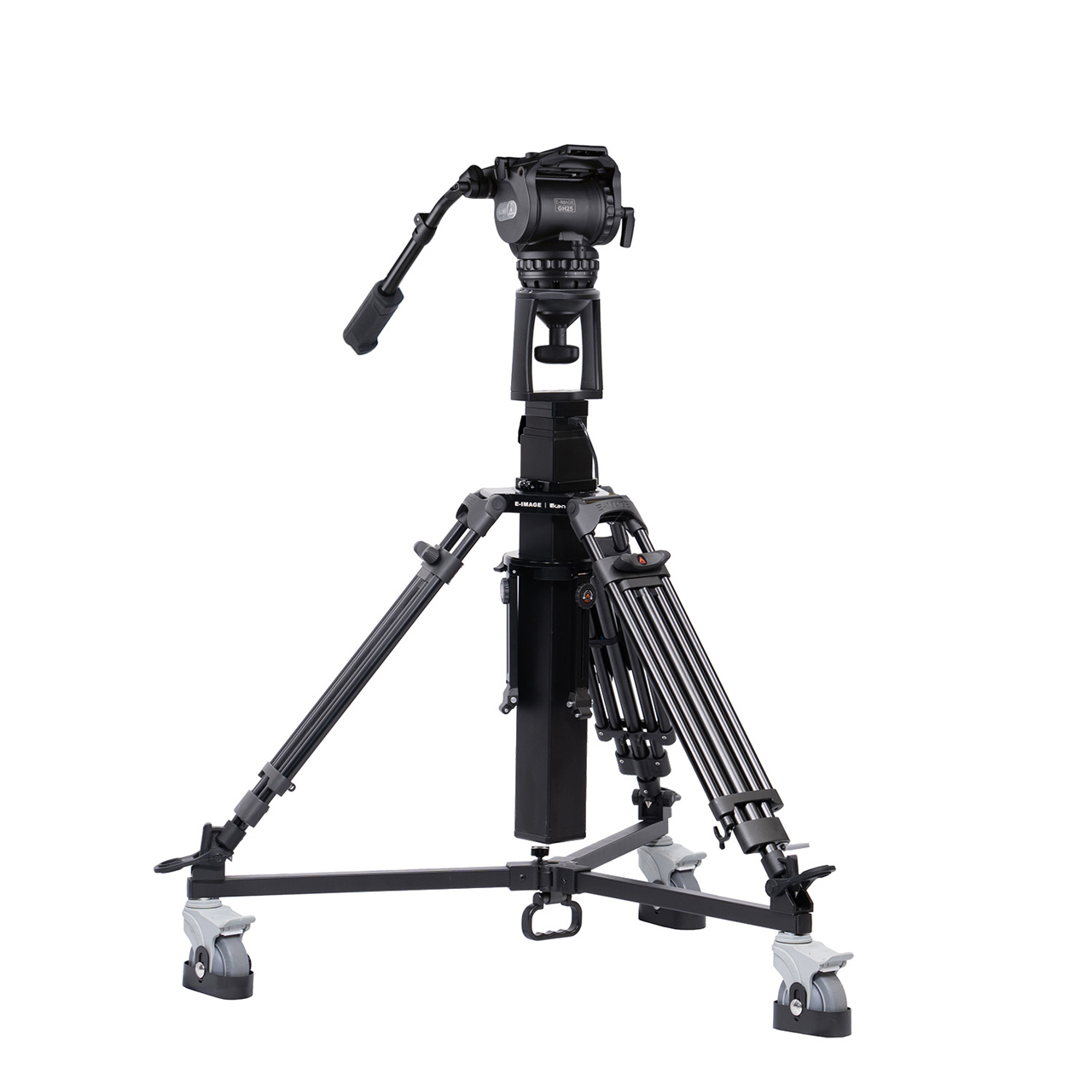

Motorized Pedestal
The motorized camera pedestal is designed for professional video production, offering smooth height adjustments and a high payload capacity of up to 55lbs. Its motorized column allows for precise elevation changes using a wired remote controller, which features preset height positions for quick adjustments. The included fluid head provides 15-step counterbalance settings, 8-step pan and tilt dampening, and independent pan and tilt locks for enhanced control. Dual panhandles offer flexibility for mounting zoom, focus, and iris controls, while the 100mm bowl mount ensures secure attachment of cameras and teleprompters. With a robust design, quick-release middle spreader, and mono-lock mechanism for efficient setup, it is an ideal choice for capturing steady and dynamic shots in various shooting scenarios.

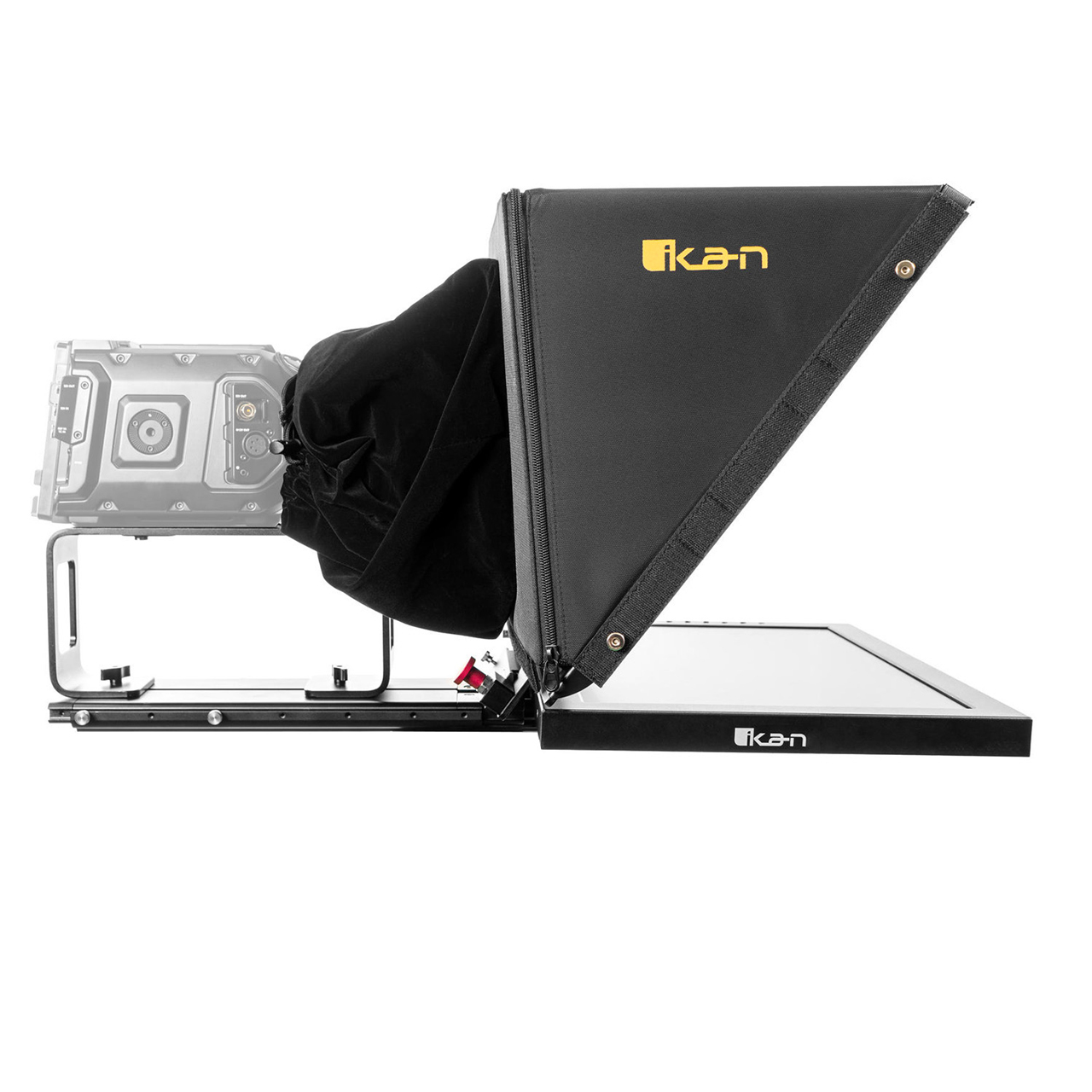

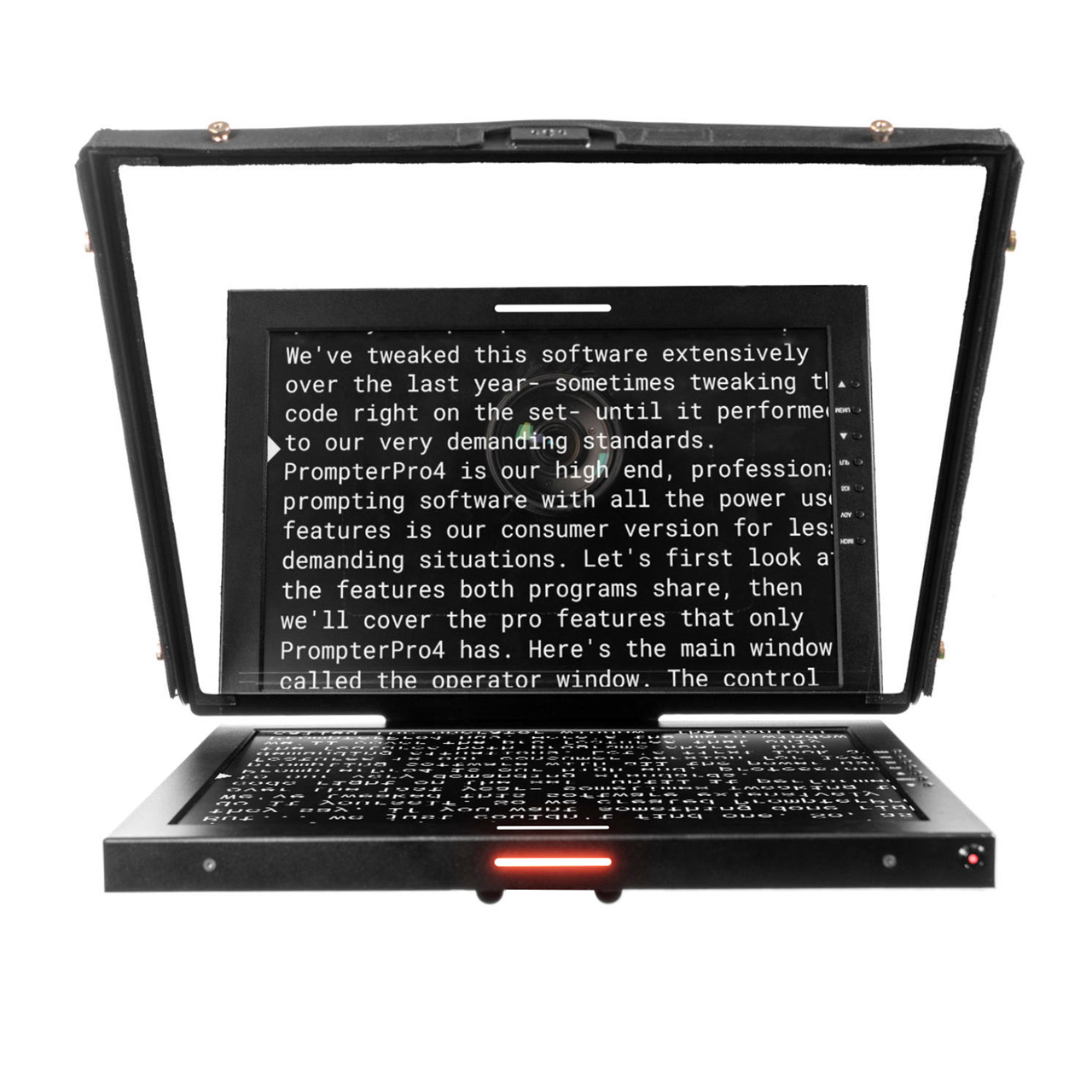

19" Widescreen Teleprompter
The 19" teleprompter designed for studio and broadcast applications, featuring a high-bright 1000-nit monitor for excellent visibility in any lighting condition. It utilizes 65/35 beam splitter glass, allowing presenters to read the script clearly while ensuring the camera captures an unobstructed image. The monitor supports SDI, HDMI, and VGA inputs, with an intuitive image flip button for easy orientation adjustments. Its robust aluminum chassis includes multiple mounting points and an adjustable base for easy balancing without counterweights. Additionally, the system is compatible with various cameras, offers a built-in tally light for on-air status, and ships in reusable foam for secure transport.

  • Features:

    • 19" Widescreen SDI Teleprompter, Motorized Pedestal, & Dolly
    • Accommodates Camera Payloads up to 39.3lbs
    • For Use in Studios, Live Events, & Virtual Productions
    • Adjustable Counterbalance and Pan & Tilt Drag
    • Silent Motor with 25.6" On-Shot Stroke
    • Video Inputs: HDMI, VGA, 3G-SDI
    • Dolly with Cable Guards
    • Tripod & Dolly Carrying Bags

  • Specifications:

      General
    • Available Payload Capacity: 39.3lbs
    • Model: M-GH25-PEDESTAL
    • Max. Payload: 61.6lbs (28kg)
    • Net Weight: 49lbs (22.3kg)
    • Height Range: 43" - 98.4" (111cm - 250cm)
    • Transport Length: 35.2" (89.5cm)
    • Stroke: 25.6" (65cm)
    • Raising/Lowering Speed: 40mm/s
    • Bubble Level: Yes
    • Column Interface: P13 (QR adapter with plate)
    • Column Section: 3
    • Column Size: 70x70mm
    • Controller Cable: 78.7" (2m)
    • Motor Cable: 98.4" (2.5m)
    • Motor Cable Extension: 98.4" (2.5m)

      Fluid Head
    • Head Payload Capacity: 61.7lbs (28kg)
    • Bowl Size: 100mm
    • Counterbalance System: Stepped, 1-15
    • Pan Drag Settings: 0-7
    • Tilt Drag Settings: 0-7
    • Tilt Lock: Thumb Lock
    • Tilt Range: -80°/+90°
    • Bubble Level: Yes-Illuminated
    • Pan Handle Length Range: 16.7" - 24"
    • Net Weight: 9.2lbs (4.2kg)
    • Net Weight w/ Pan Handles: 11lbs (4.98kg)
    • Sliding Plate Range: 5.7" (145mm)
    • Temperature Range: -40° F - 194° F
    • Camera Plate Length: 6.3" (160mm)

      Dolly
    • Net Weight: 15lbs (6.8kg)
    • Footprint Diameter: 39.4" (100cm)
    • Cable Guard Diameter: 4.92" (12cm)
    • Height: 6.7" (17cm)
    • Radius: 19.7" (50cm)
    • Wheel Width: 3.9" (100mm)
    • Lockable Wheels: Yes
    • Payload: 132.3lbs (60kg)

      Teleprompter Base System
    • Riser Plate Height:
    • Short: 2.06" (52.5mm)
    • Tall: 5.31" (135mm)
    • DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Reading Range: 25ft (7.62m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts: 11 x 1/4"-20 Female / 9 x 3/8"-16 Female
    • Weight of Teleprompter Base: 16lbs
    • Weight of Low Plate: 1lbs
    • Weight of High Plate 1.38lbs
    • Weight of DSLR Plate: 0.748lbs
    • Height of Teleprompter: 16.1" (411mm+)

      19" Widescreen Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm

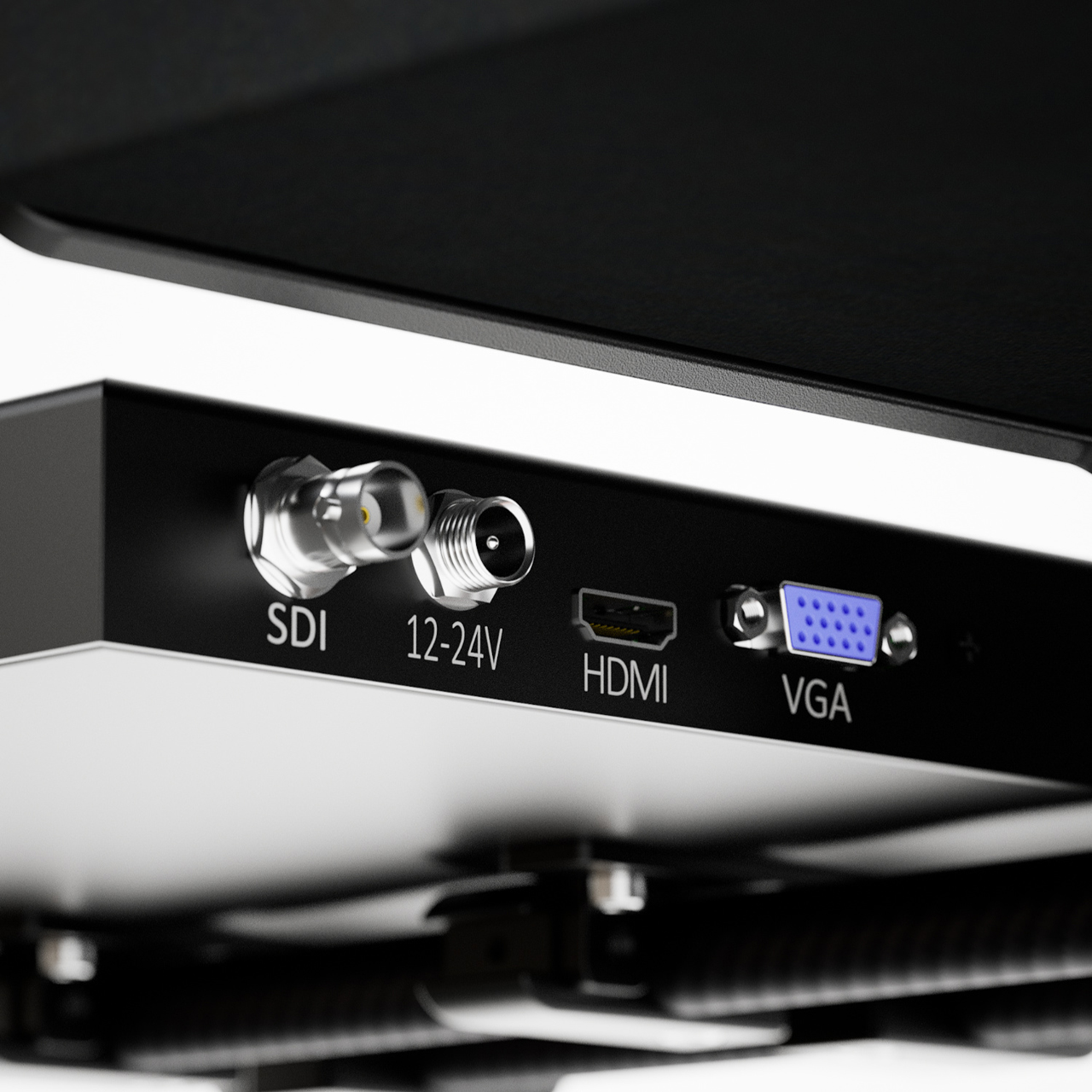

    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12V/5A
    • Power Consumption: 36W
    • Weight of Monitor: 5.73lbs
    • Product Dimensions: 18.3" x 12.3 x 1.2"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H)/178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip: Horizontal: Yes/Vertical: Yes
    • Tally Interface: RJ45

  • Item Includes:

    • 1x Motorized Tripod & Center Column
    • 1x GH25 Fluid Head
    • 2x GB4 Panhandles
    • 1x EI-7004B Dolly
    • 1x Dolly Carrying Bag
    • 1x Power Supply Unit
    • 1x Power Supply Cable (3-Meter)
    • 1x Motor Cable (2.5-Meter)
    • 1x Motor Extension Cable (2.5-Meter)
    • 1x Wired Remote Controller (2-Meter)
    • 1x Remote Controller Panhandle Clamp
    • 1x SC-4 Carrying Bag
    • 1x Teleprompter Base
    • 1x 19 in. Widescreen Teleprompter Monitor
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Power Supply

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0847983037513
