Ikan PT419W-PTZ-TRIPOD 19 Inch Widescreen SDI PTZ Teleprompter with Tripod and Dolly - SDI/HDMI/VGA- 1000 Nits

ITEM #: IKAN-PT419WPTZ-T MFG #: PT419W-PTZ-TRIPOD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,149.00

Our Price:

$4,049.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT419W-PTZ-TRIPOD - Overview

Ikan's PT419W-PTZ-TRIPOD professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The included teleprompter hood fully encloses the PTZ camera allowing it to move freely inside the hood. The teleprompter features a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The widescreen monitor includes SDI, HDMI, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The widescreen monitor also features a wide viewing angle.

PTZ Teleprompting

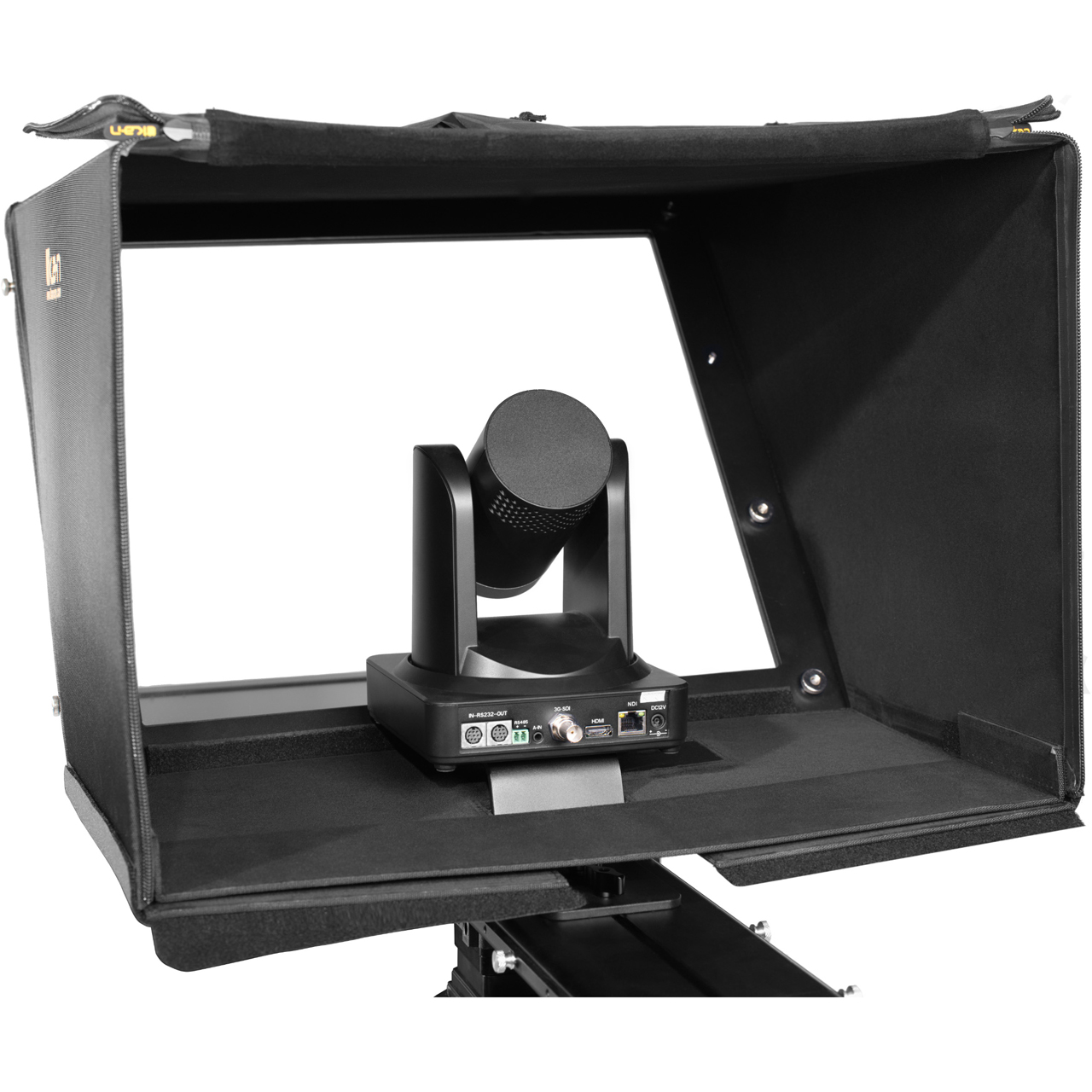

The Ikan PTZ Teleprompter system is a unique PTZ teleprompting system that enables the PTZ camera's pan, tilt and zoom capabilities while still behind the reflective teleprompter glass. You can easily pan the camera between multiple people reading from the same script.

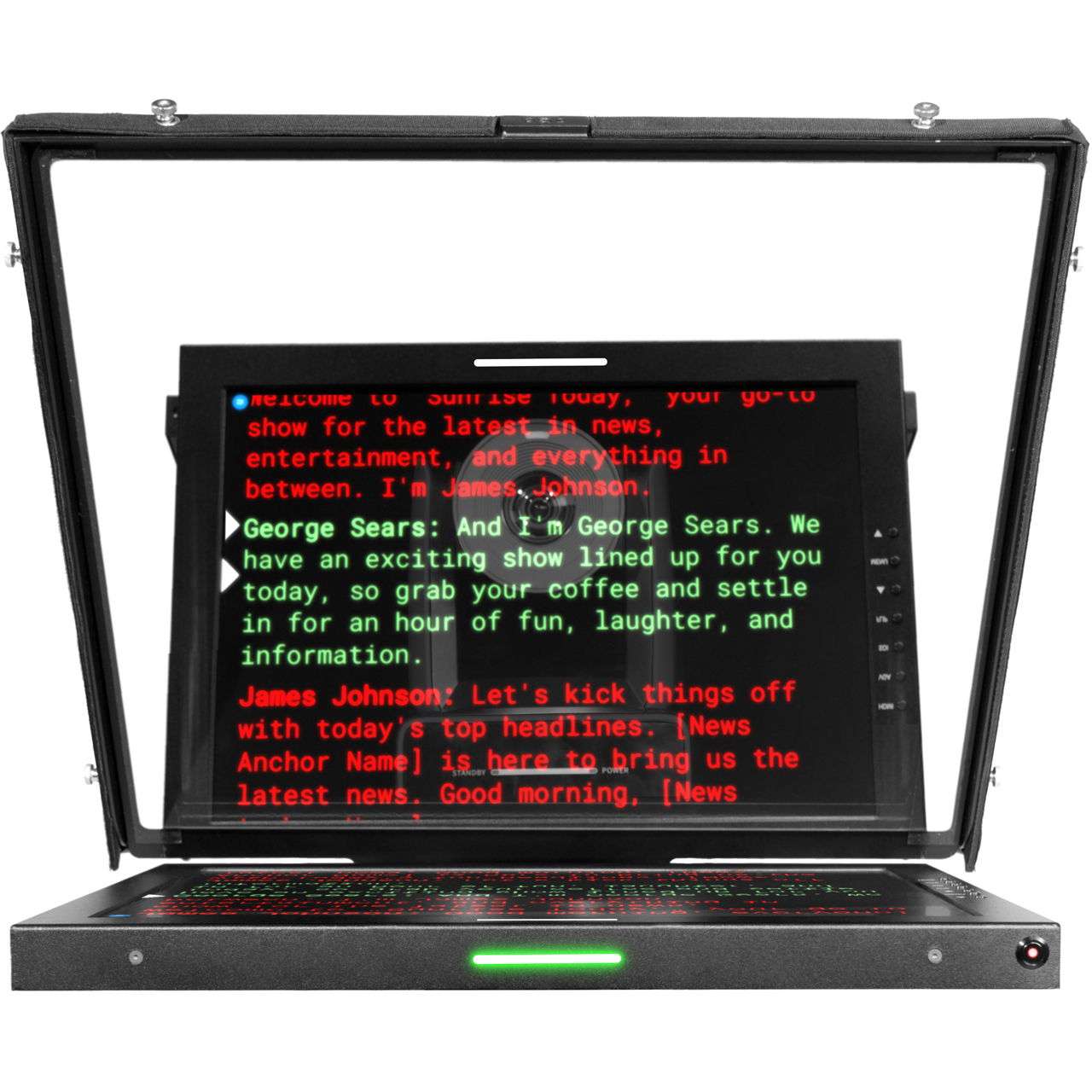

High-Bright Widescreen Teleprompter Monitor
The 1000 nit high bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor. The monitor features SDI, HDMI, and VGA inputs. The native resolution is 1920 x 1080 and the max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly.

Widescreen Teleprompter Monitor

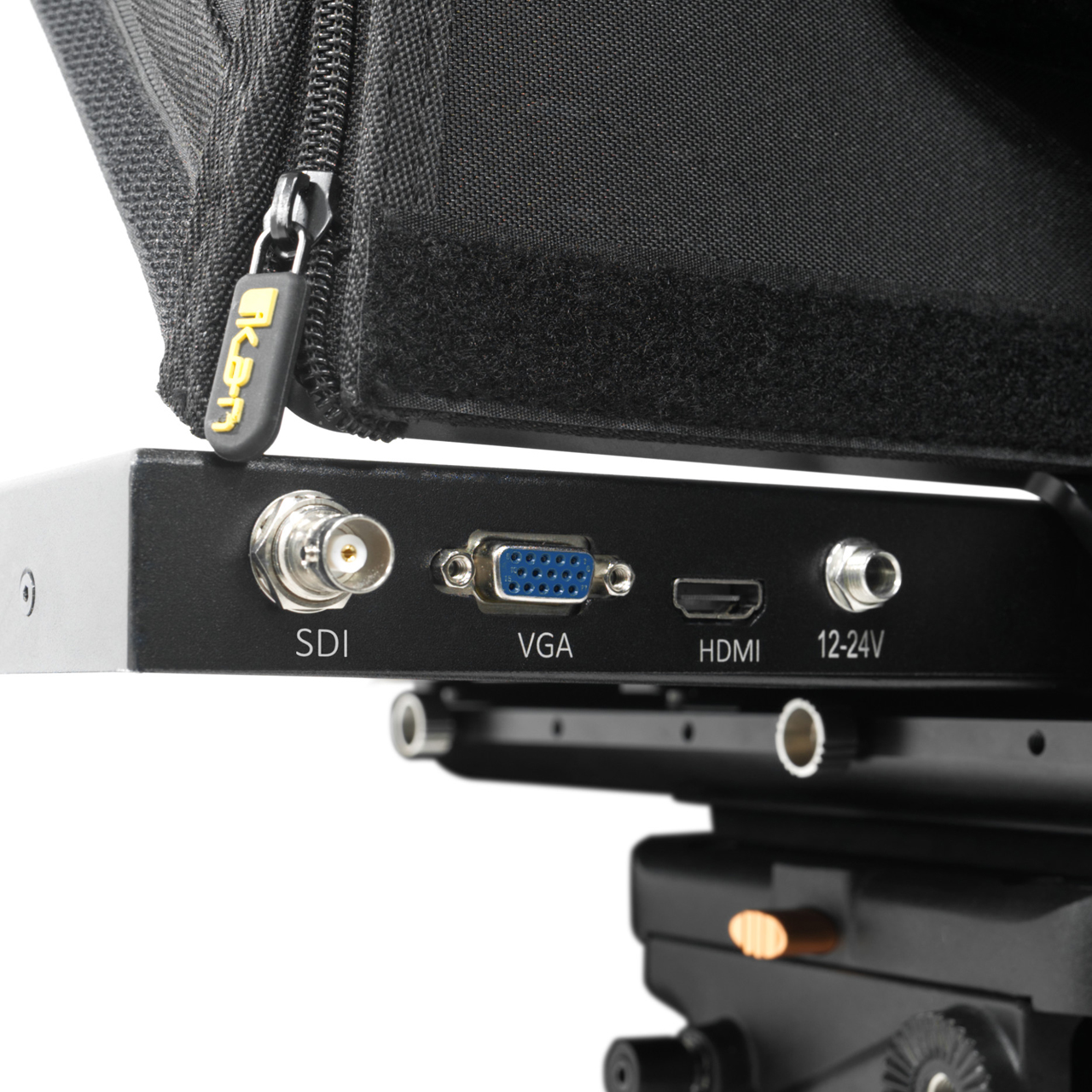

The 19-inch Widescreen Teleprompter Monitor features 3G-SDI, HDMI, and VGA, inputs. The native resolution is 1920 x 1080 HD and max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. When plugged into a compatible video switcher, the talent monitor utilizes a red/green tally light that lets you know when your camera is live.

  • Features:

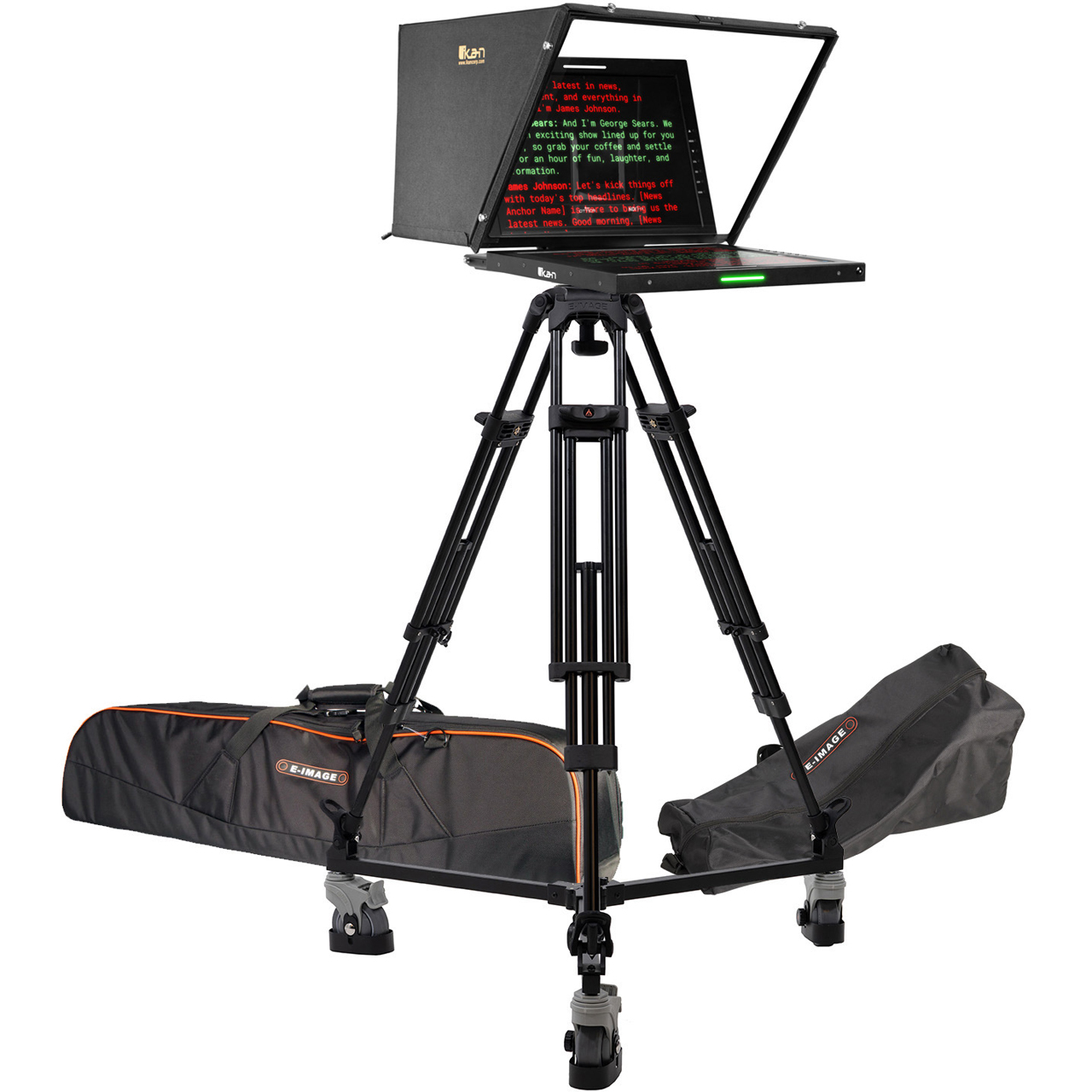

    • Includes 19" Widescreen PTZ Teleprompter, Tripod, & Dolly
    • Widescreen Monitor w/ Dual Tally
    • Accommodates Camera Payloads up to 96.6 lbs
    • For Use in Studios, Live Events, & Virtual Productions
    • Video Inputs: HDMI, VGA, Composite (BNC)
    • Dolly w/ Cable Guards
    • Ultra-Secure Hood
    • 55 Degree Angled Glass for Wider Viewing Angles
    • Aluminum Chassis
    • Built-in Tally Light for On Air Status
    • 100MM Bowl
    • 2 Carrying Bags for Tripod & Dolly

  • Specifications:

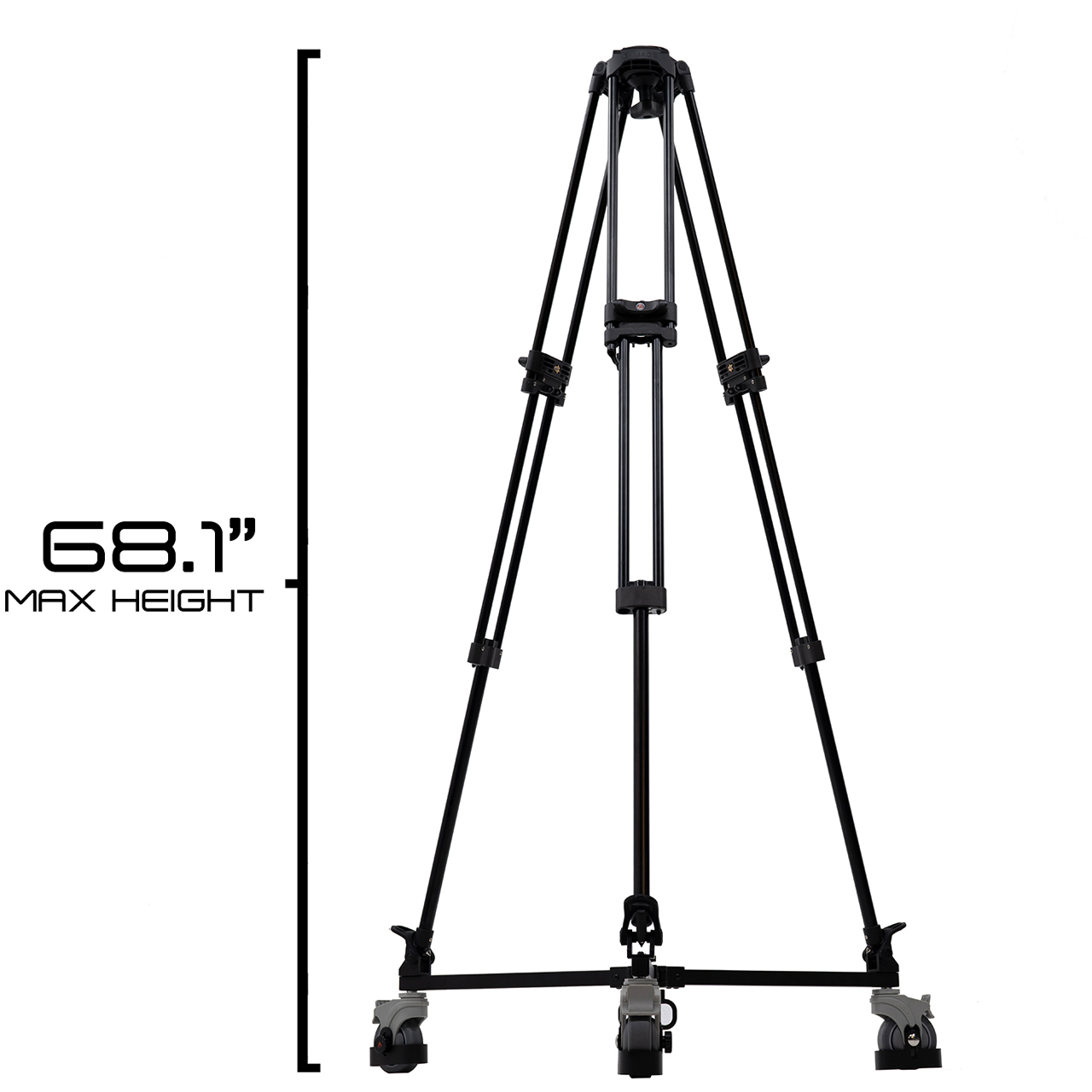

    • Tripod
    • Material: Anodized aluminum alloy
    • Bowl Size: 100 mm
    • Leg Stages/Sections: One-Stage / Three-Section
    • Leg Lock Type: Rotary clamp
    • Spreader: Mid-Level
    • Spiked/Retractable Feet: Yes
    • Load Capacity: 132.3 lbs
    • Height Range: 18.5" - 63.0" (47 cm - 160 cm)
    • Folded Length: 29.1" (74 cm)
    • Weight: 11.2 lbs (5.1 kg)

      100mm Flat Base
    • Flat Base Height: 105mm
    • Net Weight: 1 lbs

      Dolly
    • Net Weight: 15 lbs (6.8 kg)
    • Footprint Diameter: 39.4" (100 cm)
    • Cable Guard Diameter: 4.92" (12 cm)
    • Height: 6.7" (17 cm)
    • Radius: 19.7" (50 cm)
    • Wheel Width: 3.9" (100 mm)
    • Lockable Wheels: Yes
    • Build Material: Legs:
      - Aluminum
      - Wheels: Rubber
      - Screws: Steel
    • Payload: 132.3 lbs (60 kg)

      Teleprompter Base System
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material: Chassis: Anodized Aluminum / Rods: Carbon Fiber
    • Reading Range: 25 ft. (7.62 m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts: 11 x 1/4" -20 Female / 9 x 3/8" -16 Female
    • Weight of Teleprompter Base: 16 lbs
    • Weight of Low Plate: 1 lbs
    • Weight of High Plate: 1.38 lbs
    • Weight of DSLR Plate: 0.748 lbs
    • Height of Teleprompter: 16.1" (411mm)
    • Country of Origin: Taiwan

      19 in Widescreen Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 5A
    • Power Consumption: 36W
    • Weight of Monitor: 5.73 lbs
    • Product Dimensions: 18.3" x 12.3" x 1.2"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Interface: RJ45

      19 in Widescreen Talent Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 5A
    • Power Consumption: 36W
    • Weight of Monitor: 5.73 lbs
    • Product Dimensions: 18.3" x 12.3 x 1.2""
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Interface RJ45

      PTZ Teleprompter Add-on Kit
    • Height of PTZ Riser: 51 mm
    • Weight of PTZ Riser: .58 lbs
    • Dimensions of PTZ Hood:
      - Top: 19.06 x 15.31 in
      - Bottom 8.16 x 15.31 in
      - Height: 12.56 in
    • Material of Hood: Polyester Canvas
    • Material of PTZ Riser: Aluminum
    • Weight of PTZ Hood: 3.3 lbs
    • Net Weight of Full PTZ Add-on Kit: 3.88 lbs

  • Item Includes:

    • 1x Teleprompter Base
    • 1x 19 in SDI Widescreen Teleprompter Monitor
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x PTZ Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 1x Power Supply
    • 1x Prompter Pro 4 Digital Download
    • 1x P6 Quick Release Plate
    • 1x 100BF 100mm Flat Base
    • 1x GA102 Aluminum Tripod
    • 1x GS01 Mid-Level Spreader
    • 3x F3 Rubber Feet
    • 1x EI-7004B Dolly

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0847983036486
