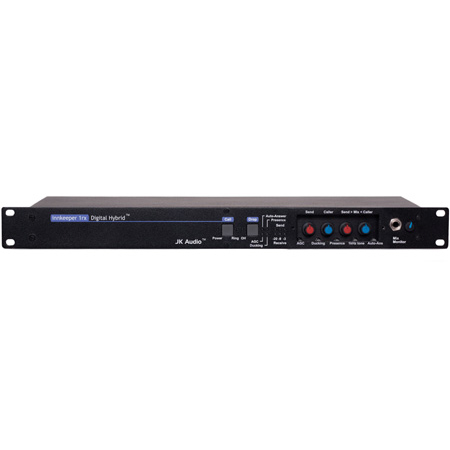

    INNKEEPER 1RX - Overview

    The innkeeper 1x gets audio in and out of telephone lines. Its excellent caller audio does not exhibit the transmit / receive crosstalk common to analog hybrids, making it perfect for radio or television talk shows, teleconferencing, or auto-answer IFB feeds.

    A digital hybrid such as the innkeeper 1x connects audio signals to a standard analog telephone line without the variations in quality found with analog hybrids. The main function of a hybrid is to bring in the caller's phone line, as clear and clean as possible. In the real world, when you send your voice down the telephone line it will bleed over into the caller's audio, so the hybrid must adapt to the phone line in order to properly separate transmit and receive audio. We use a 16 bit DSP to monitor the phone line and audio signals continuously in order to deliver excellent separation. Our dual - convergence algorithm can achieve excellent trans - hybrid loss typically exceeding 50 dB, without any setup.

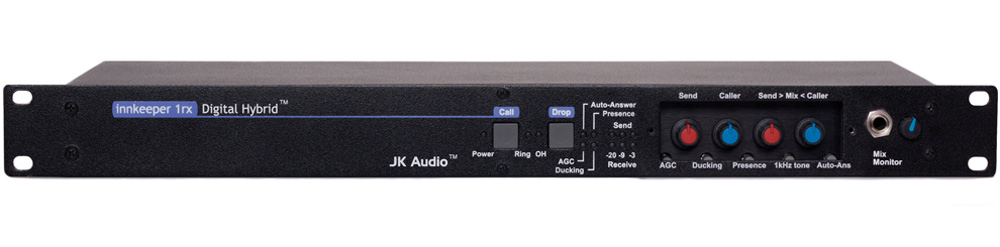

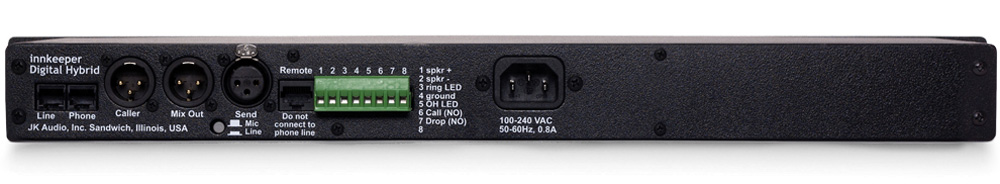

    This wouldn't be a JK Audio product without its fill of common-sense features. Check out the front-panel headphone jack and volume control. You can monitor either the send signal, the caller's voice, or a mix of the two. This output is also sent to the rear panel screw terminals so you can easily add a monitor speaker. As a matter of fact, all of the remote features can be found on real screw terminals for ease of installation. And, of course, the audio connections: mic/line switchable XLR input, XLR caller output and an additional, user-defined XLR output. Now press the "Presence" button and you'll get a richer sound from the caller's voice. This digital filter brings back some of the low-end lost in transmission. And possibly the coolest feature: The Innkeeper 1x can be controlled by the Guest Module 1, the optional remote control keypad.

    This new release includes three new features: caller AGC, caller ducking, and a 1 kHz tone generator. Caller Automatic Gain Control (AGC) is no small feat on a noisy telephone line. The goal is to get the quiet caller's voice lifted up without boosting noise between words. AGC must suppress loud callers, boost quiet callers, and leave the good calls alone. This must be done without adding artifacts to the caller's voice. We've spent many hours developing an algorithm that learns and adapts to the signal and noise floor to accomplish these feats. Innkeeper1x AGC is a feature that you will want to turn on and leave on. Caller Ducking is a feature that simply drops the caller's voice by 9dB whenever the talent is talking. Ducking is one of those features that some talk show hosts swear by, while others try it and walk away. The 9dB drop allows the host to overpower the caller during the conversation, but not totally mute the caller. Your console fader has ultimate control, but ducking provides faster response and recovery. The 1 kHz tone generator is a three-state button. One press and you are sending a tone down the phone line at full level. A second press and you are now sending the tone out the caller XLR jacks. A third press turns the generator off. The tone generator is for your convenience in setting levels on recording equipment. Innkeeper Digital Hybrids use your actual transmit signal to auto-null to the phone line, no tones or noise bursts are sent down the line during call setup.

    • Features:

      • Excellent separation of caller and
      • talent voice
      • 16 bit DSP technology
      • Proprietary auto null algorithm, 50 db null
      • Balanced XLR Mic / Line input
      • Balanced XLR caller output
      • Balanced XLR user defined output
      • Front panel headphone jack
      • Monitor speaker terminals on back
      • Voice presence compensation
      • Automatic Gain Control
      • Caller Ducking
      • 1 kHz tone generator
      • Transmit / receive LEDs
      • Remote control screw terminals
      • Remote jack for Guest Module 1, RS-232, or RIU-IP remote IP interface
      • Works with standard and "dry" phone lines
      • Auto answer / disconnect
    • Specifications:

      • Headphone: 1/4" Stereo 8 ohms, 250 mW per channel
      • Speaker: Screw Terminals 8 ohms, 1 watt
      • Frequency Response: Telephone Side, 200 Hz - 3600 Hz
      • Universal AC Power Input: 120-240 VAC, 50-60 Hz
      • Phone Line Connector: RJ11C
      • Isolation: 1500 volts
      • Ringer: 0.8B REN
      • Dimensions: 1.75" x 7.3" x 19"
      • Weight: 5.7 lbs (2.6 kg)
    • GTIN:
