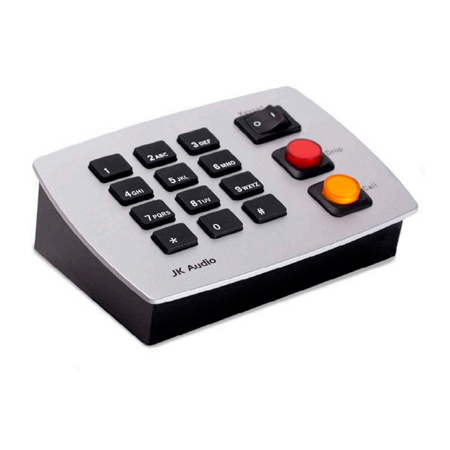

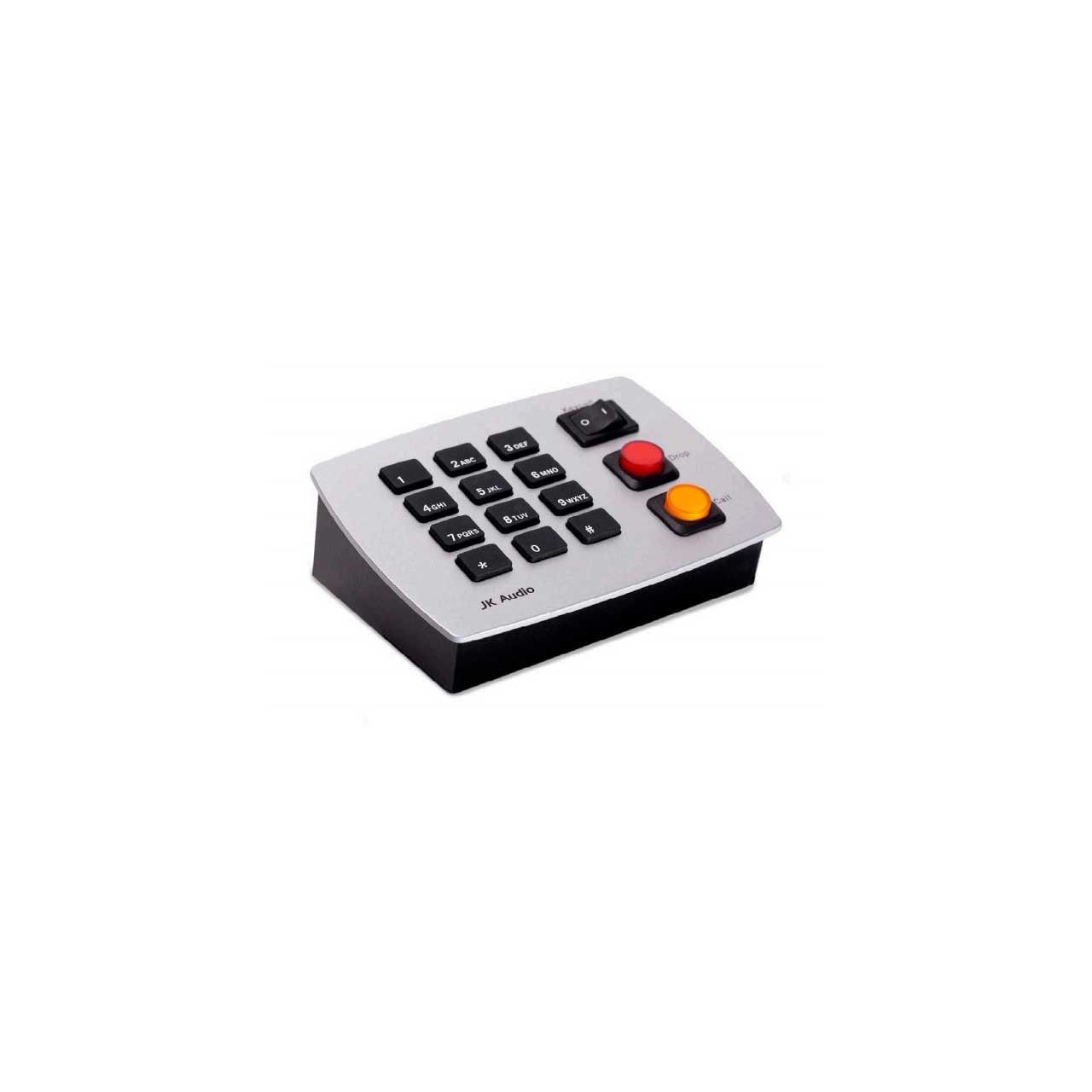

JK Audio GM1 - Guest Module 1 - Remote Keypad

ITEM #: JK-GM1 MFG #: GM-1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$241.50

Our Price:

$230.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    GM-1 - Overview

    Guest Module 1 gives you remote access to the on-hook / off-hook and dial features of either the Broadcast Host or Innkeeper series digital hybrids.

    This little time-saver gives you call control you simply can't get with an auxiliary telephone and a couple of switches. Connect Guest Module 1 using an 8 pin RJ45 modular cable. This cable provides remote power so there is no need for batteries or an external power pack. The Call button will flicker when a call comes in. Press this button to answer or place a call. The button will stay lit when a call is present. When you dial on-air, the tones go out on the line, and do not come back mixed with the dial tone or caller signal. Guest Module 1 was designed exclusively for JK Audio Broadcast Host, Innkeeper LTD, or Innkeeper 1x/1rx digital hybrids.

    • Features:

      • DTMF keypad.
      • Keypad disable switch.
      • Talk / Dial Button.
      • Hangup Button.
      • Ring / Call LED.
      • Made in USA
      • Compatible with Broadcast Host, innkeeper LTD, and innkeeper 1x/1rx
      • Passive Design (No Battery or AC Required)

    • Specifications:

      • Size: 4.5" x 4.0" x 2.0" - (11.4 x 10.1 x 5 cm)
      • Weight: 11 ounces

        *Maximum cable length: 50 feet

    • GTIN:

      0814170010093
