Interspace Industries PCBB3 PC Balance Box with Passive Balancing and Hum Eliminator Jack I/P

ITEM #: INTI-PCBB3 MFG #: PCBB3

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$140.40

Our Price:

$139.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PCBB3 - Overview

Eliminates hum when connecting audio to a PC!

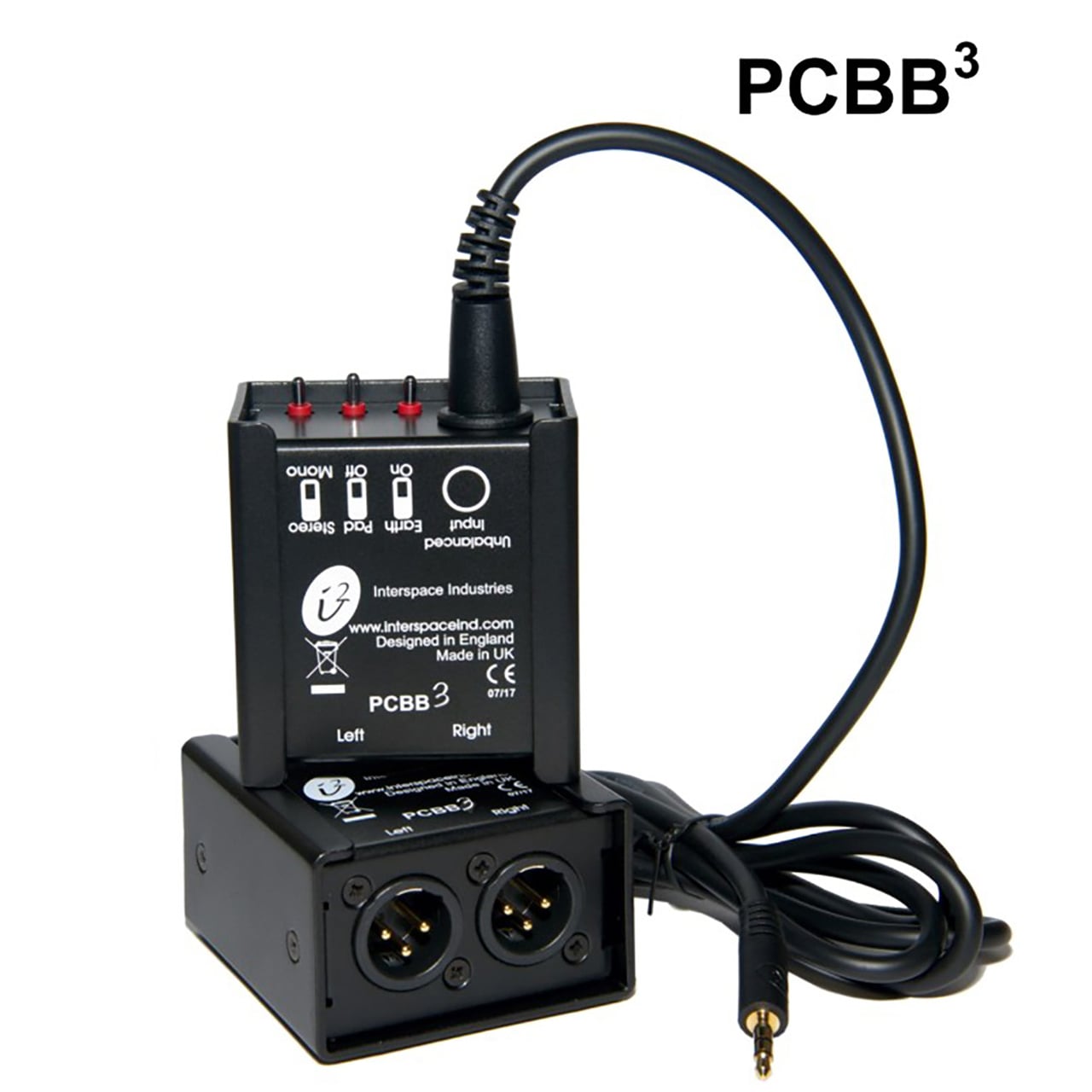

The Interspace Industries PCBB3 PC is a passive Balance Box with a Hum Eliminator Jack. I/PHum can happen anywhere, power supplies, fluorescent lights, other equipment - all can cause noise that is picked up by your audio input cables! Being completely passive (no batteries or external power required) and bi-directional, the PC Balance Box can match unbalanced and balanced audio sources, line to mic levels, stereo and mono signals, and troubleshoot hum problems - all in one versatile and rugged unit. The PC Balance Box is the simplest way to interface unbalanced computer or consumer audio signals to balanced AV sound systems. The inputs and outputs are completely isolated in either direction and by using the `Ground Lift' feature where required, hum problems can be easily cured.

  • Features:

    • Stereo/Mono Selection Switch
    • 20dB pad switch allows audio to be input on either line or mic connections
    • Earth (Ground) Isolation ensures that ground loops are easily defeated
    • Left/Right XLR output connectors are standard for live events audio
    • Compact size
    • No power required (passive) - always ready to go
    • Captive lead ensures easy connection every time

  • Specifications:

    • Power: None required
    • Signals: Typical input 700mVp-p unbalanced stereo audio Bandwidth 20Hz-20kHz Signal levels depend on input level and output impedance
    • Control Switches: Output Pad from -2dB/ -35dB, Earth (Ground) Lift Stereo to Mono
    • Connections:
      - Input: 1x 3.5mm mini stereo jack with internal plug and socket to help servicing of these units - requires dismantling
      - Output: 2x male XLR
    • Dimensions (DxWxH): 2-8/10" x 2-1/2" x 1-6/10"
    • Captive Lead Length: 6ft (1.8m)
    • Weight: 8oz (218g)(each)
    • Customer Supplied Parts: XLR cables to suit
