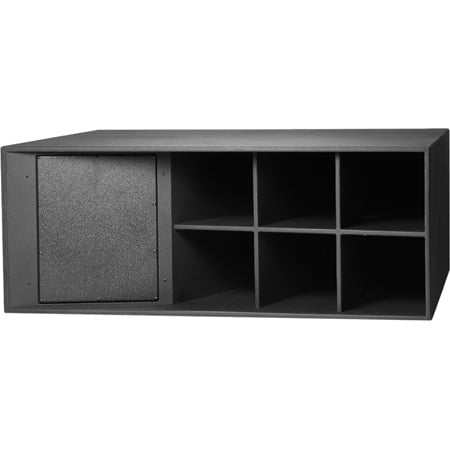

JBL ASH6118 Single 18 Inch Hornloaded Subwoofer

ASH6118 - Overview

• Features:

  • Designed to be used in multiples (2 minimum, 4 optimum) with proximity placement or with proper boundary surface loading
  • Maximum low frequency output & sensitivity
  • Excellent "punch."
  • For fixed installation applications requiring maximum low frequency output, such as dance-clubs/discotheques, live clubs, performing arts facilities, theatrical sound design, auditoriums, houses of worship, sports facilities and themed entertainment venues


• Specifications:

  • Frequency Range (-10 dB): 1 cabinet: 25 Hz - 250 Hz; 2 cabinets: 24 Hz - 250 Hz; 4 cabinets: 22 Hz - 250 Hz
  • Frequency Response (±3 dB): 1 cabinet: 30 Hz - 200 Hz; 2 cabinets: 28 Hz - 200 Hz; 4 cabinets: 26 Hz - 200 Hz
  • Transducer Power Rating (AES): 1 cabinet: 1200 W (4800 W peak), 2 hrs; 800 W (3200 W peak), 100 hrs; 2 cabinets: 2400 W (9600 W peak), 2 hrs; 1600 W (6400 W peak), 100 hrs; 4 cabinets: 4800 W (19200 W peak), 2 hrs; 3200 W (12800 W peak), 100 hrs
  • Long-Term System Power Rating (IEC): 1 cabinet: 800 W (3200 W peak), 100 hrs; 2 cabinets: 1600 W (6400 W, peak), 100 hrs; 4 cabinets: 3200 W (12800 W peak), 100 hrs
  • Maximum SPL: 30 Hz - 140 Hz: 1 cabinet: 133 dB-SPL, cont avg (139 dB peak); 2 cabinets: 138 dB-SPL cont avg (144 dB peak); 4 cabinets: 144 dB-SPL cont avg (150 dB peak)
  • System Sensitivity (dB-SPL, 1W @ 1m): 30 Hz - 150 Hz; 1 cabinet: 102 dB; 2 cabinets: 104 dB; 4 cabinets: 107 dB|
  • Nominal Impedance: 8 ohms per cabinet


• GTIN:

  0691991011856
