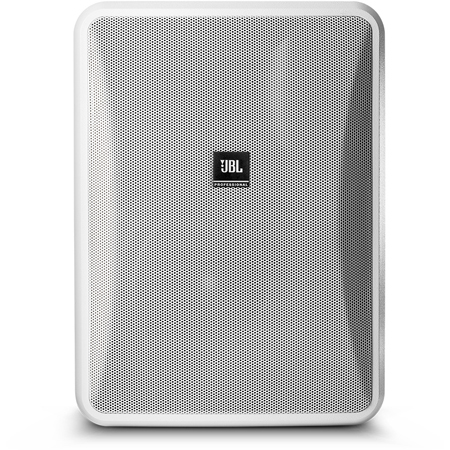

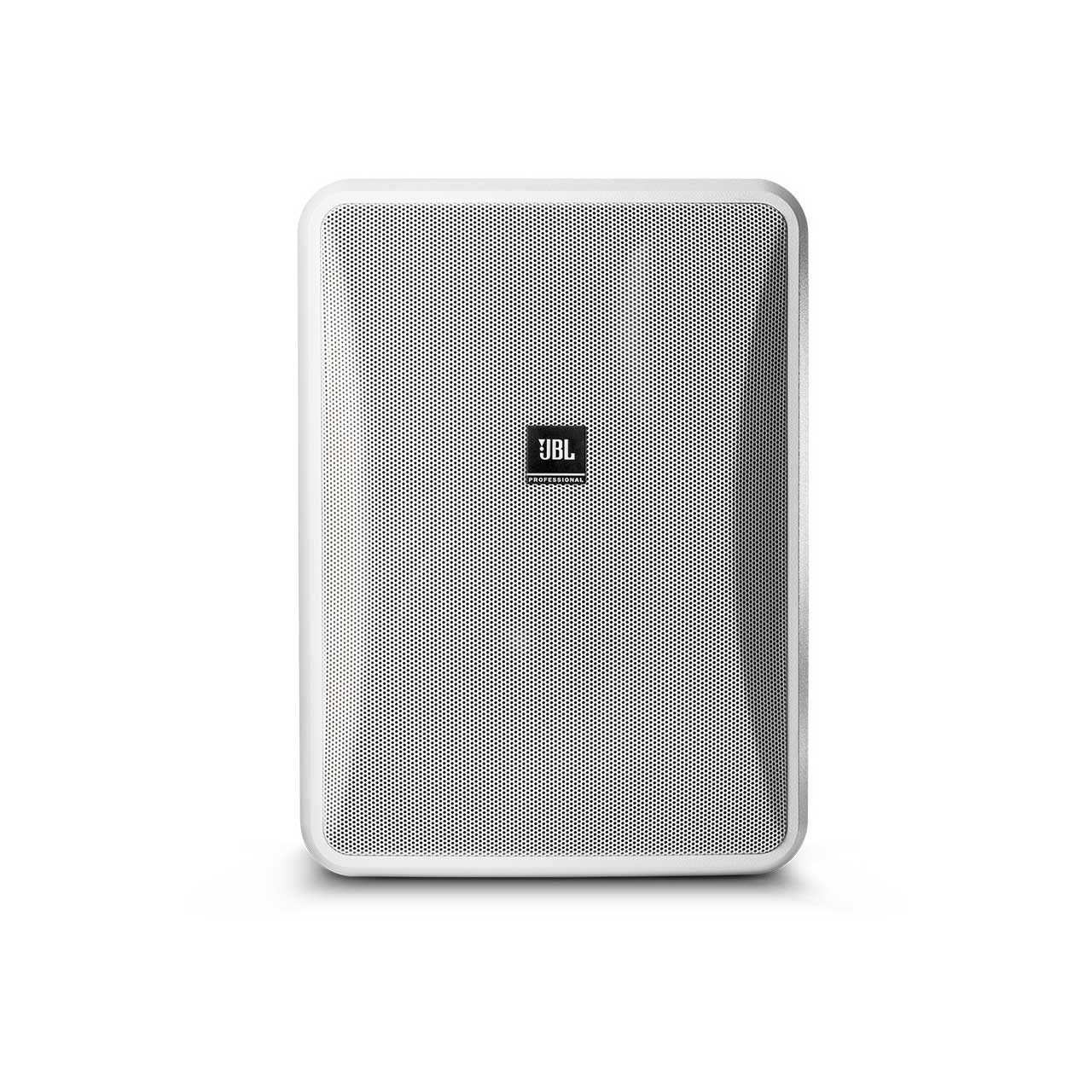

JBL CONTROL 28-1L 2-Way 8-Inch High-Output 8-Ohm Indoor/Outdoor Surface Mount Speaker - 8 Ohm - White - Pair

ITEM #: JBL-CONTROL281LW MFG #: CONTROL-28-1L-WH

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$707.74

Our Price:

$592.00

Availability: In Stock
iAvailability Description Popup


    CONTROL-28-1L-WH - Overview

    High-Output 8-Ohm Indoor/Outdoor Background/Foreground Speaker
    The JBL Control® 28-1L is a two-way 8" speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/ background music (and/or paging) speaker is required.

    The unique InvisiBall mounting hardware is included in with each system, making short work of permanent installation. The InvisiBall mounting method provides a high degree of both vertical and horizontal rotation, and because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed and there exists a high degree of theft deterrence as well. Integrated M6 mounting points for an optional U-bracket adds to the installation versatility.

    The LF driver's woven fiberglass cone provides durability and weather capable performance. The light weight high temperature fiberglass voice coil former and high temperature voice coil wire ensures stable performance under long-term high-power working conditions while also providing high sensitivity and high power capability. The pure butyl rubber surround delivers clean sound and ruggedness, while terminating its circumference in JBL's WeatherEdge™, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. Cone geometry is optimized for smooth frequency response and good off-axis performance, while an FEAoptimized motor construction and linear suspension spider helps to lower harmonic distortion.

    • Features:

      • 8" woofer with woven fiberglass cone
      • 1" PEI diaphragm tweeter with fluid cooling
      • Contemporary, high-design appearance
      • Built-in InvisiBall® mounting hardware, plus available U-bracket
      • Weather resistant enclosure and transducers
      • Wide 100° x 100° coverage
      • 120 Watt power handling (240 Watt program)
      • High fidelity sound character with broad frequency response of 45 Hz - 20 kHz.

    • Specifications:

      • Frequency Range (-10dB): 45 Hz to 20 kHz
      • Frequency Response (±3 dB): 62Hz - 16 kHz
      • Power Rating: 240 W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuous Pink Noise Rating and is conservative expression of the system's ability to handle normal speech and music program material
      • Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
      • Maximum SPL (1m): 112 dB ave. Continuous Pink Noise (118 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression
      • Sensitivity: 91 dB, 1W/1m (ave. 100 Hz - 10 kHz) *Half-space (on-wall) averaged 100 Hz - 10 kHz, 2.83V
      • Coverage Angle: 100° x 100° *Coverage angle (-6 dB) average between 600 Hz and 12 kHz
      • Directivity Factor (Q): 7.3 (averaged 1kHz - 16kHz)
      • Impedance: 8 ohms
      • Crossover Type: 2nd order low-pass, 1st order high-pass, plus conjugate shaping
      • Recommended Protective High-Pass: 45 Hz high-pass (24 dB/oct) *For protection against driving below resonant frequency and to keep transformer out of saturation.
      • Drivers: LF: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. HF: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
      • Enclosure: High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
      • Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
      • Mounting Hardware: InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
      • Outdoor Capability: IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
      • Input Connectors: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
      • Safety Agency: ROHS-compliant
      • Colors: Black (RAL9004) or white (-WH, RAL9016)
      • Dimensions (H x W x D): 15.2 x 11.1 x 8.6 in; 10.9 in deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation
      • Net Weight (each): 13.5 lbs
      • Shipping Weight: 29.5 lbs pair-packed (for 2 speakers)
      • Included Accessories: InvisiBall™ wall-mounting system, 6 mm x 180 mm hex key
      • Optional Accessories: MTC-28UB-1 - Yolk-type U-bracket (&-WH)

    • Item Includes:

      • 1x JBL CONTROL 28-1L 2-Way 8-Inch High-Output 8-Ohm Indoor/Outdoor Surface Mount Speaker - 8 Ohm - White - Pair
      • 1x InvisiBall wall-mounting system
      • 1x 6 mm x 180 mm hex key
