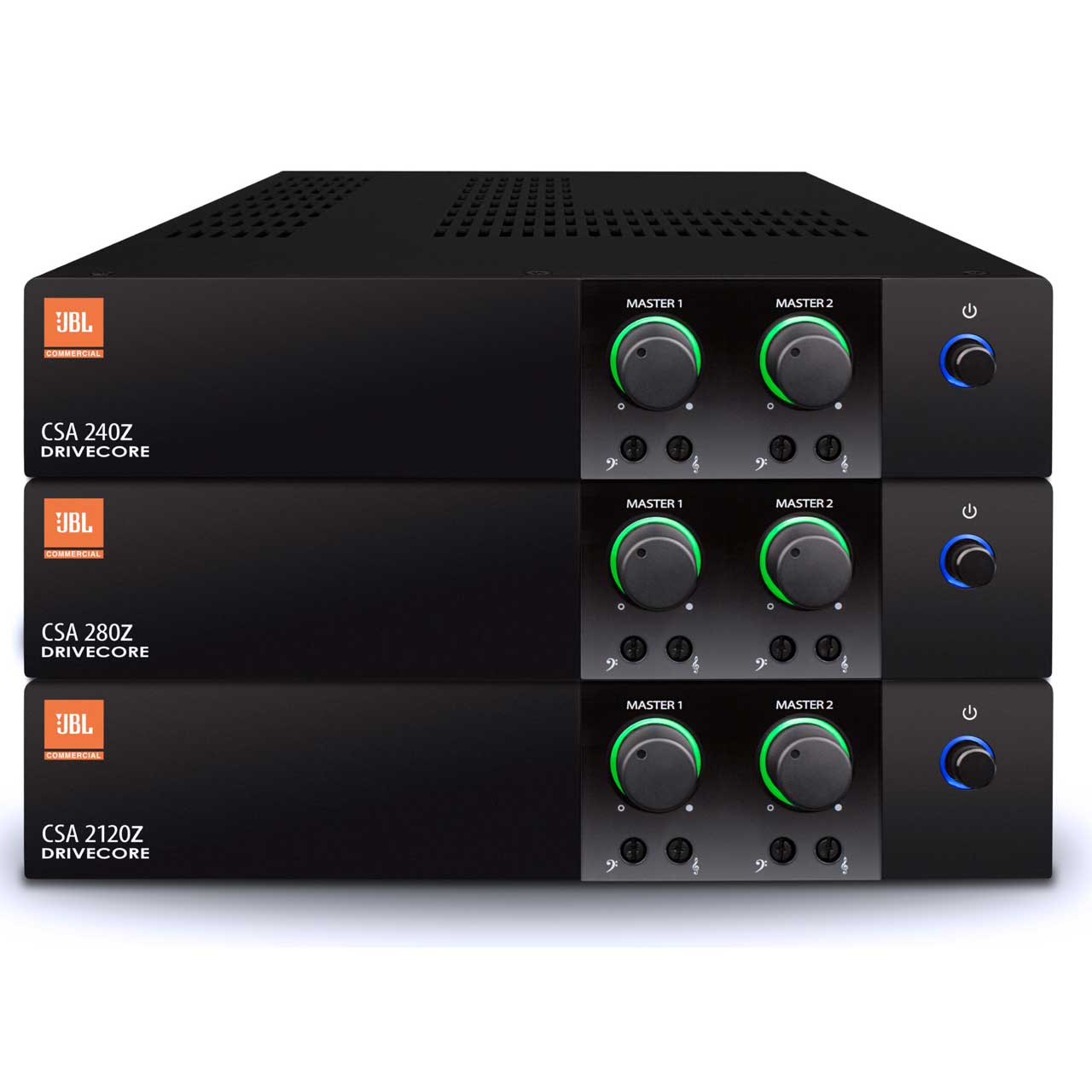

JBL CSA2120Z 2-Channel 120W 1U Commercial DriveCore Amplifier - Built-in 70/100V Fanless

ITEM #: JBL-CSA2120Z MFG #: CSA2120Z

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,013.10

Our Price:

$672.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    CSA2120Z - Overview

    By combining years of innovation, invention and insight from HARMAN brands, JBL Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.

    From the switch-mode universal power supply to the efficient performance of Crown's DriveCore Technology, we continue to set new standards in commercial power amplifier technology.

    Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

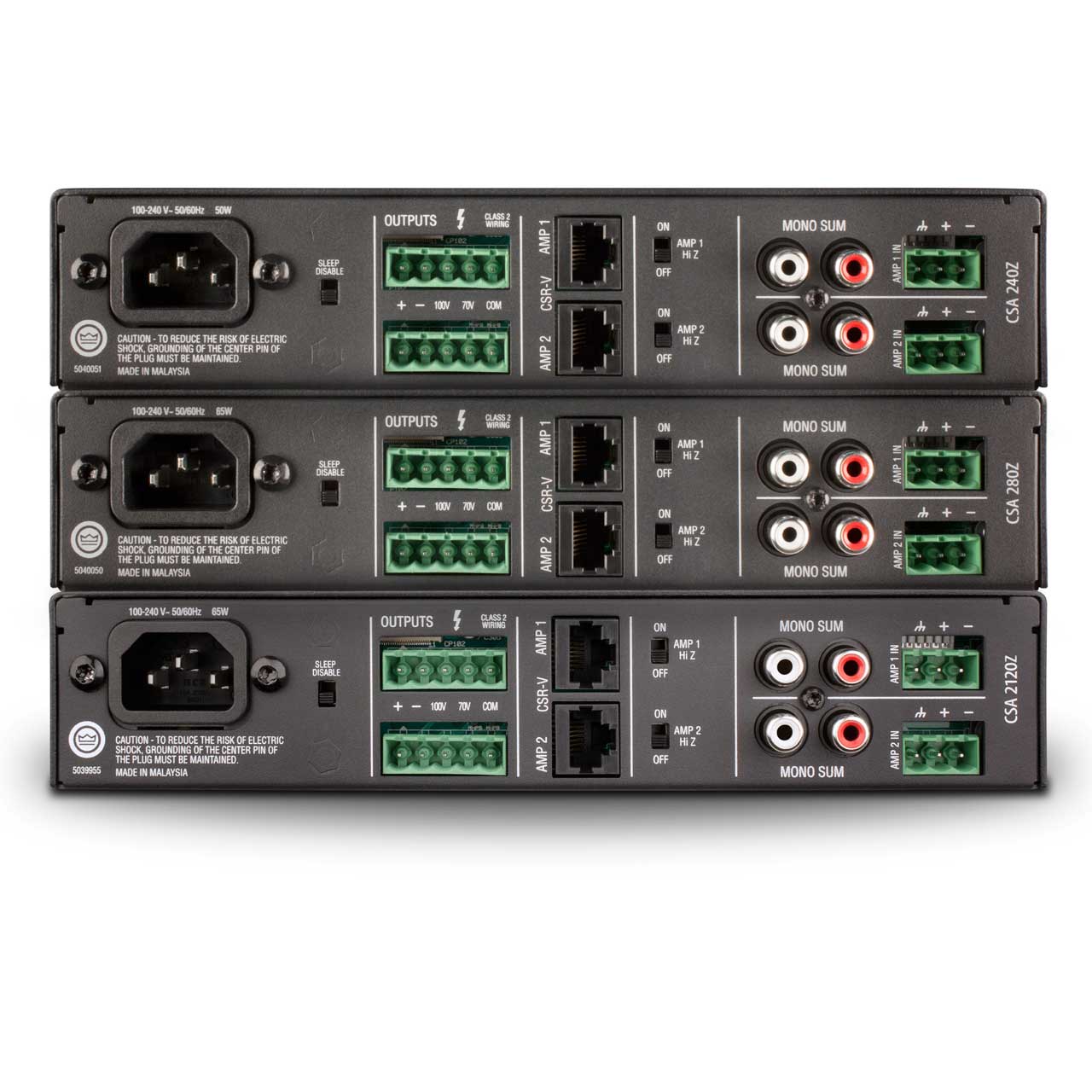

    Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every CS amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz.

    And with HARMAN's GreenEdge environmental initiative, CS amps quickly pay for themselves in energy savings.

    • Features:

      • 1 or 2 output channels with 40W, 80W, 120W per channel
      • Built-in 70V and 100V
      • Fanless, space-saving 1U design
      • Sleep mode disable function
      • Energy-efficient amplifier
      • Sleek industrial look with illuminated rings making knobs easy to see and use
      • Supports the JBL CSR-V wall controller via Ethernet cable
      • Universal power supply
      • Energy Star Certified

    • Specifications:

      • Power Output: 40W/80W/120W
      • Output Channels: 2
      • Input Sensitivity: 1.4Vrms for 8-ohms
      • Phantom Power: 27VDC
      • AC Line Voltage: 100 - 240V, 50/60 Hz
      • Input Impedance: 20K ohms/50K ohms
      • Dimensions:1.7" x 8.6" x 11.9" (43.3mm x 218.5mm x 303.4mm)

    • Item Includes:

      • Rackmounting Kit

    • GTIN:

      0871015008097
