JBL PD6322/64 High Output Three-Way FULL-RANGE Loudspeaker with 12 Inch LF/8 Inch MF and 60 x 40 deg Coverage

PD6322/64 - Overview

Dual 12" 3-Way Horn-Loaded Speaker with 60° x 40° Horn

• Features:

  • Two high power 12" (300mm) transducers in a compact slot-loaded configuration for low frequency extension to 40Hz
  • High power CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence
  • Large format neodymium HF driver provides clear, intelligible high frequency projection

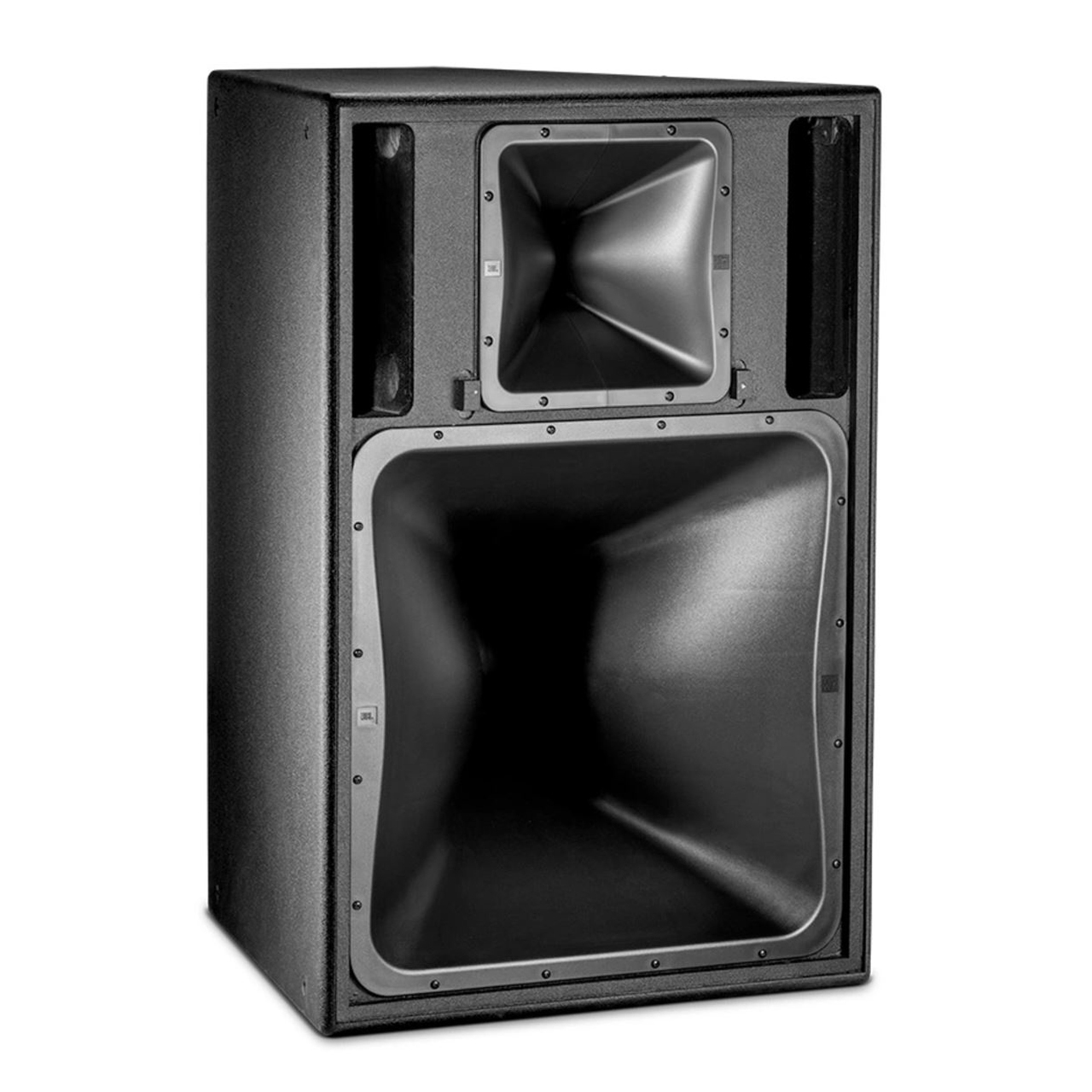

  • Large PT™ Progressive Transition™ waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response
  • Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation
  • Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes


• Specifications:

  • Frequency Range (-10dB): 41Hz - 17kHz
  • Frequency Response (±3dB): 49Hz - 15kHz
  • Coverage Pattern:
    - /43: 40° x 30°
    - /64: 60° x 40°
    - /66: 60° x 60°
    - /95: 90° x 50°
  • Crossover Modes: Tri-amp/Bi-amp (passive mid-high) switchable
  • Passive Crossover: 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz
  • Transducer Power Rating (AES):
    - LF: 1600W (6400W peak), 2 hrs; 1200W (4800W peak), 100 hrs
    - MF: 350W (1400W peak), 100 hrs
    - HF: 75W (300W peak), 2 hrs
  • System Power Rating:
    - LF: 1200W (4800W peak)
    - MF/HF: 300W (1200W peak), 100 hrs
  • Maximum SPL (1m):
    - Tri-Amp Mode: LF: 128dB-SPL cont avg (134dB peak)
    - MF: 135dB-SPL cont avg (141dB peak)
    - HF: 135dB-SPL cont avg (141dB peak)
    - Passive Mode: 135dB-SPL cont avg (141dB peak)
  • System Sensitivity (1w @ 1m): Passive Mode: 110dB-SPL (mid/high section only)
  • LF Driver: 2x 2206H 12" (300mm) driver with 4" (100mm) voice coil
  • MF Driver: CMCD-82H cone midrange compression driver with integral 8" (200mm) diameter Differential Drive® dual 3" (75mm) voice coil driver
  • HF Driver: 2432H, 1.5" (38mm) exit compression driver with 3" (75mm) voice coil
  • Enclosure: Trapezoidal with 12.5° side angles, 16mm (0.625") exterior grade 11-ply Finnish birch plywood
  • Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories)
  • Finish: Black DuraFlex™ finish. White (-WH) available upon request.
  • Optional Weather Resistant Versions: WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.

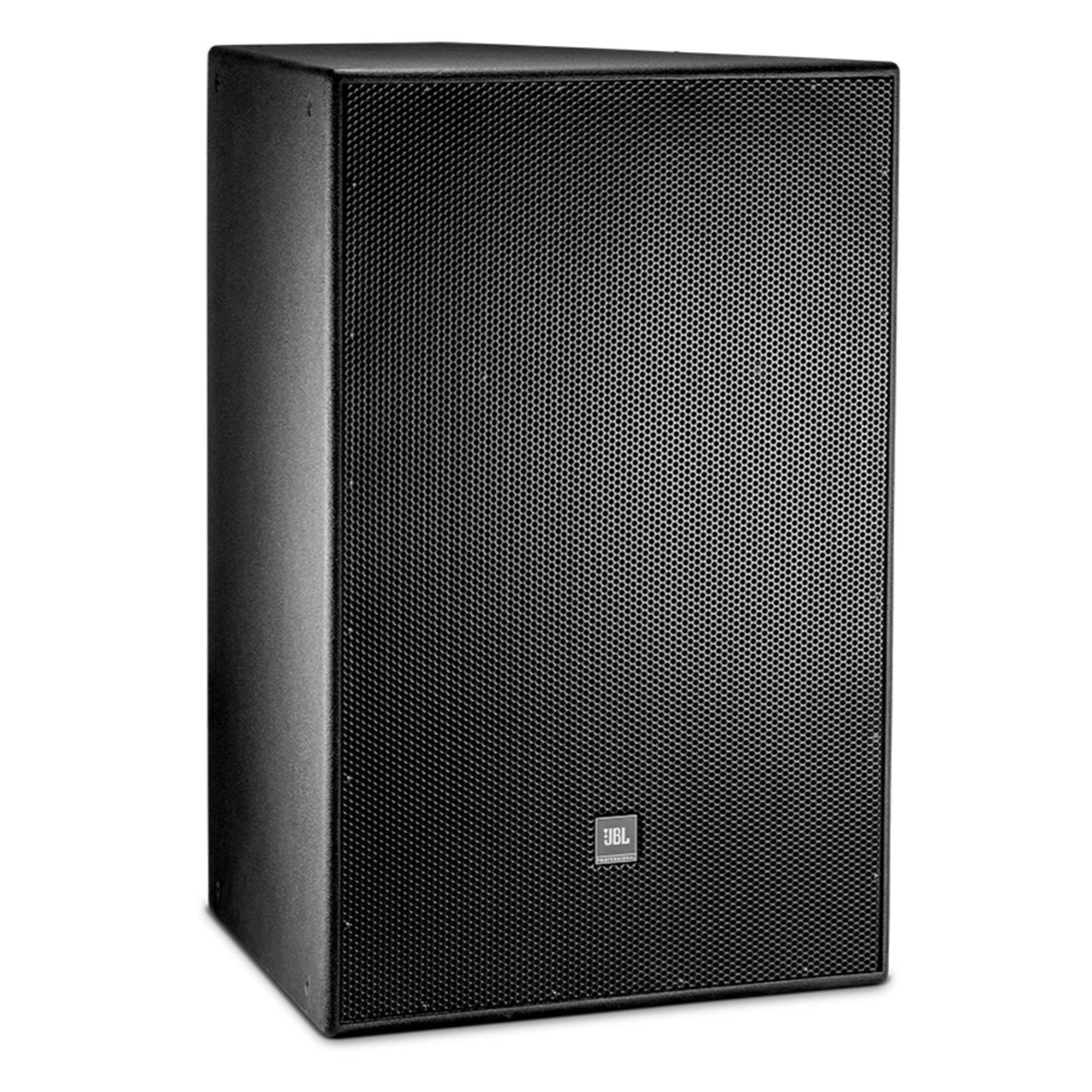

  • Grille: Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)

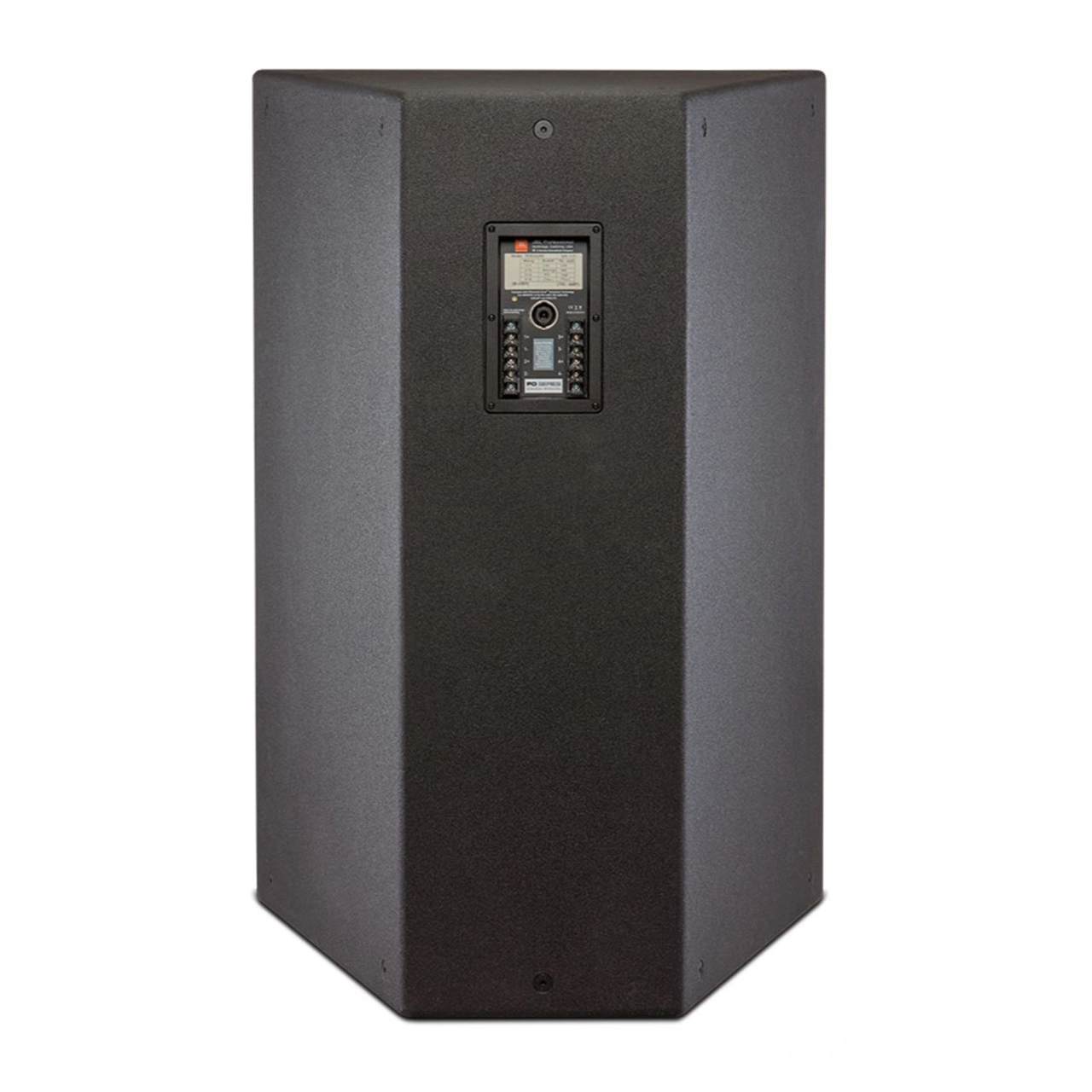

  • Input Connectors: Neutrik Speakon® NL8, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2sq mm (10 AWG) wire or max width 9mm (0.375") spade lugs. Speakon in parallel with barrier strip for loop through.
  • Environmental: Mil-Std 810; IP-x3 per IEC529
  • Dimensions (HxWxD in vertical orientation): 39.0" x 26.5" x 35.3" (991mm x 673mm x 897mm)
  • Net Weight: 170lbs (77kg)
  • Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts
  • Nominal Impedance: 4Ω (2x 8Ω, internally wired in parallel)
  • Nominal LF Driver Impedance: 4Ω (2x 8Ω, internally wired in parallel)
  • Nominal MF Driver Impedance: 8Ω
  • Nominal HF Driver Impedance: 8Ω
