Jensen PO-XR Line Output - Single Channel Ground Isolator for High Output Professional Line Level Signal

ITEM #: JEN-PO-XR MFG #: PO-XR

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the JEN-PO-XR

PO-XR - Overview

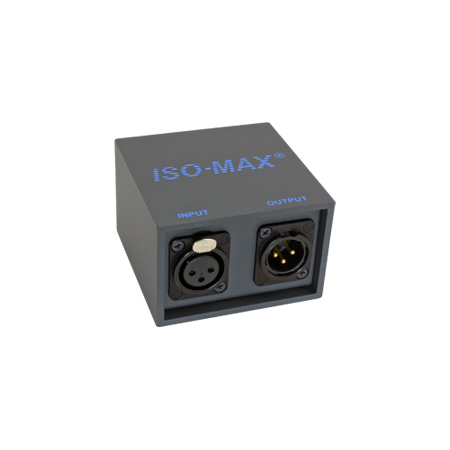

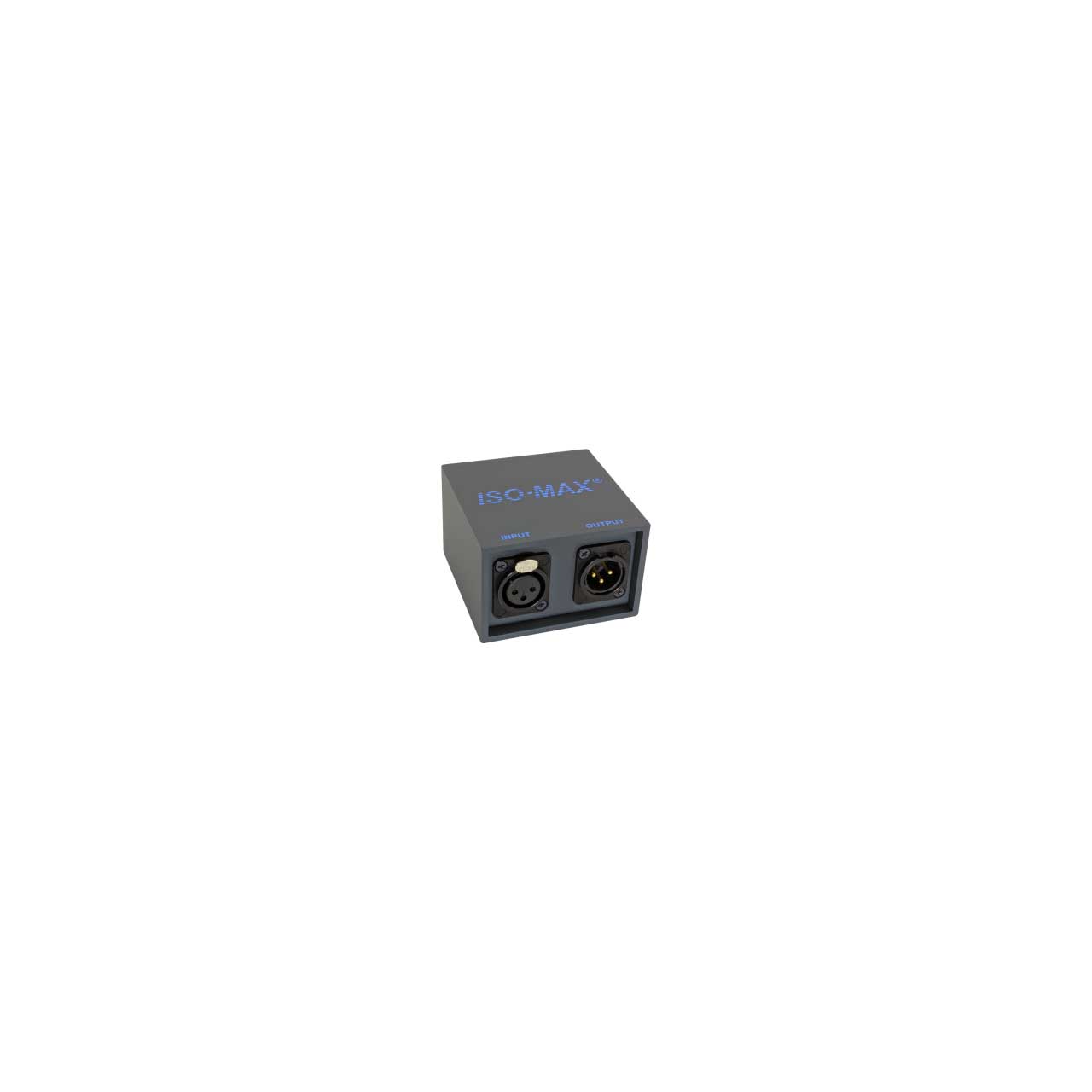

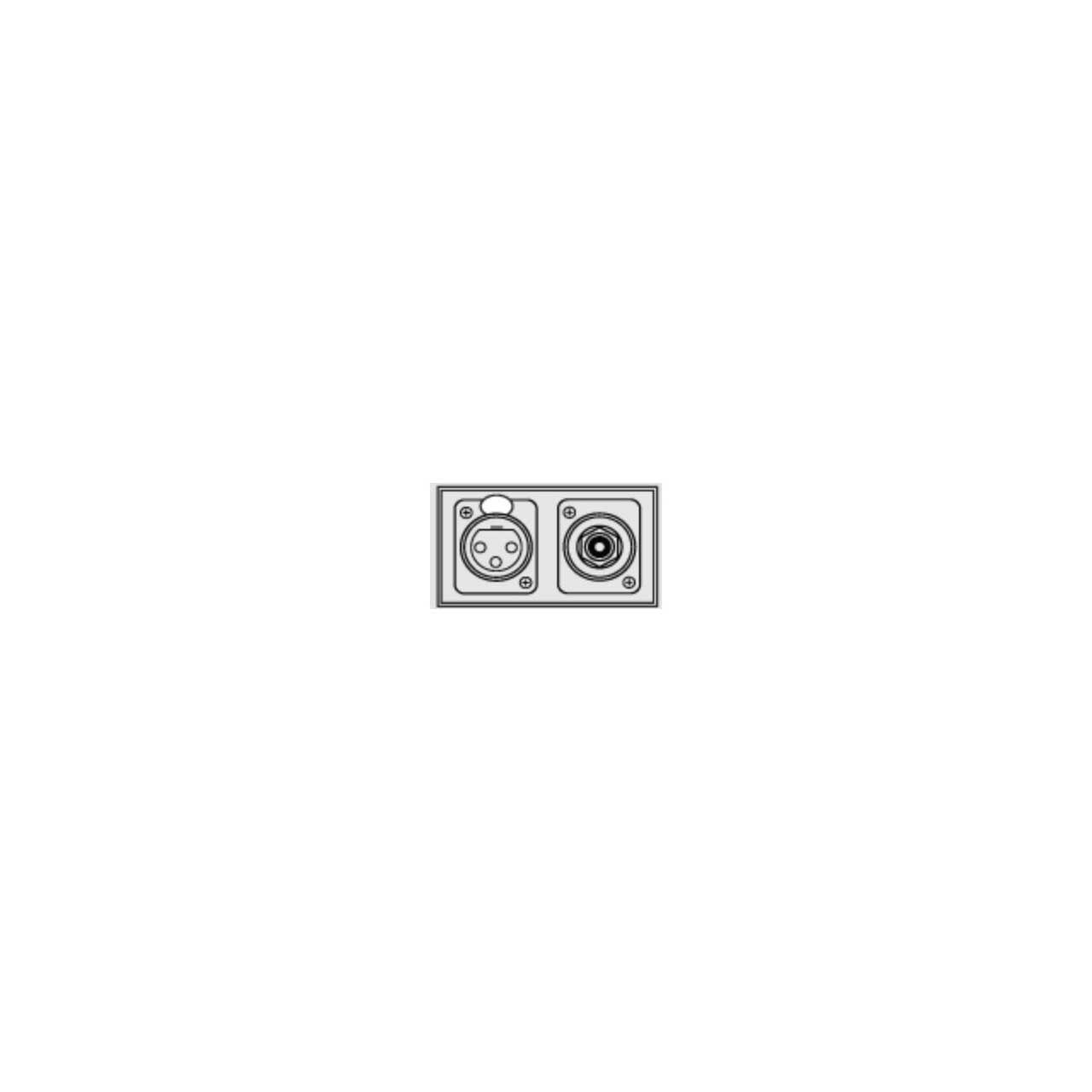

The Iso-Max PO-XR is a single channel output isolator for both balanced and unbalanced signals where extreme signal handling is required to drive long cable runs.

The design begins with an extruded aluminum case that comes standard with gold plated XLR connectors. Plug and play easy to use, this passive interface does not require any power to work. Inside is a high performance nickel core Jensen transformer that is able to withstand signals in excess of +26 dBu without discernible distortion while delivering a linear response to 150 kHz. This provides galvanic isolation between the input and output to eliminate hum and buzz caused by ground loops, rejecting noise by as much as 110 dB.

Made to accommodate both balanced or unbalanced signals, simply connect the PO-XR at the output of the source and the PO-XR will quietly go to work as it delivers exceptional audio performance. This makes the Iso-Max PO-XR a superb choice for the most demanding studio, broadcast and performance venue installations.

  • Features:

    • Drives balanced and unbalanced signals long distances
    • Eliminates hum and buzz caused by ground loops
    • Withstands input levels in excess of +26 dB at 30 Hz
    • Plug & play easy to use, no power required


  • Specifications:

    • Input impedance, Zi: 20 Hz to 20 kHz, 0 dBu, test circuit 3, RL = 600 Ω, 670 Ω, 680 Ω, 690 Ω
    • Input impedance, Zi: 1 kHz, 0 dBu, test circuit 3, RL = 20 kΩ
    • Voltage gain: 1 kHz, 0 dBu, test circuit 1, Rs = 0 Ω, -1.2 dB, -1.1 dB, -0.9 dB
    • Magnitude response, ref 1 kHz: 20 Hz, 0 dBu, test circuit 1, Rs = 0 Ω, -0.1 dB, -0.02 dB, ±0.0 dB
    • Magnitude response, ref 1 kHz: 20 kHz, 0 dBu, test circuit 1, Rs = 0 Ω, -0.1 dB, ±0.0 dB, +0.1 dB
    • Deviation from linear phase (DLP): 20 Hz to 20 kHz, 0 dBu, test circuit 1, Rs = 0 Ω, +0.3 / -0°, ±1.0°
    • Distortion (THD): 1 kHz, +4 dBu, test circuit 1, Rs = 0 Ω, <0.001%
    • Distortion (THD): 20 Hz, +4 dBu, test circuit 1, Rs = 0 Ω, 0.004%, 0.03%
    • Maximum output level: 20 Hz, 1% THD, test circuit 1, Rs = 0 Ω, +20 dBu, +22 dBu
    • Common - mode rejection ratio (CMRR: 60 Hz, test circuit 2, 110 dB
    • Common - mode rejection ratio (CMRR): 3 kHz, test circuit 2, 75 dB, 85 dB
    • Recommended source impedance: output impedance of device connected the ISO-MAX input, 0, 600 Ω, 2 kΩ
    • Recommended load impedance: input impedance of device connected the ISO-MAX output, 150 Ω, 20 kΩ, ∞
    • Output impedance, Zo: 20 Hz to 20 kHz, 0dBu, test circuit 4, 80 Ω
    • Optimal cable length (balanced): input, 50 m (150'), 200 m (600')
    • Optimal cable length (balanced): output, 100 m (300'), 300 m (1000')
    • Optimal cable length (unbalanced): input, 8 m (25'), 15 m (50')
    • Optimal cable length (unbalanced): output, 8 m (25'), 15 m (50')
    • Temperature range, operation or storage: 0°C, 70°C
    • Input to Output Voltage Difference*: any input to any output shield or any shield to case, 60 Hz, 24 V RMS 34 V peak
