JK Audio RemoteMix One Field Interview Tool

ITEM #: JK-RM1 MFG #: RM1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the JK-RM1

RM1 - Overview

JK Audio combines professional audio electronics with a flexible commu¬nications interface in a rugged new belt pack design. RemoteMix One offers a professional look and feel to field reporters and live remote talent.

RemoteMix One performs live man-on-the-street interviews through your cell phone and can provide two-way IFB connections through a cell phone or notebook for truly flexible remote monitoring.

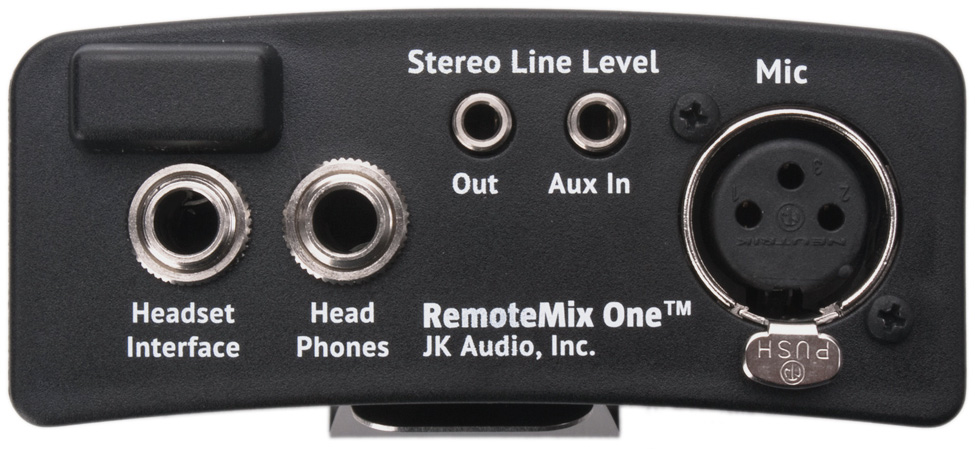

Connect to cell phones and notebooks through the wired headset jack. This professional microphone preamp and powerful headphone amplifier pro¬vide a vast improvement in sound quality. A 3.5 mm stereo line input jack allows recordings to be mixed into the broadcast. The 3.5 mm stereo line output jack provides your full bandwidth microphone signal on the left chan¬nel and the return audio on the right channel.

The stereo headphone output gives you a mix of the XLR microphone input, 3.5 mm input, and return audio. This powerful 1/2 watt stereo headphone amplifier will cut through any crowd noise.
Use as a headset replacement for normal voice calls, or transmit full band¬width audio using third party CODEC apps. Replaceable interface cables connect to most phones and notebooks.

  • Features:

    • XLR Mic Input
    • Mic Mute switch
    • 3.5 Mm Stereo Line Input and Output
    • 1/4" Stereo Headphone Jack
    • 3-Conductor 2.5mm Headset Interface (Most Legacy Phones)
    • 4-Conductor 3.5mm Headset Interface
    • (iPhone, most Android Phones & Notebooks)
    • >20 Hours on one 9 Volt Alkaline Battery

  • Specifications:

    • INPUT
    • Female XLR Mic 2k ohms / -35 dBu nom
    • 3.5mm Stereo 20k ohms / -10 dBu nom

    • OUTPUT
    • 3.5mm Stereo 100 ohms, -10 dBu nom
    • Headphone 1/4" 8 ohms / 1/2 watt per channel

  • GTIN:

    0814170010758
