JLCooper Gangway32 - 32 Port RS-422 Roll Gang Switcher and GPI Trigger Box


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    GANGWAY-32 - Overview

    The big boss of all gang roll switchers! GangWay32 is a massive 32 port RS-422 Gang Roll Switcher and GPI Trigger Box.

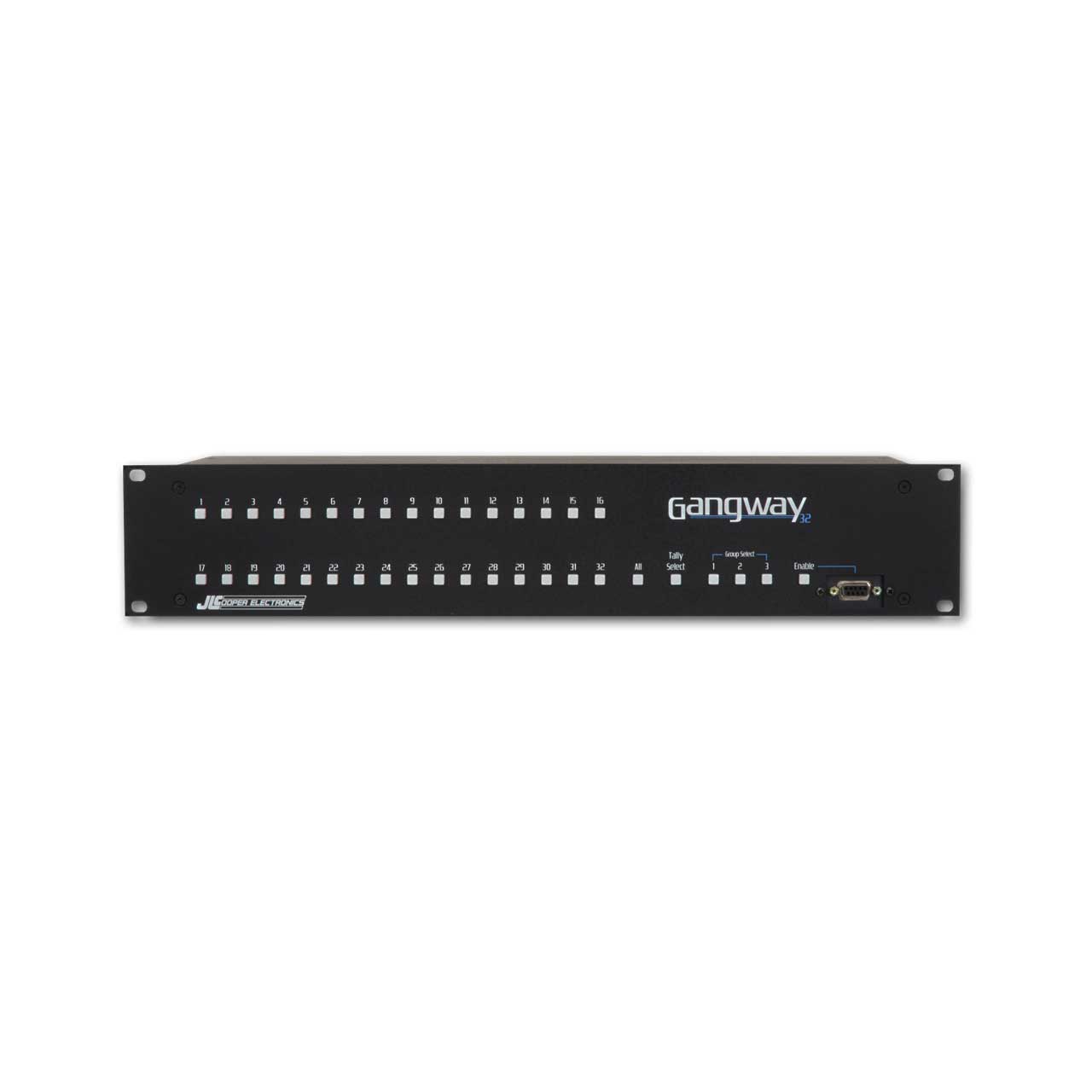

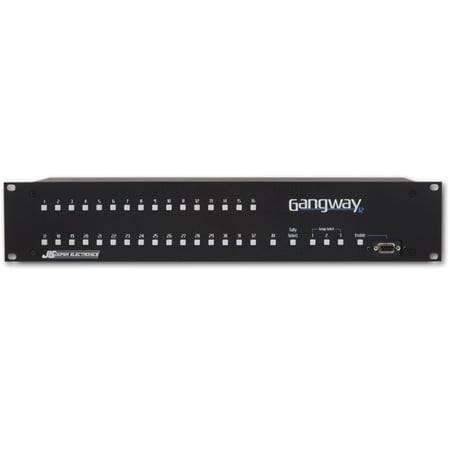

    Like the smaller GangWay 16, this monster is an easy-to-use, RS-422 Gang Roll Switcher and GPI Trigger Box. The front panel includes lighted buttons for clear indication as to the status of each machine, an All button to quickly enable all channels, 3 User Preset Groups and a Tally Select button. A built-in front mounted RS-422 port provides a convenient connection for a jog/shuttle remote or other device.

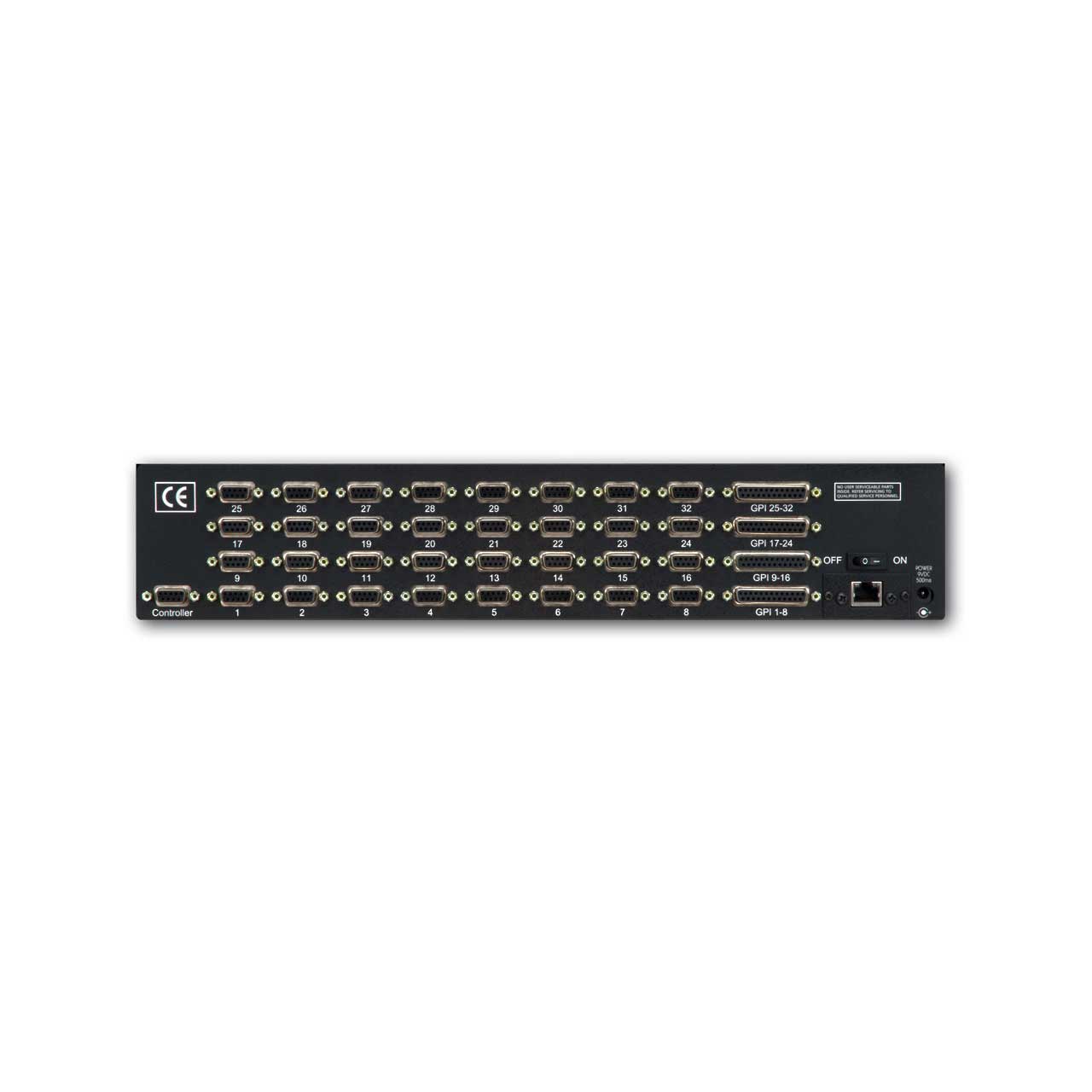

    It has 32 RS-422 ports on the rear panel and a rear mounted RS-422 input. The rear panel also includes 2 - 25 pin D-Sub connectors for GPI I/O, a power switch and an additional interface slot.

    An optional additional compact interface card can act as a Master Input, connecting the GangWay to 10/100 Ethernet, USB, RS-232 or RS-422. This can be used to remotely change the switching configuration of the GangWay itself or as the source of commands for controlling connected VTRs, DDRs or Servers.

    You can communicate with GangWay16 over LAN, or over the internet, for remote control and switching. It's ideal for remote truck or studio applications. Software developers can completely control GangWay switching and GPI functions.

    ES-SloMo and SloMo Mini can directly interface with GangWay32 to provide for control up to 32 RS-422 recorders.

    • Features:

      • Simultaneous Control of up to 32 VTRs, DDRs or Server Channels
      • Individual Front Panel Deck Controls
      • Three Group Presets
      • Tally Select Button
      • 24 GPI Inputs and Outputs
      • Optional Ethernet, USB, RS-422 or RS-232 Interface for Remotely Switching Enabled Channels or as a Source for Controlling Connected Decks
