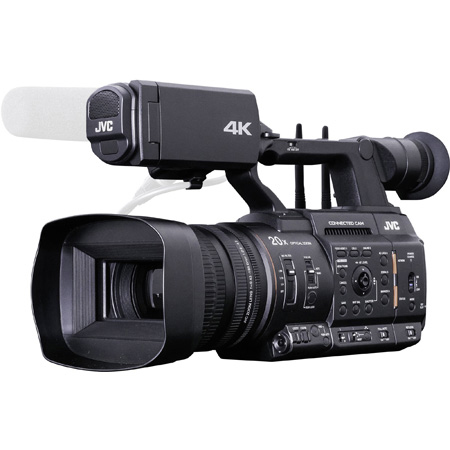

JVC GY-HC550U Connected Cam 4K Handheld Camcorder for Broadcast ENG with Wireless LAN GPS MPEG-2

ITEM #: JVC-GY-HC550U MFG #: GY-HC550U

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$5,910.00

Our Price:

$5,390.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    GY-HC550U - Overview

    The GY-HC550U Hand-Held Connected Cam 1-IN Broadcast Camcorder is Ideal for broadcast newsgathering, it's equipped with JVC's powerful communications engine that delivers high quality, low latency error-free video right from the camera, wirelessly. And while shooting, your crew can view return video and receive IFB from your facility. With its integrated 20x lens there are no compromises in image quality. There are plenty of media options including SDHC, SDXC and SDD. You can even shoot and record to SSD (solid state drive) media in a wide variety of formats, including 10-bit ProRes 422 at 4K resolution and 50/60p frame rates, while recording in HD to SDHC. Everything you need is included, including built-in dual channel (2.4GHz, 5GHz) broadband radios. Just plug in an appropriate media card and begin shooting, recording and streaming.

    • Features:

      • Built-in wireless LAN (2.4GHz/5GHz) with external antenna
      • High performance 1080 60p/50p live streaming with ZixiT error correction (4K Rec + HD streaming + 4K HDMI output)
      • Low latency and high-quality streaming up to 20Mbps
      • Broadcast overlay on video and streaming
      • LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
      • Return over IP (Return video and IFB)
      • Auto FTP to upload native video clips automatically
      • 10-bit ProRes 422 at 4K resolution and 50/60p frame rates recording to M.2 SSD (requires optional caddy)
      • 4K UHD 30p/25p/24p 4:2:0 8-bit recording to SDHC/SDXC card
      • HDR recording, HLG or J-Log1 (10-bit)
      • 1-inch (effective) CMOS sensor with high picture quality
      • F11 Sensitivity
      • Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
      • 40x lossless dynamic zoom
      • 4-inch high resolution LCD monitor
      • LCOS Quad VGA viewfinder
      • XLR audio connectors

    • Specifications:

      • Power: DC12V (AC adapter), DC7.2V (battery).
      • Power consumption: Approx. 17.5W.
      • Weight: 3.1kg (with hood and battery, without wireless LAN antenna unit).
      • Moisture protection: IPX2 equivalent.
      • Image sensor: 1" (effective) CMOS, effective number of pixels: approx 9.35 million.
      • Stabilizer: Optical image stabilizer.
      • Sensitivity: F11 at 2000lx 89.9% reflectance.
      • Lens: F2.8 (wide) to F4.5 (tele), f=9.43mm to 188.6mm (f=28mm to 560mm (35mm equivalent).
      • Filter diameter: 82mm
      • Shutter speed; 1/6 to 1/10000.
      • ND filter: Off, 1/4, 1/16, 1/64.
      • Viewfinder; 0.4" LCOS Quad VGA (1280 x 960), 1280 x 720 at 16:9.
      • LCD monitor; 3.97" LCD /WVGA (800 x 480), 800 x 450 at 16:9.
      • Recording media: SDHC/SDXC memory card x 2: 4K (150Mbps): UHS-1 U3, 4K (70Mbps)/HD (50Mbps): Class 10, HD (35Mbps): Class 6, SD: Class 4, High-Speed: UHS-1 U3, SSD (M.2) with optional media case by JVC.
      • Video codecApple:ProRes 422, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)*.
      • File format; MOV,MP4.
      • 4K UHD 60p/50p 3840 x 2160, Apple ProRes 422 HQ/Apple ProRes 422/Apple ProRes 422 LT, 10-bit.
      • 4K UHD 30p/25p/24p: 3840 x 2160, 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps (H.264).
      • HD (H.264): 1920 x 1080/1280 x 720, 4:2:2 10-bit / 4:2:0 8-bit mode, etc., 50Mbps -8Mbps.
      • SD (H.264): 720 x 480 (U model)/720 x 576 (E/EU model), 8Mbps.
      • Proxy (H.264): 960 x 540/480 x 270, 3 - 1.2Mbps.
      • Audio recording: LPCM 2ch, 48kHz/16-bit (MOV), æ-Law 2ch (Proxy), AAC 2ch (MP4).
      • Protocol: RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP.
      • Resolution and bit rate; 1920 x 1080 (59.94p/50p) 20 - 8Mbps, (29.97p/25p) 20 - 3Mbps, 1920 x 1080 (59.94i/50i) 20 - 3Mbps, 1280 x 720 (59.94p/50p) 20 - 3Mbps, 1280 x 720 (29.97p/25p) 8 - 1.5Mbps, 640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3 -0.3Mbps.
      • Video output: 3G-SDI output (BNC x 1), HDMI output x 1, AV output (3.5mm mini jack x 1).
      • Audio input: XLR x 2 (MIC, +48V/LINE), 3.5mm mini jack x 1
      • Audio output: AV output (o3.5mm mini jack x 1).
      • Headphone: 3.5mm mini jack x 1.
      • Remote: 2.5mm mini jack x 1
      • Time code input/output: RCA
      • USB: HOST x 1 (network connection).
      • Ethernet: RJ-45 x 1.
      • Built-in slot:Optional SSD media case and for future expansion.

    • Item Includes:

      • Battery (BN-VC264) x 1,
      • AC adapter,
      • power cable,
      • lens hood,
      • wireless LAN antenna x 2*

    • GTIN:

      0046838079726
