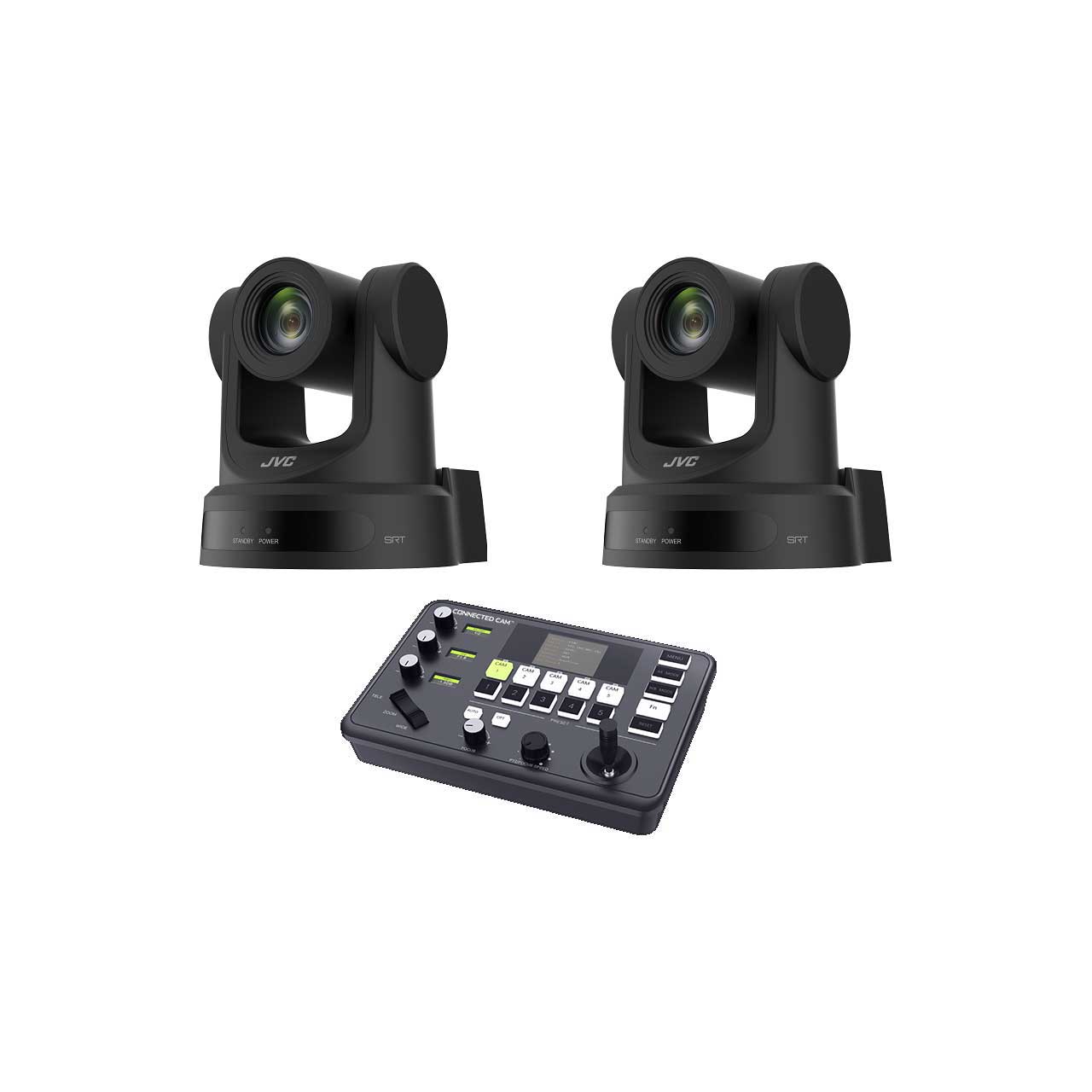

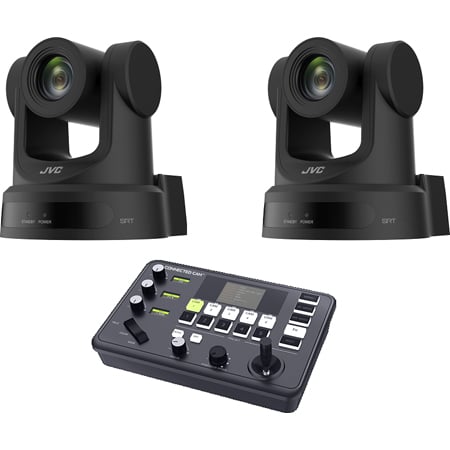

JVC Two KY-PZ200 20x 1080P Streaming PTZ Cameras with RM-LP5G PTZ Controller Kit -3G-SDI/HDMI/USB/IP - Black

ITEM #: JVC-PZ200BU-KIT MFG #: JVC-PZ200BU-KIT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,000.00

Our Price:

$3,050.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    JVC-PZ200BU-KIT - Overview

    The HD KY-PZ200BU camera provides optimal streaming image quality and performance for remote production over the internet and SRT streaming, H.265/H.264/MJPEG encoding and VITC (Vertical Interval Timecode) multi-camera synchronization technologies. The HD KY-PZ200 models are available in black or white variations to best match the ambiance of the venue/project.

    The JVC KY-PZ200 PTZ camera now offers a high-quality, low-latency IP video transmission standard that is ideal for streaming in an ever-evolving media landscape.

    The camera includes SRT, HTTP, RTSP, RTMP/RTMPS, and standard protocols. With SRT open-source technology now becoming synonymous with JVC cameras, PTZ users are afforded a truly future-proofed solution with continual firmware updates. The advanced streaming capabilities of the incorporated SRT technology adds automatic repeat request (ARQ) and forward error correction (FEC) to prevent packet loss typically found on internet connections. It also offers stream encryption for content protection.

    Additionally, with the incorporated Vertical Interval Time Code (VITC) with Network Time Protocol (NTP), the JVC PTZ camera also feature multi-camera synchronization for live event production. This feature is ideal for the mixing and streaming of concerts, shows, sports, and other live productions where image synchronization is crucial. Remote control capabilities are made possible through the JVC RM-LP100 Remote Camera Controller.

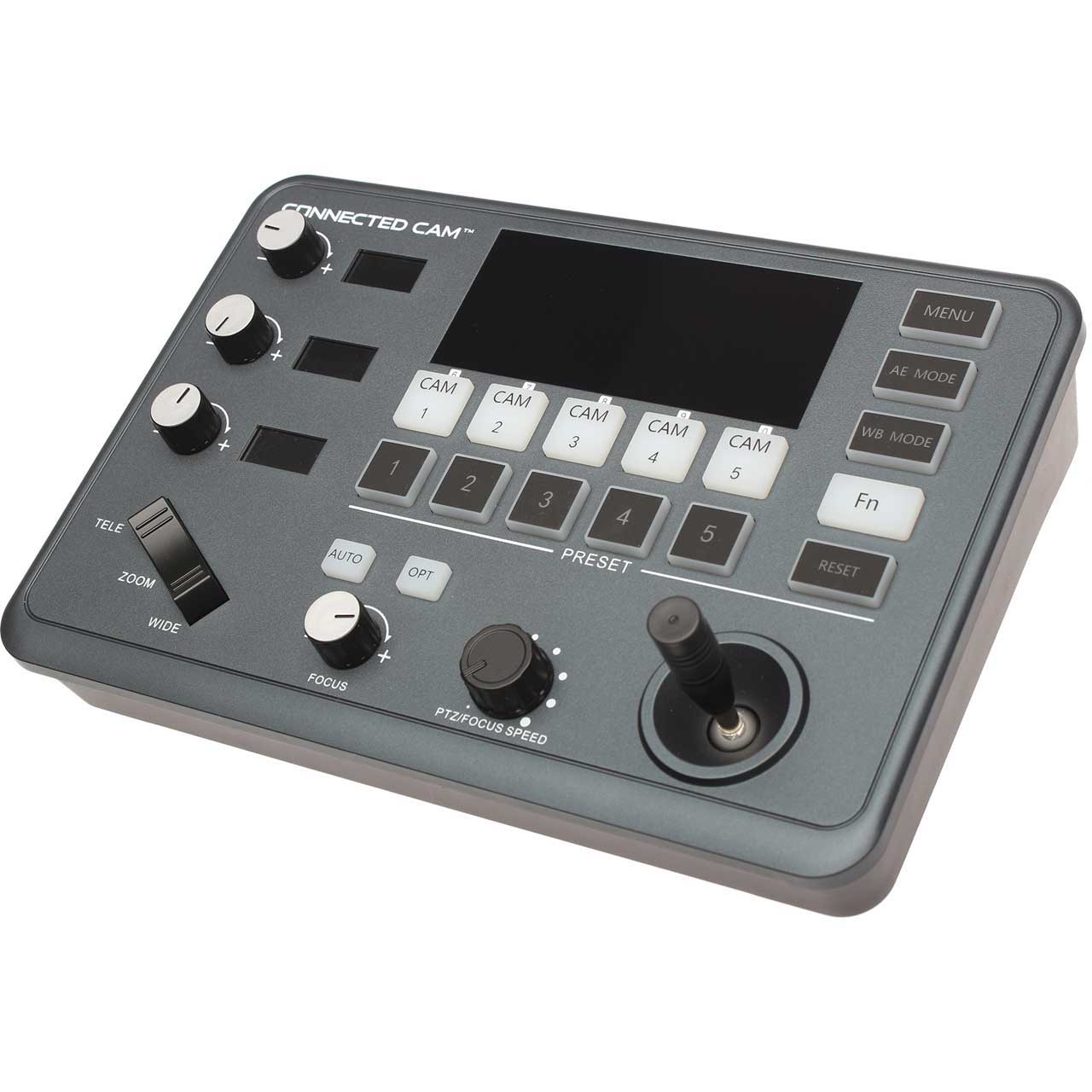

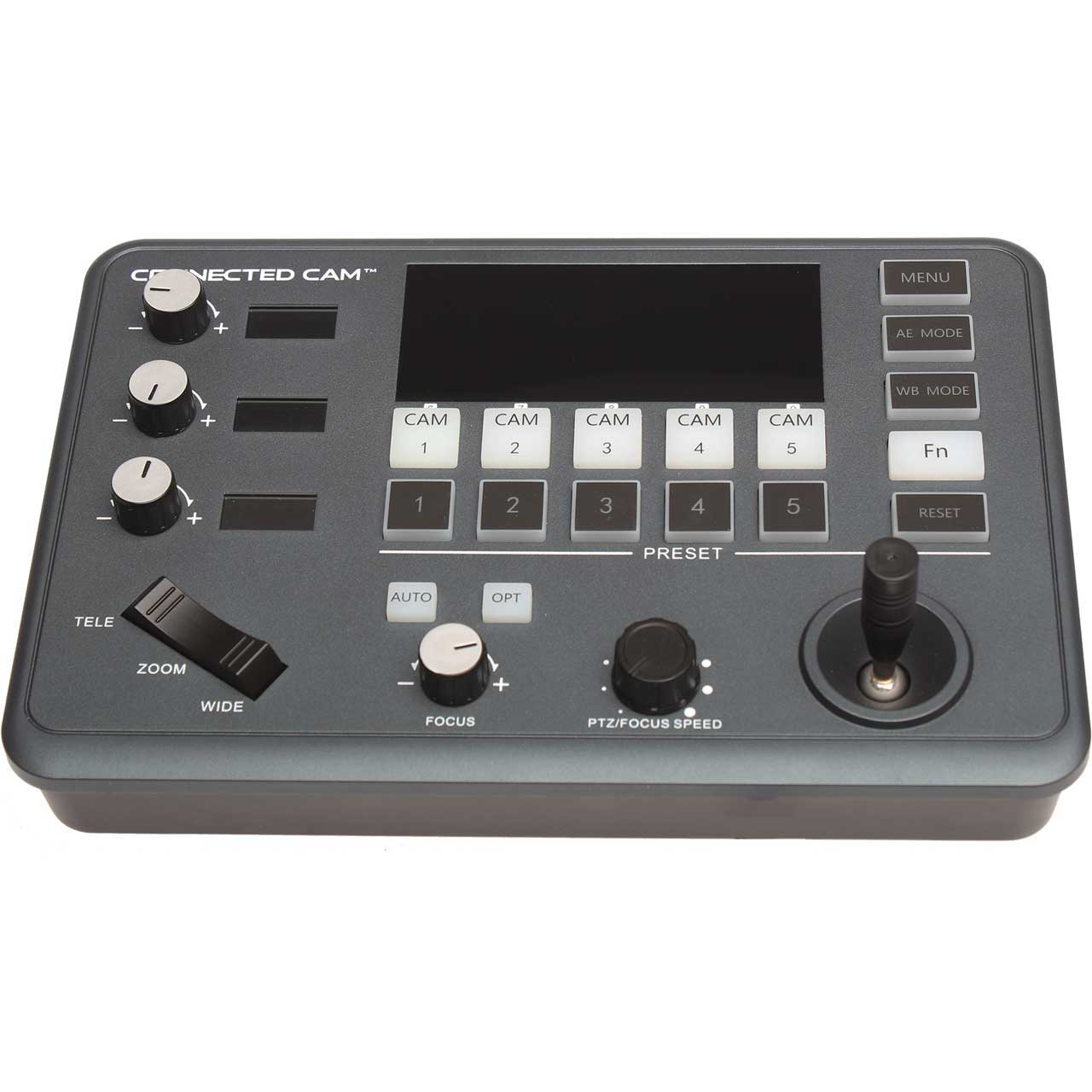

    Compact Joystick PTZ Controller
    This JVC RM-LP5G compact joystick controller connects to your network and provides complete IP control of cameras in your facility or anywhere in the world through the Internet.

    • Features:

      • RM-LP5G
      • 5 camera / 5 preset PTZ camera operation with 2-axis joystick and zoom bridge controls
      • Supports VISCA, UDP, PELCO P/D control protocols over RS422, RS485, RS232 and IP
      • 4-color LED multi-screen display supports easy setup and operation
      • Available April 2023 and only offered in a bundle with 2 or more PTZ cameras

    • Specifications:

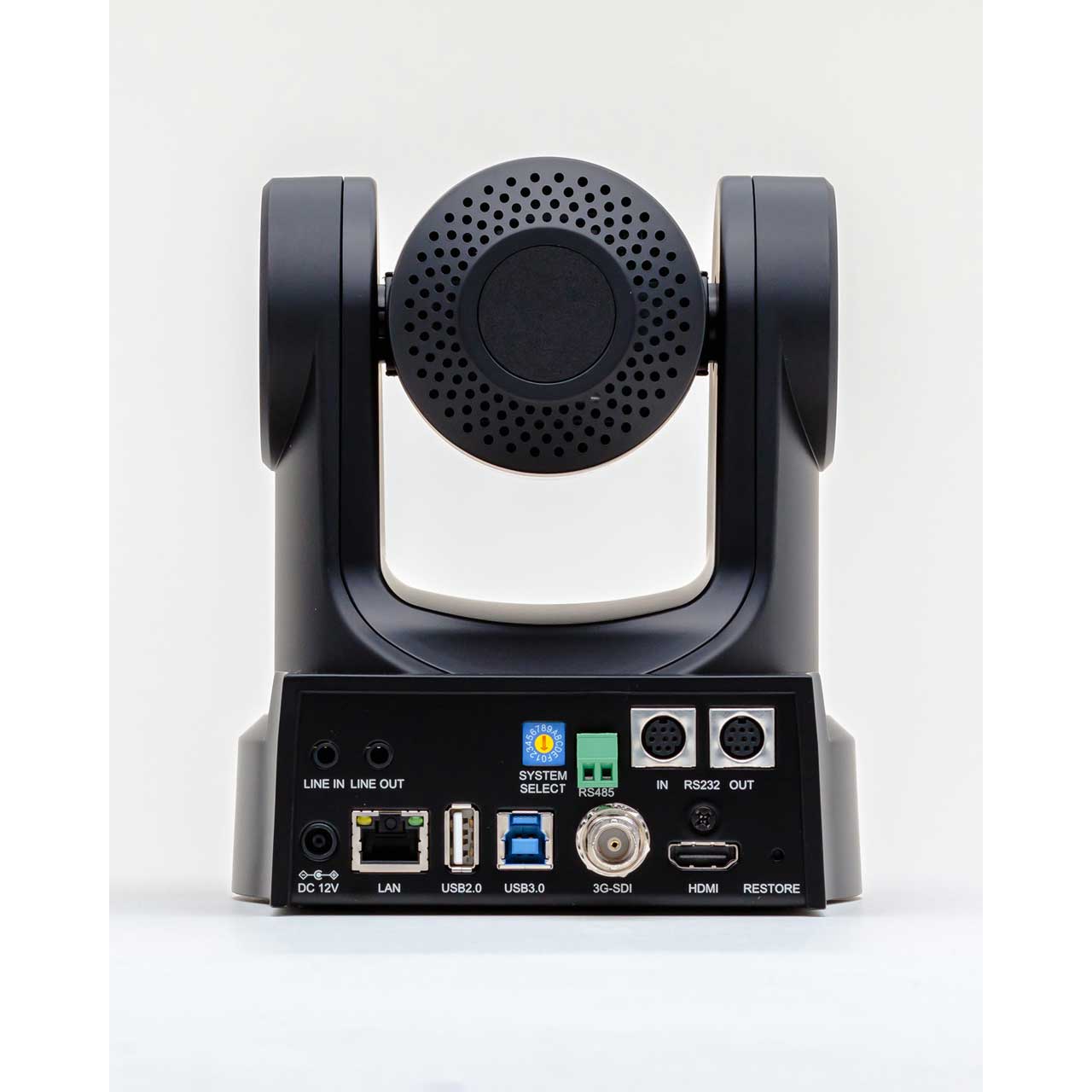

      • KY-PZ200BU
      • Output: HDMI: v 1.4, HDMI video formats:1920x1080 60p/59.94p/50p/30p/29.97p/25p, 1920x1080 60i/59.94i/50i, 1280x720 60p/59.94p/50p/25p, 3G-SDI: BNC type, 800mVp-p, 75U, Along to SMPTE 424M standard, 3G-SDI video formats: 1920x1080 60p/59.94p/50p/30p/29.97p/25p, 1920x1080 60i/59.94i/50i, 1280x720 60p/59.94p/50p.
      • Network Interface: RJ45: 10M/100M/1000M Ethernet Interface.
      • Audio Interface: Line In:3.5mm audio interface, Line Out: 3.5mm audio interface.
      • USB: USB2.0, A type (for maintenance), USB3.0, B type.
      • Communication Interface: RS232 In: 8pin Min DIN, Max Distance: 30m, (Standard)/Pelco-D/Pelco-P Protocol, RS232 Out: 8pin Min DIN, Max Distance: 30m, (Standard Protocol), RS485: 2pin Phoenix Port, Max Distance: 1200m, (Standard)/Pelco-D/Pelco-P Protocol.
      • Sensor: 1/2.5 inch, CMOS, effective pixels:8.51M
      • Scanning Mode: Progressive
      • Lens: 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
      • Digital Zoom: 8x
      • Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)
      • Shutter: 1/30s ~ 1/10000s
      • White Balance: Auto, indoor,outdoor,one push,manual
      • Backlight Compensation: Supported
      • Digital Noise Reduction: 3D digital noise reduction
      • Horizontal Angle of View: 60.7° ~ 3.36°
      • Vertical Angle of View: 34.1° ~ 1.89°
      • Horizontal Rotation Range: ±170°
      • Vertical Rotation Range: -30° ~ +90°
      • Pan Speed Range: 1.7° ~ 69.9°/s
      • Tilt Speed Range: 1.7° ~ 69.9°/s
      • H & V Flip: Supported
      • Image Freeze: Supported
      • PoE: Supported
      • Number of Preset: 255
      • Preset Accuracy: 0.1°
      • Installation: Normal, upside-down
      • RESTORE Button: Supported
      • Standby Function: Supported
      • LED: Power 1x Blue / Standby 1x Yellow-Green
      • Input Voltage: DC 12V, Max 1.5A
      • PoE Supply: 802.3af standard
      • Operating Temperature: 32° to 104°F
      • Storage Temperature: -40° to 140°F
      • Power Consumption: Max 12W
      • Dimensions (DxWxH): 6.7 x 5.6 x 6.5"
      • Net Weight: 3.7Lbs
      • Color: Black

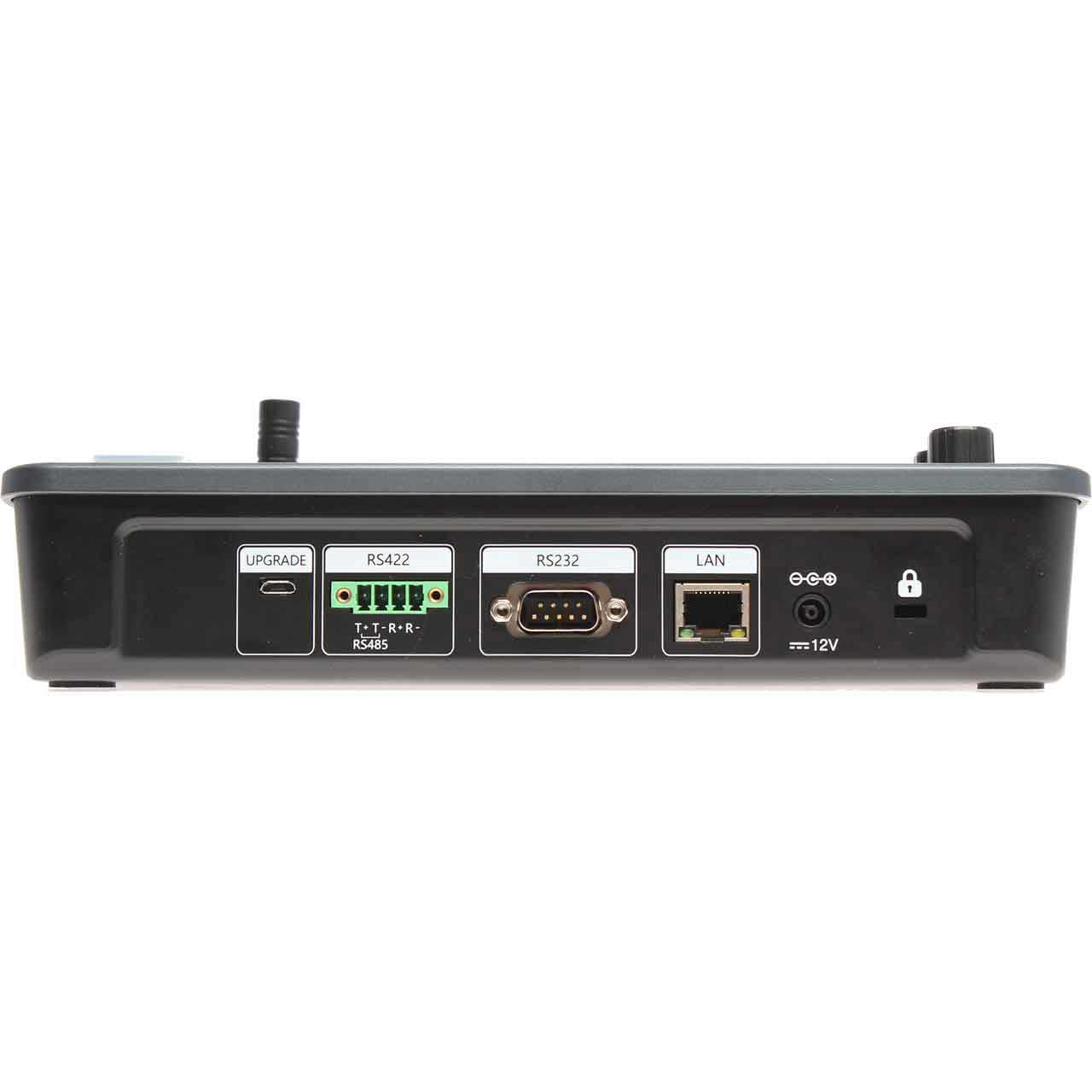

        RM-LP5G
        Communication Control Interface
      • RS422/RS485 Interface: Phoenix Contact 4 pin 3.81mm Terminal
      • RS232C Interface: DB9 Male Interface
      • LAN Interface: RJ45 Female Interface
      • Power Supply: JEITA type4 Female Interface

        Camera Control or Operation
      • Supports up to Control Cameras: 5
      • Communication Protocol: VISCA, PELCO P/D, UDP
      • Infinitely variable knobs: 4
      • Joystick: 2-Axis
      • Zoom Mode: Tele-Wide Bridge Keys
      • Focus Mode: Auto/ Manual/ OPT
      • Pan/Tilt Rotation Speed: 7-Level Adjustment
      • Zoom In/Out Speed: 7-Level Adjustment

        Control Signal Format
      • Baud Rate: 2350bps, 4800bps, 9600bps, 19200bps, 38350bps
      • Date Bits: 8 Bit
      • Stop Bit: 1 Bit
      • Parity bit: NONE
      • Internet Protocol: UDP / VISCA OVER IP

        Power Supply and Consumption
      • Rated Voltage: DC 12V
      • Rated Current: 0.3A max
      • Max Power Consumption: 3.6W

        Physical & Others
      • Password Privacy Protection: Yes
      • Kingston's Lock Holes: Yes
      • Works Temperature: 32° to 104°F
      • Storage Temperature: -4° to 140°F
      • Dimensions (LxWxH): 9.60 x 6.45 x 1.89"
      • Weight: 2.42Lbs

    • Item Includes:

      • 2x KY-PZ200BU HD PTZ Remote Camera
      • 1x RM-LP5G PTZ Controller
      • x2 AC Power Adapter
      • x2 Power Cable
      • x2 RS232 Cable
      • x2 IR Remote Control
      • x2 User Manual
      • x2 Ceiling Bracket
      • x4 Logo Sticker
      • x2 Warranty Card
