KanexPro AUD-DCODEARC-4K HDMI ARC Audio Decoder with Dolby and DTS Downmix - USB Powered

AUD-DCODEARC-4K - Overview

• Features:

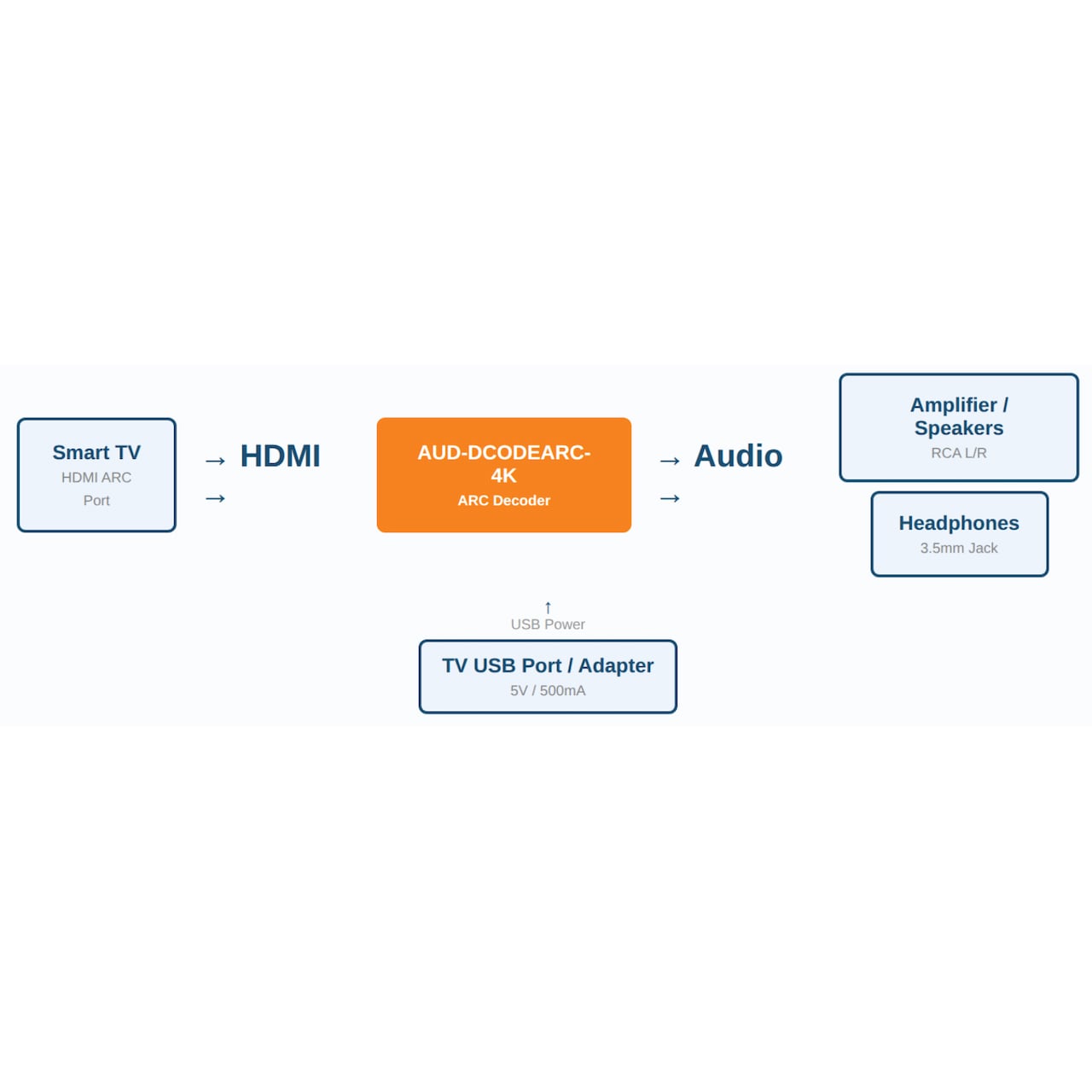

  • HDMI ARC audio extraction from any ARC-enabled TV to analog stereo output
  • Licensed Dolby Digital 5.1 and DTS 5.1 decoding with downmix to 2-channel stereo
  • PCM 2.0 stereo pass-through for standard audio sources
  • Dual analog outputs: 3.5mm stereo jack and RCA L/R for flexible connectivity
  • CEC volume control - adjust volume using the TV remote
  • USB-powered (5V/500mA) - can run from TV USB port with no wall adapter
  • Front-panel LED indicators for power, ARC link, and audio format (PCM/Dolby/DTS)
  • Compact aluminum enclosure for discreet installation behind displays
  • ESD protection: ±8kV air-gap, ±4kV contact discharge


• Specifications:

  • HDMI Compliance: HDMI 1.3 or above
  • HDMI Audio Formats: PCM 2.0, Dolby 5.1, DTS 5.1
  • L/R Audio Format: Analog Stereo 2CH
  • Vmax: 2 Vrms
  • SNR: >90dB
  • THD+N: <0.1% (Vmax); 0.001% - 0.01% (Vbest)
  • Crosstalk: >80dB
  • Frequency Response: 20Hz - 20kHz, ±1dB
  • ESD Protection: ±8kV (air-gap)/±4kV (contact)

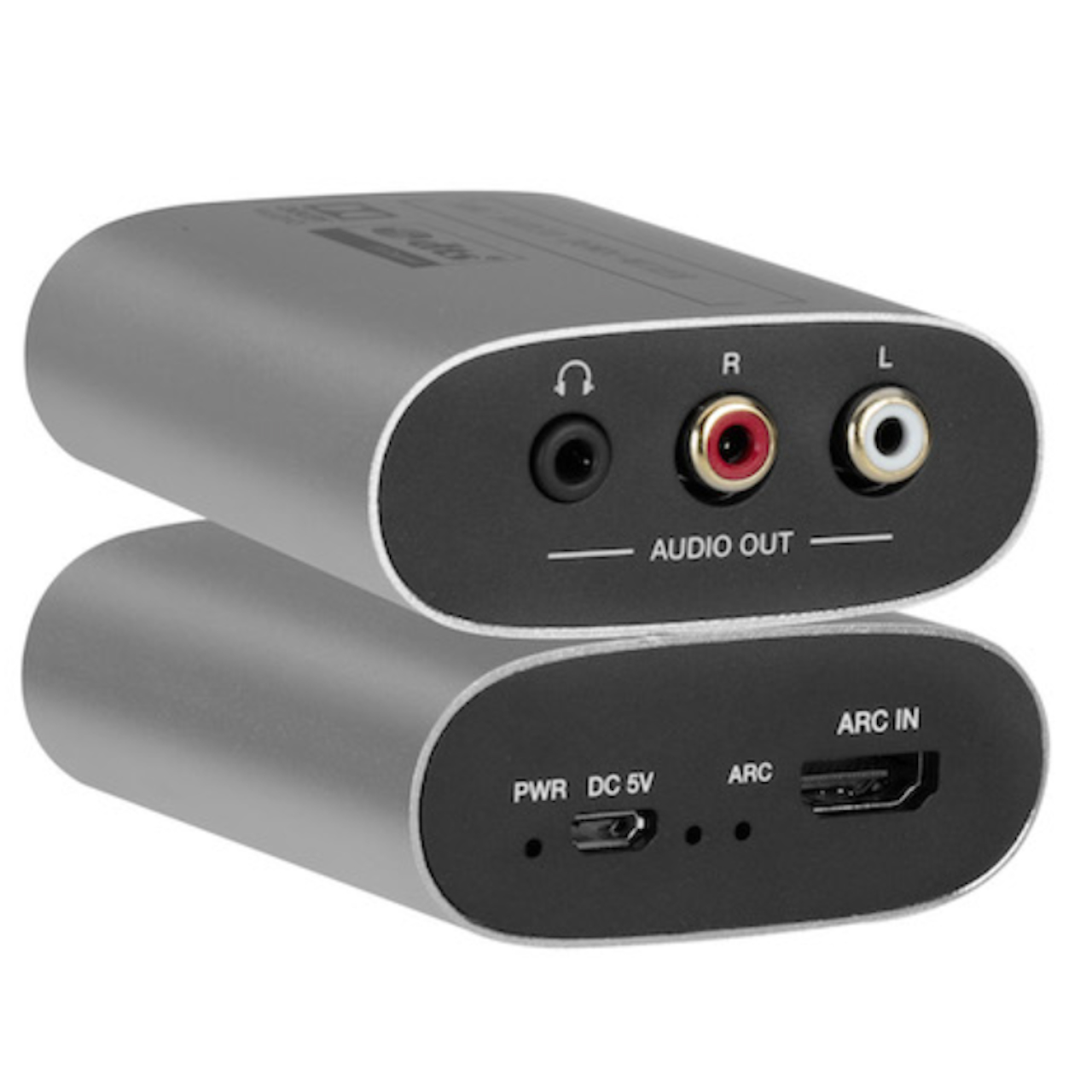

  • Input:
    - 1x HDMI Type A (19-pin female) (ARC IN)
    - 1x Micro USB (power)
  • Output:
    - 1x 3.5mm Stereo Jack
    - 2x RCA L/R
  • Housing: Aluminum Enclosure, Silver
  • Dimensions (WxHxD): 2.76 x 2.56 x 1.06" (70mm x 65mm x 27mm)
  • Weight: 0.18lbs (80g)
  • Power Supply: USB 5V/500mA
  • Power Consumption: 0.86W (Max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (no condensation)


• Item Includes:

  • 1x HDMI ARC Audio Down-Mixer
  • 1x USB Cable (USB-A to Micro USB)
  • 1x User Manual


• Warranty:

  • 2 Year Warranty
