Kanex Pro HDBASE70POER HDBaseT Lite 70M 4K HDMI Over Single CAT6 - Receiver Only

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

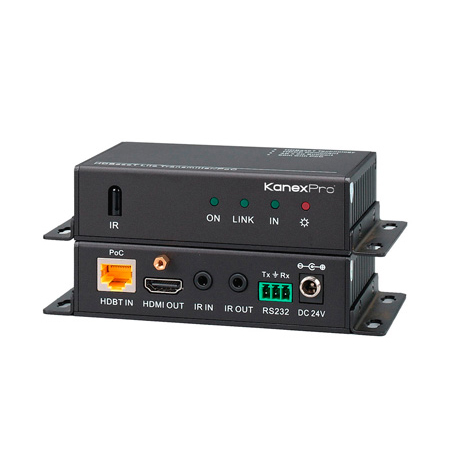

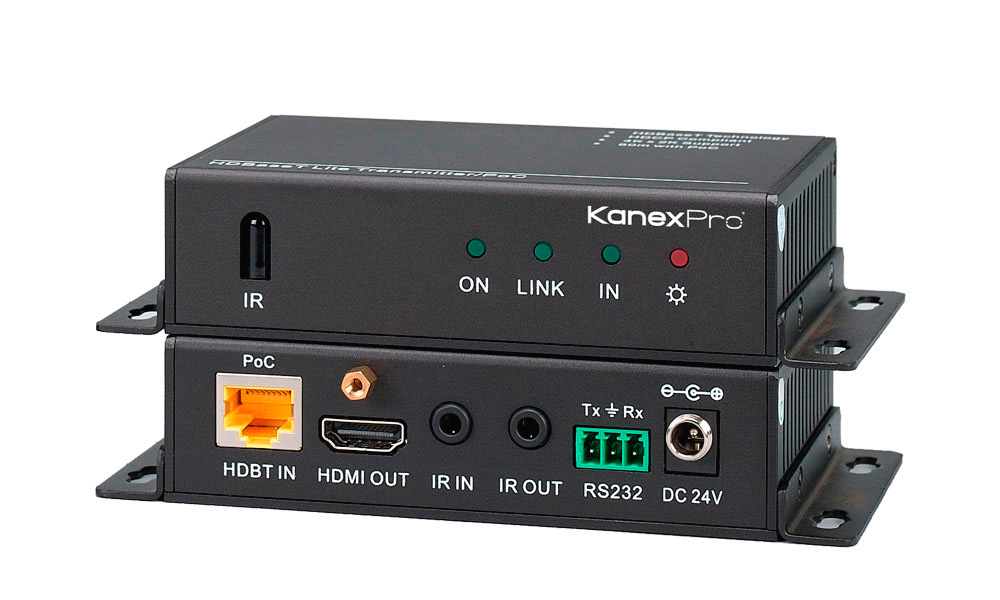

    Kanex Pro HDBASE70POER HDBaseT Lite 70M 4K HDMI Over Single CAT6 - Receiver Only

    Manufacturer: KanexPro

    Item #: KAN-HDBASE70POER   •   MFG #: HDBASE70POER



    List Price:$249.95
    Our Price:$195.00
    Special Price:$185.00

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!





      For use with HDBaseT Enabled Modular Output Cards, Projectors and HDTV’s!

      The KanexPro HDBASE70POER is a receiver designed to work with HDBaseT enabled projectors and HDTVs . The receiver connects to HDMI for TV input, bi-directional IR and RS-232 extending out to a convenient Cat6a cable for expanded connectivity.

      Fully compliant with HDCP and EDID management built-in, the HDBASE70POER delivers HD video up to 4K and digital audio and control signals over shielded twisted pair CAT6 at distances up to 230 feet (70meters).

      Perfect for deploying in classrooms, conference rooms and auditoriums equipped with HDBaseT based projectors and displays.

      Note: Please use Shielded Twisted Pair CAT6 for best transmission and zero cross-talk.

      Power supply not included.


      • Features

        • HDBASE70POER (Receiver Only) - designed for HDBaseT projectors and HDTV's.
        • Extend HDMI/ DVI signals over single CAT6a cable
        • Supports resolutions from 1080p/[email protected] to 4Kx2K
        • Supports all 3D formats
        • High bandwidth up to 10.2 Gbps
        • HDCP & EDID compliant
        • Bi-directional RS -232 protocol
        • Bi-directional IR control
        • Built-in LED indicators for signal/ work status
        • Mountable aluminum enclosure
        • Locking HDMI connector and power supply
        • External power supply (100V-240V AC, 50/60Hz)

      • Specifications

        • Input Signal: 1xRJ45, 1xIR,1xRS-232 ( on each unit)
        • Input Connector: 1xRJ45, 1x IR IN
        • Video Signal: HDMI1.4
        • Audio: Digital audio transmitted through HDMI audio
        • Output Signal: 1XHDMI ,1 IR out
        • Output Connector: RJ-45, IR
        • Video signal: HDMI1.4
        • Transmission Mode: HDBaseT Technology
        • Resolution Range: From 800x600 ~ 1920x1200
        • Transmission Distance:
        • Maximum distance: 230 feet (70M)
        • Gain: 0dB ~ [email protected]
        • Differential Phase Error: ±10° @ 135MHz_100M
        • SNR: >[email protected] 100MHz-100M
        • Bandwidth: 10.2Gbps
        • Return Loss: <[email protected]
        • THD: <0.005%@1KHz
        • Min. ~Max. Level <0.3V ~ 1.45Vp-p
        • Impedance: 75?
        • Temperature: -20 ~ +60 Degrees C
        • Humidity: 10% ~ 90%
        • Power Supply: 100VAC ~ 240VAC, 50/60Hz
        • Power Consumption: 6.5W
        • Unit Dimension: L5.2" x W3.0"x H1.18"
        • Net Weight: 1.2 lbs
