Atlona AT-UHD-EX-100CE-RX 4K/UHD HDMI Over 100M HDBaseT Receiver with Ethernet Control and PoE

ITEM #: ATNO-UHDEX100CER MFG #: AT-UHD-EX-100CE-RX

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$530.00

Availability: In Stock
iAvailability Description Popup


    AT-UHD-EX-100CE-RX - Overview

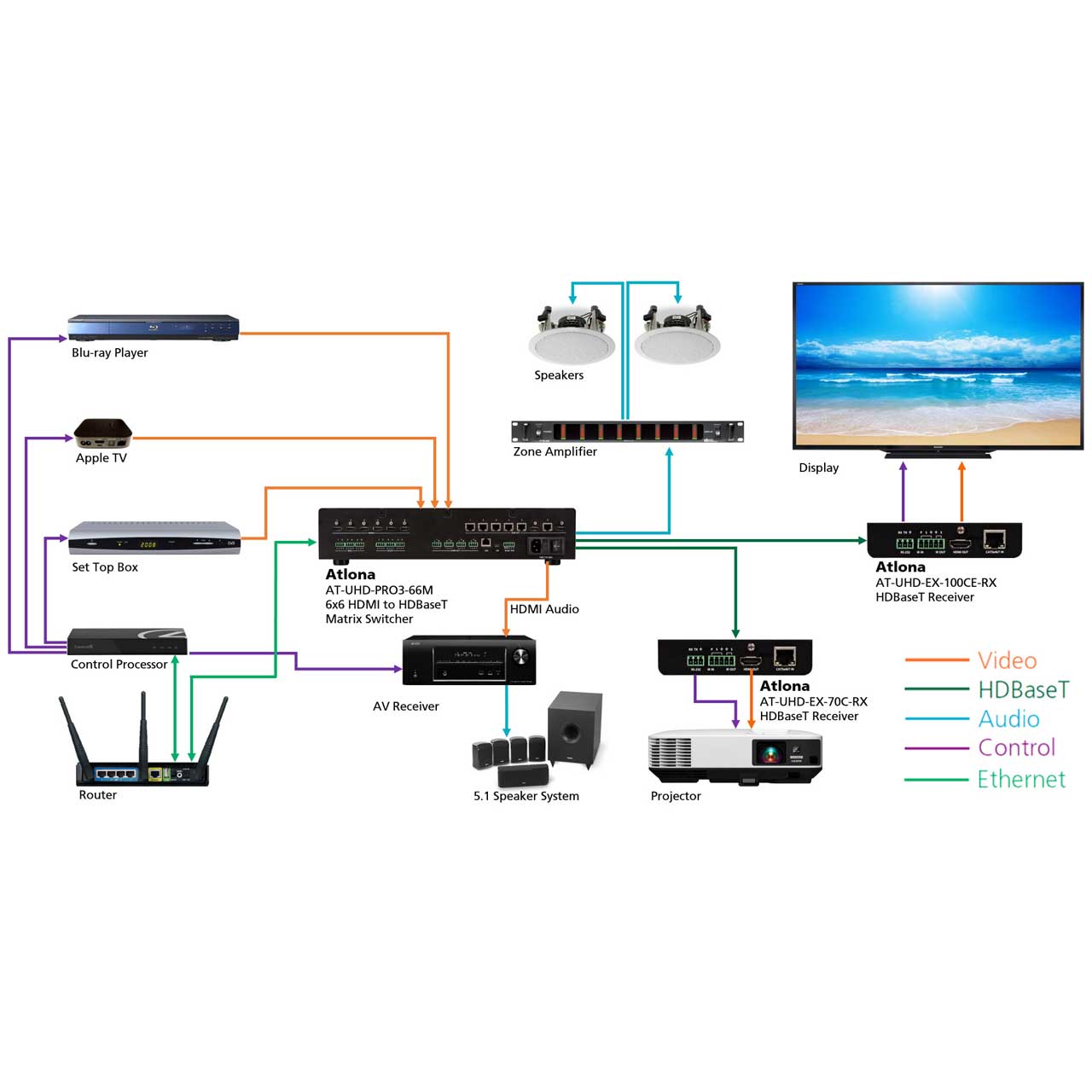

    The Atlona AT-UHD-EX-100CE-RX is an HDBaseT receiver for AV signals up to 328 feet (100 meters) over category cable with Ethernet pass through, RS-232 and IR control, plus Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The receiver works with the PRO3-UHD Matrix Switcher Series* to provide RS-232, and 12 volt-based IR control commands. The AT-UHD-EX-100CE-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosures for installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.

    • Features:

      • 4K/UHD capability
      • Compatible with Ultra High Definition sources and displays
      • Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices

      • HDCP 2.2 compliant
      • Adheres to latest specification for High-bandwidth Content Protection
      • Allows protected content stream to pass between devices

      • Remote-powered receiver
      • Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
      • Saves time and integration costs

      • AV, Ethernet, power, and control over HDBaseT*
      • Receives 4K/UHD video, audio, 100Base-T Ethernet, power, and control through a single cable
      • Eliminates multiple cable runs between source, control system, router, and display
      • *Ethernet pass-through is not available on the AT-UHD-EX-100CE-RX receiver when used with the AT-UHD-PRO3-88M matrix switcher.

      • Extended distance HDMI extension
      • Receives HDMI signals up to 328 ft (100m) @ 1080P with CAT5e/6 or 4K/UHD using CAT6a/7 cable
      • Uses easy-to-integrate category cable for low-cost, reliable system installation

      • Flexible Bidirectional IR control capabilities
      • IR Input designed to work with 12V IR receivers for source control
      • Saves control systems costs

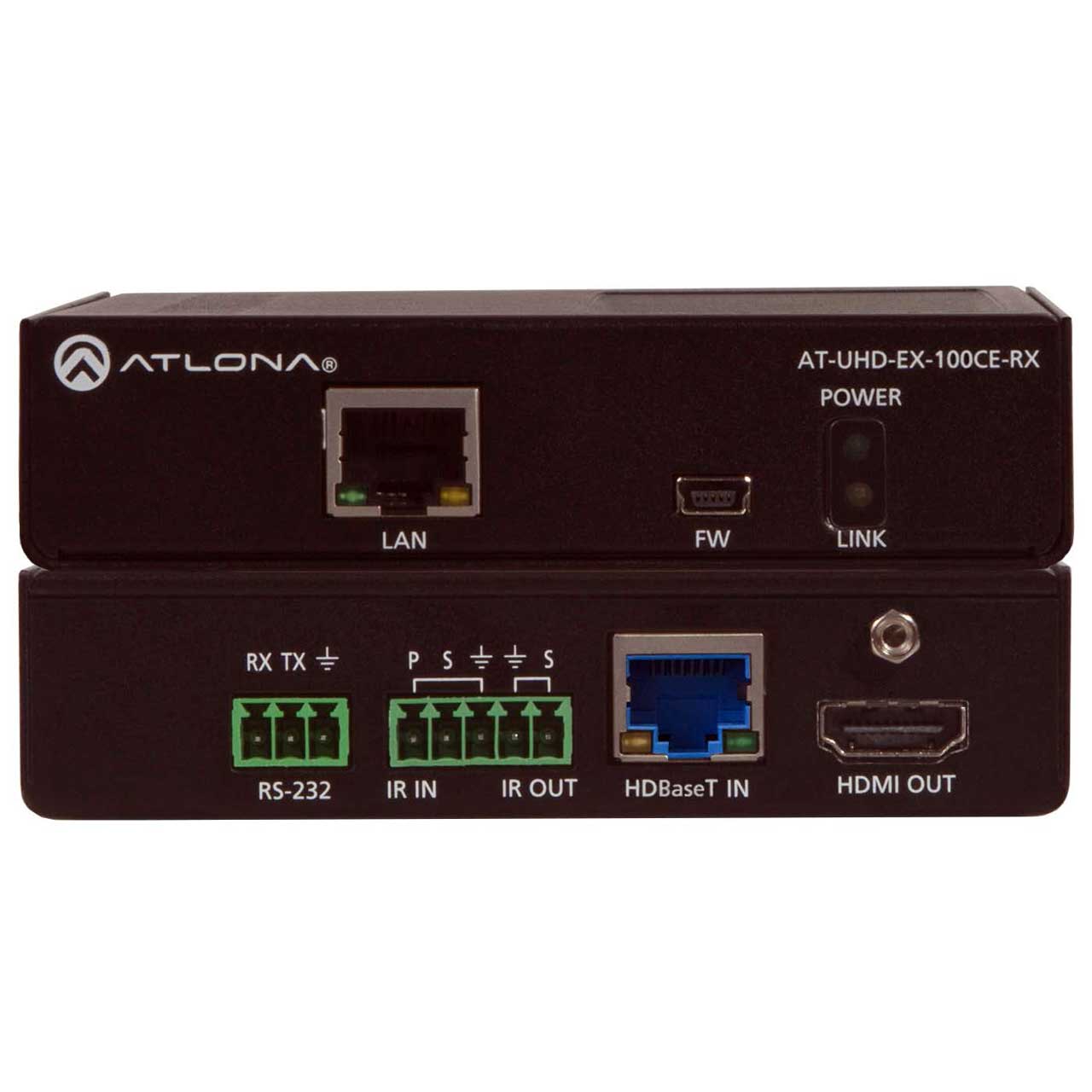

      • Rear panel I/O connectors
      • Placement of ports on rear panel simplifies wire management
      • Saves installation time and eliminates clutter

      • Multi-channel audio compliant
      • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
      • Allows any multi-channel audio stream to be used within a professional audio system

      • Field updatable firmware
      • Front panel USB port provides an easy means for kit upgrades
      • Ensures long term system return on investment

      • Front panel Power and Link status LEDs
      • LED indicators provide power and HDBaseT link status information
      • Provides easy setup and troubleshooting

      • Low-profile, 1 inch (25 mm) high quarter rack-width enclosure
      • Easy installation into confined spaces behind displays and above projectors
      • Keeps devices out-of-sight when placed in public spaces

      • Included accessories
      • User guide, IR emitter P/N AT-IR-CS-TX, mounting brackets

    • Specifications:

      • Resolution
      • Video [email protected]/25/30/50*/60Hz*, [email protected]/25/30/50*/60Hz*, 2048x1080p,
      • [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
      • VESA 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Colorspace YCbCr, RGB
      • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
      • Color depth 8-bit, 10-bit, 12-bit

      • Audio
      • Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
      • Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate up to 24-bit

      • Distance (per port)
      • CAT5e/6 @ 4K up to 70 meters up to 230 feet
      • CAT6a/7 @ 4K up to 100 meters up to 328 feet
      • CAT5e/6 @ 1080p up to 100 meters up to 328 feet
      • HDMI IN/OUT @ 4K up to 5 meters up to 15 feet
      • HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet

      • Signal
      • Bandwidth 10.2 Gbps
      • CEC Pass through
      • HDCP Supports up to 2.2

      • Connector
      • Firmware Mini-B USB
      • HDBaseT RJ45 (8P8C)
      • HDMI Type A
      • LAN RJ45 (8P8C), Ethernet pass through
      • IR 5-pin captive screw
      • RS-232 3-pin captive screw
      • Power 2-pin, 48V captive screw

    • Warranty:

      • 10 Years

    • GTIN:

      0846352004439
