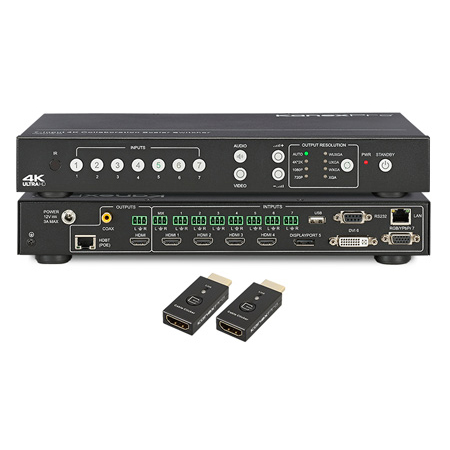

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KAN-HDSC71D-4K

HDSC71D-4K - Overview

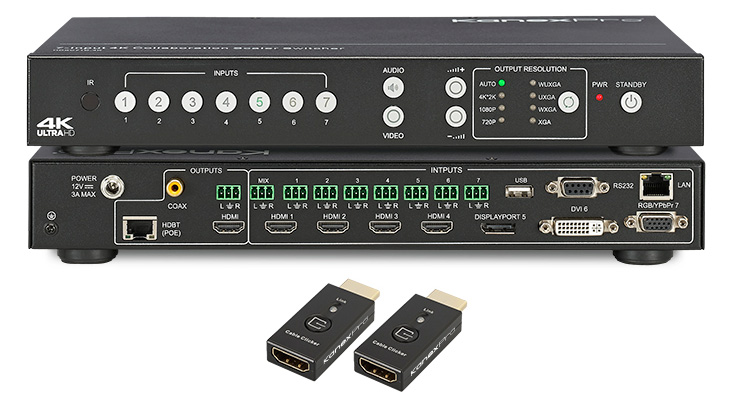

The KanexPro HDSC71D-4K is a 7-input, 2-mirrored (HDMI & HDBaseT) output presentation scaler- switcher engineered to support native 4K inputs and output for collaboration and presentation systems. It consists of 4xHDMI, 1xDisplayPort, 1xDVI-I & 1xVGA/YPbPr inputs for connecting digital sources and analog VGA based sources to dual 4K displays supporting resolutions to 3840x2160 at 30Hz. This HDCP compliant switcher provides built-in EDID management for faster output to displays and also support control via front -panel buttons, RS-232 and web based interface to work with any third-party control systems.

The switcher includes two 4K-HDCLICKERs, which are HDMI based cable controllers designed to connect and fast-switch HDMI source devices. When connected to the presentation system just click-to-show the content instantly on to the 4K display. The HDSC71D-4K optimizes the way we do video collaboration and presentations. These 4K-HDCLICKERs product brings together people, space, and information to amplify collaboration, and help distributed teams accelerate innovation while displaying their content one at a time directly from laptops, DisplayPort and HDMI based devices.

The HDSC71D-4K can be easily integrated with table or wall cable connection boxes by simply connecting our 4K-HDCLICKER in conference applications to ensure the team can visually focus on the work at hand and elevate the role of content sharing to one 4K Display. And it seamlessly works with any Video conferencing systems such as Polycom, Cisco, and Avaya. Please note, The HDBASE70POER receiver is not included with this system, contact our sales team on ordering these to complete your installation.

  • Features:

    • 4K Multi-input 7x2 Presentation Scaler Switcher with HDBaseT
    • Elite 4K scaling engine to support up-scaling & down-scaling
    • Includes two 4K-HDCLICKERS for Click-to-Show me your content
    • Accepts 4K input resolutions 3840x2160 at 30Hz
    • Native 4K input / output scaling
    • Independent Audio Switching
    • Multiple Inputs: 4xHDMI, 1xDisplayPort, 1xDVI-I & 1xRGB/YPbPr
    • Mirrored outputs: 1xHDMI and 1xHDBase-T with standard 48v PoC
    • Smart Scaling - automatically responds to displays EDID and scales video to support the best resolution
    • DisplayPort input resolution up to 3840x2160 at 60Hz
    • Supports auto-scaling by auto-detecting EDID from display to scale optimized resolution
    • Supports MHL inputs via HDMI
    • Provides break away audio
    • Unbalanced stereo analog and digital coax audio output
    • Supports auto-selection of active HDMI audio (high priority) or external stereo audio
    • Control via front panel buttons, IR, RS232 and LAN (Web)
    • Integrates with table or wall cable connection boxes in conference applications
    • Portable mountable enclosure

  • Specifications:

    • Supported Formats
    • Resolutions (max.: 3840x2160 at 30Hz(4K x 2K at 30Hz)

      Electrical
    • Screen layout Select Buttons: 4 x Tact-type, green backlight
    • Video Select Buttons: 4 x Tact-type, green backlight
    • Inputs Select Buttons: 7 x Tact-type, green backlight
    • Audio Select Button: 1 x Tact-type, green backlight
    • Output Resolution Select Button: 1 x Tact-type, green backlight
    • On / Standby Button: 1 x Tact-type, green backlight
    • Output Resolution Indicators: 8 x LED, green
    • Power Indicator: 1 x LED, red

      Connectors
    • Video Input: 4 x HDMI Type A 19-pin, female; 2 x DisplayPort (Full Size) 20-pin, female; 1 x VGA DB-15 15-pin, female
    • Video Output: 1 x HDMI Type A 19-pin, female
    • Audio Input: 7 x 3.5mm mini-stereo
    • Audio Output: Audio Output, 1 x Optical
    • RS-232: 1 x DB-9, female
    • IP Control(LAN): IP Control(LAN)
    • USB(Reserve for firmware update): USB (Reserve) firmware update
    • AC Power: 1 x 110~240V AC 3-pin

      Physical
    • Power Input: 110~240V AC
    • Power Consumption: 15W (max.)
    • Dimensions (W x H x D): 12.6" x 1.7" x 7.3"
    • Unit Weight: 3.3 lbs.

  • Warranty:

    • 3 Years

  • GTIN:

    0813982020603
