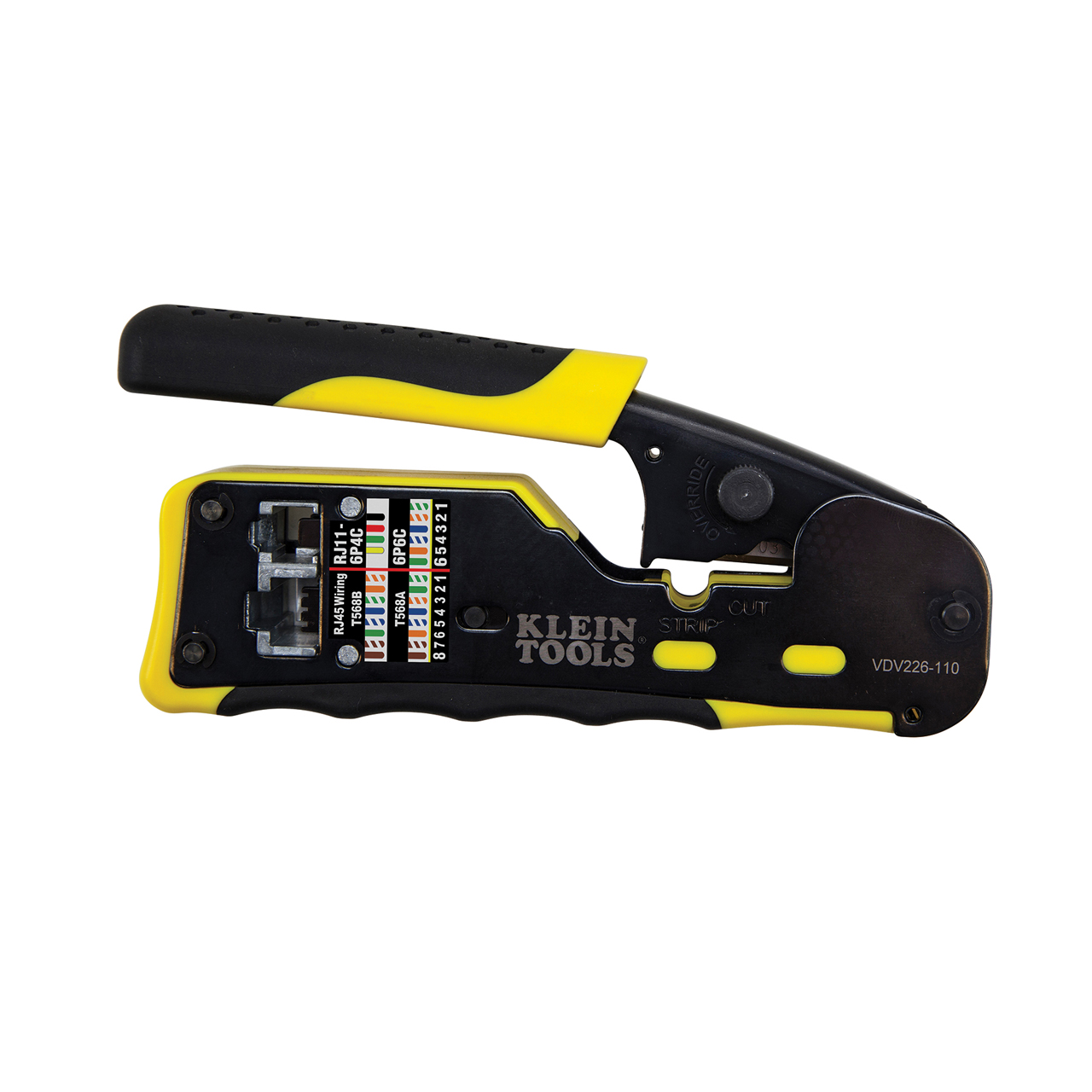

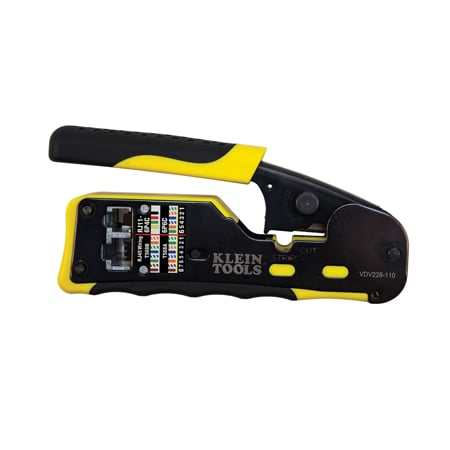

Klein Tools VDV226110 Ratcheting CAT3/CAT5e/CAT6/6A Ethernet Cable Crimper /Stripper/Cutter for RJ45 Pass-Thru/RJ11/RJ12

VDV226110 - Overview

Cuts, Strips, Crimps and Trims Twisted Pair Cable (STP/UTP)

• Features:

  • Modular crimp-connector installation tool for voice and data applications with Pass-Thru RJ45 connector plugs
  • Wire stripper, crimper, and cutter all-in-one tool for STP/UTP paired-conductor data cables
  • Trims flush to end face of connector eliminating unintended contact between conductors
  • Crimps and trims Klein Tools RJ45 Pass-Thru™ Connectors
  • Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru™)

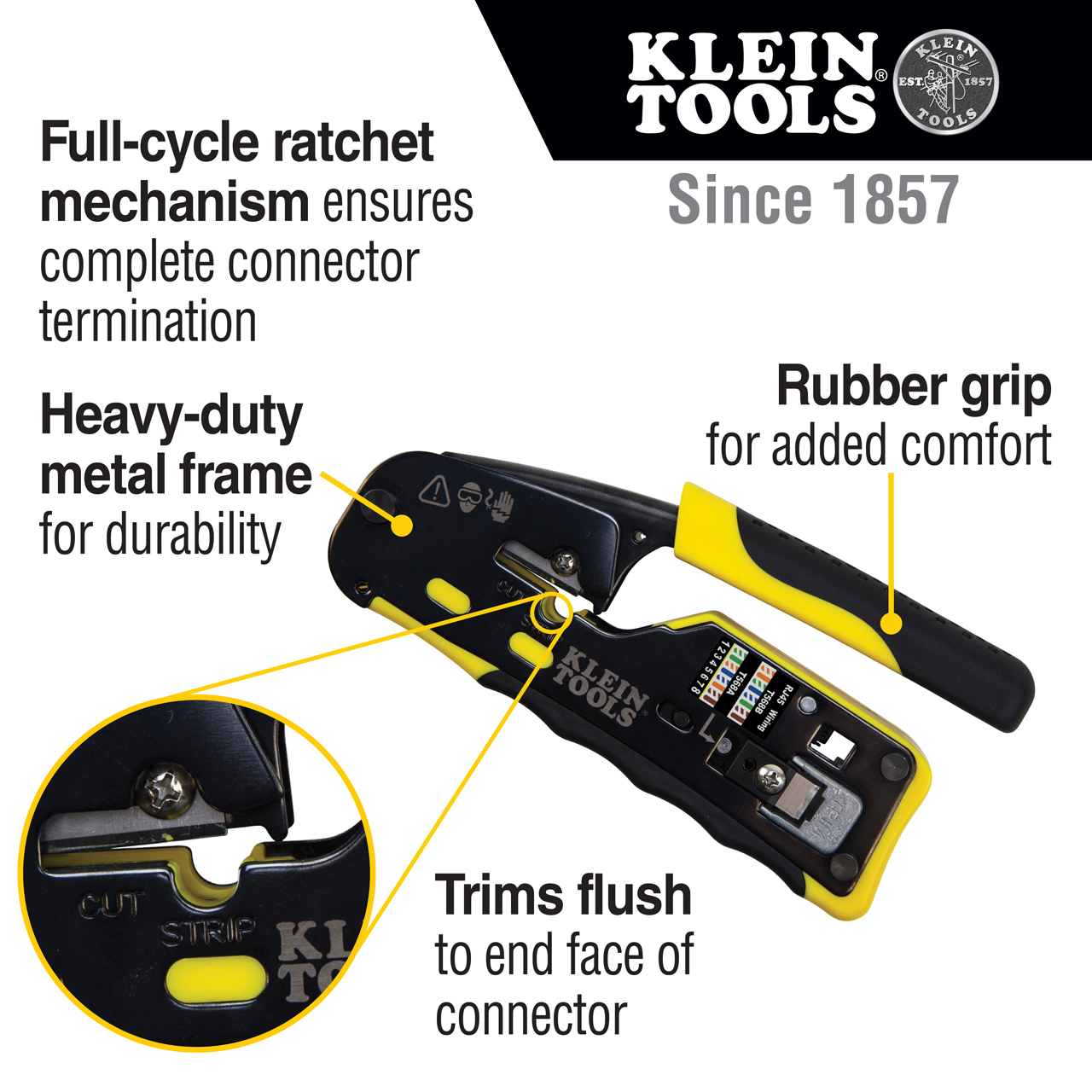

  • Full-cycle ratchet mechanism ensures complete connector termination

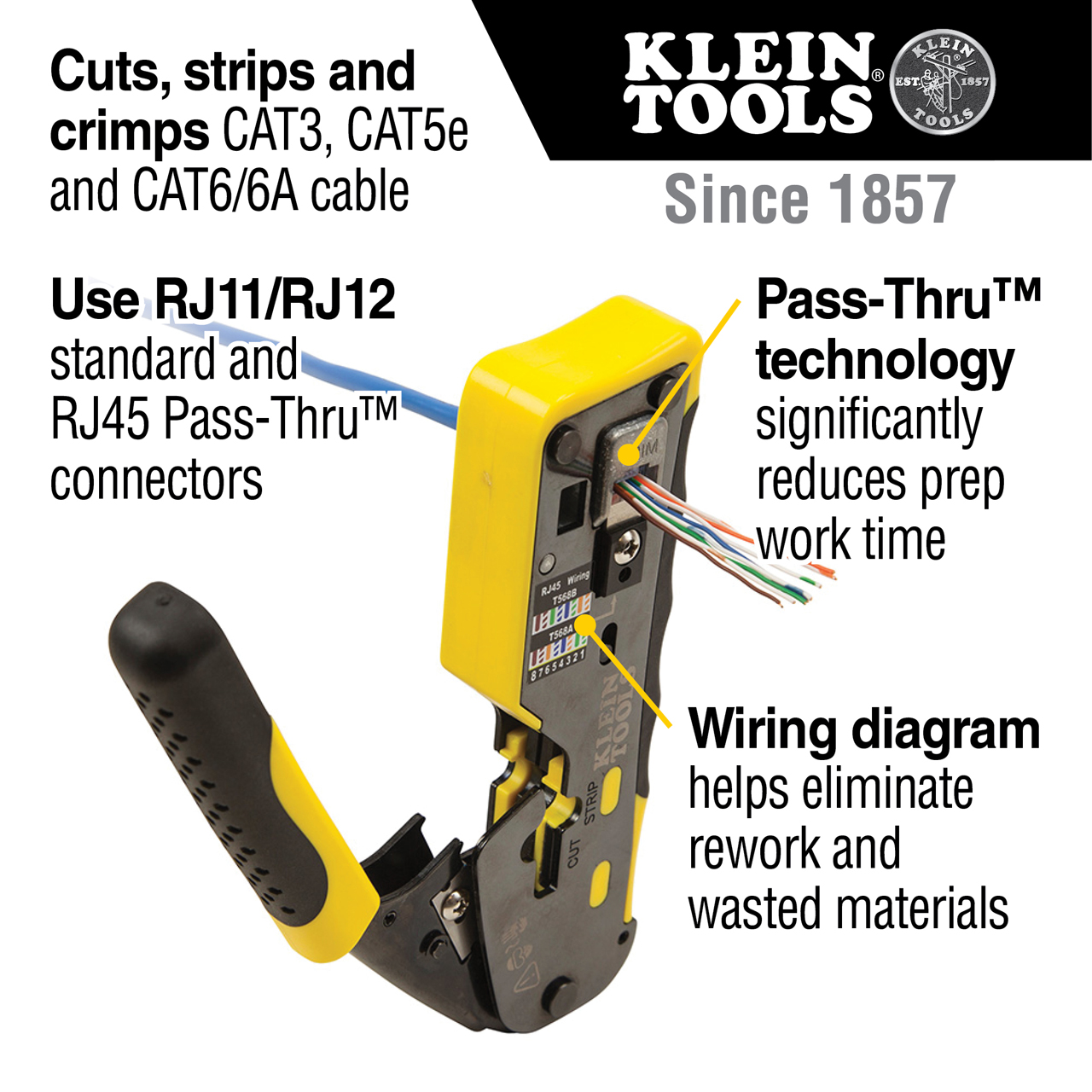

  • On-tool wiring guide helps minimize wiring errors
  • Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
  • Rubber grip for added comfort
  • Ratcheting locking mechanism
  • Use with Klein Tools Pass-Thru™ Connectors
  • Not for use with standard (non Pass-Thru™) connectors
  • Replacement blade set available (VDV999-076)


• Specifications:

  • Type: Crimper
  • Application: Cable Connection
  • Material: Steel with Black Oxide
  • Handle Color: Yellow/Black
  • Cuts & Strips: Paired Conductor Data Cable (Round STP/UTP); Flat-Satin Phone Cable
  • Cable Type:
    - CAT3
    - CAT5e
    - CAT6/6A
  • Connector Type: RJ45 Klein Tools Pass-Thru™, and RJ11, RJ12 Standard
  • Position/Pair/Conductors:
    - 4-Position, 1-Pair/2-Conductor
    - 4-Position, 2-Pair/4-Conductor
    - 6-Position, 2-Pair/4-Conductor
    - 6-Position, 3-Pair/6-Conductor
    - 8-Position, 4-Pair/8-Conductor
  • Overall Length: 6.094" (15.5cm)
  • Weight: 14.4oz (408g)


• Item Includes:

  • 1x Klein Tools VDV226110 Ratcheting CAT3/CAT5e/CAT6/6A Ethernet Cable Crimper /Stripper/Cutter for RJ45 Pass-Thru/RJ11/RJ12


• GTIN:

  0092644690945
