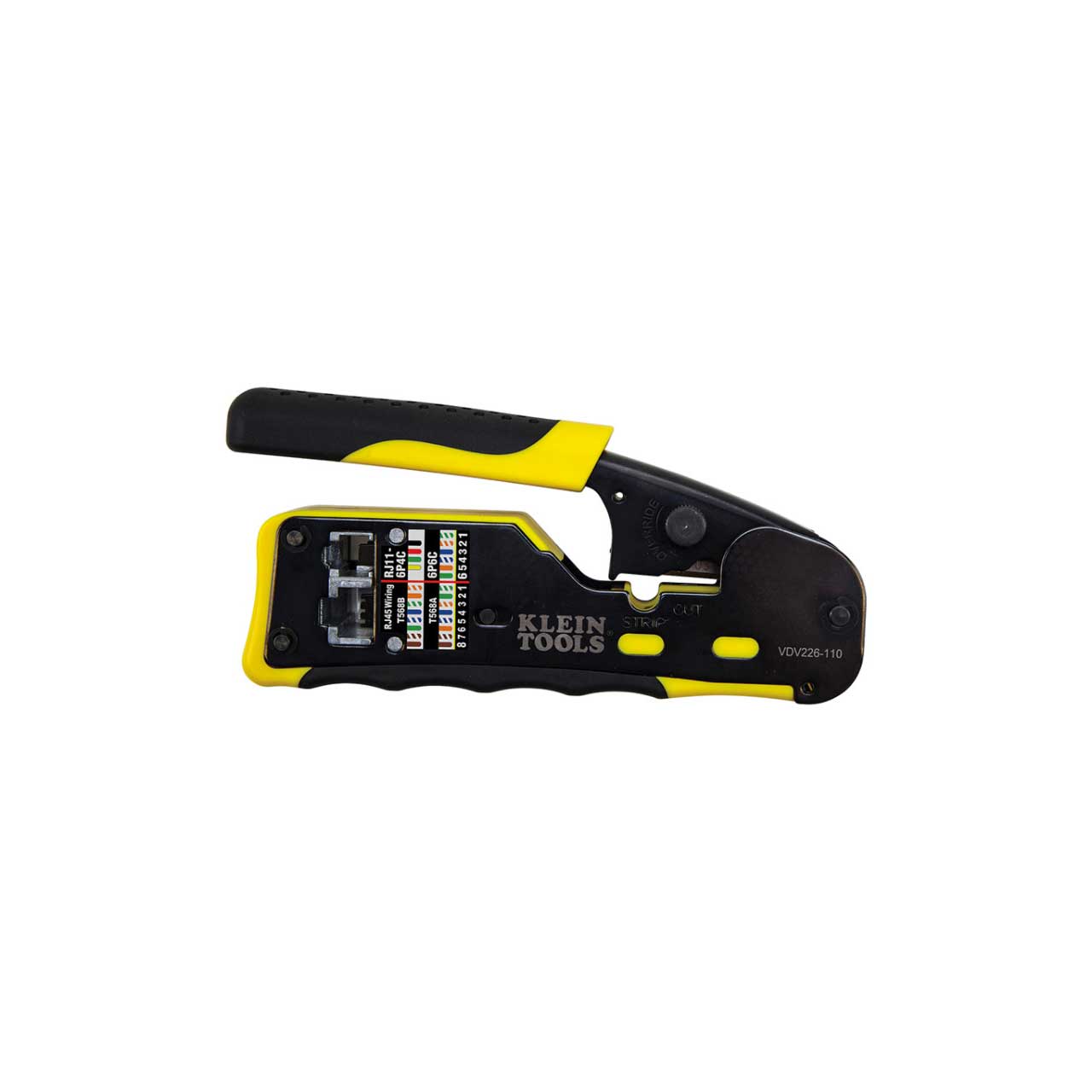

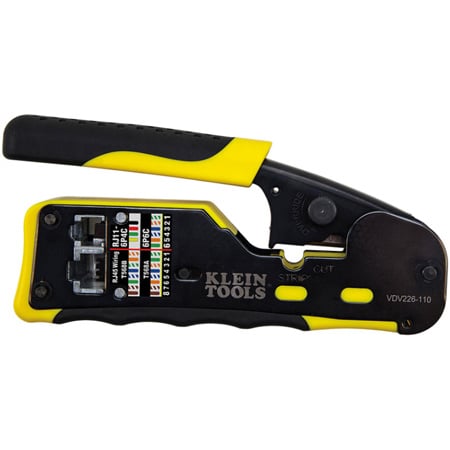

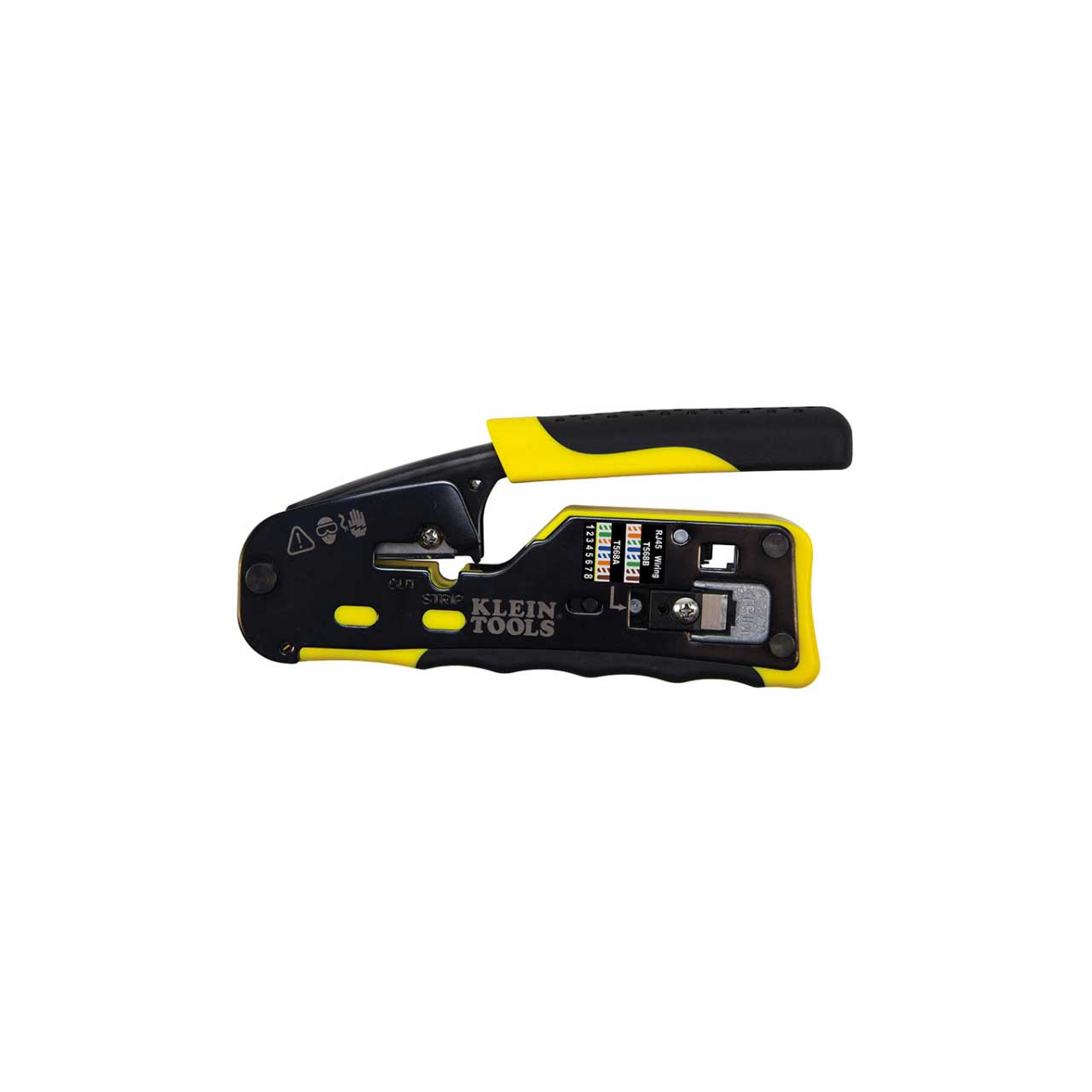

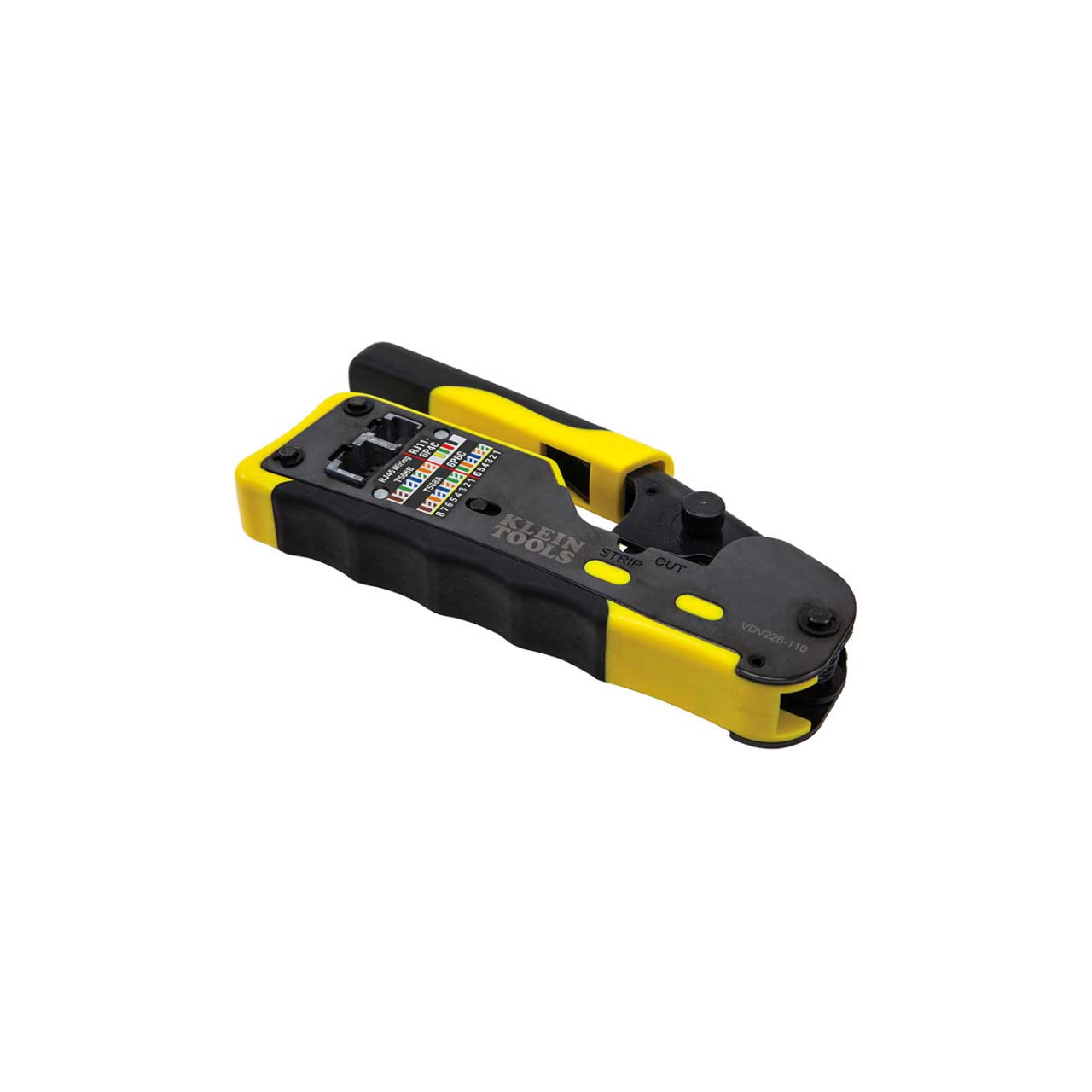

Klein Tools VDV226-110 Pass-Thru Modular Crimper Tool - Yellow/Black

ITEM #: KLT-VDV226-110 MFG #: VDV226-110

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$76.12

Our Price:

$65.29

Availability: In Stock
iAvailability Description Popup


    VDV226-110 - Overview

    The VDV226-110 features Pass-Thru™ technology that significantly reduces prep work time, with flush-cut wire trimming blade. This product cuts, strips and crimps twisted pair cable (STP/UTP).

    • Features:

      • Fast, reliable modular crimp-connector installation for voice and data applications
      • All-in-one tool cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables)
      • Crimps RJ11/RJ12 standard modular connectors and crimps and trims Klein Tools RJ45 Pass-Thru Connectors
      • Full-cycle ratchet mechanism ensures complete connector termination
      • Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
      • Trims flush to end face of connector to eliminate unintended contact between conductors
      • On-tool wiring guide helps minimize wiring errors
      • Not for use with standard (non-pass through) connectors
      • Use with Klein Tools Pass-Thru Connectors: VDV826-728, VDV826-729, VDV826-702, VDV826-703, VDV826-763
      • Replacement blades available (VDV999-076)

    • Specifications:

      • Handle Color: Yellow/Black
      • Handle Finish: Dual Material Cushion Overlay
      • Position/Pair/Conductors: 4, 6, and 8-position RJ11/RJ12 Standard
      • Crimps: RJ11/RJ12 Standard; Klein Tools Pass-Thru™ Connectors
      • Cuts & Strips: STP/UTP and Flat Satin Phone Cable
      • Overall Length: 6-3/32'' (154.8 mm)
      • Weight: 0.90 lb (0.41 kg)

    • GTIN:

      0092644690945
