Klein Tools VDV500-223 Digital Tracing Probe

VDV500-223 - Overview

• Features:

  • Digital Probe traces non-energized wiring when used with the Digital Tone Generator (VDV500-163 required; sold separately)
  • Trace and locate cables on an active network when used with the Digital Tone Generator (VDV500-163 required; sold separately)

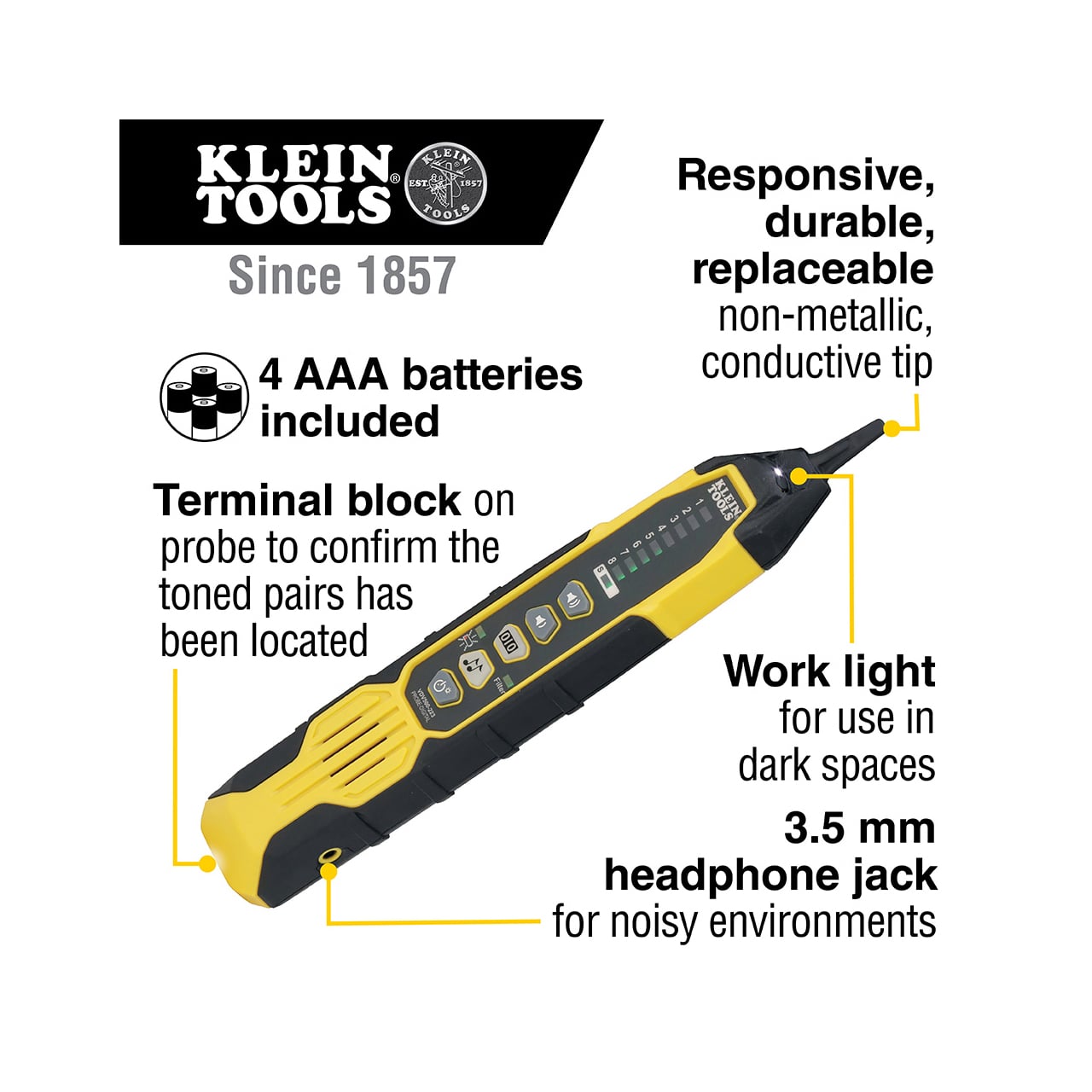

  • Work light for use in dark spaces
  • 3.5mm headphone jack for use in noisy environments (headphones not included)
  • Tool-less, twist-and-lock replacement tip (VDV999-070) available
  • 60Hz filter for accurate tracing, works with Klein's Scout® Pro and Lan Scout® Jr. testers
  • Wire mapping capabilities to check Pin-to-Pin connections with shield detection when used with the Digital Tone Generator (VDV500-163 required; sold separately)


• Specifications:

  • Application: Wire Tracing
  • Special Features: Work Light, Stay On Power Button
  • Material: ABS
  • Batteries: 4x AAA
  • Battery Life: 20 hr
  • Low Battery Indicator: Yes
  • Power On LED Indicator: Yes
  • Auto-Power Off: Yes
  • Adjustable Volume: Yes
  • Amplifier Overload Indication: No
  • Continuity Testing: No
  • Visual Notification: LED
  • Replaceable Tip: Yes
  • Self-Storing Remote: No
  • Dimensions (LxWxH): 1.9" x 1.3" x 9.9" (4.8cm x 3.3cm x 25.1cm)
  • Weight: 5.2oz (147g)


• Item Includes:

  • 1x Tracing Probe
  • 4x AAA Batteries
