Kings HHD1694A 75 Ohm HD-BNC Connector Male Plug for Belden 1694A - 042 - .278 Crimping Sizes

Name: Kings HHD1694A 75 Ohm HD-BNC Connector Male Plug for Belden 1694A - 042 - .278 Crimping Sizes
Brand: Kings Brand
SKU: KNG-HHD1694A
Price: 11.51 USD
Availability: PreSale

ITEM #: KNG-HHD1694A MFG #: HHD1694A

Kings Brand

List Price:

$12.09

Our Price:

$11.51

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

HHD1694A - Overview

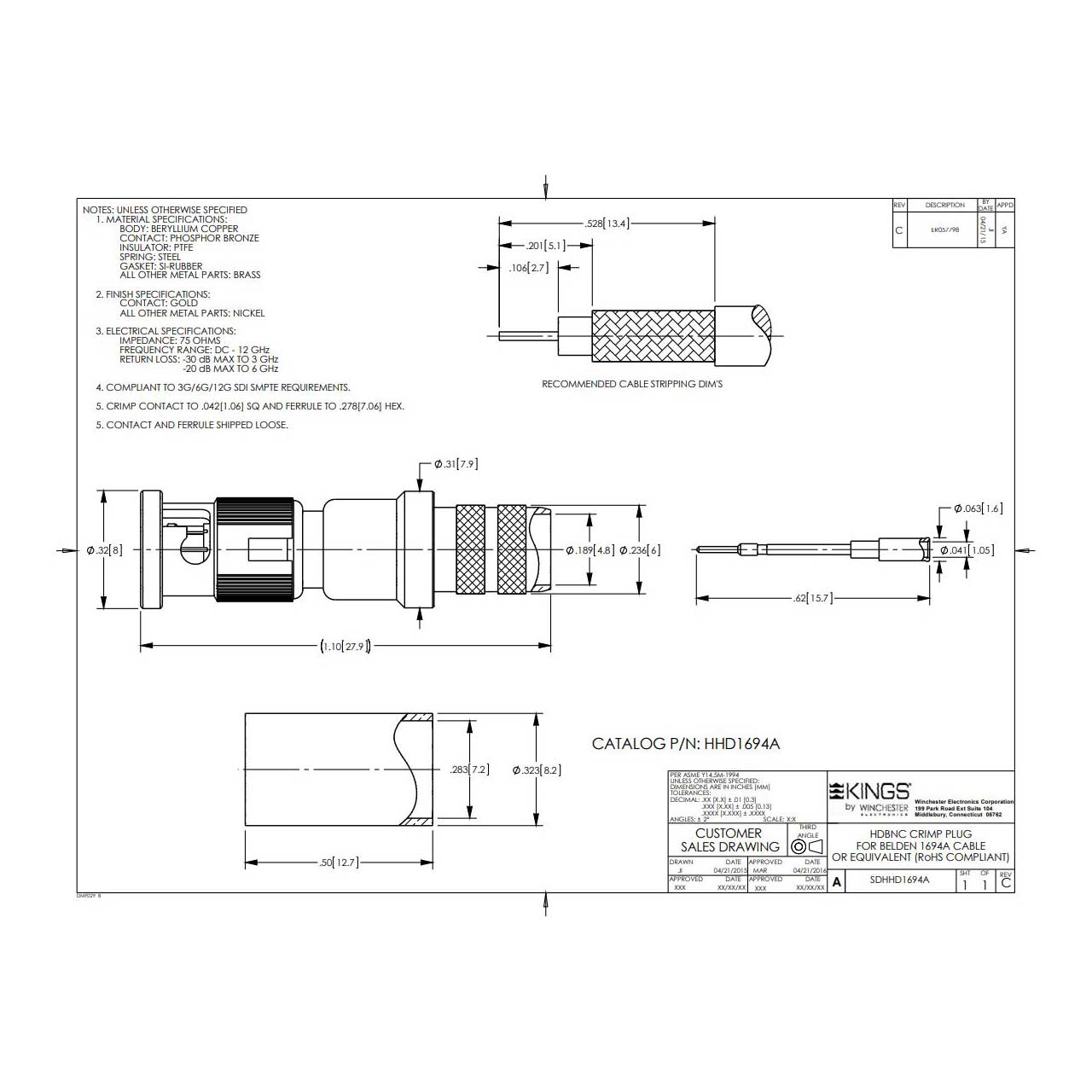

CRIMP CONTACT TO .042 SQ AND FERRULE TO .278 HEX

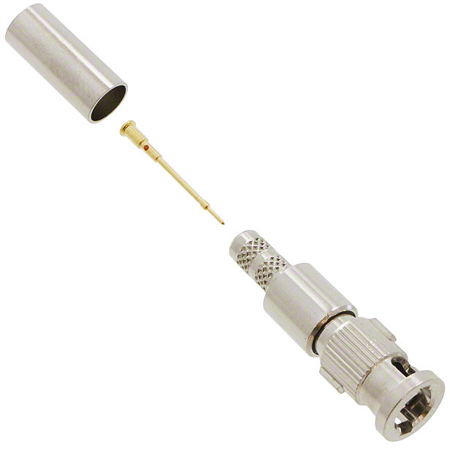

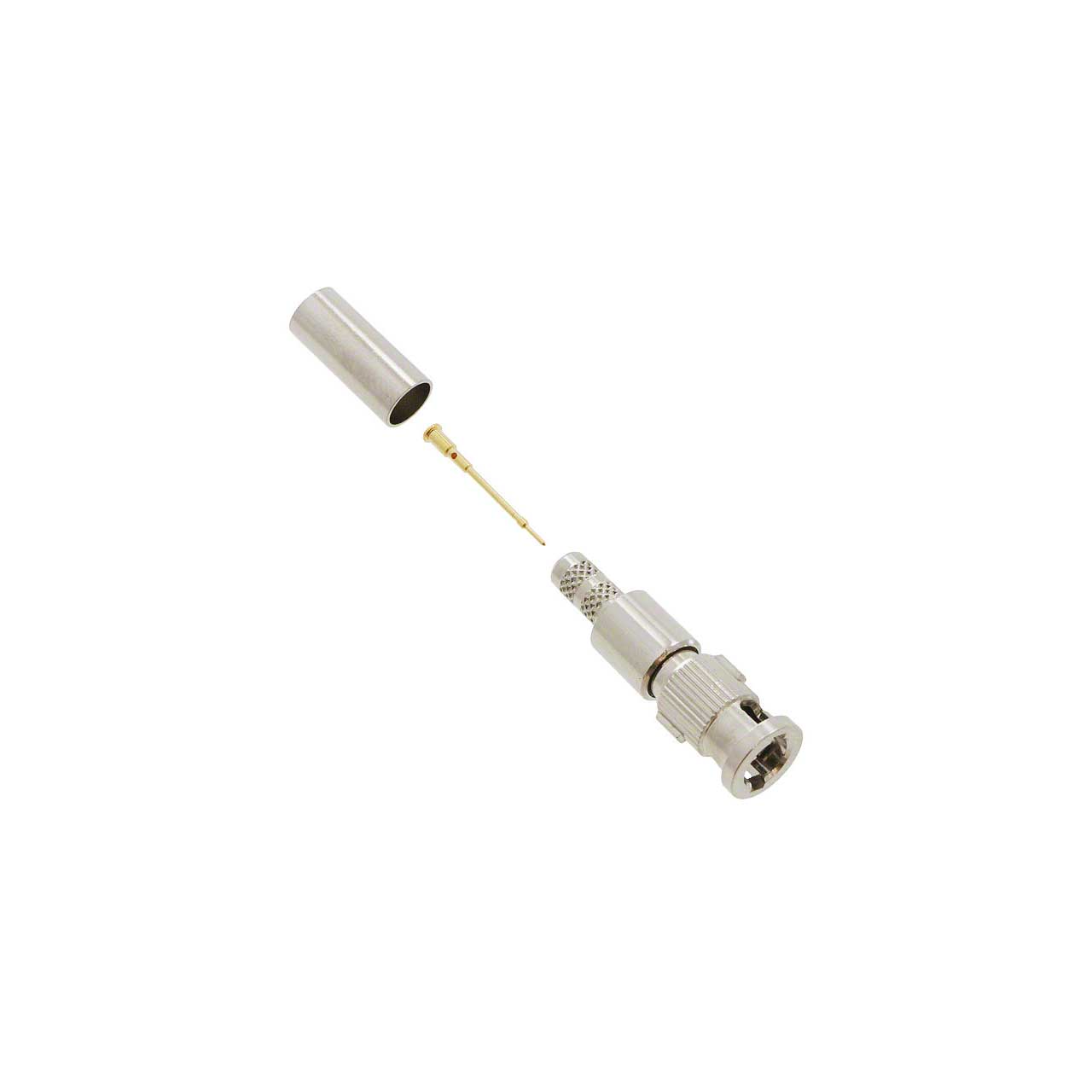

The Kings HHD1694A is a High Density Micro BNC (HD) male plug for use with Belden 1694A.The HHD BNC Series Connectors are miniaturized BNC connectors similar in size to DIN 1.0 / 2.3 connectors and feature a quick-connect/quick-disconnect interface. HHD BNC Series Connectors exceed SMPTE 424M-2006 (3G-SDI), optimized to achieve superior electrical performance for 6G-SDI and 12G-SDI single 4K coax channels.

Hex Die Size: .042 / .178

Specifications:
- Type: Plug
- Gender: Male
- Orientation: Straight
- Frequency: 4 GHz

  Electrical
- Impedance: 75 Ohms
- Frequency Range: DC - 12 GHz
- Return Loss:
  -30 dB Max to 3 GHz
  -20 dB Max to 6 GHz
  -10 dB Max to 12 GHz
- Dielectric Withstanding Voltage: 500 Volts
- Contact Resistance: Center: 5 Meg Ohms
- Outer: 2.5 Meg Ohms
- Insulation Resistance: 10,000 Meg Ohm

  Material
- Insulator Material: PTFE
- Body Material: Brass
- Body Finish: Nickel or Gold
- Contact Material: Male - Brass
- Female - Beryllium Copper

  Mechanical
- Mating: Bayonet Locking
- Braid / Jacket: Hex Crimp
- Center Contact: Solder / Crimp
- Connector Durability: 500 Mating Cycles Min
Item Includes:
- 1x Kings HHD1694A 75 Ohm HD-BNC Connector Male Plug for Belden 1694A
