Kramer 102MX 2 Channel Stereo Audio Mixer
  • Kramer 102MX 2 Channel Stereo Audio Mixer
  • Kramer 102MX 2 Channel Stereo Audio Mixer

Questions? Ask a Markertek Expert:
800-522-2025 Email

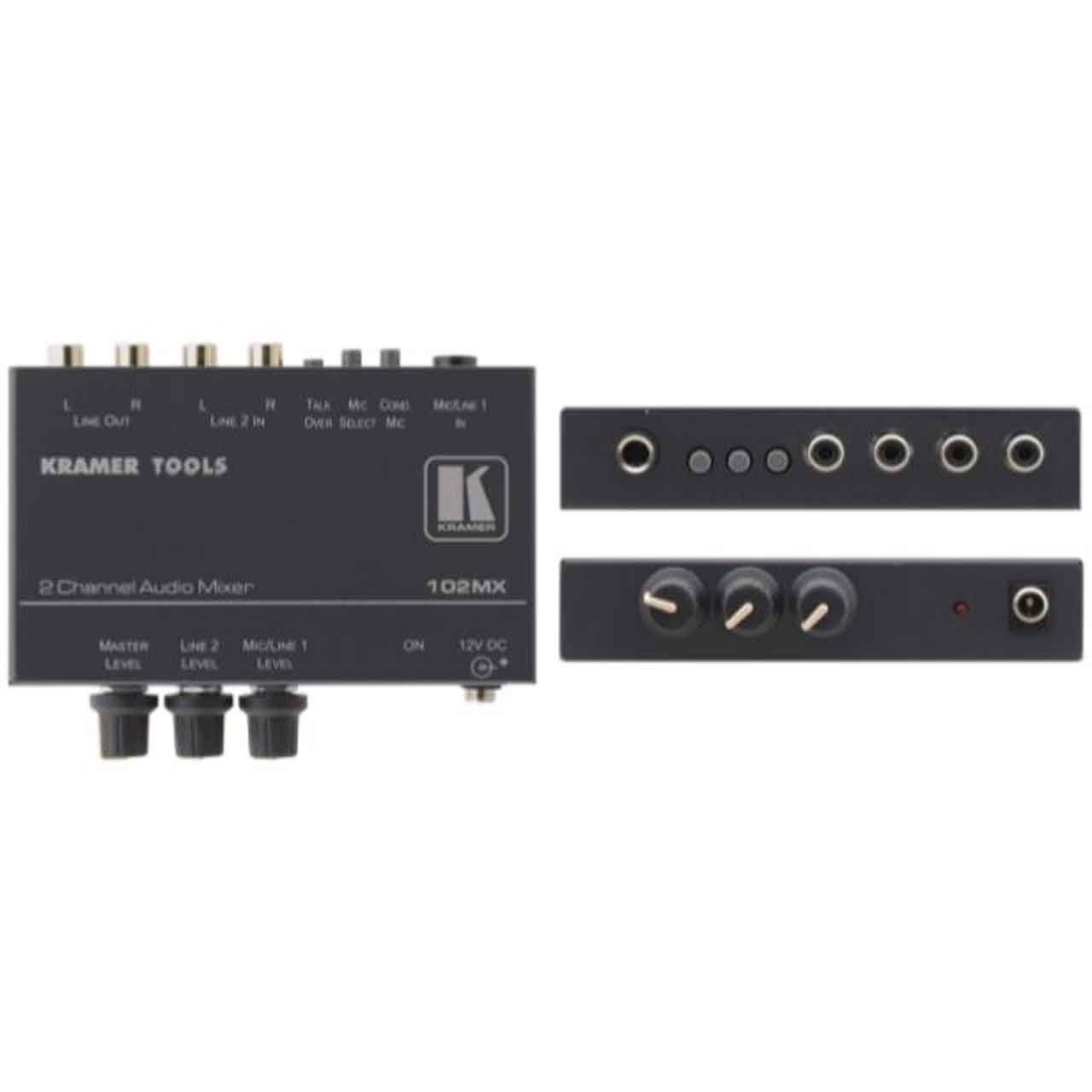

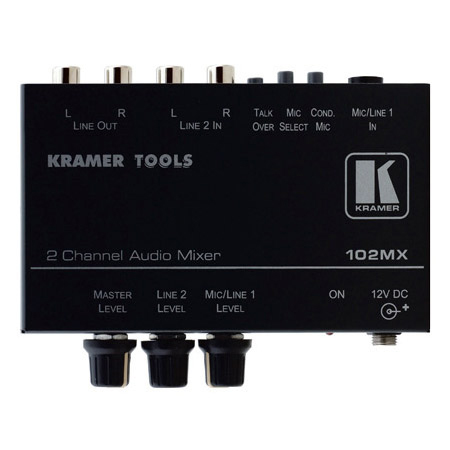

Kramer 102MX 2 Channel Stereo Audio Mixer

Manufacturer: Kramer

Item #: KR-102MX   •   MFG #: 102MX




Share!

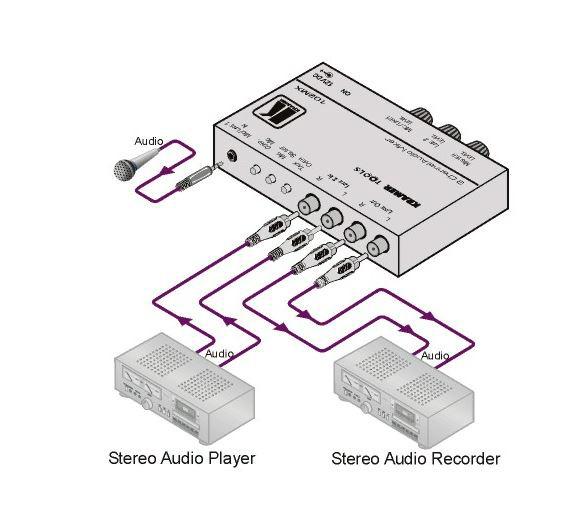

The Kramer 102MX is a high performance audio mixer for small studio and presentation applications. The 102MX mixes two audio signals - a stereo line level signal with either a monophonic microphone or a line level signal. The microphone can be either a Condenser or a dynamic mic, selectable by the user. A Talk-Over function may be enabled by the user, which will mute the line input when the microphone detects sound.

The 102MX has three controls - Mic/Line level, Line 2 Level and Master Level. A 12V power supply is included. The 102MX is part of the Kramer TOOLS family of compact, high quality, and cost effective solutions for a variety of applications.


  • Specifications

    • INPUTS: Mic/line 1: 10mV/1.6kΩ, 1Vpp/10kΩ, on a 6.5mm phone connector; Line 2: 1Vpp/10kΩ, stereo on RCA connectors.
    • OUTPUTS: Line level, stereo, up to 5.6Vpp/150Ω on RCA connectors.
    • BANDWIDTH (-3dB): 100kHz.
    • GAIN RANGE: -12dB to 68.5dB (mic); -12dB to +8.8dB (line).
    • DIFF. PHASE: 0.05Deg.
    • S/N RATIO: 69dB.
    • CONTROL: Mic/line 1 level, line 2 level, master level rotary controls, condenser/dynamic mic, line/mic, talkover selection switches.
    • AUDIO THD+NOISE: 0.018%.
    • 2nd HARMONIC: 0.002%.
    • POWER CONSUMPTION: 12V DC, 40mA.
    • DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H.
    • WEIGHT: 0.25kg (0.55lbs) approx.
    • ACCESSORIES: Power supply, mounting bracket.
    • OPTIONS: RK-3T 19” rack adapter.
